› 8-ch simultaneous fast charging
› Charge both 14.4V and 28.8V V-mount batteries
› 100W/6A for SWIT 14.4V & ≥160Wh batteries
› 100W/3A for SWIT 28.8V & ≥160Wh batteries
› 50W/3A for other batteries
› 2× 3.5-inch color LCD info display
› Battery cycle times display
› Large LED charging indicators
› Wall mounting or 19-inch rack install
8x100W Ultra Fast Wall Charger
MATRIX-S8 is an 8-ch simultaneous V-mount wall charger
with 100W ultra fast charging speed each channel, save up
to 60% charging time comparing to normal chargers,
supports both 14.4V and 28.8V batteries, for TV stations
and rental houses installation.
Charging time comparation
Flexible Wall Mounting Plate
MATRIX-S8 provides with a wall mounting plate on the
backside, to be screwed onto the wall, or mounting to
standard 19-inch rack bracket.
You can even install the mounting plate onto storage
rack or DIT cart.
3.5-inch Color LCD and Indicators
MATRIX-S8 provides 2x 3.5-inch color LCD to display charging
progress, charging current, voltage, battery cycle times for each
channel.You can also check the charging status by large charging
indicators from a distance.
Power | Max 900W |
Input | AC100V-240V 50/60Hz |
Output | DC 16.8V, 6A 100Wx8 (SWIT 14.4V & ≥160Wh batteries) DC 33.6V, 3A 100W×8 (SWIT 28.8V & ≥160Wh batteries) DC 16.8V, 3A 50W×8 (Other batteries) |
Applicable battery | V-mount battery |
Dimensions | 630×436×89mm |
Net weight | Net 10.6kg; With package 15.5kg |
MSRP
MSRP
MSRP
-

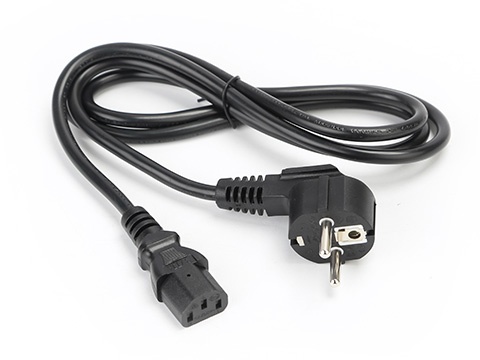

AC power cable
-
Install Plate
-
PB-R160S+
160Wh Heavy Duty IP54 Battery Pack
200W/16A load, IP54 waterproof, 1.5m drop-off proof, 6A fast charging
-
PB-R290S+
290Wh Heavy Duty IP54 Battery Pack
250W/20A load, IP54 waterproof, 1.5m drop-off proof, 6A fast charging
-
S-8183S+
270Wh High Load V-mount Battery Pack
High Load Li-ion cells with Max 250W, 20A constant output; D-tap DC output, LED power indicators
-
PB-C420S
420Wh Large Capacity V-mount Battery
250W constant high load, D-tapx2, 6A fast charger, 5-level power indicators
-
HB-C420S
500W High Load 420Wh V-mount Battery
28.8V Voltage, 500W Constand Load for high power cine lights
-
PB-S290S
290Wh Multi-sockets Digital Battery Pack
Compact designed for Cine-cameras, 4x D-tap, 1x USB, OLED displays remaining time
-
PB-R220S+
220Wh Heavy Duty IP54 Battery Pack
200W/16A load, IP54 waterproof, 1.5m drop-off proof, 6A fast charging
1. Warranty Period
We provide 2 years conditional warranty for battery chargers.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliant Charging Objects
Use of the charger to charge non-original SWIT batteries or uncertified third-party batteries.
(2) Non-Compliant Power Supply and Operation
Use of mismatched power supply, input voltage exceeding the rated range of AC 100V–240V, power input exceeding the rated capacity, prolonged overcharging, or operation under no-load conditions.
(3) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly or repair; failure to operate the charger in accordance with the prescribed procedures, resulting in damage or safety hazards.
(4) Misuse and Physical Damage
Unauthorized modification, dropping, impact, collision, water immersion, exposure to high temperatures or humid environments, or any other non-normal use not in accordance with the product's intended design.
(5) Use of Damaged or Defective Charger
Continued use of a charger that is damaged, malfunctioning, or exhibiting abnormal overheating without prompt discontinuation.
(6) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(7) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(8) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
