PB-C420S 420Wh Large Capacity V-mount Battery

› 14.4V, 420Wh/29.4Ah large capacity

› 250W/20A constant load, 305W peak load

› 100W/6A fast charging support

› 2x D-tap power sockets, 150W load

› 5-LED digital power indicators

› SONY/RED viewfinder power info display

› Multiple circuit protections

Features

ONE BATTERY, ONE DAY

PB-C420S reaches the world’s largest capacity: 420Wh of handheld V-mount battery, long time power supply for cameras, monitors, lights and many power hungry devices of broadcast and film industry.

14.4V, 420Wh, 2x D-tap

PB-C420S consists of 24pcs Li-ion cells, 14.4V nominal voltage, 420Wh, 29.4Ah large capacity, and provides with 2x D-tap sockets at left and right side, for camera-top devices.

250W Constant High Load

PB-C420S outputs at least 250W/20A high load even at 1% capacity (Peak load up to 305W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 24A.

100W 6A Fast Charging

PB-C420S supports 100W/6A fast charging to save more than 50% charging time. The 420Wh battery can be charged from 0 to 80% after 3.9 hours, and fully charged within 5.3 hours.

Reliable SWIT Quality

The PB-C420S internal controller supports multiple protection circuit, to detect any abnormal conditions includes over load, over charging, over discharging, high temperature, short circuit, etc, and actively protect the devices from potential safely issue. SWIT battery will always be your reliable choice.

Nominal Voltage

14.4V

Capacity

420Wh/29.4Ah

Power Load

250W / 20A constant, 305W peak

Charging

DC 16.8V, 6A

D-tap

2x D-tap 150W/10A in total

Mount Type

V-mount

Charging Temperature

0-40°C
      Discharging Temperature-20°C-50°C (Capacity and Max Load may decrease when operating below 0°)

Net weight

Net 2.07kg; With package2.15kg

Dimensions

155×101×80mm
Basic Package

MSRP

MSRP

MSRP

  • PB-H290S

    290Wh Intelligent Bi-voltage Battery Pack

    14.4V/28.8V auto recognition and switching, for Alexa LF and all other normal cameras and chargers, 6A fast charging, 250W high load, 1.5m drop-off proof

    $8222
  • PB-S220S

    220Wh Multi-sockets Digital Battery Pack

    Compact designed for Cine-cameras, 4x D-tap, 1x USB, OLED displays remaining time

    $8222
  • S-8180S

    220Wh High Load V-mount Battery Pack

    High Load Li-ion cells with Max 200W, 16A constant output; D-tap DC output, LED power indicators

    $8222
  • PC-P430S

    4-ch V-mount Fast Charger

    3A×4 fast charging current; AC-DC adapter output, LED charging indicators

    $8222
  • S-3822S

    2-ch V-mount Fast Charger

    2-ch simultaneous charging, 3A fast charging, Portable, support AC-DC adaptor output

    $8222
  • S-3812S

    2-ch V-mount Super Fast Charger

    2-ch simultaneous charging, Max 6A fast charging, support AC-DC and Battery-DC adaptor output, LCD display working status

    $8222
  • PC-U130B2

    Portable Dual D-tap Heads Fast Charger

    Ultra portable 3A charging via battery D-tap sockets

    $8222
  • PB-R160S+

    160Wh Heavy Duty IP54 Battery Pack

    200W/16A load, IP54 waterproof, 1.5m drop-off proof, 6A fast charging

  • PB-R290S+

    290Wh Heavy Duty IP54 Battery Pack

    250W/20A load, IP54 waterproof, 1.5m drop-off proof, 6A fast charging

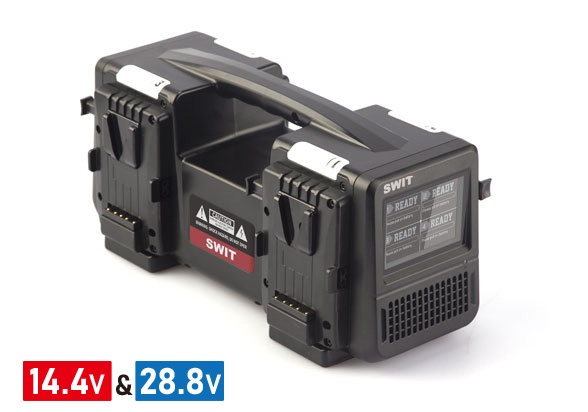

  • PC-P461S
