› 4-ch simultaneous charging
› 6A charging for SWIT ≥160Wh batteries
› 3A charging for other batteries
› 3.5-inch color LCD info display
› Top large charging indicators

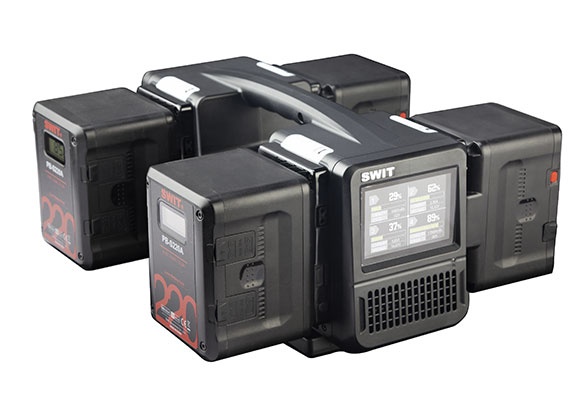

4x6A Super Fast Charger
PC-P461A can charge 4 Gold mount batteries simultaneously at Max 6A fast charging current, save up to 60% charging time comparing to normal chargers.
SWIT over 160Wh batteries support 6A fast charging:
PB-R160A, PB-R290A, PB-S220A, S-8183A, S-8180A, S-8113A;
And for other batteries, the charging current will limit to 3A.
Charging Time Comparation

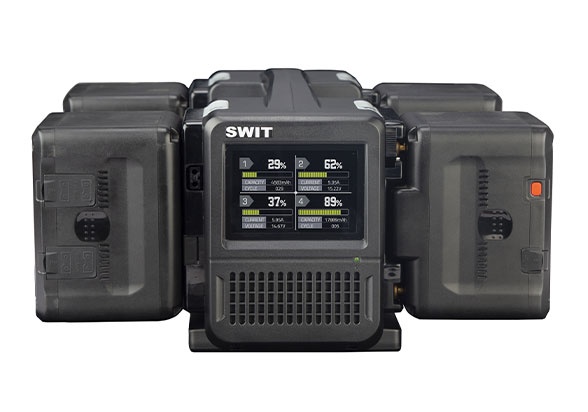

3.5-inch Color LCD Display
PC-P461A provides a 3.5-inch color LCD panel to display charging progress, charging current and voltage.
Top Charging Indicators
Besides LCD screen info, you can check the charging status at a glance by the 4 large size indicators on the top of the charger.
Red on: 0-80%
Green flashing: 81%-99%
Green on: 100% fully charged
Red flashing: Charging error, check LCD info

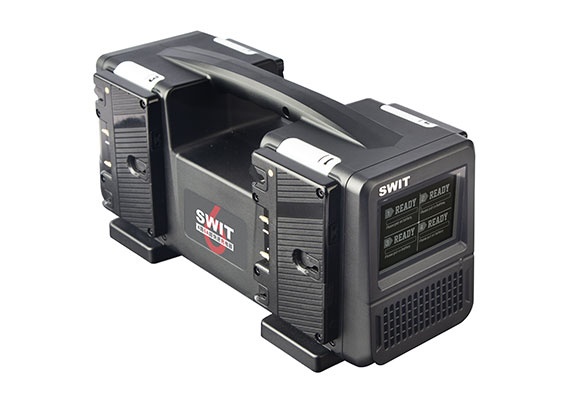

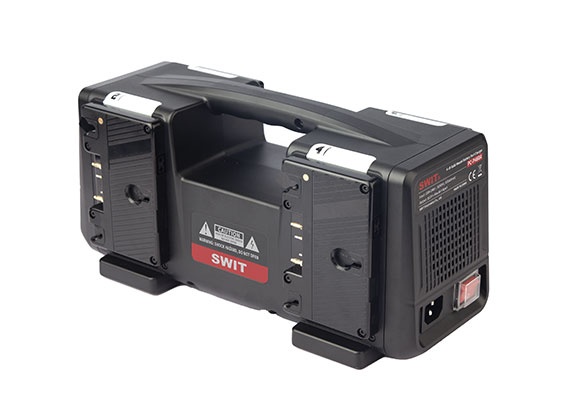

Light Weight and Portable
The 4 channel fast charger PC-P461A has minimized
the size and weight, and the new handle design makes
the charger solid and easy to carry.
DC 16.8V, 6Ax4 for SWIT ≥160Wh batteries
DC 16.8V, 3A×4 for other batteries
Gold mount battery
|Net 2.43kg; With package 3.3kg|
270Wh High Load Gold Mount Battery Pack
High Load Li-ion cells with Max 250W, 20A constant output; D-tap DC output, LED power indicators
160Wh Heavy Duty Battery Pack
200W/16A load, 1.5m drop-off proof, 6A fast charging
290Wh Heavy Duty Battery Pack
250W/20A load, 1.5m drop-off proof, 6A fast charging

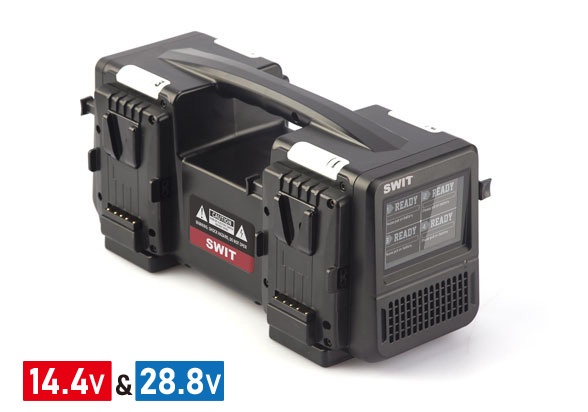

4x100W Super Fast V-mount Charger
