S-8113A 160Wh Gold Mount Battery Pack

›  Li-ion, 14.4V, 160Wh large capacity

›  At least 200W, 16A constant load

›  D-tap output socket

›  4-level LED power indicator

›  Gold mount type connection

›  Multiple circuit protections


Features

Adopt High-Load Li-ion Cells

Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries can not draw completely.
Using S-8113A high-load battery, you can get MAX 200W/16A constant power output, which can drive more high power camer- as, lightings and other equipments easily, and won’t reduce bat- tery life during long time high power output.

160Wh / 11.1Ah High Capacity

Consists of 16pcs 18650 battery cells, and reaches 160Wh/11.1Ah high capacity.
Run approx 5 hours for normal 30W ENG cameras.

6A Fast Charging

S-8113A supports 6A fast charging, to save more than 50% charging time, can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8113A battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

4-level LED Power Indicator

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

无标题文档

Nominal Voltage

14.4V

Capacity

160Wh/11.1Ah

Max output power

In total:200W

Electrodes:200W,16A
D-tap:120W,10A

Mount Type

Gold mount

Charging Temperature

0-40°C
     Discharging Temperature-20°C-50°C(Capacity and Max Load may decrease when operating below 0°

Net weight

Approx 0.9kg

Dimensions

165×90×53mm
Basic Package

MSRP

$8222

MSRP

MSRP

  • S-7200S

    V-mount plate with Clamp

    V-mount plate with clamp to install on C-stand / light tripod, D-tap power output

    $8222
  • S-8183S

    240Wh High Load V-mount Battery Pack

    High Load Li-ion cells with Max 250W, 20A constant output; D-tap DC output, LED power indicators

    $8222
  • S-8083A

    130Wh Gold Mount Battery Pack

    Adpot high performance Li-ion battery cells with intelligent safety protection circuit; D-tap output, LED power indicators

    $8222

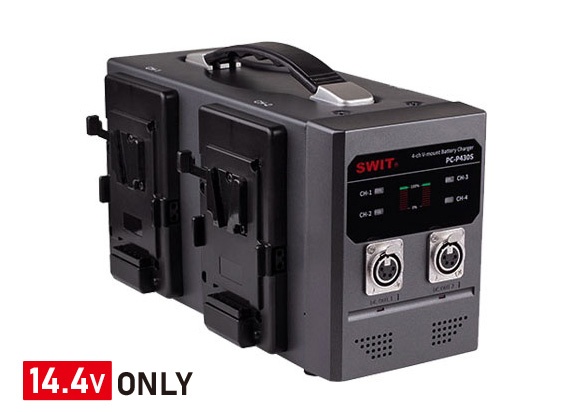

  • PC-P430S

    4-ch V-mount Fast Charger

    3A×4 fast charging current; AC-DC adapter output, LED charging indicators

    $8222
