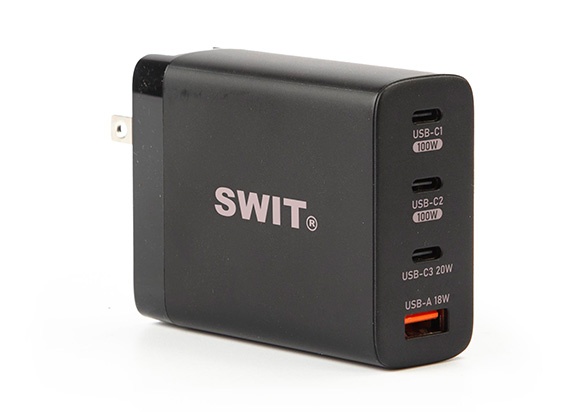

UC-100 100W PD3.0 USB-C/A GaN Travel Charger
› Mini size GaN 100W power adaptor
› AC 100-240V 50/60Hz input
› 2x USB-C PD3.0 100W output
› 1x USB-C 5V/9V/12V 20W output
› 1x USB-A 5V/9V/12V 18W output
› Support to power SONY PXW-Z300
› Charge camera batteries with USB-C
› Charge high power laptops with USB-C
› Charge various smart devices with USB-C
› US/EU/UK/AU interchangeable travel plugs
› Provide 1x USB-C to C cable

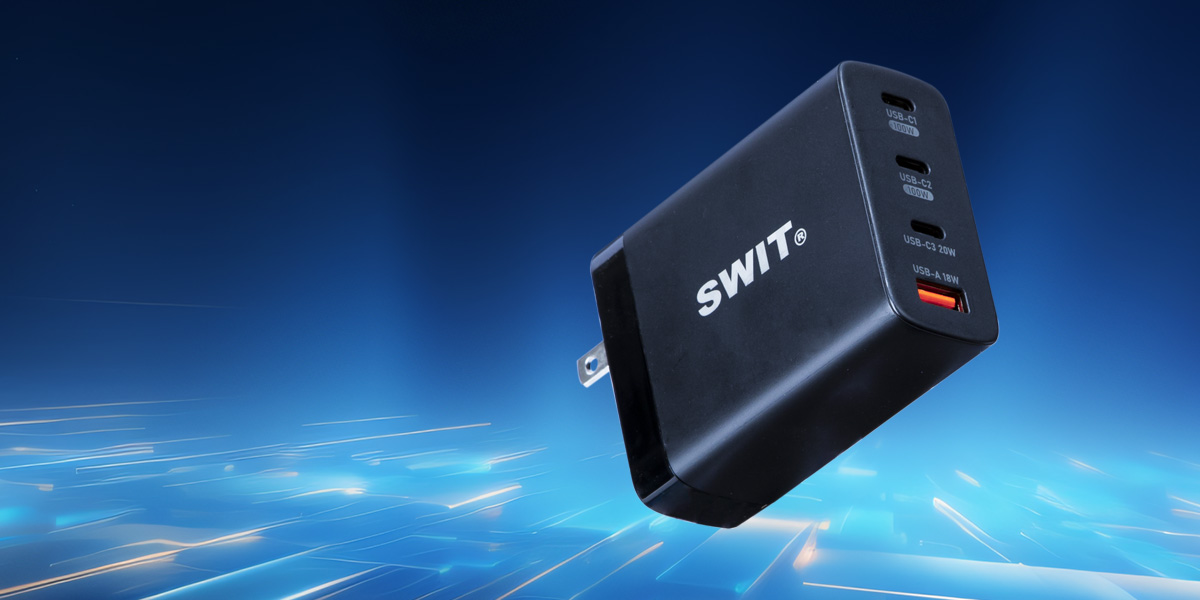

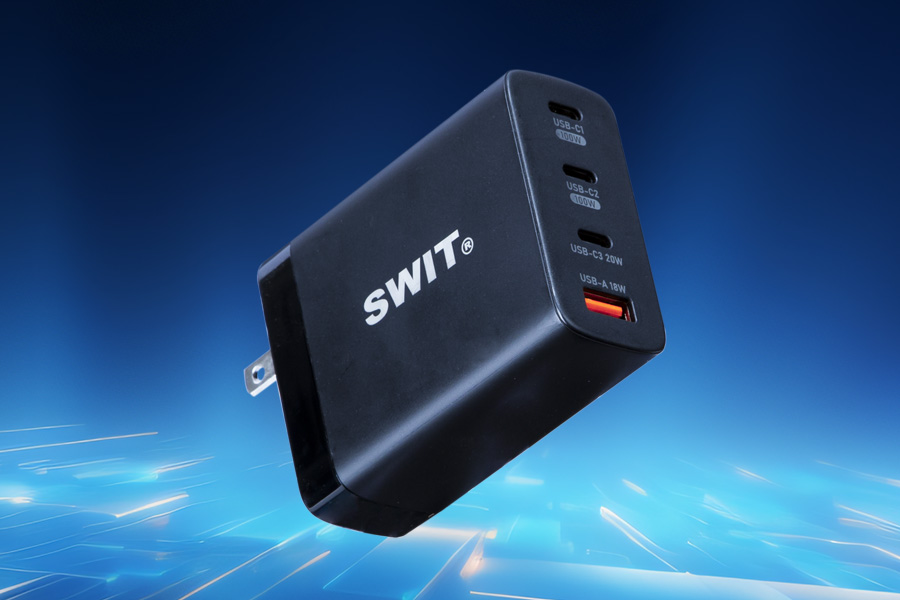

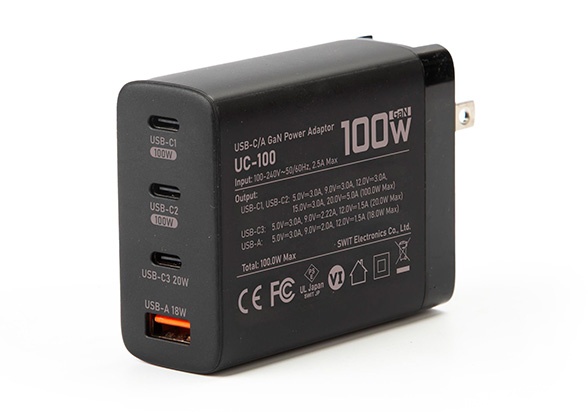

100W PD3.0 GaN Charger
UC-100 is a 100W PD3.0 USB-C & A multi sockets travel charger with GaN (Gallium Nitride) tech which is physically smaller and lighter weight than regular silicon chargers, and able to conduct far higher power and keeps heat to a minimum.

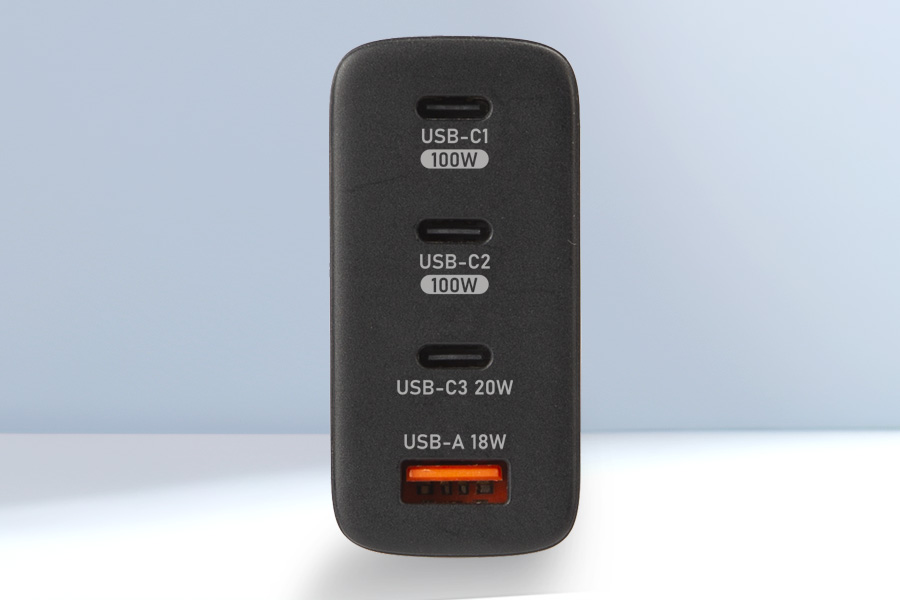

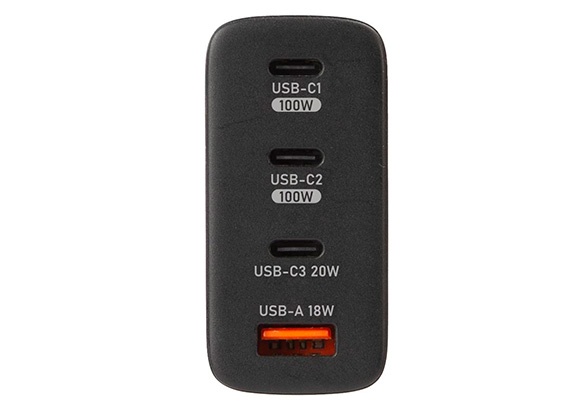

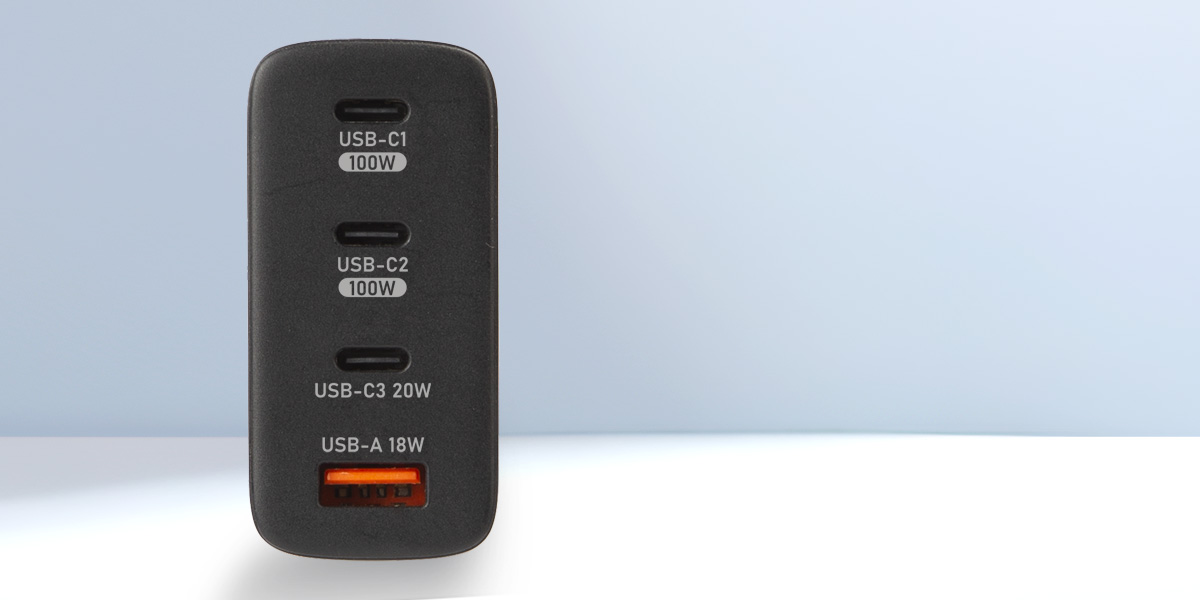

3× USB-C & 1×USB-A, 100W Max
The UC-100 charger supports AC100-240V in, and provides
3x USB-C and 1× USB-A ports simultaneous out, Max 100W.
USB-C1 & C2: PD3.0 Max 20V/5A 100W output
USB-C3: 5V/9V/12V Max 20W output
USB-A: 5V/9V/12V Max 18W output

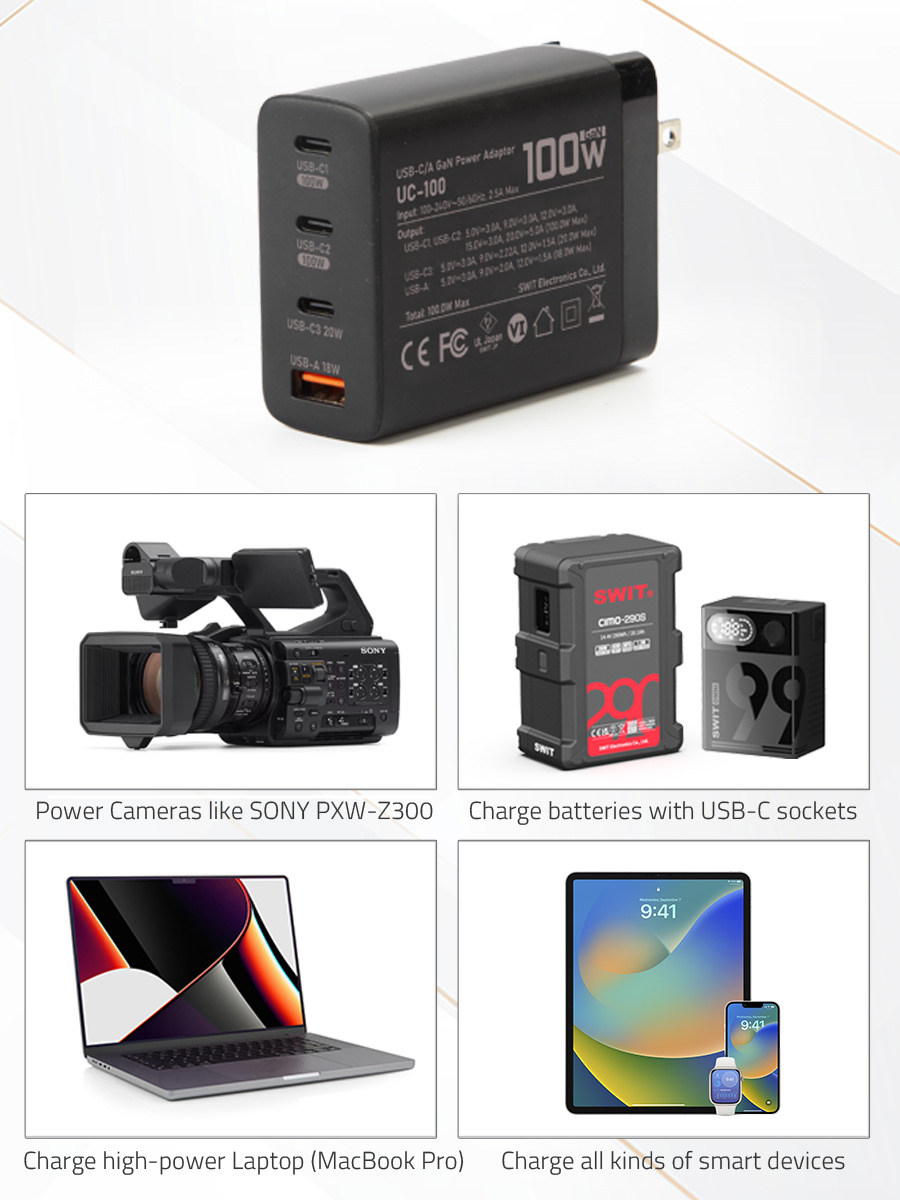

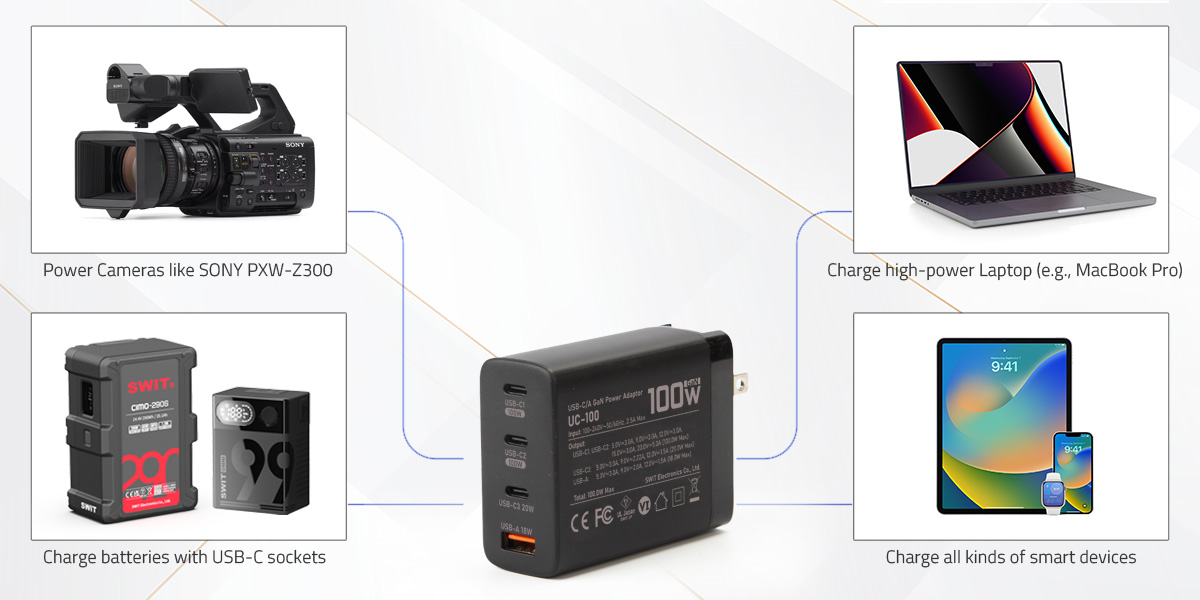

Versatile Applications
With 100W PD3.0 outputs, the UC-100 can power the cameras like SONY PXW-Z300, and charge camera batteries with USB-C port, and charge laptops, tablets and all kinds of smart devices, providing convenient power supply for a wide range of equipment on set.

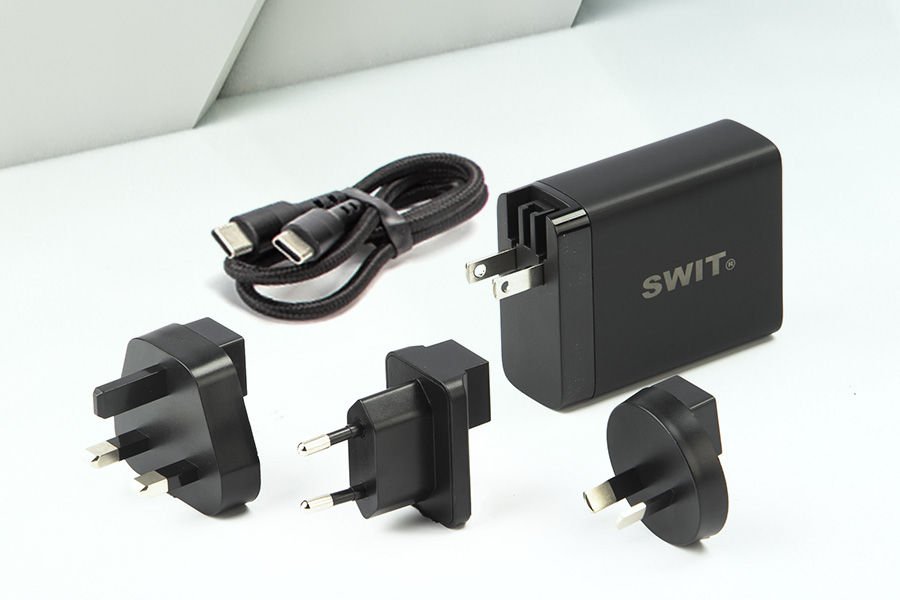

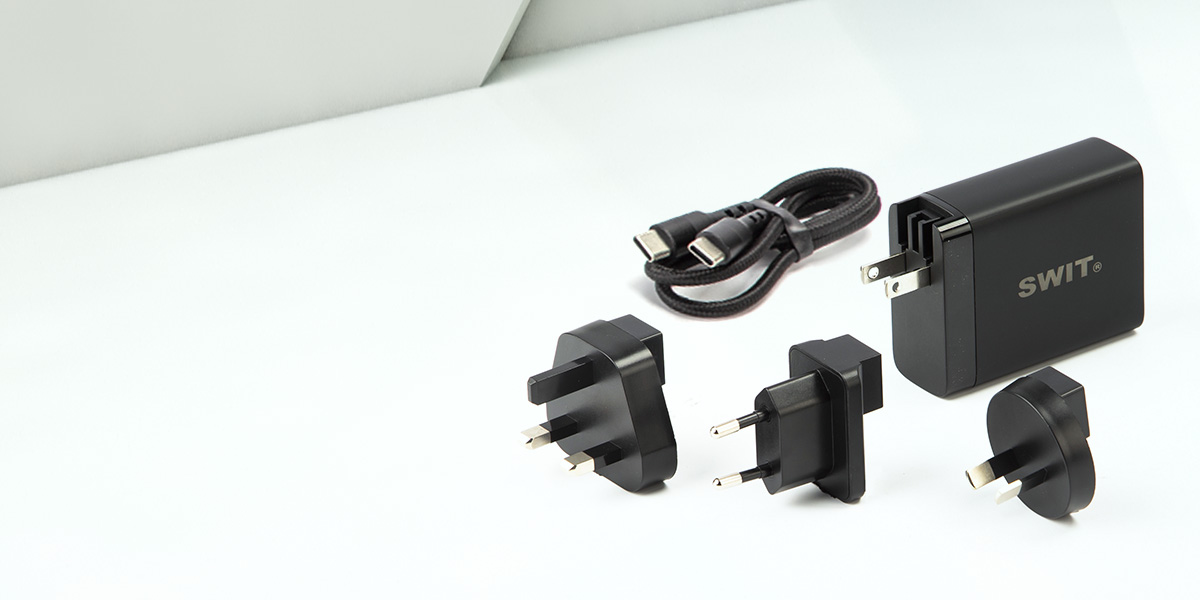

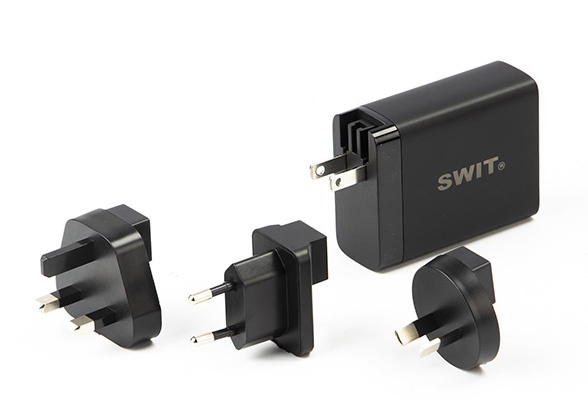

International Plugs Provided
UC-100 has a foldable US standard plug, and comes
with conversion accessories for UK, Euro and
Australia standards. It features a snap-in design for
quick installation and replacement, wide range AC
100-240V inputs, highly convenient for global travel
charging. A USB-C to C fast-charging cable is also
included.
Model | UC-100 |
AC Input | AC 100V-240V 2.5A Max, 50/60Hz |
USB-C1 out | PD3.0, 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A Max 100W |
USB-C2 out | PD3.0, 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A Max 100W |
USB-C3 out | 5V/3A, 9V/2.22A, 12V/1.5A Max 20W |
USB-A out | 5V/3A, 9V/2A, 12V/1.5A Max 18W |
Working Environment | Temp -10°C to 40°C; Humidity 10%RH to 90% RH |
Storage Environment | Temp -10°C to 85°C; Humidity 10%RH to 90% RH |
Dimension | 76mm × 60mm × 29mm charger only |
Weight | Net 0.27g; With package 0.3kg |
MSRP
MSRP
MSRP
-

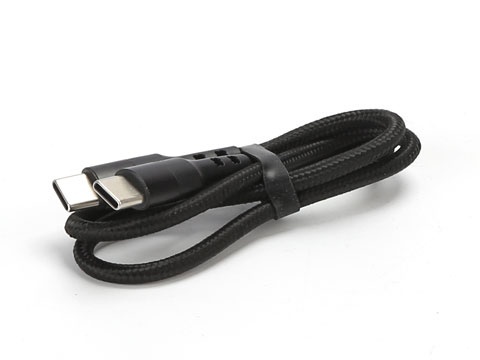

USB-C to C cable
-

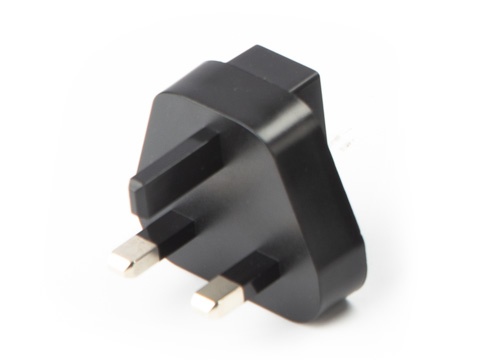

UK plug
-

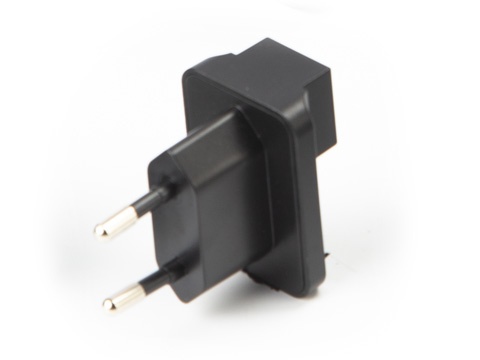

Euro plug
-

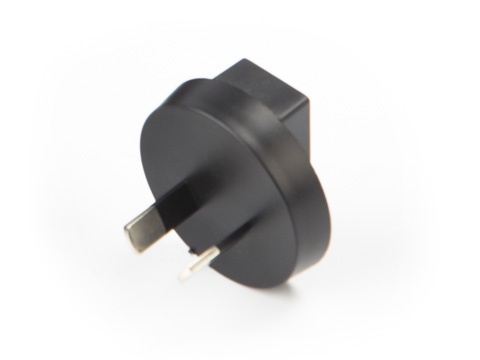

Australia plug
-
MINO-S140
140Wh Pocket V-mount Battery Pack
USB-C 48W in, 65W out, 150W/12A high load, D-tap, wire-free internal tech
-
HB-A290B
290Wh 28.8V B-mount Battery Pack
ALEXA35/ALEXA 265/Blackmagic URSA Cine battery, 250W/10A high load, D-tap 16V x2, USB-C 60W in&out, OLED power info
-
LB-SU90C
SONY BP-U Series Battery Pack
90Wh, with D-tap and USB-C 45W in and out, SONY Z380/Z280, FX6/FX9, HXR-NX800, Blackmagic PYXIS, etc
-
CIMO-160S
160Wh USB-C OLED info Cine V-mount Battery
USB-C 65W, OLED remaining time display, 200W/16A high load, D-tap×2, 1.2m drop proof
-
CIMO-200S
196Wh USB-C OLED info Cine V-mount Battery
USB-C 65W, OLED remaining time display, 200W/16A high load, D-tap×2, 1.2m drop proof
-
CIMO-290S
290Wh USB-C OLED info Cine V-mount Battery
USB-C 65W, OLED remaining time display, 250W/20A high load, D-tap×2, 1.2m drop proof
-
OMNI-50S
50Wh USB-C Info Pocket V-mount Battery
USB-C 65W, D-tap×1, Pole-tap 8.4V out, Remaining Runtime Display
-
OMNI-99S
99Wh USB-C Info Pocket V-mount Battery
USB-C 65W, D-tap×1, Pole-tap 8.4V out, Remaining Runtime Display, 150W/12A high load
-
UC-2065
65W USB-C/A GaN Travel Charger
Ultra portable, with US/EU/UK plugs for travel, charge camera batteries, laptop and smart devices
-
CIMO-D290S
290Wh Bi-Voltage OLED info Cine V-mount Battery
14.4V/28.8V auto switch by Magnetic Sticker, 250W high load, 2×D-tap 11-16.8V, 1.2m drop proof
-
EN-EL15c
PowerCell Nikon EN-EL15c type camera Battery
Premium enduring Cells inside, USB-C charging, 4-LED power indicators
-
NP-FZ100
PowerCell SONY NP-FZ100 type camera Battery
Premium Enduring Cells inside, USB-C charging, 4-LED power indicators
-
NP-W235
PowerCell Fujifilm NP-W235 type camera Battery
Premium Enduring Cells inside, USB-C charging, 4-LED power indicators
-
LP-E6P
PowerCell Canon LP-E6P type camera Battery
Premium Enduring Cells inside, USB-C charging, 4-LED power indicators
-

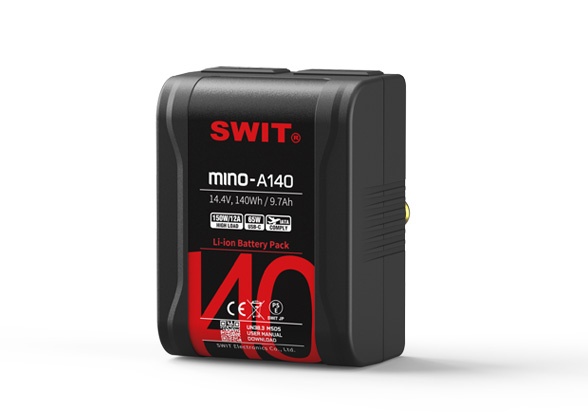

MINO-A140
140Wh Pocket Gold Mount Battery Pack
USB-C 48W in, 65W out, 150W/12A high load, D-tap, wire-free tech
-

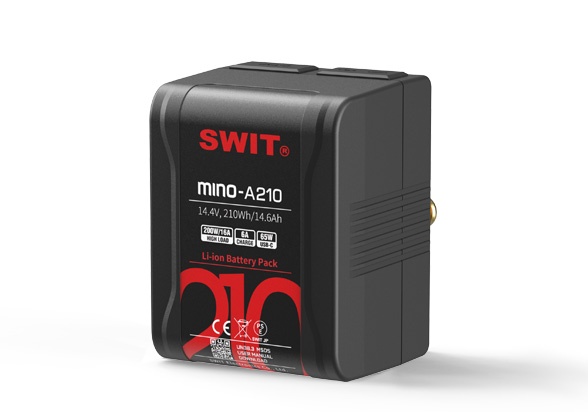

MINO-A210
