S-8183S 240Wh High Load V-mount Battery Pack

› High-load Li-ion cells

› At east 180W, 15A constant load

› 14.4V, 240Wh capacity

› D-tap output socket

› 4-level LED power indicator

› V-mount connection

› Multiple circuit protections


Features

High-Load Li-ion Cells

At least 180W, 15A constant power output

Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries can not draw completely.
Using S-8183S high-load battery, you can get at least 180W/15A con stant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life during long time high power output.

240Wh/16.7Ah High Capacity

Consists of 24pcs 18650 battery cells, and reach 240Wh/16.7Ah high capacity.
Can run approx 8 hours for normal 30W ENG cameras; and approx 2.5 hours for ARRI Alexa camera

6A Fast Charging

S-8183S supports 6A fast charging, to save more than 50% charging time, can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8183S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

4-level LED Power Indicator

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

无标题文档

Nominal Voltage

14.4V

Capacity

240Wh/16.7Ah

Max output power

180W

Max output current

15A

Mount Type

V-mount

Operation Temperature

0-40°C

Net weight

Approx 1.3kg

Dimensions

165×90×66mm
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

  • S-8113S

    160Wh V-mount Battery Pack

    High Load Li-ion cells with Max 150W, 12A constant output; D-tap DC output, LED power indicators

    $8222
  • S-8183A

    240Wh High Load Gold Mount Battery Pack

    High Load Li-ion cells with Max 180W, 15A constant output; D-tap DC output, LED power indicators

    $8222
  • S-8113A

    160Wh Gold Mount Battery Pack

    High Load Li-ion cells with Max 150W, 12A constant output; D-tap DC output, LED power indicators

    $8222
  • PC-P430S

    4-ch V-mount Fast Charger

    4-ch simultaneous charging with 3A fast charging current; LED charging indicators

    $8222
  • PC-U130S

    Portable V-mount Battery Charger

    Ultra portable single channel 3A charging, attached to V-mount battery pins

    $8222

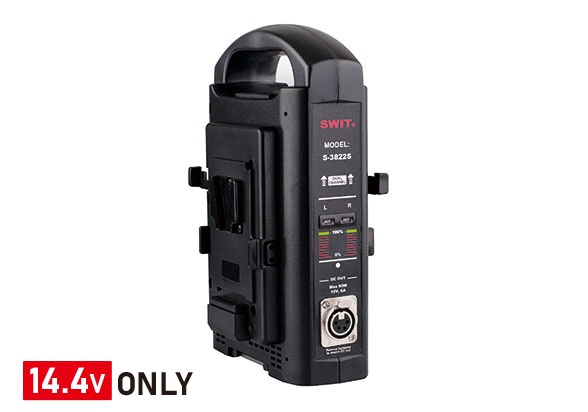

  • S-3822S

    2-ch V-mount Fast Charger

    2-ch simultaneous charging, 3A fast charging, Portable, support AC-DC adaptor output

    $8222

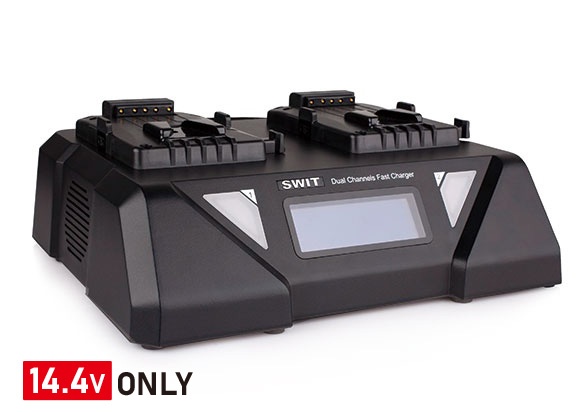

  • S-3812S

    2-ch V-mount Super Fast Charger

    2-ch simultaneous charging, Max 6A fast charging, support AC-DC and Battery-DC adaptor output, LCD display working status

    $8222
  • PC-U130B2

    Portable Dual D-tap Heads Fast Charger

    Ultra portable 3A charging via battery D-tap sockets

    $8222
  • S-7000S

    V-mount Battery Plate

    Metal back plate and open end wires; D-tap DC socket

    $8222
  • S-7005S

    Gold mount to V-mount battery Adaptor

    Adapt V-mount batteries to Panasonic gold mount cameras; D-tap DC socket

    $8222
  • S-7104

    D-tap to Pole-tap DC Cable

    Pluged into D-tap socket and output DC via 5.5mm pole-tap

    $8222
  • S-7101

    D-tap to 4-pin XLR DC Cable

    Pluged into D-tap socket and output DC via 4-pin XLR connector

    $8222
  • S-7100S

    V-mount to 4-pin XLR DC Cable

    Attached to V-mount battery pins and output DC via 4-pin XLR connector

    $8222
