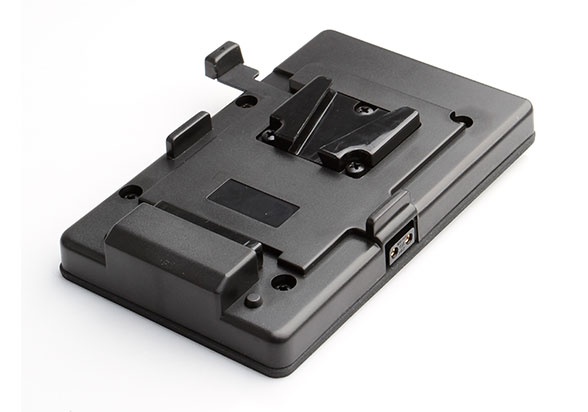

S-7000S V-mount Battery Plate
› To adapt V-mount power solutions
› Build-in D-tap DC output socket
› Open-end wires for customer connection
› Rear metal plate for installation
V-mount Battery Application
S-7000S is the standard V-mount battery plate for customers to adapt V-mount power solutions. The structure and power pins ensure a stable and reliable connection.
D-tap Output Socket
The S-7000S battery plate is equipped with a D-tap DC output socket, for simultaneous DC power output with the V-mount pins.
Open-end Wires
S-7000S provides the open-end wires and rear metal plate for customer connection and installation.
Applicable battery | V-mount battery |
Output voltage | Battery voltage (unregulated) |
Dimensions | 136×102×15mm |
weight | 0.26kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
We provide a 1-year conditional warranty, and the following damages/issues are not covered under warranty:
(1) Any damage or malfunction caused by use, maintenance, or installation not in accordance with the User Manual's instructions, including improper battery insertion or removal, incorrect polarity connection, exposure to moisture or conductive debris, or disassembly/repair without authorization of SWIT.
(2) Any damage caused by using third-party batteries, power sources, or accessories that do not comply with the recommended electrical specifications (e.g., voltage, current, or contact pin configuration), including but not limited to electrode overheating, melting, arcing, or short circuits resulting from incompatible battery design or poor battery quality.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning, flood, etc.) or human factors including dropping the plate, impact damage, forced battery removal at incorrect angles, or insertion of damaged or deformed batteries.
(4) Any damage or malfunction not caused by the product's design, workmanship, or manufacturing quality — including normal wear and tear of spring-loaded electrodes, contact pins, locking mechanisms, or surface finish scratching.
(5) Electrode breakage, bending, or deformation resulting from violent use, excessive force during battery attachment or detachment, or improper alignment of the battery onto the plate is specifically excluded from warranty coverage. This includes snapped, crushed, or pushed-in contact pins caused by user mishandling.
(6) Electrical or thermal damage (including melted plastic around electrodes, burnt contacts, or discoloration from heat) that is determined to be caused by a third-party battery's internal short circuit, over-current draw, overheating, or defective connector design shall not be covered under this warranty. Such conditions are the responsibility of the battery manufacturer.
