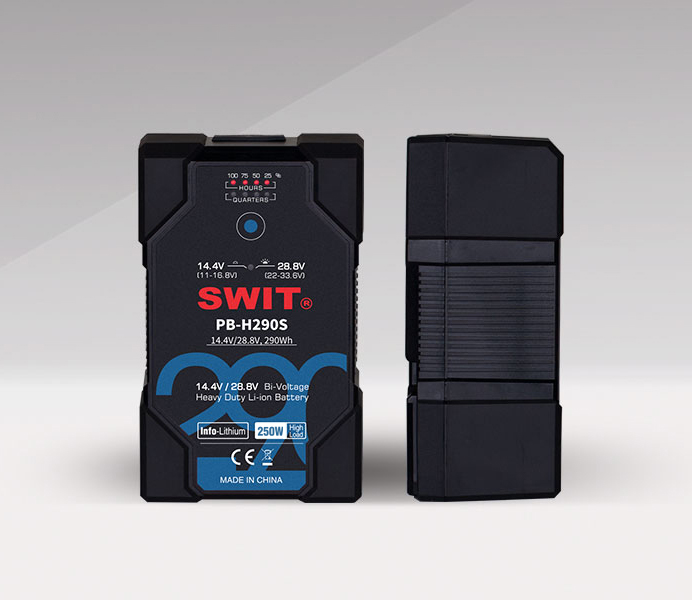

PB-H290S 290Wh Intelligent Bi-voltage Battery Pack

› 14.4V/28.8V Bi-voltage auto switch

› For ALEXA LF/65 high voltage cameras

› For all normal voltage cameras

› For high voltage cine lights

› Compatible with normal voltage chargers

› 290Wh capacity, at least 250W high load

› 6A fast charging support

› 8-LED remaining time indicators

› D-tap power output socket

› Normal V-mount connection

› 1.5m drop-off proof, IP54 water proof

› Multiple circuit protections


Features

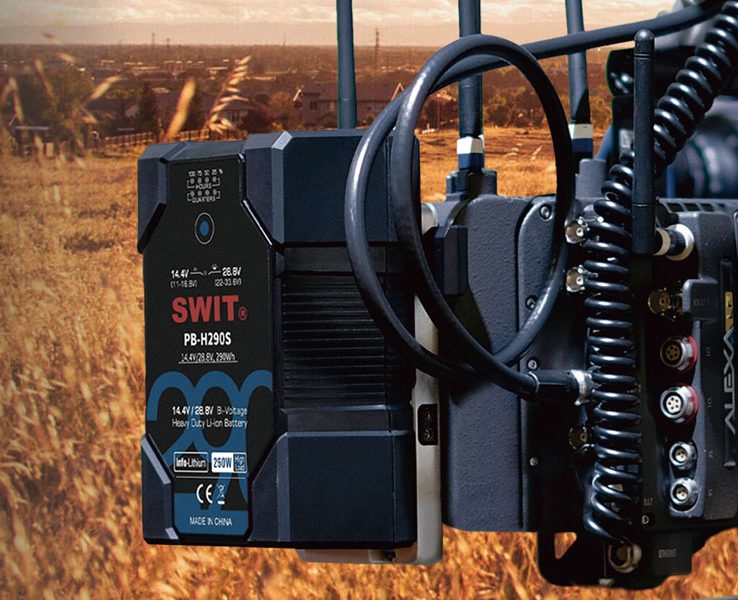

14.4V/28.8V Bi-Voltage

For ALEXA LF/65 and all normal cameras

The great solution to power ARRI Alexa LF/65 high voltage cameras: SWIT Intelligent Bi-voltage Battery, which can output both 11-16.8V normal voltage and 22-33.6V high voltage, with auto recognition and switching by the dedicated V-mount plate, compatible with Alexa LF/65 and all other normal cameras and devices, with no risk of misusing.

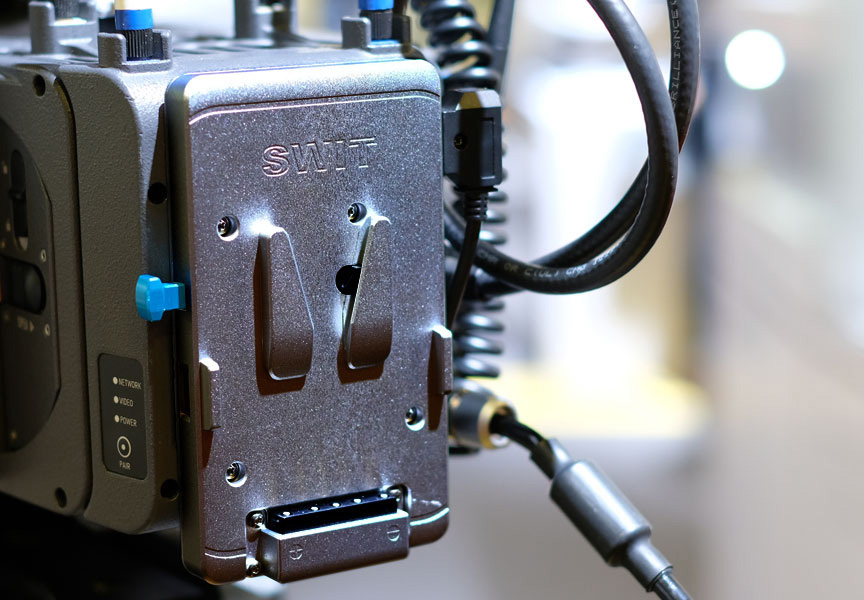

14.4V/28.8V Auto Switching

By Alexa dedicated plate KA-A20S

The Bi-voltage battery PB-H290S output normal 11-16.8V voltage as default, you can attach to any normal V-mount cameras or other devices, and any normal voltage chargers. Use the ARRI ALEXA dedi- cated V-mount plate KA-A20S, PB-H290S battery can recognize and auto switch on 22-33.6V, to power Alexa LF/65/SXT/AMIRA.

* KA-A20S Plate: CNC metal housing, High load power pins, D-tapx2 (16V), 2-pin LEMO (16V), USBx1 (5V/2A) Officially Recommended by ARRI

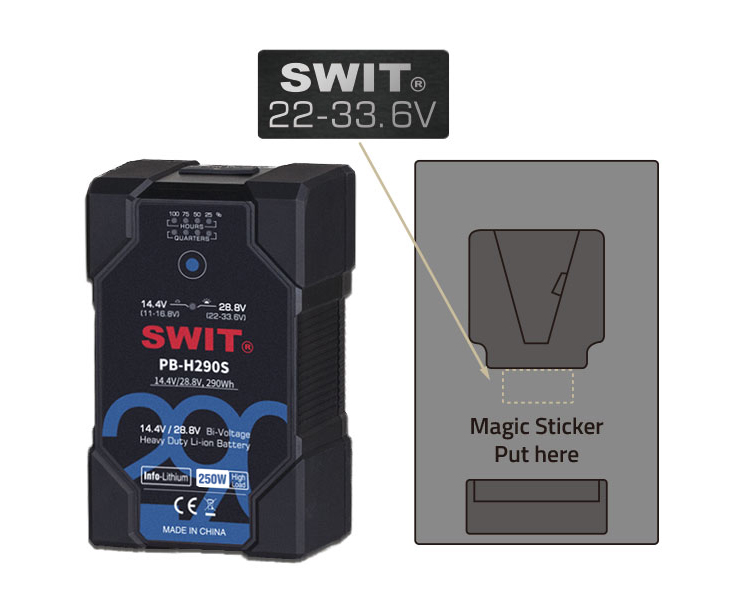

14.4V/28.8V Auto Switching

By “Magic Sticker” on normal V-plates

Beside ALEXA cameras, many Cine Lights are also designed high voltage input, to reduce current ef- fectively, and protect power pins and ensure the reliability.
You can easily put on a “Magic Sticker” on the par- ticular position of all standard V-mount plates, then PB-H290S battery can recognize and auto switch on 22-33.6V output mode.

290Wh Capacity, 250W High Load

PB-H290S consists of 24pcs high class 18650 battery cells, and reaches 290Wh high capacity.
PB-H290S supports Max 250W constant power output, can drive ALEXA LF (160W) more on-camera monitors or wireless simultaneously.
The high load battery will have longer life time than normal battery if always under full load power.

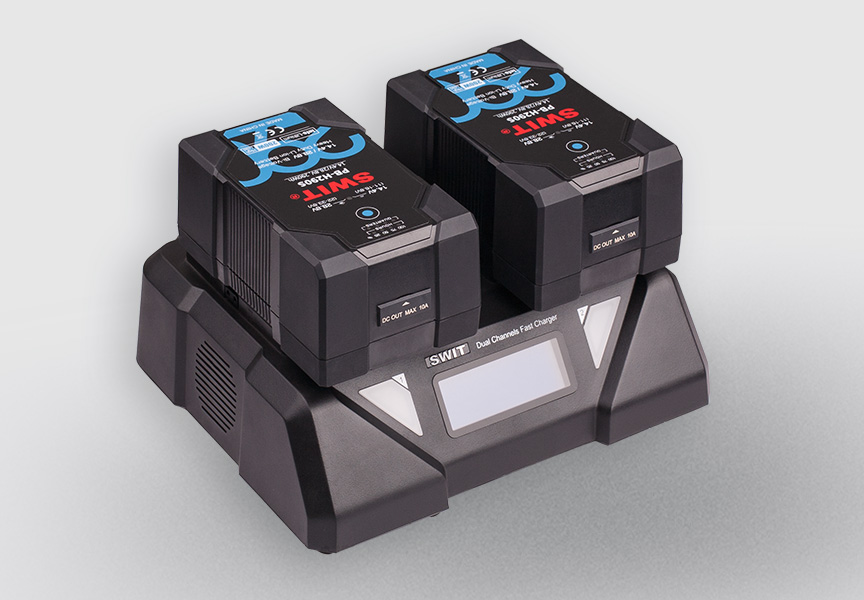

6A Super Fast Charging

Using SWIT super fast charger

PB-H290S supports 6A fast charging by SWIT S-3812S or PC-P460S super fast charger, to save up to 60% charging time, can be charged from 0 to 80% after 2 and half hours, and fully charged within 4 hours 15 minutes.

D-tap Socket

A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipment to- gether.
Under 14.4V (11-16.8V) output mode, D-tap output 11-16.8V and Max load 120W/10A;
Under 28.8V (22-33.6V) output mode, D-tap output con- stant 16V and Max load 50W/3A;

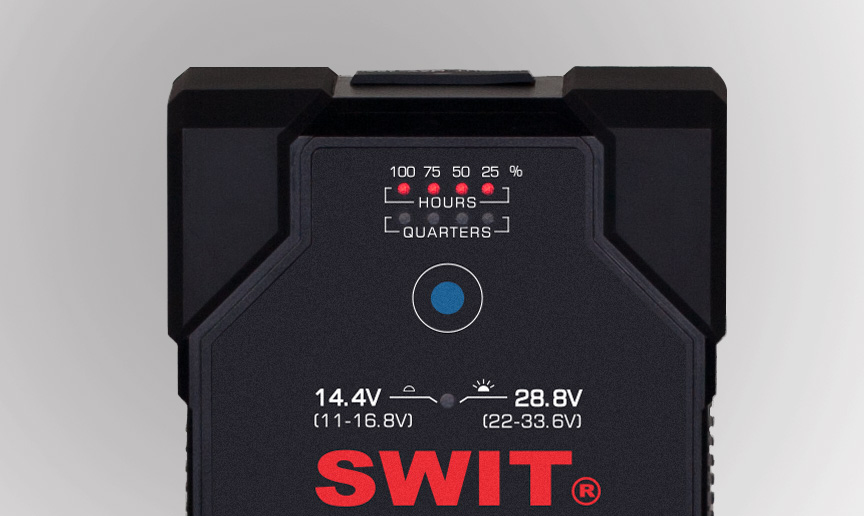

Digital Power Indicator

8-LED remaining time read

When battery is discharging:
Press "Power Check" button, Upper 4 LEDs display remaining working hours, and Lower 4 LEDs display remaining working minutes, under current output power. The LED will flash when remaining time is less than 15 minutes to remind changing battery.
When battery is charging:
Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%.
When battery is free:
Press "Power Check" button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.

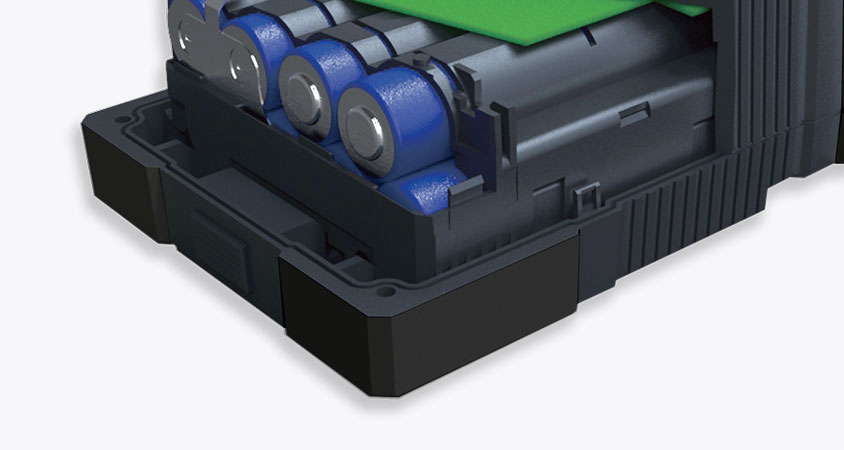

Strong 1.5m Drop-off Proof

Dual housing + Rubber cover

PB-H290S has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.

Nominal Voltage

14.4V or 28.8V auto switching

Capacity

290Wh

Max output power (14.4V)

Total: 250W

Pins: 250W / 20A

D-tap: 120W / 10A

Max output power (28.8V)

Total: 250W

Pins: 250W / 10A

D-tap (16V): 50W / 3A

Max charging current

16.8V / 10A

Mount Type

V-mount

Operation Temperature

-20°C ~ 40°C*

Dimension

162×101×69mm

Net weight

1578g
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

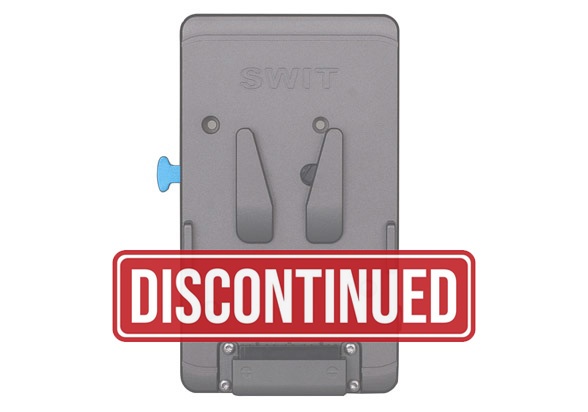

  • KA-A20S

    Dedicated V-mount plate for ARRI ALEXA LF, ALEXA 65, ALEXA SXT and AMIRA, Active 22-33.6V output of SWIT PB-H Bi-voltage batteries, provide 2x D-tap, 1x LEMO, 1x USB socket, Aluminum CNC unibody housing.
  • Magic Sticker

    Attach this magic stick to any standard 3rd party V-mount plate, will active 22-33.6V output of SWIT PB-H Bi-voltage batteries.
  • S-7101

    D-tap to 4-pin XLR DC Cable

    Pluged into D-tap socket and output DC via 4-pin XLR connector

    45
  • PB-R290S

    290Wh Heavy Duty Digital Battery Pack

    Dual housing structure, anti-shock and proof, 6A fast charging, 200W/16A high load, digital power info

    $8222
  • PB-S220S

    220Wh Multi-sockets Square Digital Battery Pack

    Compact designed for Cine-cameras, 4x D-tap, 1x USB, LCD displays remaining time

    $8222
  • PB-H260S

    260Wh High Load Bi-voltage Battery Pack

    14.4V/28.8V auto recognition and switching, 400W high load, 6A fast charging, 1.5m drop-off proof

    $8222
  • PB-R160S

    160Wh Heavy Duty Digital Battery Pack

    Dual housing structure, anti-shock proof, 6A fast charging, 150W/12A high load, digital power info

    $8222
  • PC-P430S

    4-ch V-mount Fast Charger

    4-ch simultaneous charging with 3A fast charging current; LED charging indicators

    $8222

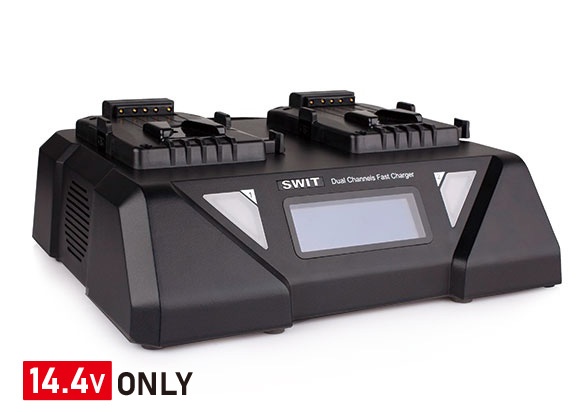

  • S-3812S

    2-ch V-mount Super Fast Charger

    2-ch simultaneous charging, Max 6A fast charging, support AC-DC and Battery-DC adaptor output, LCD display working status

    $8222
  • KA-A20S

    ALEXA V-mount Plate

    For ALEXA LF/65/SXT, AMIRA, Active 22-33.6V output of PB-H290S, D-tap/LEMO/USB output, CNC metal housing, Robust power pins

    $8222
  • S-7000S

    V-mount Battery Plate

    Metal back plate and open end wires; D-tap DC socket

    $8222
  • S-7005S

    Gold mount to V-mount battery Adaptor

    Adapt V-mount batteries to Panasonic gold mount cameras; D-tap DC socket

    $8222
  • S-7104

    D-tap to Pole-tap DC Cable

    Pluged into D-tap socket and output DC via 5.5mm pole-tap

    $8222
  • S-7100S

    V-mount to 4-pin XLR DC Cable

    Attached to V-mount battery pins and output DC via 4-pin XLR connector

    $8222
  • PC-P460S

    4x6A Super Fast V-mount Charger

    4-ch simultaneous charging with 6A super fast charging current; color LCD screen
