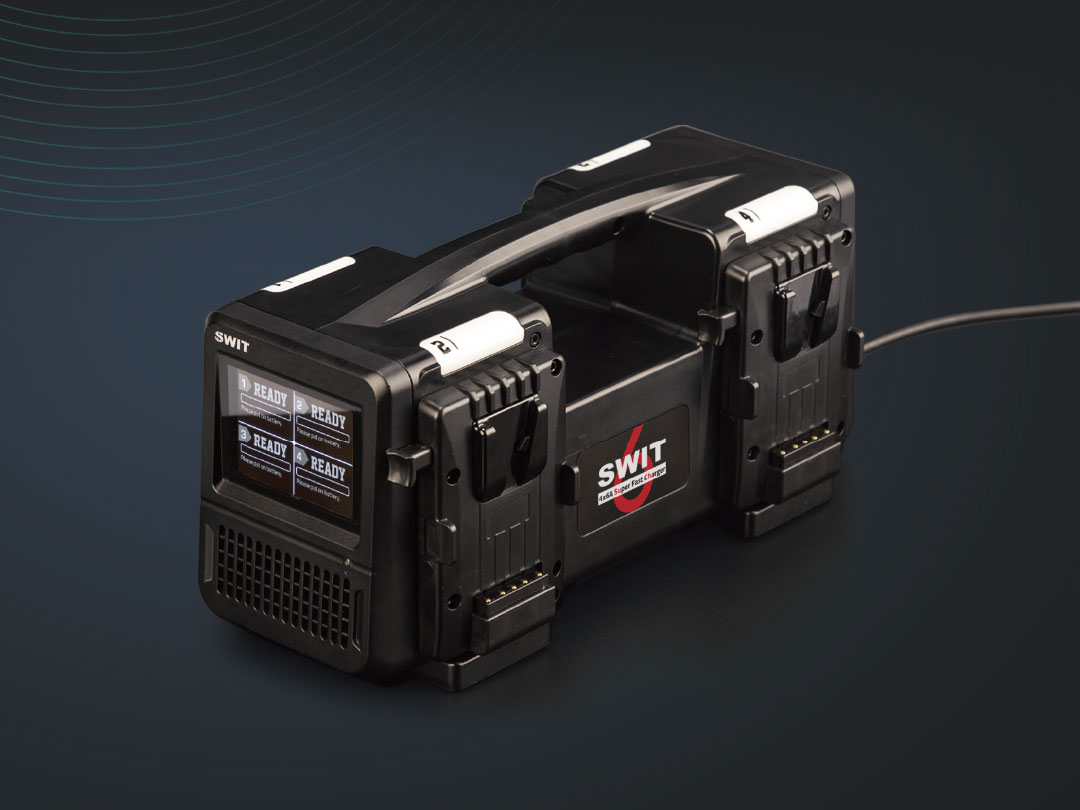

PC-P460S 4x6A Super Fast V-mount Charger

›  4-ch simultaneous charging

›  6A charging for SWIT over 160Wh batteries

›  3A charging for other batteries

›  3.5-inch color LCD info display

›  Battery cycle times display

›  Top large charging indicators


Features

4x6A Super Fast Charger

PC-P460S can charge 4 V-mount batteries simultaneously at Max 6A fast charging current, save up to 60% charging time comparing to normal chargers.
All SWIT over 160Wh batteries support 6A fast charging:
PB-H290S, PB-H260S, PB-R290S+, PB-R160S+,
PB-S220S, S-8183S, S-8180S, S-8113S;
And for other batteries, the charging current will limit to 3A.

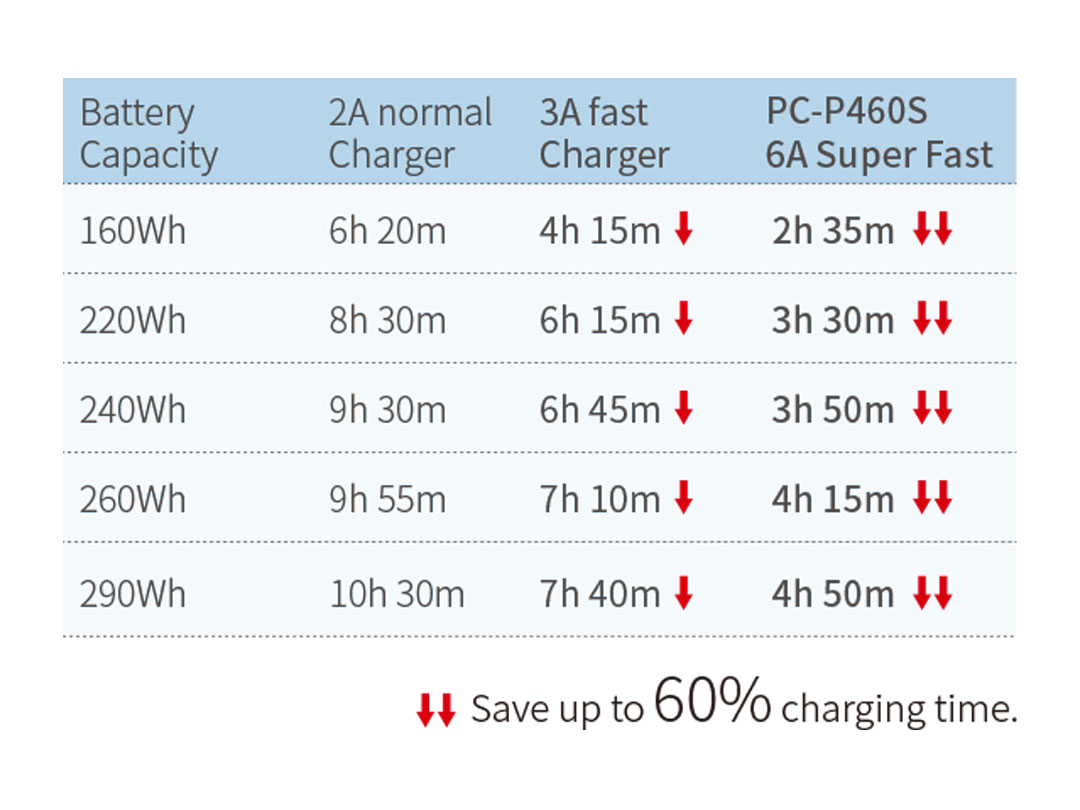

Charging Time Comparation

3.5-inch Color LCD Display

PC-P460S provides a 3.5-inch color LCD panel to display charging progress, charging current and voltage.
For batteries with SMBUS info, it will display real time capacity and battery cycle times as well.

Top Charging Indicators

Besides LCD screen info, you can check the charging status at a glance by the 4 large size indicators on the top of the charger.


Red on: 0-80%
Green flashing: 81%-99%
Green on: 100% fully charged
Red flashing: Charging error, check LCD info

Light Weight and Portable

The 4 channel fast charger PC-P460S has minimized the size and weight, and the new handle design makes the charger solid and easy to carry.

Power

Max 450W

Input

AC100V-240V 50/60Hz

Output

DC 16.8V, 6Ax4 or 3A×4

Applicable battery

V-mount battery

Dimensions

330×153×162mm

Net weight

2.43kg
Basic Package

MSRP

MSRP

MSRP

  • PB-H290S

    290Wh Intelligent Bi-voltage Battery Pack

    14.4V/28.8V auto recognition and switching, for Alexa LF and all other normal cameras and chargers, 6A fast charging, 250W high load, 1.5m drop-off proof

    $8222
  • PB-R290S

    290Wh Heavy Duty Digital Battery Pack

    Dual housing structure, anti-shock and proof, 6A fast charging, 200W/16A high load, digital power info

    $8222
  • PB-S220S

    220Wh Multi-sockets Square Digital Battery Pack

    Compact designed for Cine-cameras, 4x D-tap, 1x USB, LCD displays remaining time

    $8222
  • PB-H260S

    260Wh High Load Bi-voltage Battery Pack

    14.4V/28.8V auto recognition and switching, 400W high load, 6A fast charging, 1.5m drop-off proof

    $8222
  • PB-R160S

    160Wh Heavy Duty Digital Battery Pack

    Dual housing structure, anti-shock proof, 6A fast charging, 150W/12A high load, digital power info

    $8222
  • S-8183S

    240Wh High Load V-mount Battery Pack

    High Load Li-ion cells with Max 180W, 15A constant output; D-tap DC output, LED power indicators

    $8222
  • S-8113S

    160Wh V-mount Battery Pack

    High Load Li-ion cells with Max 150W, 12A constant output; D-tap DC output, LED power indicators

    $8222
  • S-8180S

    220Wh High Load V-mount Battery Pack

    High Load Li-ion cells with Max 140W, 12A constant output; D-tap DC output, LED power indicators

    $8222
  • PC-P430S

    4-ch V-mount Fast Charger

    4-ch simultaneous charging with 3A fast charging current; LED charging indicators

    $8222
  • S-3812S

    2-ch V-mount Super Fast Charger

    2-ch simultaneous charging, Max 6A fast charging, support AC-DC and Battery-DC adaptor output, LCD display working status

    $8222
