S-8083S 130Wh V-mount Battery Pack

›  Li-ion, 14.4V, 130Wh capacity

›  D-tap output socket

›  100W/8A power output

›  4-level LED power indicator

›  V-mount connection

›  Multiple circuit protections


Features

V-mount Camera Battery

S-8083S is the V-mount rechargeable Li-ion battery pack for professional video cameras. It’s compact design, smaller in size.

130Wh / 9.2Ah Capacity

Consists of 12pcs 18650 battery cells, and reaches 130Wh/9.2Ah high capacity.
Run approx 4 hours for normal 30W ENG cameras.

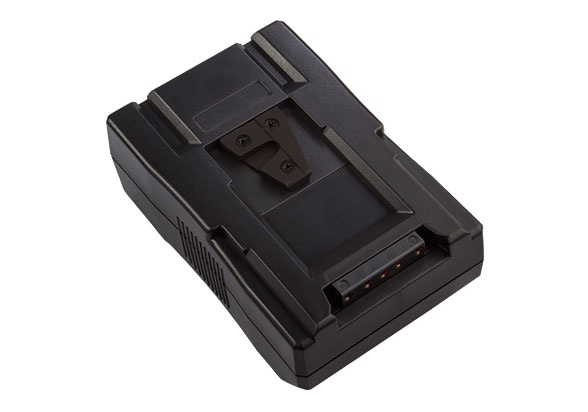

Reliable V-mount Connection

S-8083S is the standard V-mount connection and we adopt the high quality fiber glass V-wedge that ensures the reliable mounting.

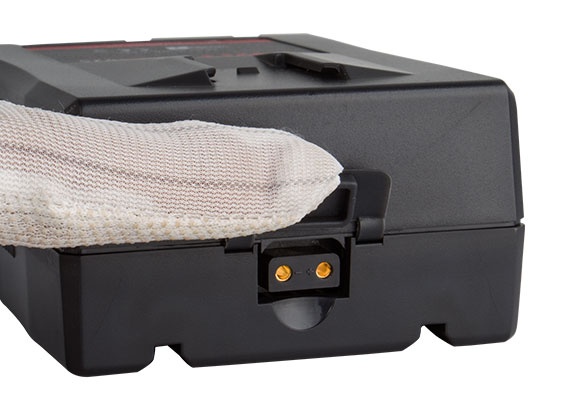

Build-in D-tap DC Output Socket

D-tap DC output socket is equipped on the top side of S-8083S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 100W, 8A.

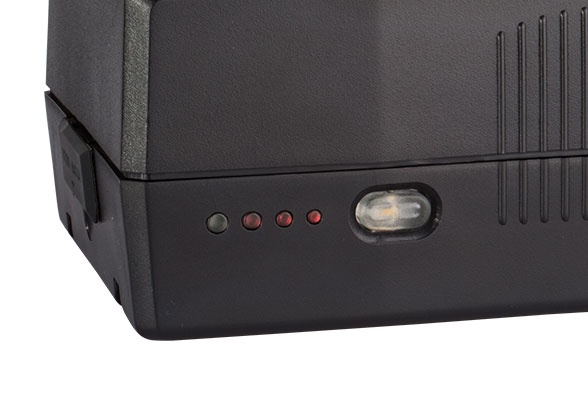

4-level LED Power Indicator

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

无标题文档

Nominal Voltage

14.4V

Capacity

130Wh/9.2Ah

Max output power

In total:200W

Electrodes:200W,16A
D-tap:120W,10A

Mount Type

V-mount

Charging Temperature

0-40°C
      Discharging Temperature-20°C-50°C(Capacity and Max Load may decrease when operating below 0°

Net weight

Approx 0.8kg

Dimensions

134×88×52mm
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

  • S-8110S

    146Wh V-mount Battery Pack

    Adpot high performance Li-ion battery cells with intelligent safety protection circuit; D-tap output, LED power indicators

    $8222
  • S-8082S

    95Wh V-mount Battery Pack

    Adpot high performance Li-ion battery cells with intelligent safety protection circuit; D-tap output, LED power indicators

    $8222
  • S-8110A

    146Wh Gold Mount Battery Pack

    Adpot high performance Li-ion battery cells with intelligent safety protection circuit; D-tap output, LED power indicators

    $8222
  • S-8082A

    95Wh Gold Mount Battery Pack

    Adpot high performance Li-ion battery cells with intelligent safety protection circuit; D-tap output, LED power indicators

    $8222

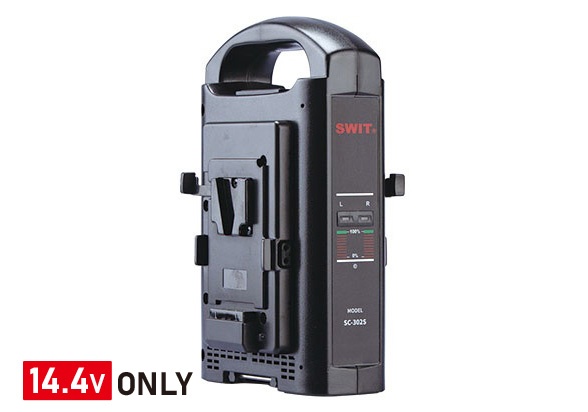

  • SC-302S
