S-8110S 146Wh V-mount Battery Pack

›  Li-ion, 14.4V, 146Wh large capacity

›  D-tap output socket

›  4-level LED power indicator

›  V-mount connection

›  Multiple circuit protections


Features

V-mount Camera Battery

S-8110S is the V-mount rechargeable Li-ion battery pack for professional video cameras.

146Wh / 10.2Ah High Capacity

Consists of 16pcs 18650 battery cells, and reaches 146Wh/10.2Ah high capacity.
run approx 4 hours for normal 30W ENG cameras.

Reliable V-mount Connection

S-8110S is the standard V-mount connection and we adopt the high quality fiber glass V-wedge that ensures the reliable mounting.

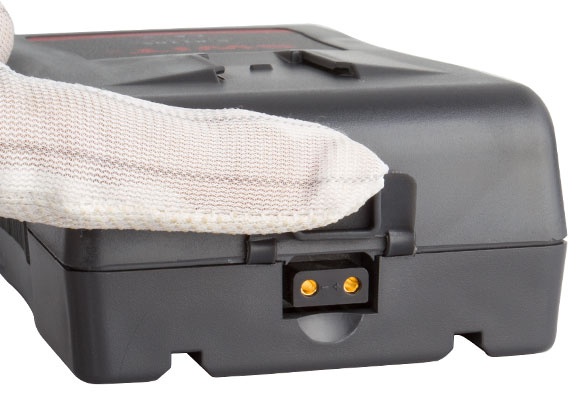

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8110S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc..
The Max Power from D-tap is 120W, 10A.

4-level LED Power Indicator

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

无标题文档

Nominal Voltage

14.4V

Capacity

146Wh/10.2Ah

Max output power

In total:150W

Electrodes:150W,12A
D-tap:120W,10A

Mount Type

V-mount

Charging Temperature

0-40°C
     Discharging Temperature-20°C-50°C(Capacity and Max Load may decrease when operating below 0°

Net weight

940g

Dimensions

165×90×51mm
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

  • S-8110S

    146Wh V-mount Battery Pack

    Adpot high performance Li-ion battery cells with intelligent safety protection circuit; D-tap output, LED power indicators

    $8222
  • S-8110A

    146Wh Gold Mount Battery Pack

    Adpot high performance Li-ion battery cells with intelligent safety protection circuit; D-tap output, LED power indicators

    $8222
  • S-7010S

    V-mount plate with multi-DC out

    V-mount battery plate, with D-tap output, 7.2V pole-tap output and 5V/1A USB output sockets.

    $8222
  • S-7104

    D-tap to Pole-tap DC Cable

    Pluged into D-tap socket and output DC via 5.5mm pole-tap

    $8222
