CL-M100D 100W Mini Size Studio SMD LED Light

›  576pcs ultra bright long-life LEDs

›  SMD Surface mounted LED technology

›  62° half peak wide beam angle

›  2700K-6500K continuously adjustable

›  100W power, 3400Lux @ 1meter

›  No fan, no noise

›  0-100% flick-free dimming

›  Color rendering CRI 98, TLCI 99, SSI(D55) 73

›  DMX512 controlled color and dimmer

›  LCD display color and dimmer value

›  PowerCON TRUE1 AC in and loop out

›  4-pin XLR DC 11-17V input

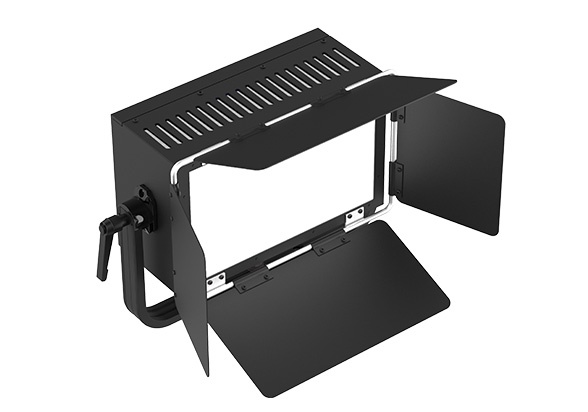

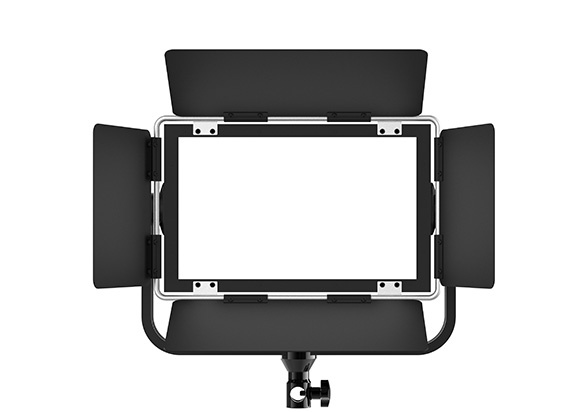

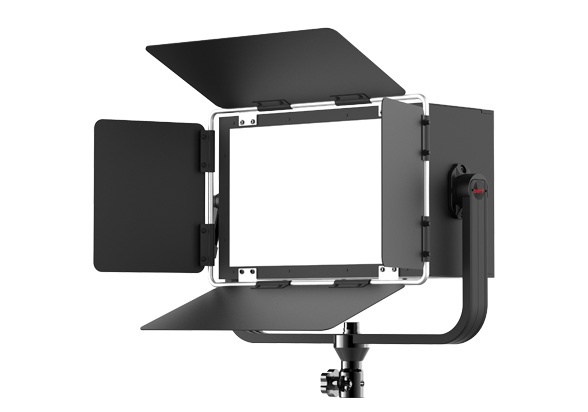

›  4-leaf metal barn doors and Yoke bracket


Features

Mini Size 100W LED Panel

CL-M100D is an 100W Bi-color SMD LED panel light of 1: 1/2 mini size designed, high intensity and fanless, for broadcast studio, live entertainment, theater, film applications, especially the low celling space setup.



576pcs Surface Mounted LEDs

CL-M100D adopts 576pcs SMD LEDs, featured: (1) higher uniformity of illuminance;
(2) wider beam angle;
(3) higher color rendering index;
(4) Softer and Brighter;
(5) longer life time,
an ideal light source for Broadcast studios, green keyer, live streaming etc.



3400 Lux @ 1 meter

CL-M100D provides 100W light output, 3400Lux luminance at 1 meter distance, 62° half-peak wide beam angle, supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

No Fan, No Noise

The large size fin consender inside CL-M100D ensures 100W high bright output within such a small size housing, no fan, no noise, to provide a silent video production environment.

2700K-6500K Continuously Adjustment

CL-M100D consists of 100W of 2700K LED and 100W of 6500K LED, and outputs 100W power at any color temperature from 2700K to 6500K.

CRI 98; TLCI 99

CL-M100D adopts high end surface mounted LEDs with super high Color Rendering Index (CRI) Ra 98, and Television Lighting Consistency Index (TLCI) 99. Objects will keep their original colors exactly under the light.

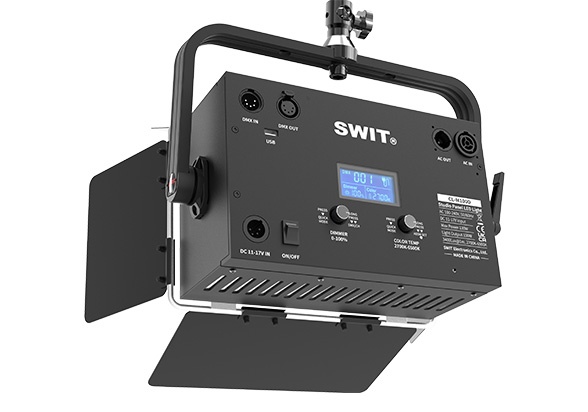

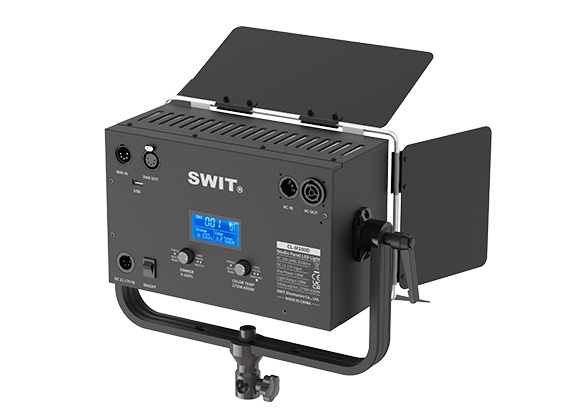

Control Info Display

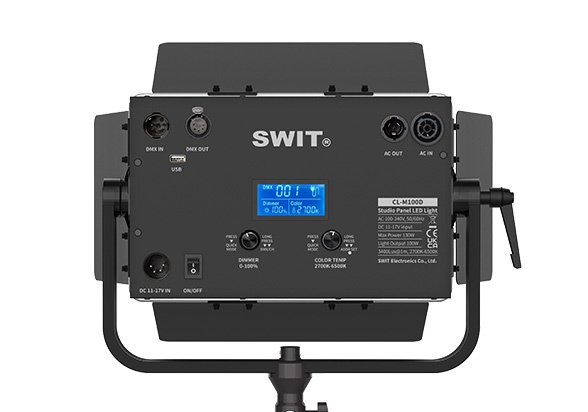

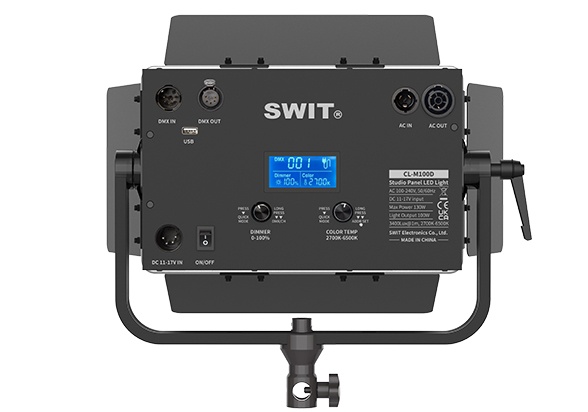

The rear LCD screen can display dimmer percentage, color temperature, DMX address, Group channel (CH), and power indicators.
Long press color temp knob to set DMX address, and long press dimmer knob to switch between DMX consoler mode and Group interactive control mode.

5-pin DMX512 IN & OUT

CL-M100D provides 5-pin XLR DMX512 in & out, and a 5V USB-A port to power the wireless DMX receivers.
The DMX address n= dimmer, n+1=color temp

PowerCON TRUE1 AC IN & OUT

CL-M100D adopts PowerCON TRUE1 AC connectors, and supports AC loop output to the next lights, for convenient studio installation. The standard package includes a PowerCON AC cable, and the loop cable PA-LC20 is for optional purchase, 2 meters length, 16A load, will loop more than 25x CL-M100D lights under 220V AC voltage, and 13x CL-M100D lights under 110V voltage.



11-17V DC Input

With optional battery plate clamps and D-tap cable, you can power the CL-M100D light by V-mount or Gold mount batteries via the 4-pin XLR DC in socket.



LED

576pcs SMD LEDs

Illuminance

3400Lux @ 1m

Beam angle

62° half peak

Color Temperature

2700K ~ 6500K

CRI

98

TLCI

99

SSI (D55)

73

Power

Max 130W, light output 100W

AC input & output

PowerCON TRUE1 AC 100-240V 50/60Hz

DC input

4-pin XLR DC11V~17V

Dimension

275×173×130mm

Lighting area

245×146mm

weight

5.6kg with metal barndoor
Basic Package

MSRP

MSRP

MSRP

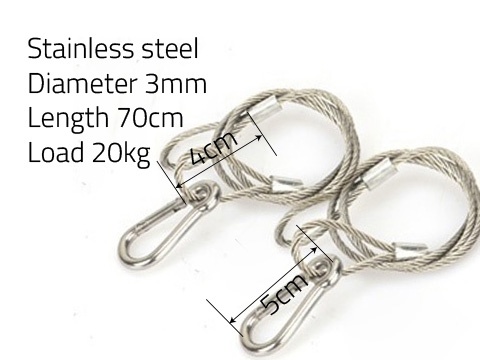

  • Safety rope x2

  • PowerCON TRUE1 AC cable

  • PA-LC20

    PowerCON TRUE1 loop out cable, 2meters, 16A load, AC 220V: Max 25x CL-M100D looped AC 110V: Max 13x CL-M100D looped
  • S-7200S

    V-mount Plate With Clamp, to install on 25-45mm diameter C-stand / Light tripod, with 1x D-tap socket to output battery DC voltage.
  • S-7200A

    Gold mount plate with Clamp, to install on 25-45mm diameter C-stand / Light tripod, with 1xD-tap socket to output battery DC voltage.
  • S-7101

    Pluged into D-tap socket and output DC via 4-pin XLR connector
  • PL-E90D

    90W Portable Bi-color SMD Panel LED light

    480pcs bright SMD LEDs, 90W, DMX control, 2200Lux@1m bright, 2700K-6500K adjustable, Super thin and portable.

    $8222
  • S-2440C

    50W Bi-color SMD Studio Panel LED light

    576 bright SMD LEDs, equally spread surface light, 3200K-5600K adjustable, 50W power, 1250Lux @ 1 meter, DMX control

    $8222
  • S-2430C

    100W Bi-color SMD Studio Panel LED light

    1152 bright SMD LEDs, equally spread surface light, 3200K-5600K adjustable, 100W power, 2500Lux @ 1 meter, DMX control

    $8222
  • CL-60D

    60W 1:1 Bi-color SMD LED panel light

    2000Lux@1m, CRI 98 TLCI 99, 2700-6500K, DMX control

  • CL-120D

    120W 2:1 Bi-color SMD LED panel light

    3700Lux@1m, CRI 98 TLCI 99, 2700-6500K, DMX control

  • PL-S150D

    150W Bi-color Studio SMD LED Light

    5500Lux @ 1m high intensity, Smooth index dimming curve, CRI 97 TLCI 99 SSI 73
