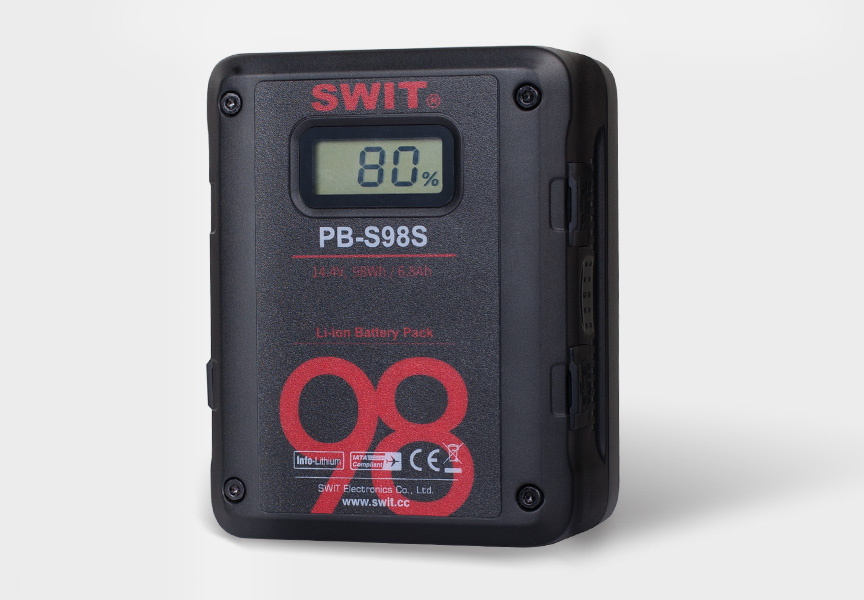

PB-S98S 98Wh Multi-sockets Square Digital Battery Pack

› Square shape design for Cine-cameras

› Max 150W, 12A load

› 2× D-tap output sockets (120W/10A in total)

› 1× USB 5V/2A power output sockets

› LCD display accurate remaining run time

› Display power info in both SONY & RED

› Multiple circuit protections


Features

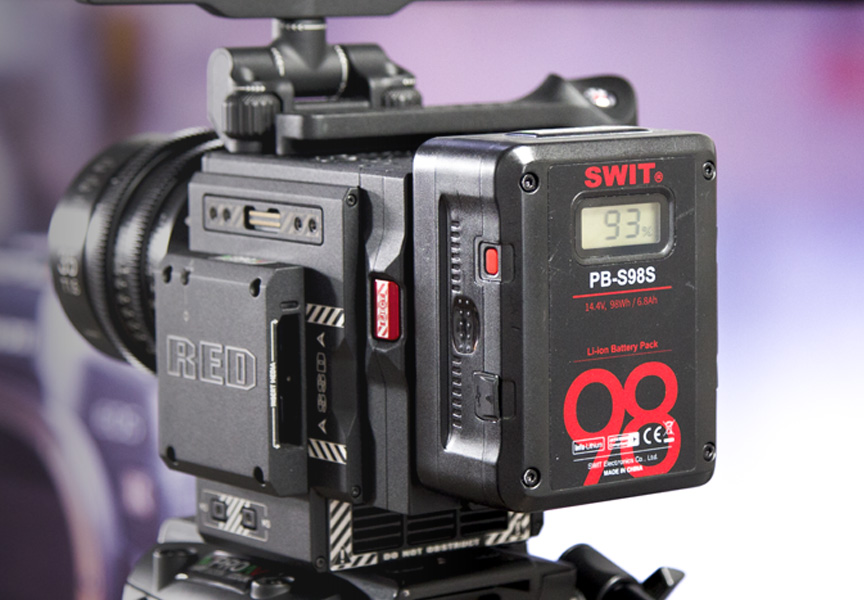

Square shape design for Cine-cameras

PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.

98Wh Capacity, 150W/12A load

Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.8Ah high capacity.
Can run approx 3 hours for normal cameras.
Provides at least 150W/12A high load even at 1% capacity.

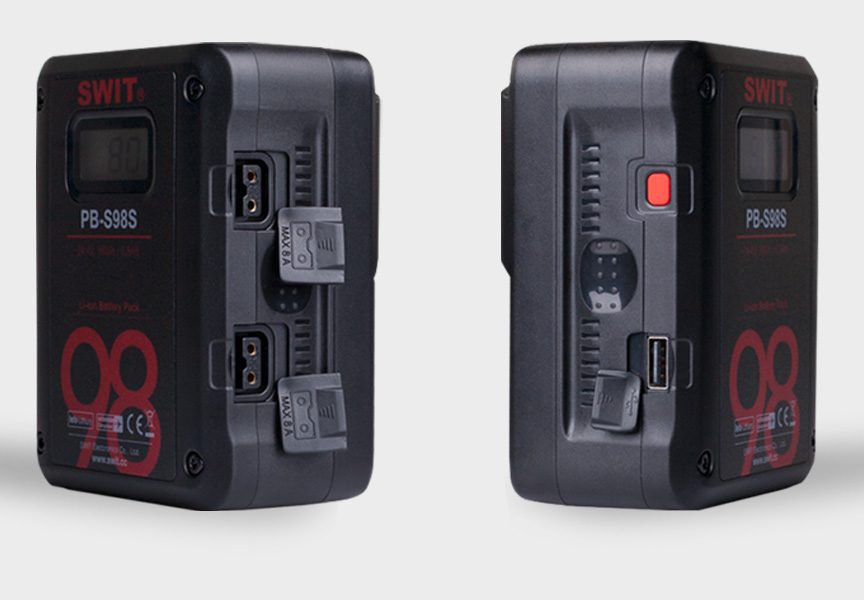

2× D-tap, 1× USB

PB-S98S provides 2x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.

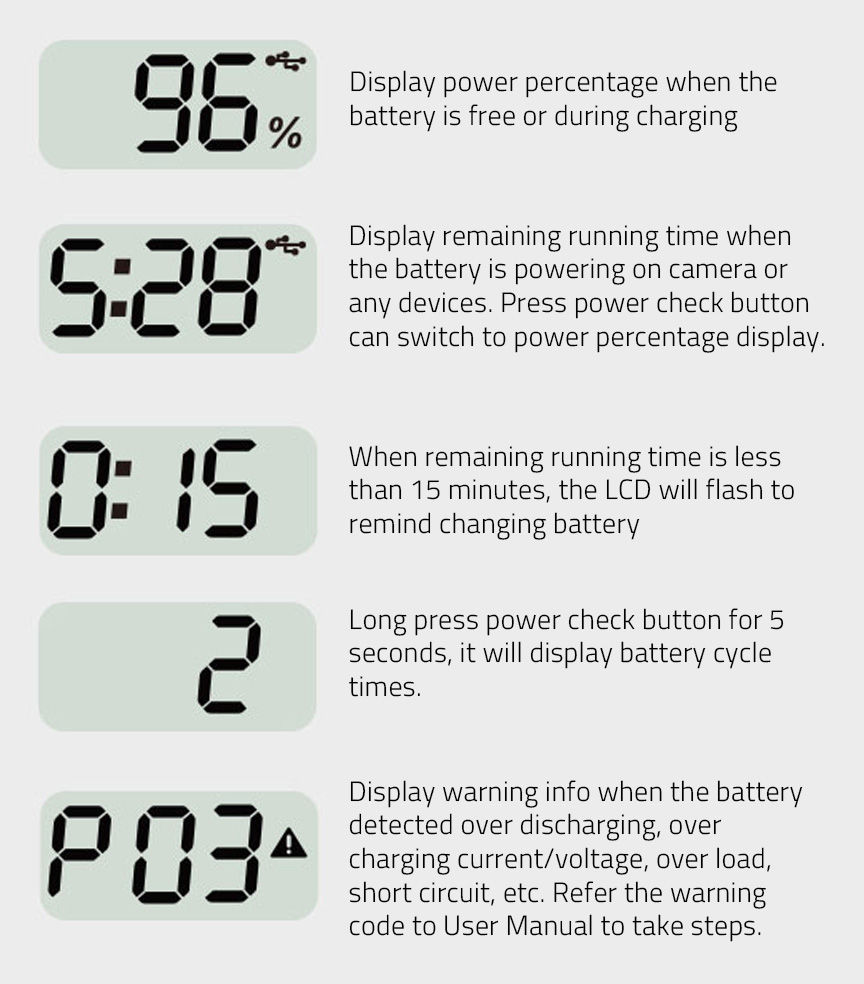

Digital Power Info

LCD display accurate remaining run time

The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

LCD warning codes description

P01 - P13: The battery trigger protection function and it can be recovered;
E01 - E03: Not recoverable error, please contact manufacturers to repair, do not disassemble the battery.
When the battery rests over 10 days or runs out of power, it will enter sleep mode and the LCD will not display.

Common battery protection codes:
P01: Run out of power, please charge the battery asap.
P02: Over-voltage when charging, please remove the battery, discharge the battery to decrease voltage to recover.
P03: Over-current when charging, please remove the battery, and it will recover after 30 seconds.
P05-07: The load is too heavy, please remove the battery, and it will recover after 30 seconds.
P08-09: Battery short circuit, please remover the battery and make sure electrodes are clean, and it will recover after 30 seconds.
P10-13: Temperature protection, please remove the battery and place at room temperature to recover.

Battery plate

V-mount

Nominal voltage

14.4V

Capacity

98Wh,6.8Ah

Max output

In total: 150W

Electrodes: 150W, 12A

USB:10W, 5V/2A
D-tap: 120W / 10A

Dimension

121×95×59mm

      Charging Temperature

0-40°C

      Discharging Temperature

-20°C-50°C(Capacity and Max Load may decrease when operating below 0°

Net weight

0.809kg

Max charging current

3A

D-TAP socket number

2

USB socket number

1
