S-3822S 2-ch V-mount Fast Charger

›  Charging V-mount batteries

›  2-ch simultaneous charging

›  3A charging current per channel

›  LED charging indicators

›  Support AC to 4-pin XLR output

›  Light weight and portable


Features

2-ch Simultaneous Charger

Charging current: 3A per channel

The portable charger S-3822S can charge 2 V-mount batteries simulta- neously. The charging output is DC 16.8V, 3A×2

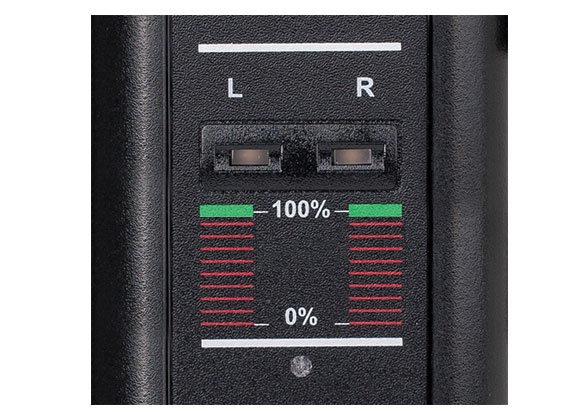

LED Charging Indicators

S-3822S has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished.

AC-DC Adapting Output

S-3822S has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the S-3822S can be used as AC-DC adaptor of DC 15V, 6A, 90W output.
Please note the AC-DC adapting output will not work when battery is charging.

Input

100~240VA, 50/60Hz

Power consumption

Max 136W

Charging output

DC 16.8V, 3A×2-ch

Adapting output

DC 15V, 6A

Working temperature

0°C~+40°C

Working humidity

10%~90%

Dimensions

228mm×140mm×120mm

Net weight

Approx. 1.0kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

  • S-7102

    4-pin XLR female to male cable, for 4-pin DC adapting output
