S-8845 Canon BP Series DV Camcorder Battery Pack

›  Li-ion battery pack of 7.2V nominal voltage

›  Comparable to Canon BP-955

›  RED KOMODO compatible

›  47Wh / 6.6Ah capacity

›  4-level LED power indicator

›  7.2V Pole-tap DC output

›  Multiple circuit protections


Canon BP series Replacement battery

RED KOMODO Compatible

S-8845 is the replacement battery for Canon BP series BP-955, compatible with RED KOMODO and Canon XF100/105 and EOS C100, C100MK2, C300, C500 cameras.

47Wh / 6.6Ah Capacity

With 7.2V nominal voltage, the S-8845 has 47Wh / 6.6Ah capacity, and can run approx 7 hours on XF105 when LCD monitor is on, and approx 4.5 hours on Canon EOS C300.

Build-in Pole-tap DC Output Socket

A 5.5/2.1mm pole-tap DC output socket is equipped on the side of S-8845 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.The Max power from the pole-tap is 30W, 4A.

4-level LED Power Indicator

The S-8845 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

Easy Charging

The S-8845 can be charged on SWIT Dual channel charger S-3602C or SWIT 4-ch charger LC-D421. It takes about 4 hours and 30 minutes to charge from empty to 100%.

Nominal Voltage




Max output power

Total: 45W,6A

Pins: 30W,4A

Pole-tap: 30W,4A

Compatible cameras

Canon XF100/105, EOS C100, C100MK2, C300, C500



     Charging Temperature0-40°C
     Discharging Temperature-20°C-50°C Capacity and Max Load may decrease when operating below 0°

Net weight

Net 300g; With package0.32kg
Basic Package







  • LC-D421

    4-ch Multi-type DV Charger

    4-ch simultaneous 2A charging, exchange multi-types DV plates to charge different DV batteries together

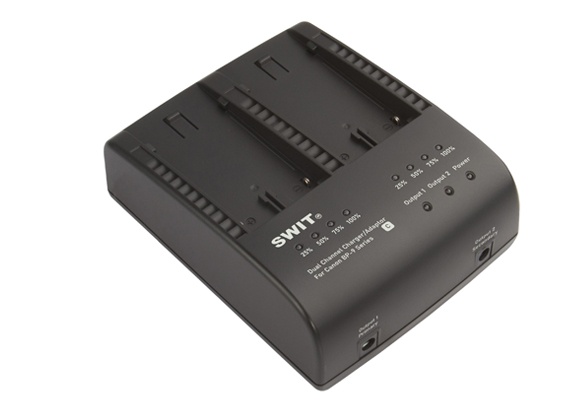

  • S-3602C

    2-ch Canon BP Charger and Adaptor

    Simultaneous charging for SWIT S-8845/8945, Canon BP-945/970G battery; 2 pole-tap DC adaptor outputs

  • S-7500C

    Canon BP Dummy Battery Adaptor

    Dummy battery with pole-tap DC cable connector; Canon BP-945/970G type, for S-3602C adapting output to camera

  • S-7000C

    Canon BP DV Battery Mount Plate

    Metal back plate and open end wires; for Canon BP-945/970G battery
