› 2× 14.4V Pocket V-mount batteries install
› Fit PB-M / MINO / OMNI series batteries
› Low power device: Hot-swap mode
› High power device: High-load mode
› 2x D-tap 10.8-16.8V outputs
› 1x USB-C PD 100W output
› Power indictors for each battery
› SONY&RED power info display
› Slim and light weight, balanced install
› Multiple protection circuit

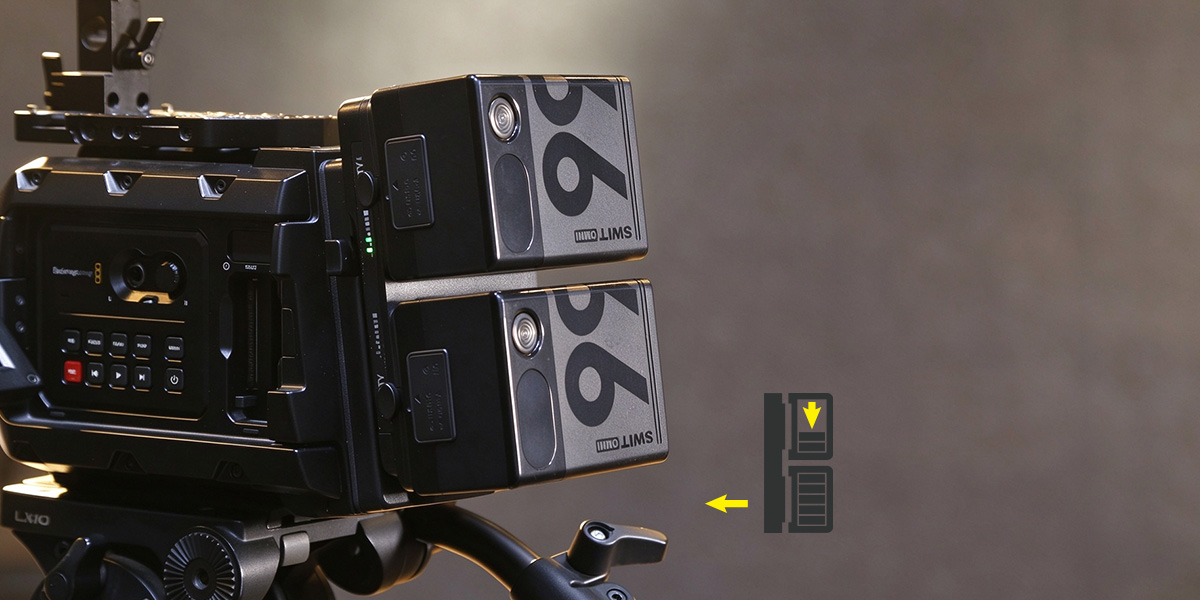

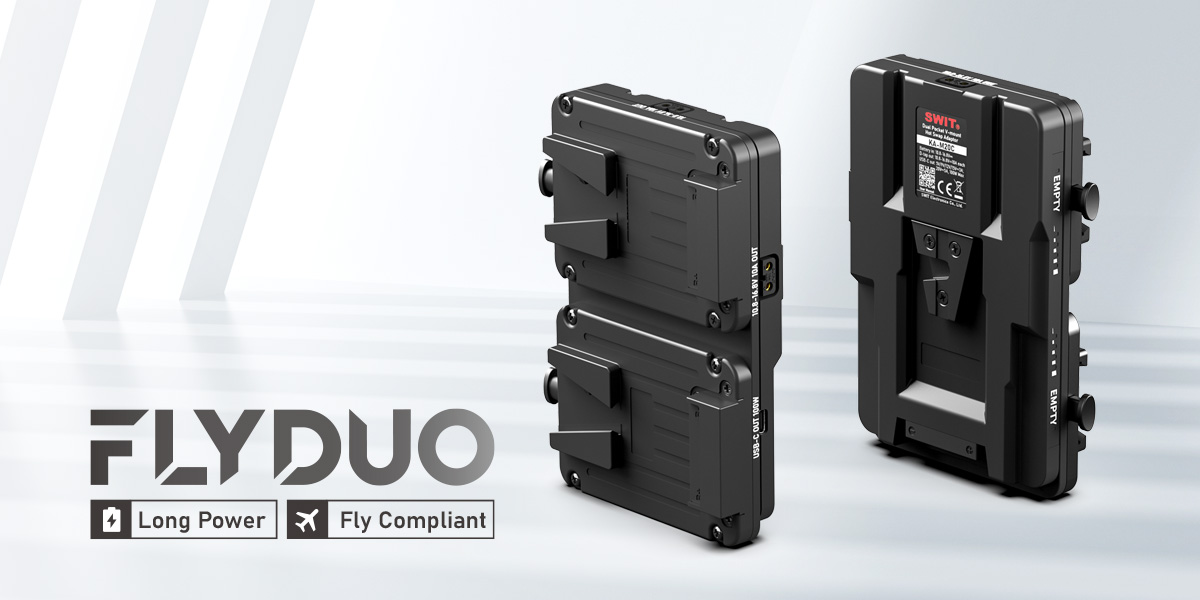

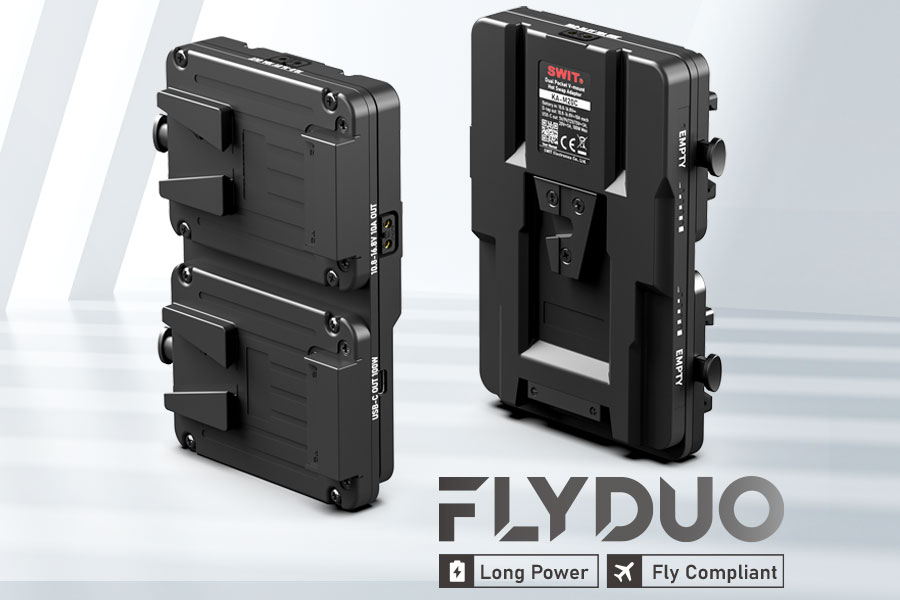

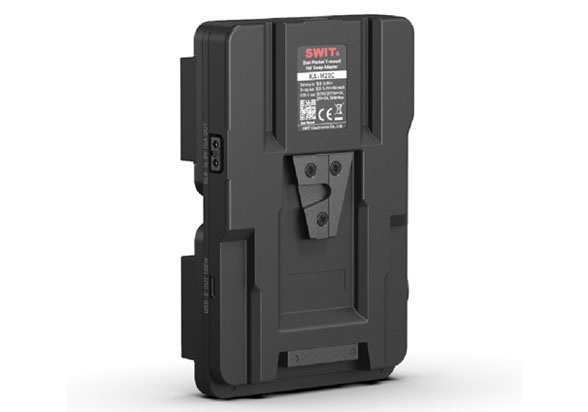

Fly with Larger Capacity
The FlyDuo KA-M20C combines 2× 14.4V Pocket V-mount batteries into a regular-size 14.4V V-mount, delivering longer runtime or higher load capacity. The two individual batteries can be carried onto flights in compliance with IATA regulations. The 2× D-tap outputs and 1× USB-C 100W output make it easy to power multiple on-camera devices simultaneously.

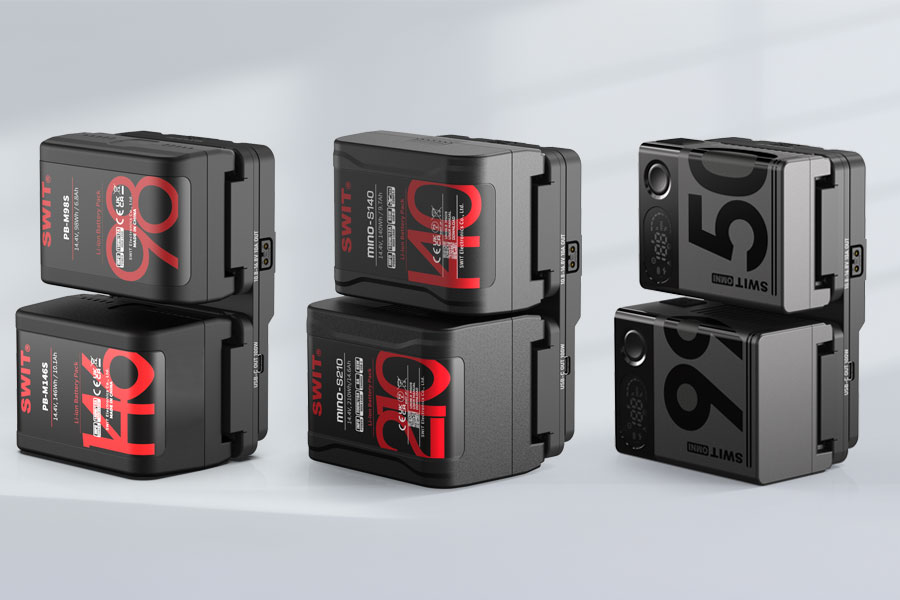

Wide Compatibility
The FlyDuo KA-M20C is widely compatible with SWIT's full range of Pocket V-mount batteries, including the PB-M98S/M146S, MINO-S140/S210, and OMNI-50S/99S, as well as the Mini-size V-mount batteries from other brands.

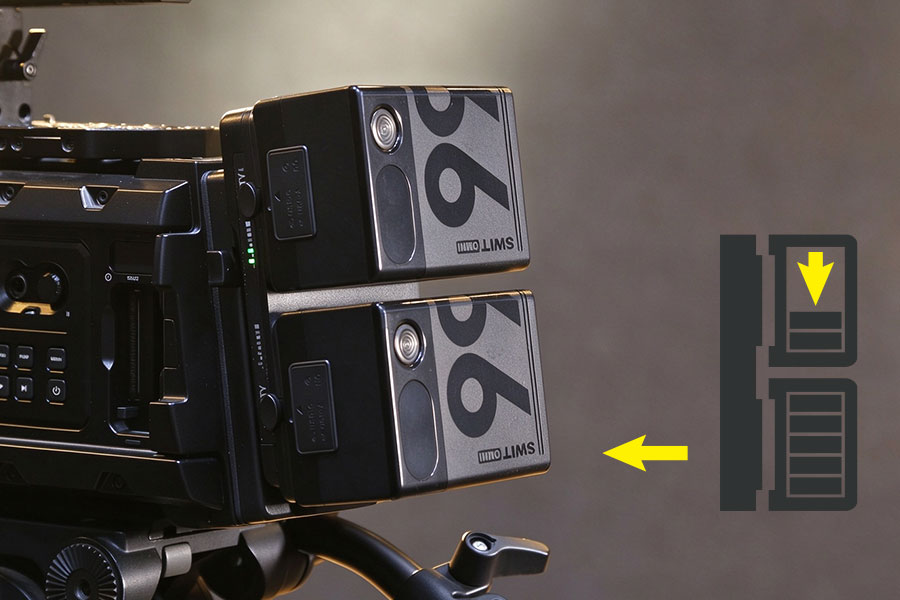

One-by-One Hotswap Mode

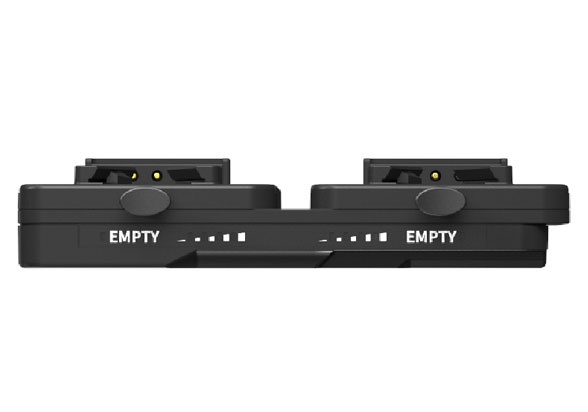

When the power draw of the connected device is lower than a single battery's load, the two batteries are used one by one—when one is depleted, switch to the other—enabling uninterrupted hot-swap power. The battery level indicators clearly show which battery is currently discharging.

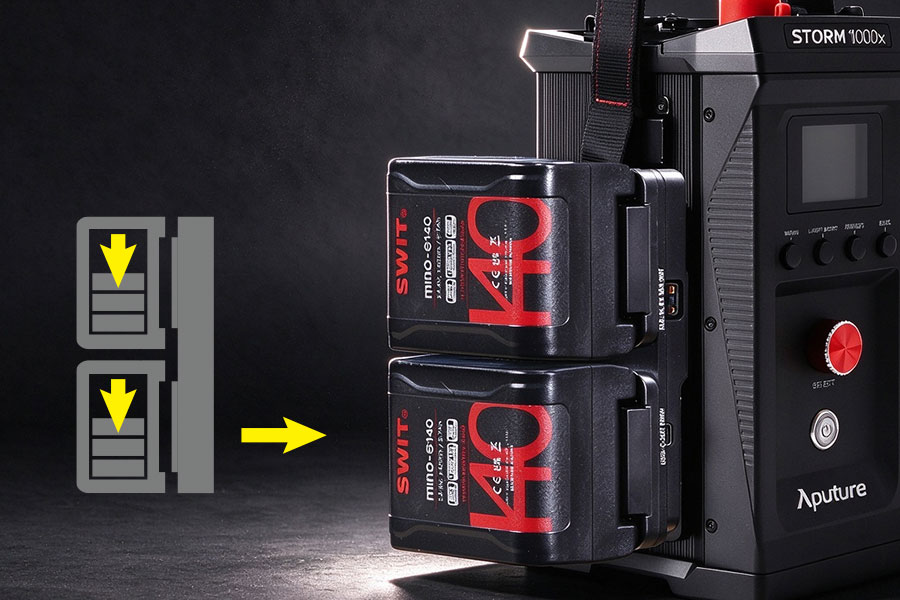

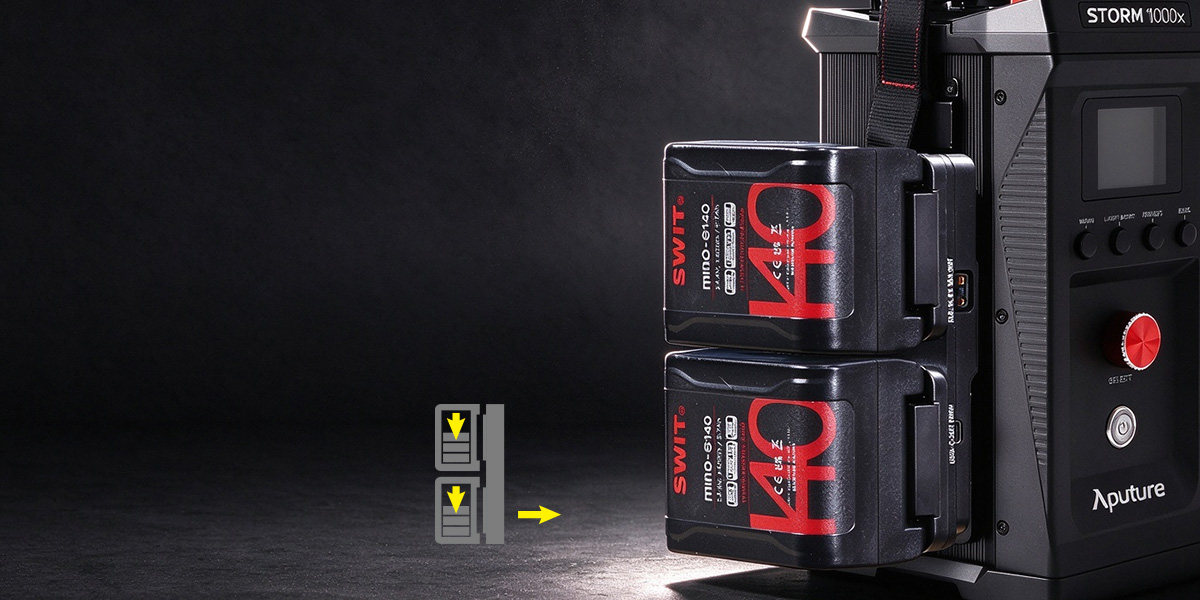

High-load Mode with dual batteries
When the power draw of the connected device exceeds a single battery's load, the system automatically switches to dual-battery mode, constant load 250W/20A. Both battery level indicators flash simultaneously to show that both batteries are discharging at the same time.

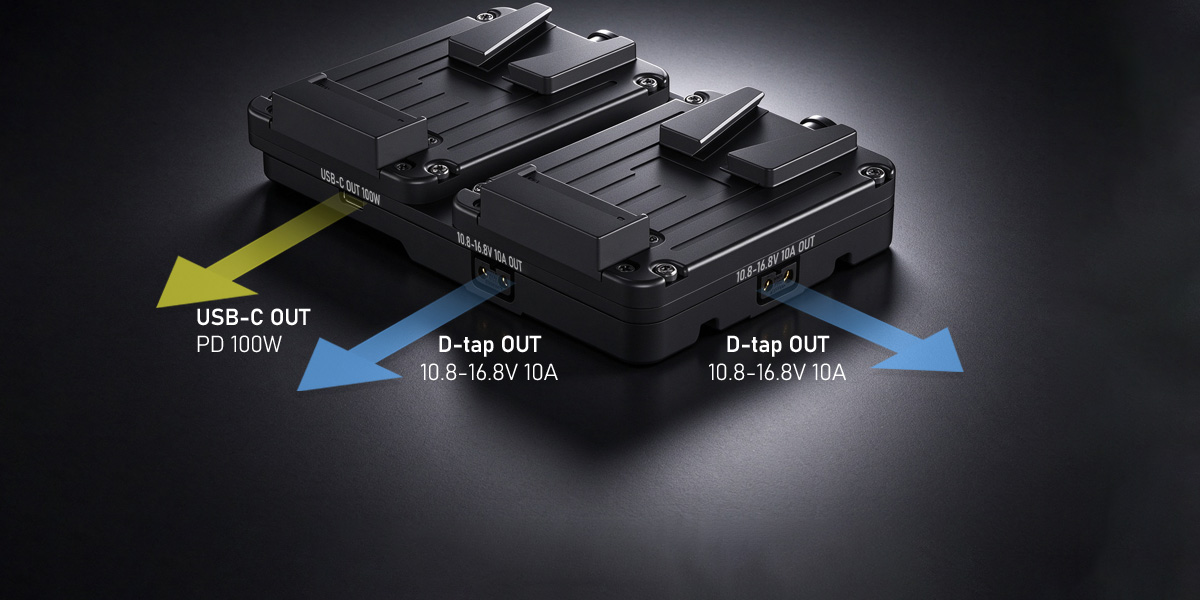

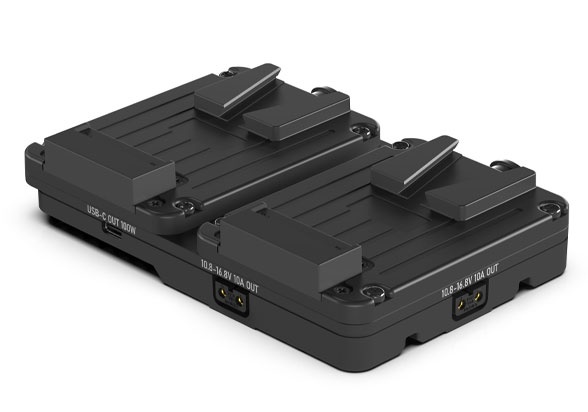

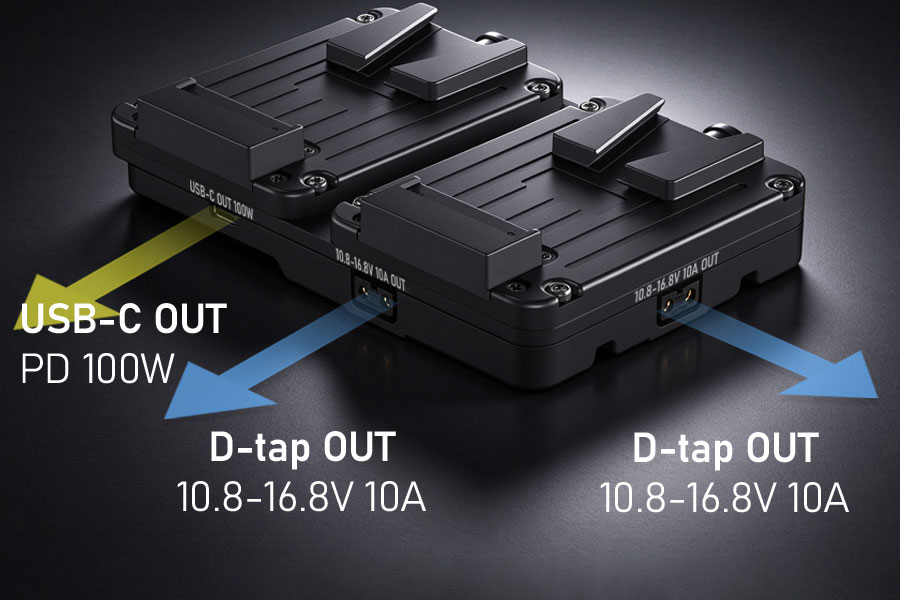

2× D-tap and 1× USB-C 100W out
The FlyDuo KA-M20C provides 2× D-tap outputs of 10.8-16.8V 10A each, and 1× USB-C PD 5V/9V/12V/15V 3A;
20V 5A, Max 100W output, to power more devices simultaneously.
Model | KA-M20C |
Input | 10.8-16.8V Pocket V-mount Batteries x2 |
Output | V-mount pins 10.8-16.8V |
2× D-tap, 10.8-16.8V, 10A each 1× USB-C 5V/9V/12V/15V 3A; 20V 5A, 100W out | |
Power Load (Hot swap mode) | Equals to the Max load of single battery |
Power Load (High load mode) | V-mount & D-tap: 250W/20A constant |
Working temperature | -20°C ~ 50°C |
Net weight(without packaging) | 383.5g |
Product dimensions(without packaging) | 153×107.4×31.9mm |
Gross weight(with packaging) | 440g |
Package dimensions | 175×110×36mm |
