› 21.5-inch 1920×1080 QD-LED Panel
› 1000nits high bright PQ/HLG HDR
› 100% DCI-P3 wide color gamut coverage
› VICO 1.97 A-class Eye Protecting LCD
› 12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
› 4-ch SDI/HDMI® mixed formats multiview
› Any 2 inputs mixed PBP or PIP view
› Horizontal and Vertical (cropped) PBP view
› Zero latency video processing (0.01frame)
› 3DLUT Auto Self-calibration without PC
› Built-in Multi camera Delog LUTs
› User 3DLUTs upload via USB
› Waveform / Focus assist / False color / Zebra
› With flight case and screen protector
› Optional VESA to C-stand adaptor
21.5” Field Production Monitor
4K inputs, 1000nits, HDR, Multi-view
FM-215HDR is a 21.5-inch 4K 12G-SDI input high bright HDR monitor for filmset or live streaming productions, go with flight case, screen protector and could be installed on C-stand for convenience field video productions.
1000nits Sunlight View HDR
The monitor is equipped with an advanced Quantum Dot
LED (QD-LED) panel of 1000nits high bright backlight,
outdoor sunlight viewable, and support PQ/HLG/S-log3
HDR monitoring.
All 4K Input Interfaces
FM-215HDR supports various 4K inputs including:
- 12G-SDI 4K in and out
- 4× 3G-SDI Quadlink 4K input
- HDMI® 2.0 4K input

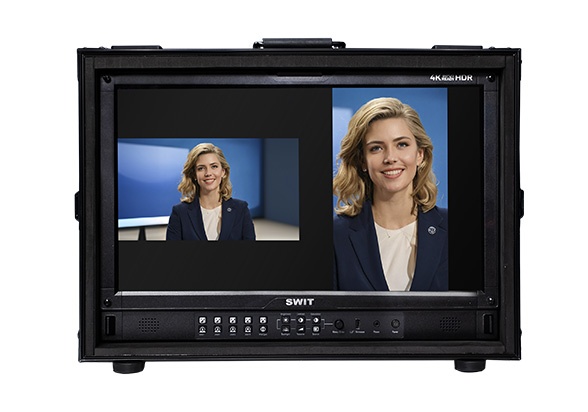

Multiview Display Mode
Supports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs
vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input.
H/V Multi-platform Livestreaming View
1× input source to display regular horizontal view and cropped vertical view
side by side simultaneously, for multi-platform livestreaming productions.
Multiple Video Analysis Patterns
Go with Flight Case
The FM-215HDR monitor is shipped with strong
aluminium flight case, for all-around protections on filmset.
Equipped with Screen Protector
The FM-215HDR monitor provides an acrylic screen protector,
with high transparency and anti-reflection.
2× Top Cheese Boards
On the top of the flight case, 2× cheese boards
are provided to install accessories like wireless
video receiver, with multiple 1/4” and 3/8”
screw threads.

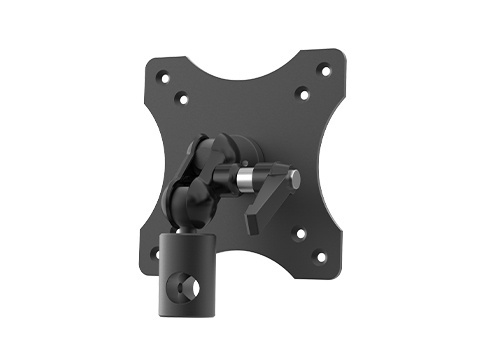

Optional VESA to C-stand Bracket

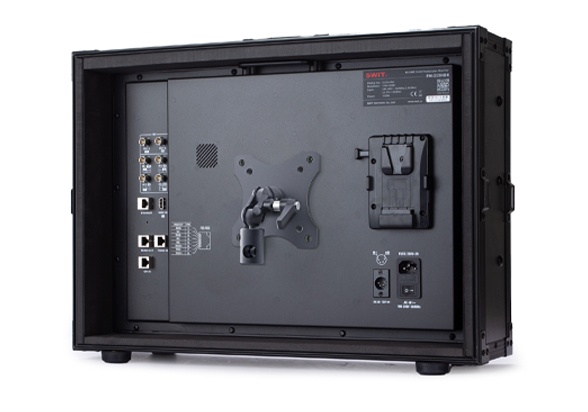

The monitor has standard 10×10 VESA mount, and provides
VESA to 5/8” baby-pin C-stand / Light stand adaptor bracket.
(Optional purchased accessory)
Display
Panel type | QD-LED |
Size | 21.5 inches |
Display area | 476×268mm |
Resolution | 1920×1080 |
Aspect ratio | 16:9 |
Brightness | 1000nits |
Contrast | 1000:1 |
Color depth | 10-bit |
Signal process | 18-bit |
Viewing angle | 178°(H) /178°(V) |
Input
BNC ×1 | 12G/6G/3G/HD/SD-SDI input |
BNC ×3 | 3G/HD/SD-SDI input |
HDMI® ×1 | HDMI® 2.0 input |
RS485 ×1 | TSL 3.1/4.0 UMD input |
RS485 ×1 | GPI (Tally) input |
RJ45 ×1 | 1000M Ethernet input for Webserver IP control |
Output
BNC ×1 | 12G/6G/3G/HD/SD-SDI loop output |
BNC×1 | 3G/HD/SD-SDI loop output |
RS485 ×1 | TSL 3.1/4.0 UMD output |
Analog audio | 3.5mm headphone and speaker |
Video Format
SDI 1 | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
SDI 2/3/4 | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
Quad Link 4K (Each channel) | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
HDMI® | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
General
Input voltage | DC 12V-17V, AC 100-240V, 50/60Hz |
Power consumption | 60W |
Working temperature | 0°C～+50°C |
Working humidity | 10%～90% |
Storage temperature | -15°C～+60°C |
Storage humidity | 10%～90% |
Dimensions | 570×405×260mm (with case) |
Net weight (main body) | Net 7.28kg; With package 16.9kg |
MSRP
MSRP
MSRP
-

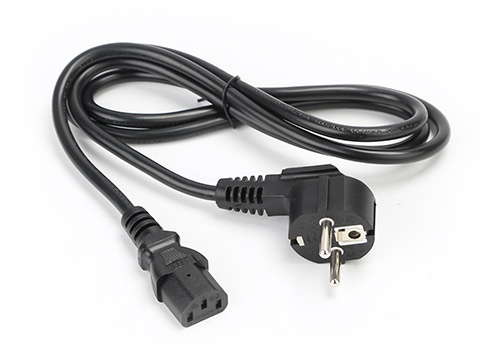

AC power cable
-
VESA to C-stand bracket
-
Install Plate x2
-

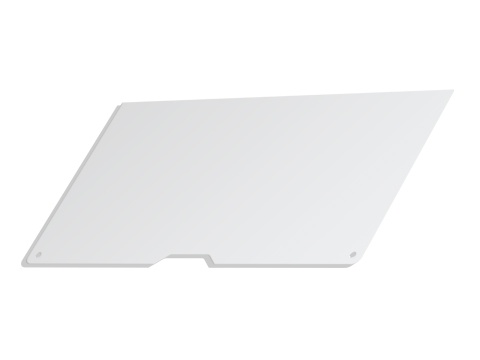

Screen Protector
-
Flight Case
-
MA-HC215
Foldable Sunhood for FM-215HDR, could be folded into the flight case.
1. Warranty Period
We provide 2 years conditional warranty for monitors (1 year for LCD panel).
2. Exclusions from Warranty Coverage
The following damages, malfunctions, interface burnouts, LCD panel failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with Operating Procedures
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly or repair; failure to follow the prescribed sequence for SDI/BNC cable insertion/removal and power on/off operations.
(2) Non-Compliant Power Supply
Use of power supply not conforming to the specifications indicated in the User Manual.
Use of third-party power adaptors or DC power cables for power supply.
(3) Misuse and Improper Handling
Human error, forced insertion or removal, hot-plugging under power, unauthorized modification, short circuit, overload, or any other non-normal use.
(4) Adverse Environmental Conditions
Use under direct sunlight, in high-temperature enclosed spaces, or other harsh environments resulting in screen overheating, aging, or degradation.
(5) External Force and Non-Quality Damage
LCD panel damage caused by external forces, transportation, impact, compression, water ingress, high temperature, electrostatic discharge, or any cause other than the product's inherent design, workmanship, or manufacturing quality.
(6) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(7) Consequential Damages
Equipment damage, personal injury, or property loss arising from improper protection or operation.
