› 0.5×3 feet long ratio panel light
› 480pcs edge mounted SMD-LEDs
› Unique 90° light guide technology
› 90W power, 2000Lux @ 1meter
› 0-100% flick-free dimming
› 2700K-6500K continuously adjustable
› CRI Ra 99, TLCI 99
› DMX512 control and interaction control
› USB power out for wireless DMX receiver
› LCD display color, dimmer, DMX and battery info
› DC 11-36V wide input voltage
› Power by V-mount or Gold mount battery
› With 2-leaf metal barn doors
› Provide portable 3-light interview kit
90W Long Ratio LED Panel
PL-E90L is a 0.5×3 feet size long aspect ratio light for soft vertical lighting
of people. The PL-E family slim size is portable for interview kit application.
21mm Slim Size
Side Mounted SMD-LED
PL-E90L has SMD-LEDs side mounted on the inner edge
of the frame, and with SWIT innovative laser dots 90°
reflection board, the light outputs high efficiant bright, soft
and even beam to wrap around objects.
The side mounted LEDs greatly reduce the light thickness.
It’ s only 21mm, slim and portable for field application.
90W, 2000 Lux @ 1 meter
2700K-6500K Continuously Adjust
PL-E90L mixed with 90W 2700K LEDs and 90W 6500K
LEDs, outputs 90W 2200Lux at 1 meter high intensity
and any color temperature between 2700K to 6500K,
supports 0 to 100% PWM digital dimming, smoothly
and non-flickering.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.
CRI 99, TLCI 99
PL-E90L adopts high end surface
mounted LEDs with super high Color
Rendering Index (CRI) Ra 99, and
Television Lighting Consistency Index
(TLCI) 99. Objects will keep their
original colors exactly under the light.

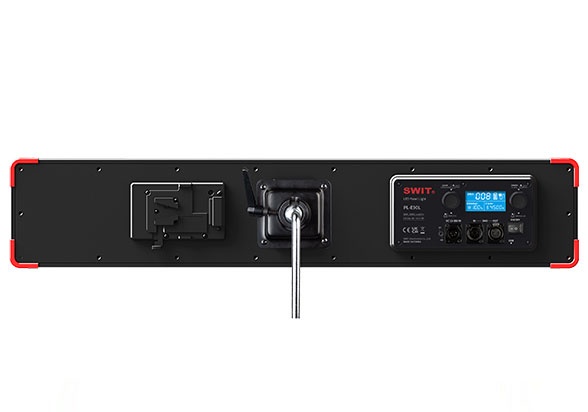

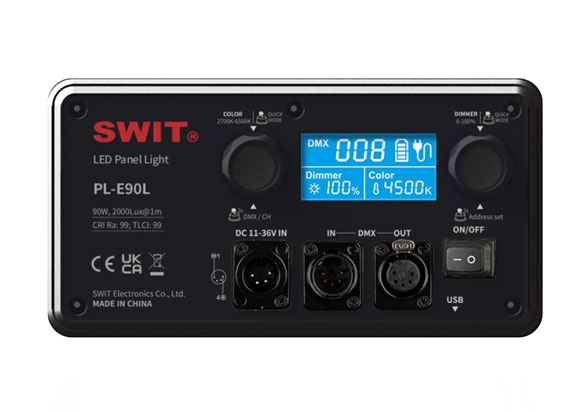

Control Panel
The rear control panel supports DMX512 in and
out, USB power out for wireless DMX adaptor,
DC 11-36V wide input. The LCD screen displays
dimmer, color temperature, DMX address and
power status.

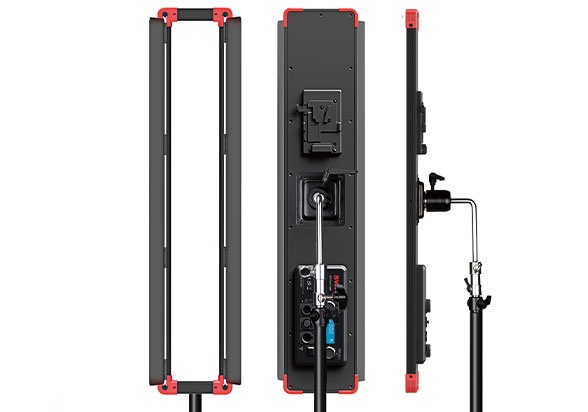

Rotatable Lighting Angle
PL-E90L provides a light stand connector with 360° rotatable and 180° tiltable.

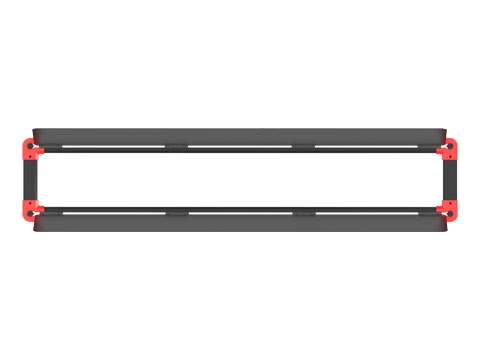

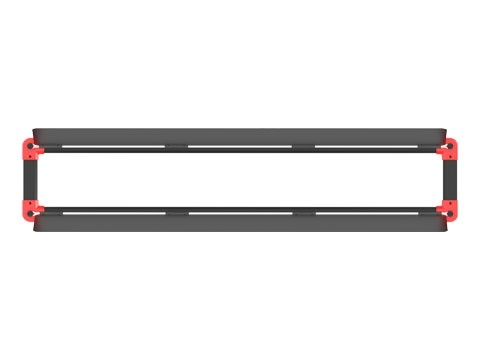

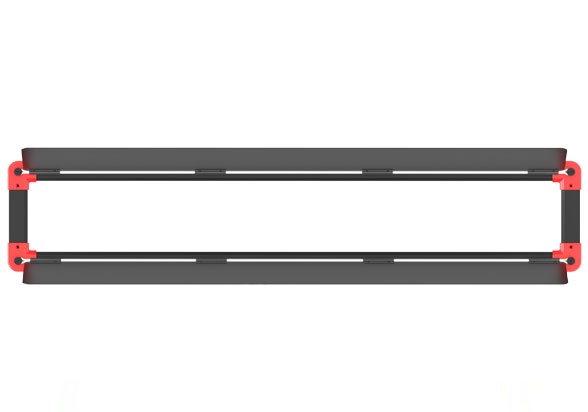

2-leaf Barn Doors
PL-E90L installed with 2-leaf metal barn doors
and also could be removed easily by 4 screws.
Single Light Package
The single light package includes:
1x PL-E90L light with barndoor

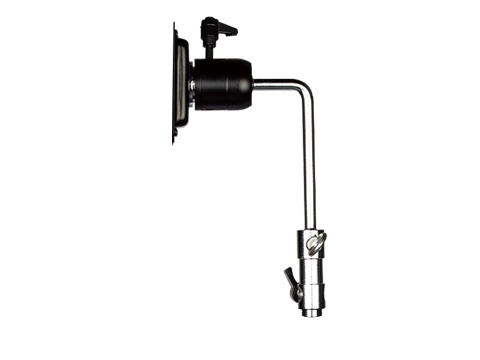

1x Light stand connector

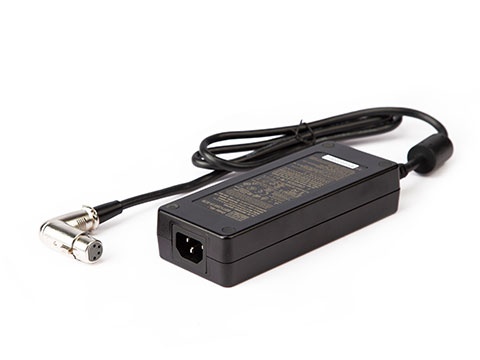

1x AC-DC adaptor

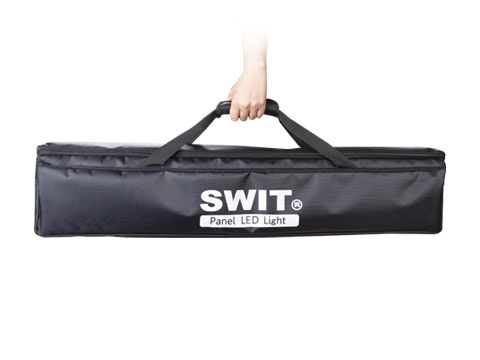

1x Carrying bag
3-Light Kit Package
The 3-light kit package includes:

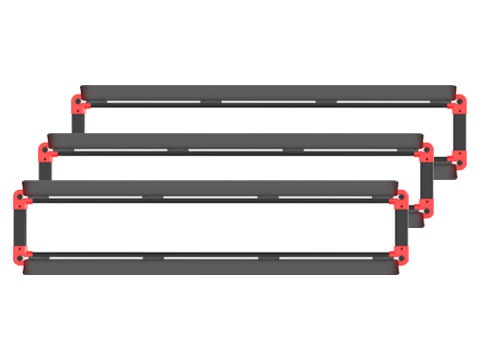

3x PL-E90L lights with barndoor

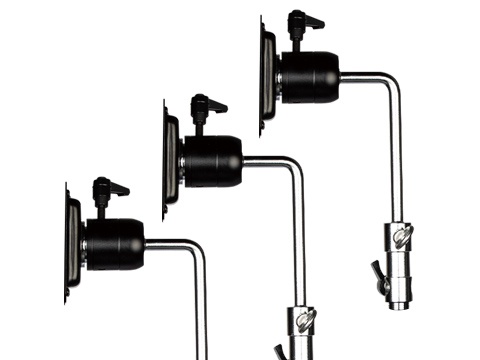

3x Light stand connectors

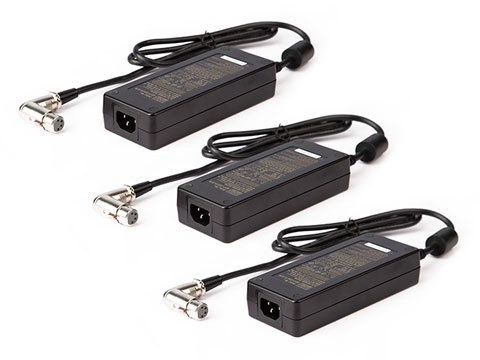

3x AC-DC adaptors

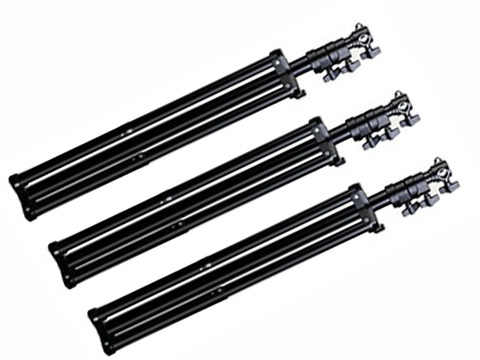

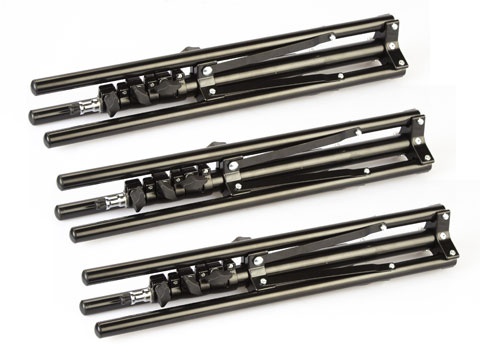

3x Light stands

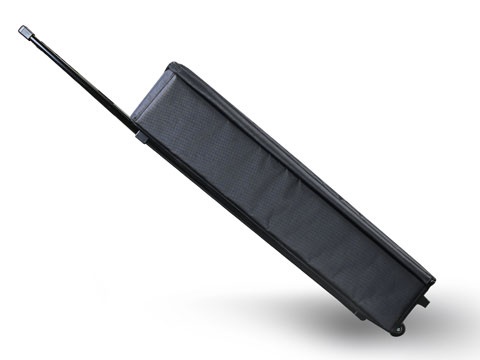

1x Trolley case
Ceiling Hoisting Version
PL-E90LH
Provide a specialized short bracket for ceiling hoisting,
which can bring the light fixture as close to the ceiling as possible, support ±90° tilt and 360° rotate.
The studio hoisting version SKU: PL-E90LH
LED | 480pcs SMD LEDs |
illuminance | 2000Lux @ 1m |
Beam angle | 70° |
Color Temperature | 2700K～6500K |
CRI | 99 |
TLCI | 99 |
Power | 90W |
Working voltage | DC11V～36V |
Dimension | 839×163×21mm |
Lighting area | 781×104mm |
Weight | Net 4.9kg; Single light package 9.7kg 3-light package 37kg |
On-location Package
MSRP
Ceiling Hoisting Package
MSRP
MSRP
-

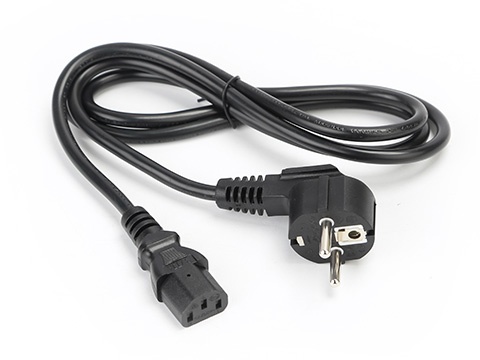

AC power cable
-
PL-E90L with barndoor ×1
-
AC-DC Adaptor ×1
-
Light stand connector ×1
-
Carrying bag
-
AC power cable
-

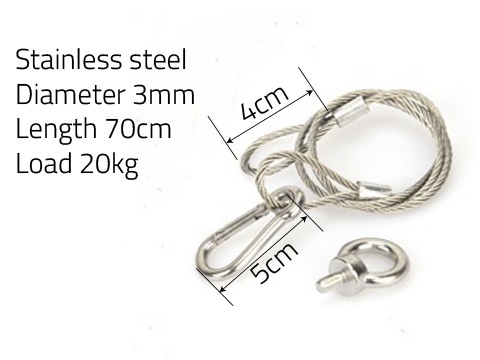

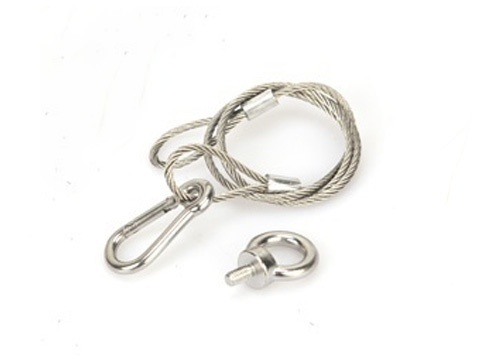

Safety Rope and Ring
-
The Light with barndoors
-
AC-DC Adaptor
-

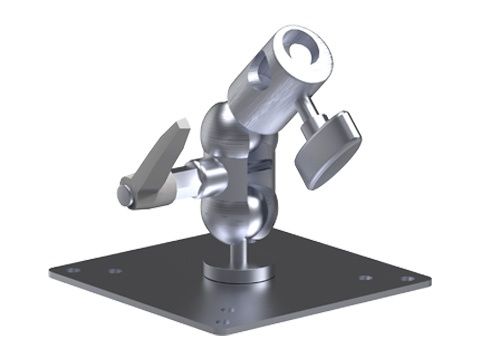

LA-V10 Short hoisting bracket
-

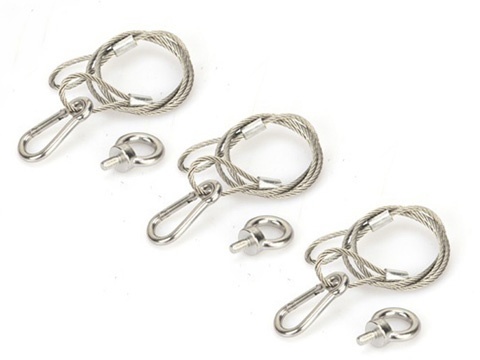

Safety Rope x3
-
PL-E90L with barndoor ×3
-
AC-DC Adaptor x3
-
Light stand connector ×3
-
Light stand x3
-
Trolley Case
