› 320pcs edge mounted SMD-LEDs
› Unique 90° light guide technology
› 60W power, 1500Lux @ 1meter
› 0-100% flick-free dimming
› 70° effective wide beam angle
› 2700K-6500K continuously adjustable
› Super high CRI Ra 98, TLCI 99
› LCD display color, dimmer and battery info
› DC 11-36V wide input voltage
› Power by V-mount / Gold mount battery
› Strong all-metal housing with U-stand
› Provide portable 3-light kit
› Optional 4-leaf barn door and 40° honeycomb
320pcs Edge Mounted LEDs
Super thin, area light, soft and glareless
PL-E60 is specially designed for field portable lighting applications.
320pcs SMD-LEDs are mounted in the inner edge of the light
frame, and with SWIT unique 90° light guide technology, PL-E60
can output bright, soft and equally spread light, meanwhile, the
light body is slim enough and portable, which is an ideal light source
for interview kit and field video productions.
Laser Dots 90° Light Guide
High efficiency and super bright
The traditional edge mounted LED lights are always not so
bright, because half of the light will go to the backside, even
if there’s reflection board, there’s still a lot of light lost.
SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles
of edge light will be converged on the laser dots, and output
90° to the front with minimum light lost. Then the slim edge
mounted light can also be high brightness.
1500 Lux @ 1 meter
0-100% flick-free dimming
PL-E60 outputs 60W power, feeds 1500Lux luminance at 1 meter distance (center),
much brighter than other similar size LED panels. The effective beam angle reaches 70°,
bounded by 50% decline. PL-E60 also supports 0 to 100% PWM digital dimming, smoothly
and non-flickering.
Bi-color Temperature
2700K-6500K continuously adjustable
PL-E60 alternated with 2700K and 6500K LEDs, and the output color temperature can be continuously adjustable between 2700K and
6500K.
High Color Render Index
CRI Ra 98; TLCI 99
CRI (Color Rendering Index) is a measure of the ability of a light
source to reveal the colors of various objects faithfully in comparison
with a natural light source. And TLCI (Television Lighting Consistency
Index) is special for the color reveal ability by camera sensor. Max
value 100.
The normal LED light has 80-85 CRI or TLCI, while PL-E60 offers the
super high CRI at 98 and TLCI at 99, and will not lost the object
original colors.
LCD Screen Display
Dimmer / color / DMX channel, battery info
The rear LCD screen can display the current dimmer
percentage, color temperature value, DMX channel and
CH channel, and remaining battery indications.
Quick Adjust Mode
By pressing the adjusting knob
PL-E60 supports quick adjusting brightness and color
temperature:
Press the Dimmer knob, it will switch from 1% stepping to 10%
stepping, to quick adjust brightness;
Press Color temperature knob, it will switch from 50K stepping to
the following commonly used color temperature selection: 2700K
/ 3200K / 4500K / 5600K / 6500K.
11-36V Wide Input Voltage
By V-mount/Gold mount battery or 4-pin XLR
PL-E60 supports 11-36V wide range voltage input, with 4-pin
XLR DC socket, and equipped with V-mount or Gold mount plate
to power by batteries.
(The default battery plate is V-mount.)
Barn Door / Honeycomb
Optional purchase, Easy to assemble
PL-E60 has all-metal housing, and provides the 4-leaf metal barn door and 40° metal honeycomb accessories, easy to assemble.
Barn door (Model # LA-HE60) and Honeycomb (Model # LA-GE60) are optional purchased.
LED | 320pcs SMD LEDs |
illuminance | 1500Lux @ 1m |
Beam angle | 70°(50% bounded) |
Color Temperature | 2700K～6500K |
CRI | 98 |
TLCI | 99 |
Power | Approx. 60W |
Working voltage | DC11V～36V |
Dimension | 382×403×48mm |
Lighting area | 257×257mm |
weight | Net 3.1kg; With package 6.35kg |
Single Light Package
MSRP
$8222
3-Light Kit Package
MSRP
$8222
MSRP
$8222
-

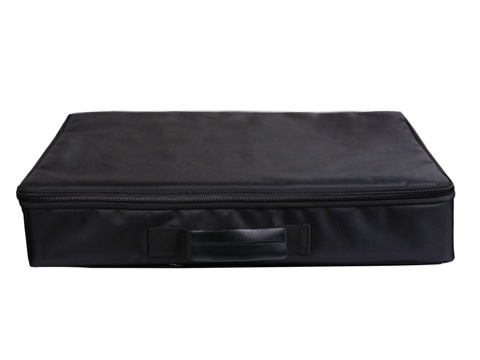

Bag
-

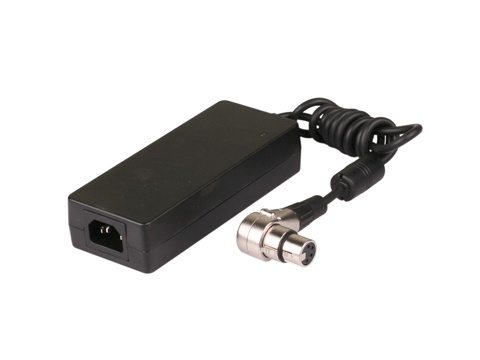

AC-DC Adaptor
-

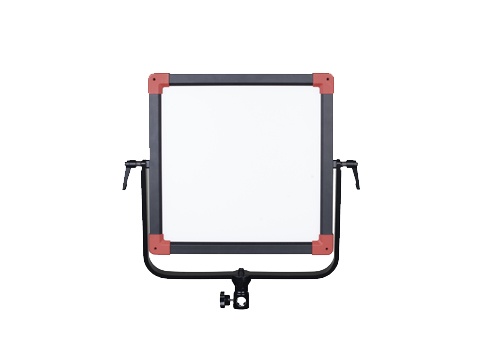

PL-E60 Light
-

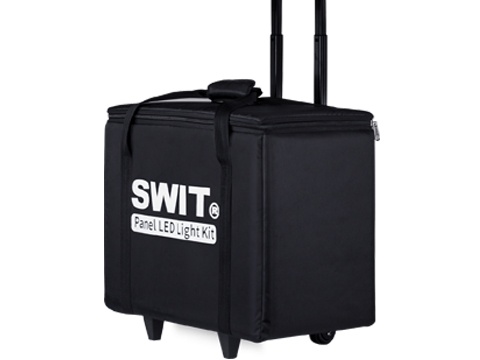

Trolley Case
-

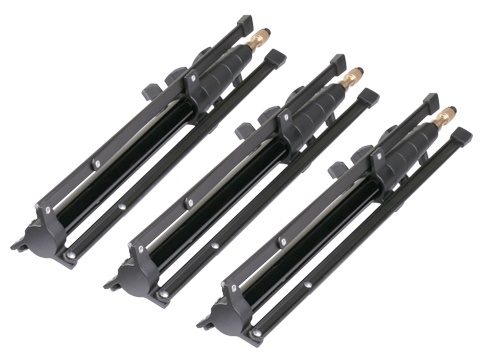

Light stand x3
-

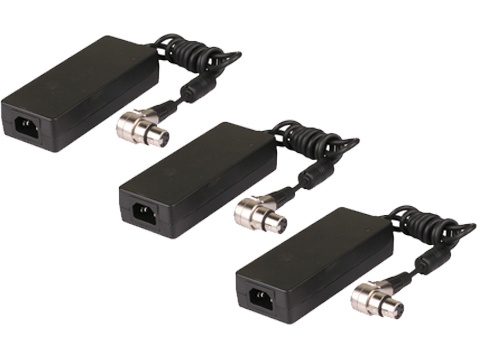

AC-DC Adaptor x3
-

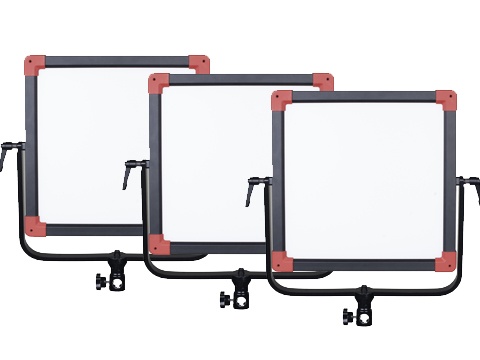

PL-E60 Light x3
-
LA-HE60
4-leaf metal barn door kit, mounted to the light by 4 screws. -

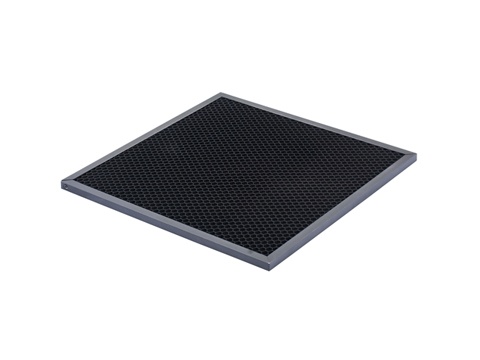

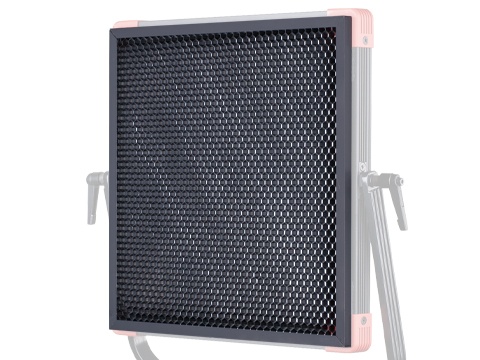

LA-GE60
Honeycomb 40°, metal, Directly attached to the front frame of the light Light weight and easy to remove -
LA-GE60N
Metal 40° Honeycomb, could be installed together with barndoor kit.
