› 1600Wh Ternary Li-ion battery cells
› Add-on up to 8×1600Wh units to expand capacity
› 4× DC15V (Reg.) out, 10A each, 450W in total
› 1× DC24V (Reg.) out, 15A, 360W load
› 1× USB-C 5V/9V/12V/15V/20V 3.25A 65W out
› All power sockets output simultaneously
› LCD display remaining time and battery life
› Built-in AC 100-240V 450W fast charging
› Solar panel XT60 port 11.5-60V 400W charging
› Support Discharging while charging
› -20° Power Up, Low Temp Resistance
› Ultra Low Standby Power Consumption
› Heavy duty housing with rubber covers
› UL94 V0 flame retardant, safe and reliable

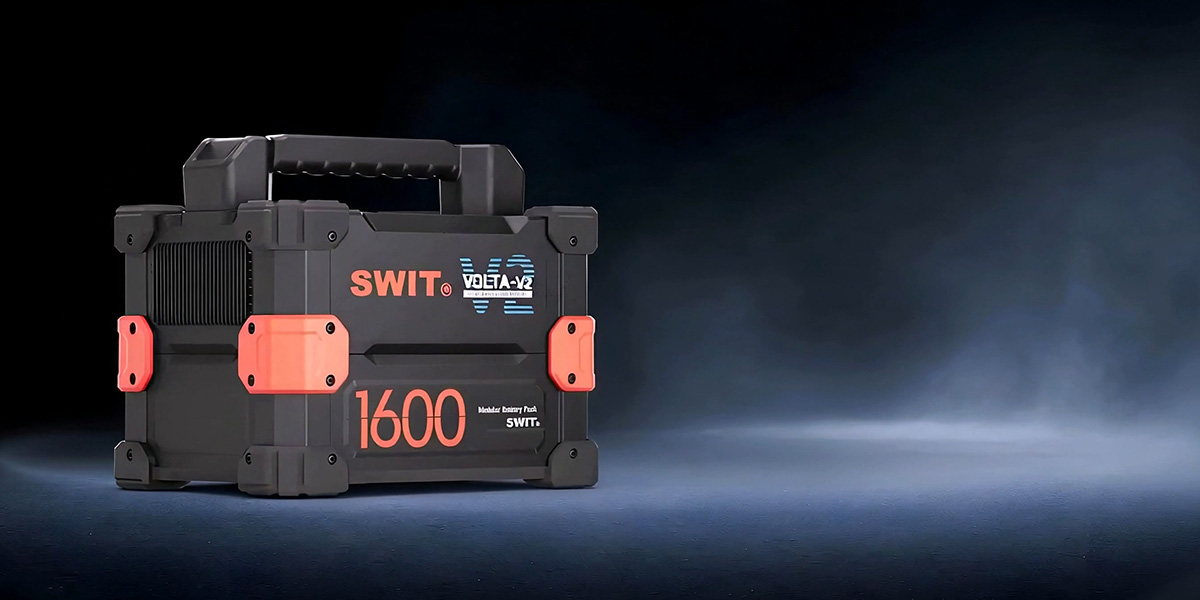

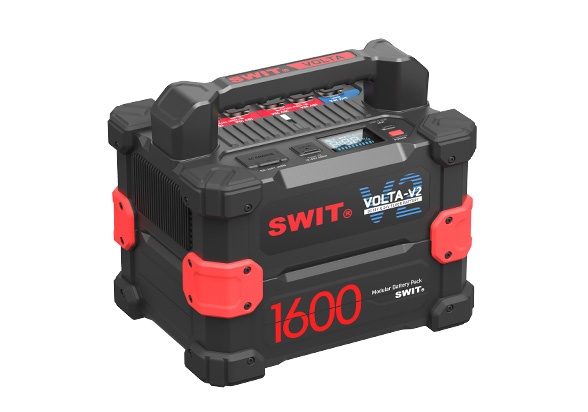

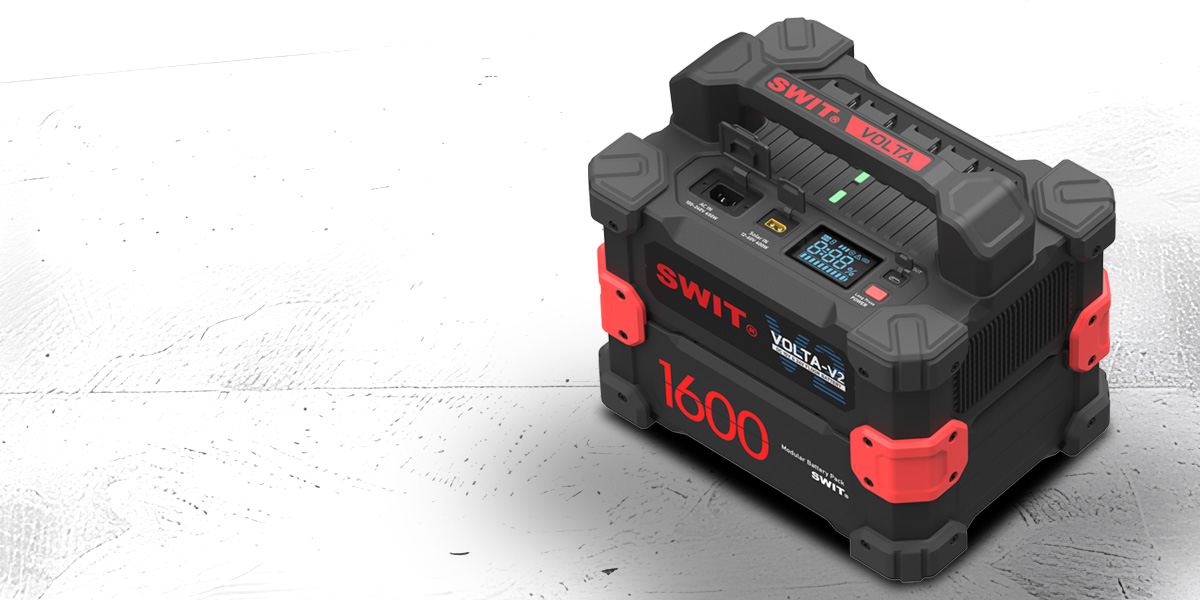

Professional DC Floor Battery
1600Wh, DC15V/24V, USB-C Outputs
The VOLTA-V2 is a high-capacity floor battery purpose-built
for professional cinema and broadcast applications. With a
substantial 1600Wh capacity, it delivers reliable, extended
power to a wide range of on-set equipment, including ENG
and CINE cameras, director’s monitors, vision mixer displays,
DIT stations, and remote heads.

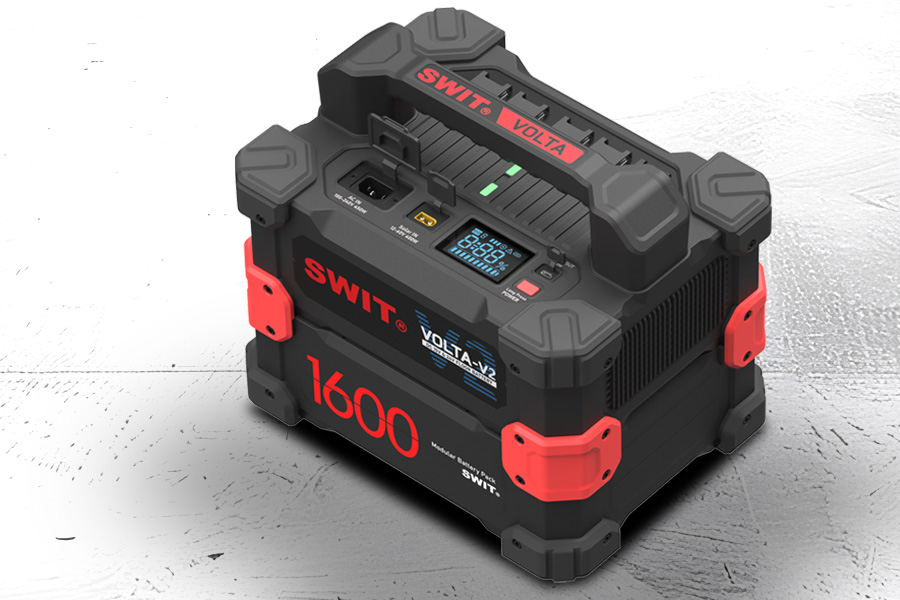

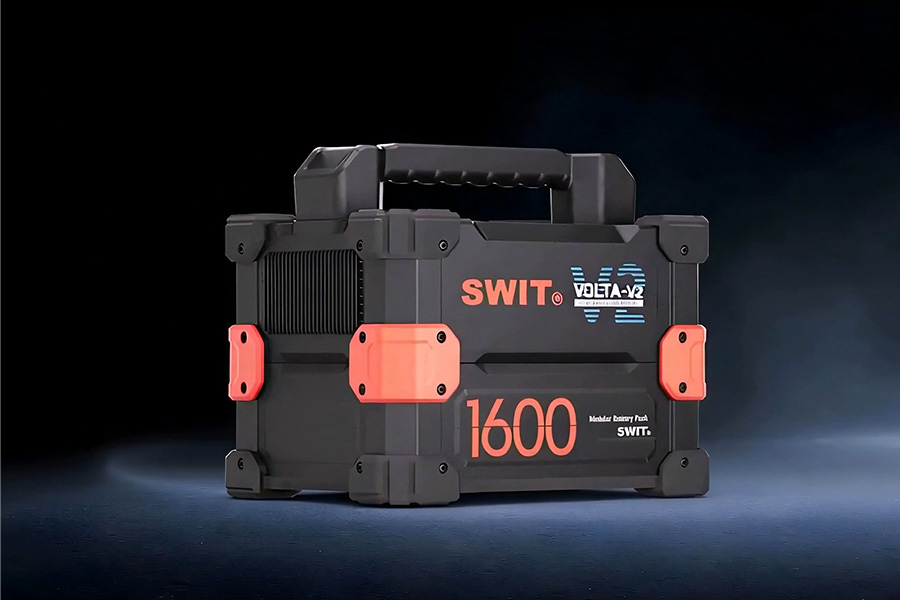

Rugged Built for Field Production
The robust housing is reinforced with rubber anti-impact
corner bumpers to withstand accidental drops and bumps on
set, while the ergonomically designed handle offers superior
comfort during transport and repositioning. Built tough yet
easy to carry, the VOLTA-V2 is the trusted power partner for
field video productions.

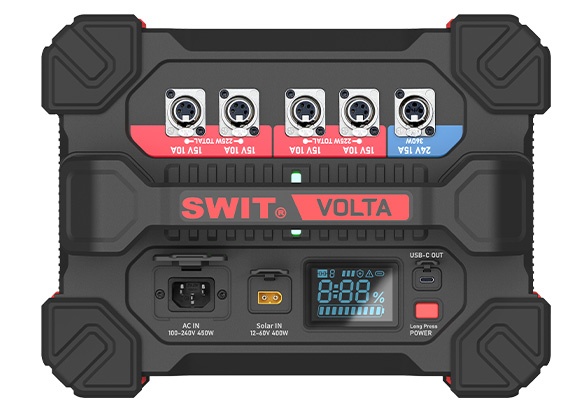

DC15V / DC24V / USB-C Out
All Sockets Output Simultaneously
VOLTA-V2 Floor Battery Provides:
2× 4-pin XLR DC15V out, 10A each, 225W in total
2× 4-pin XLR DC15V out, 10A each, 225W in total
1× 3-pin XLR DC 24V 15A out, 360W
1× USB-C 5V/9V/12V/20V 65W out
All output sockets can work simultaneously.

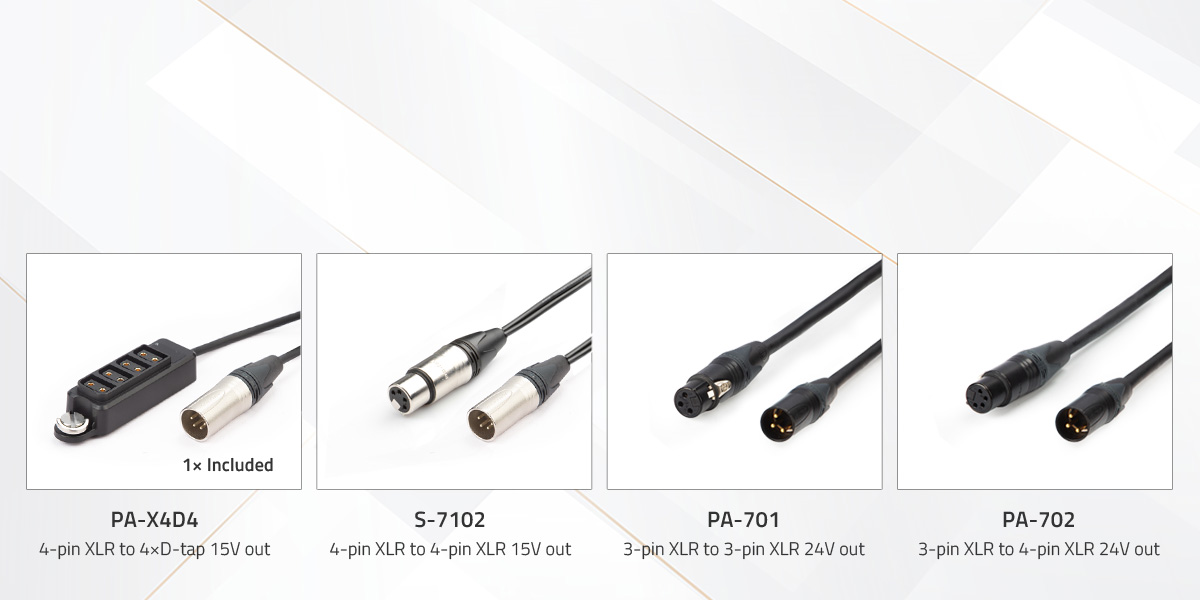

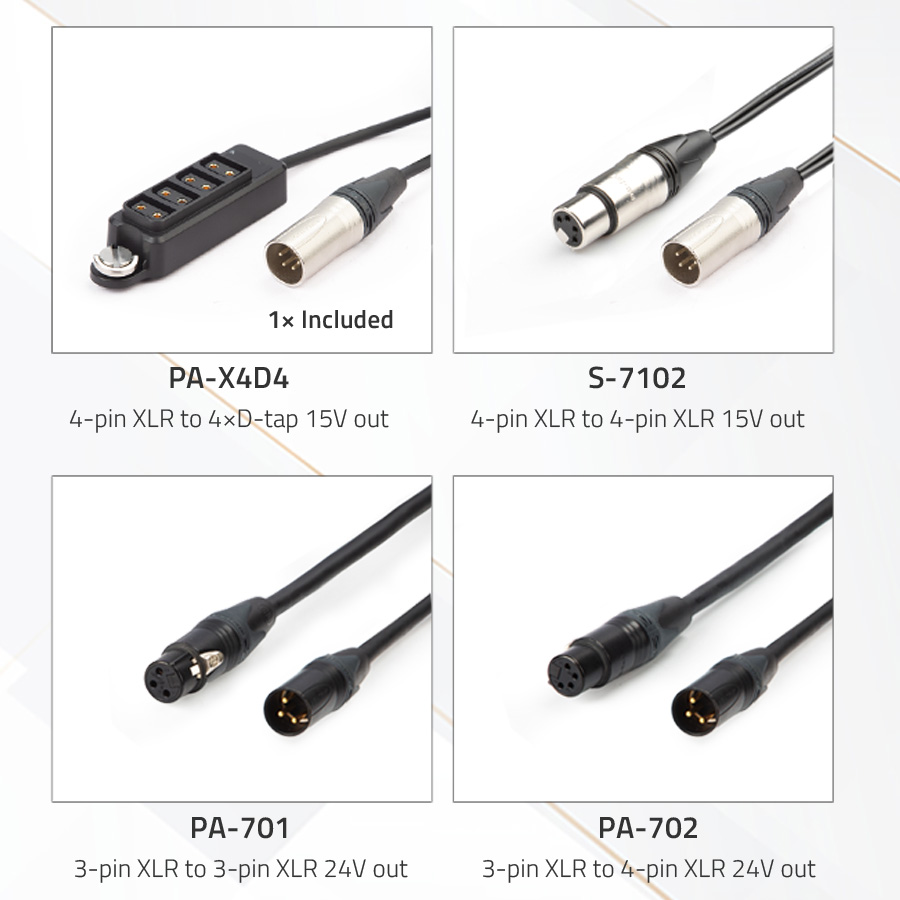

DC Cable Options
The VOLTA-V2 comes standard with a 4-pin XLR to 4×D-tap adapter cable (PA-X4D4), allowing you to power a wide variety of D-tap compatible devices directly from the battery. For greater flexibility, optional 3-pin or 4-pin XLR adapter cables are also available to accommodate different equipment requirements, ensuring seamless integration with your existing on-set setup.

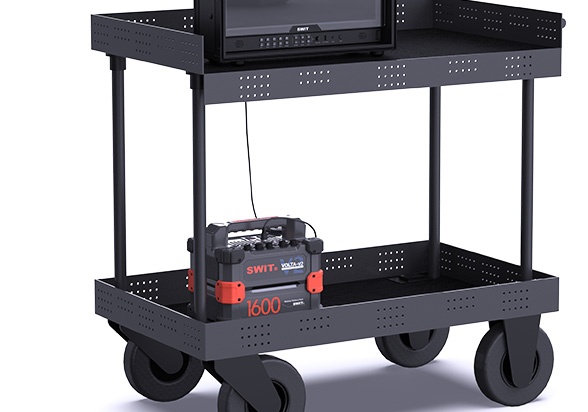

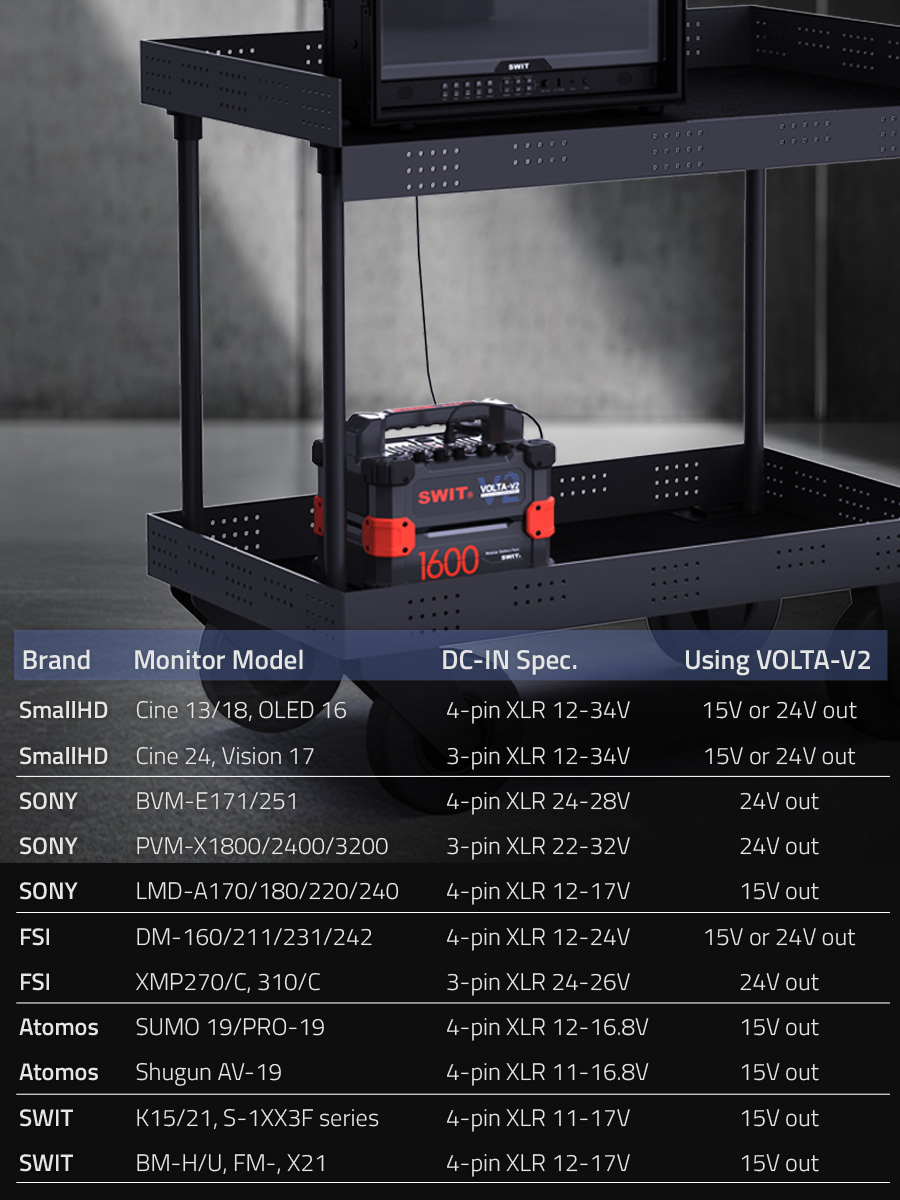

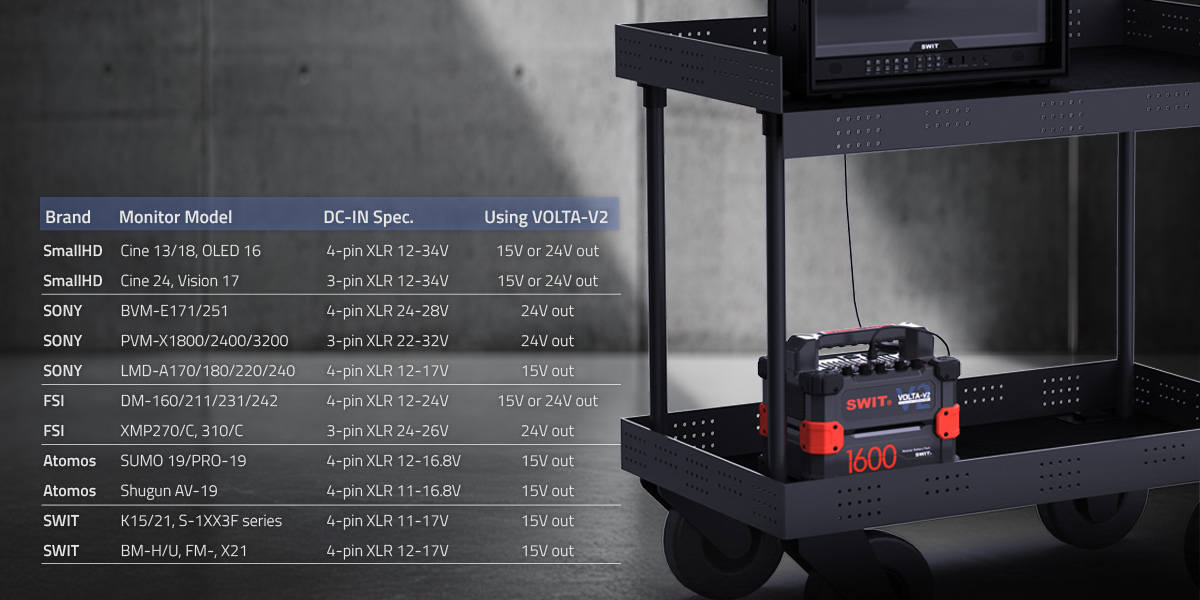

Power the Monitors
VOLTA-V2 outputs 15V and 24V together, provide flexible
power options for a wide range of on-set monitors.

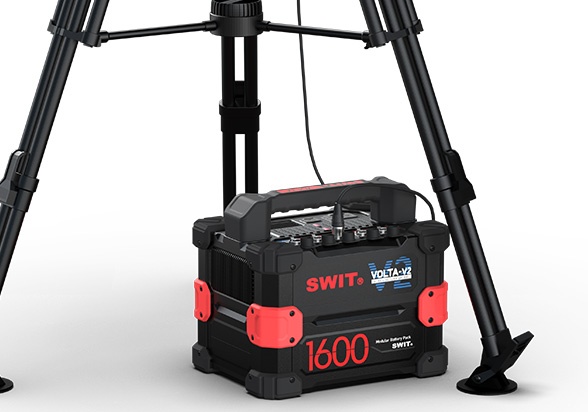

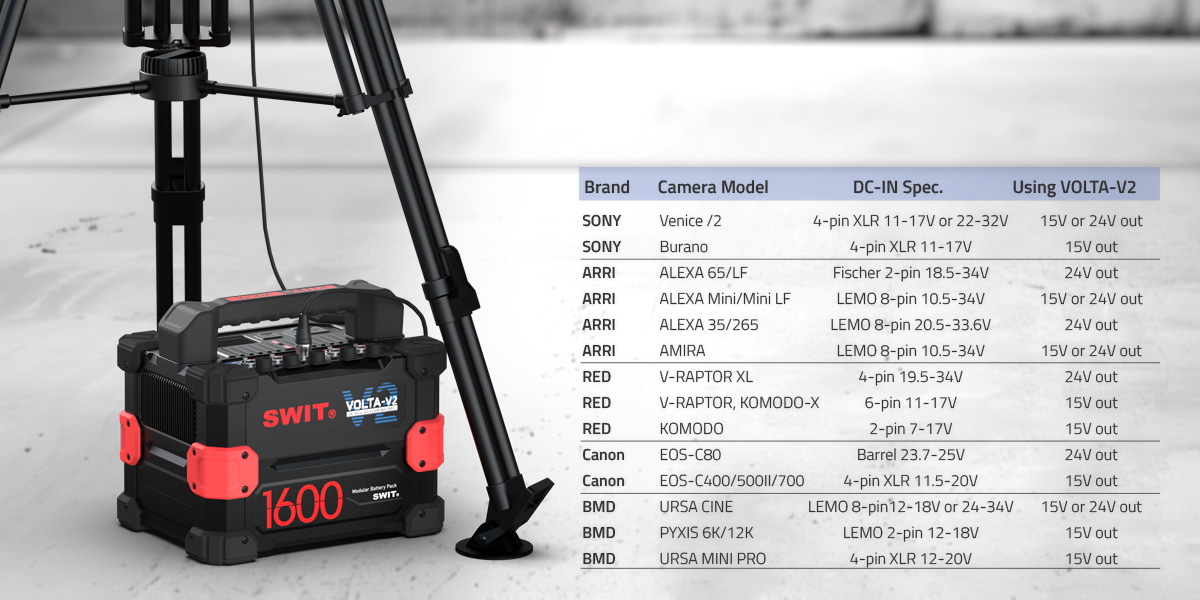

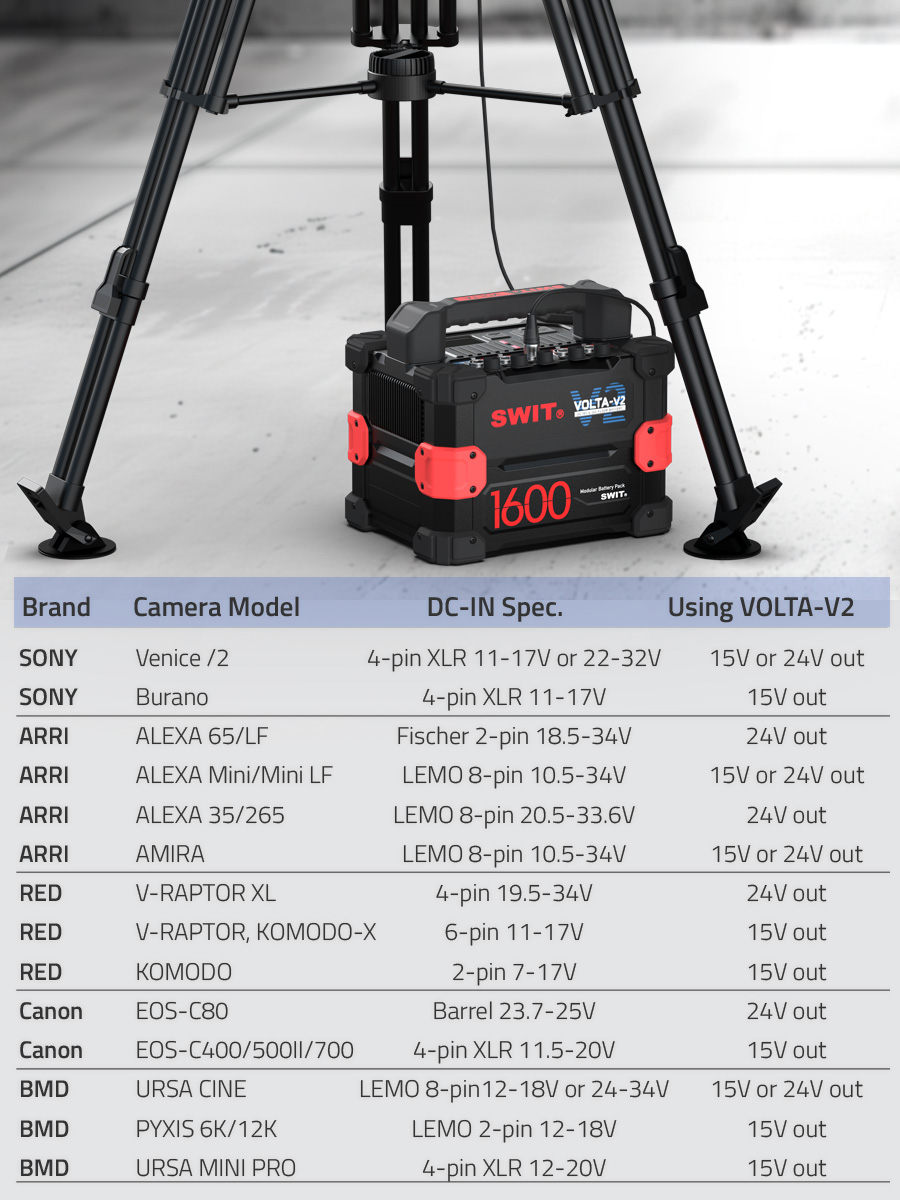

Power the Cameras
VOLTA-V2 outputs 15V and 24V for variety of ENG and CINE cameras.

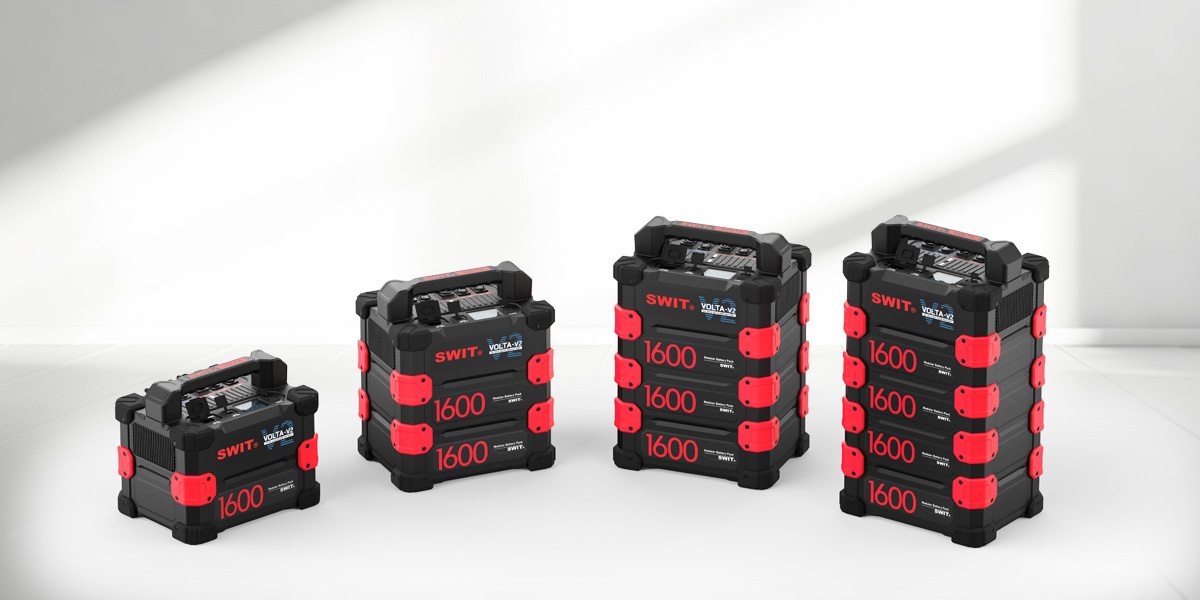

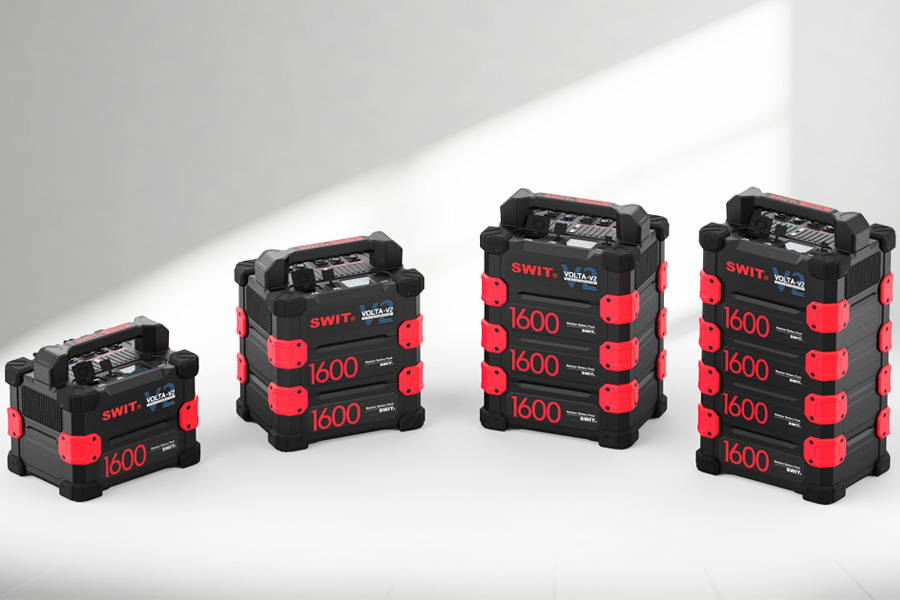

Max 8 Layers 12.8kWh Capacity Expand
The VOLTA-V2 has a basic 1600Wh battery unit, and supports modular add-on battery
units to expand capacity. The system supports a maximum of 8× stacked battery packs,
meeting the long-term power supply needs for a variety of high-power equipment.

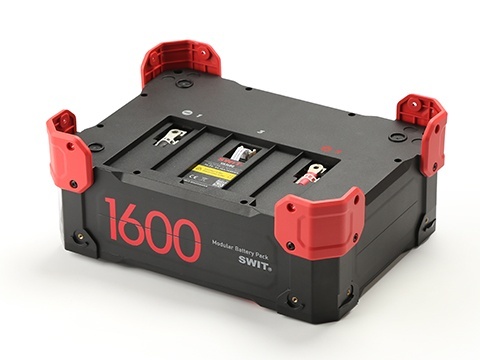

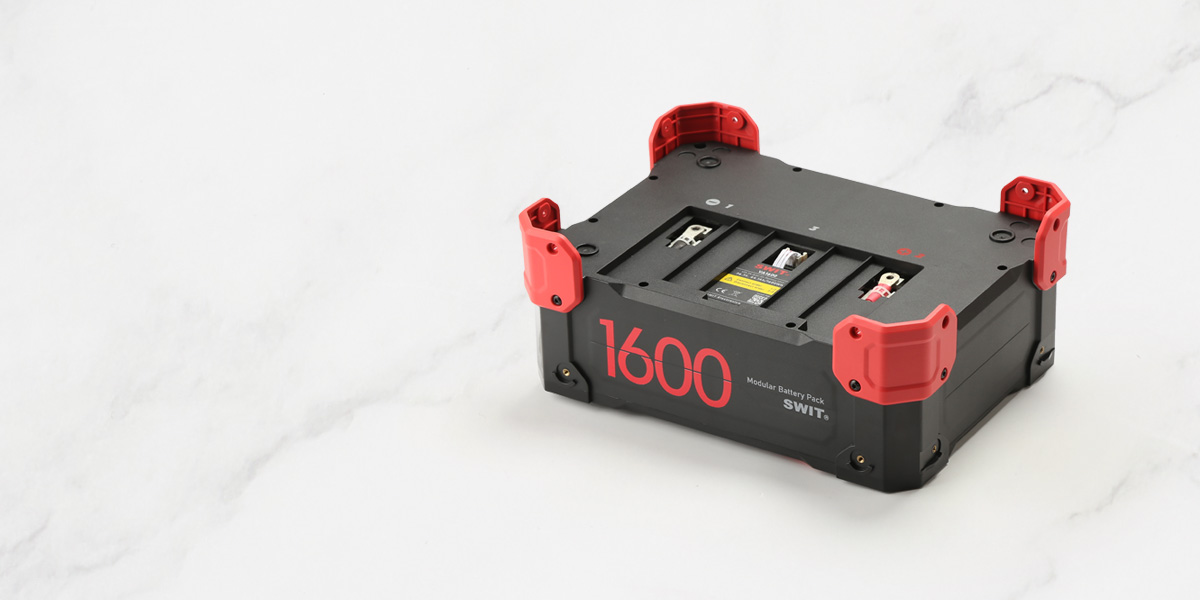

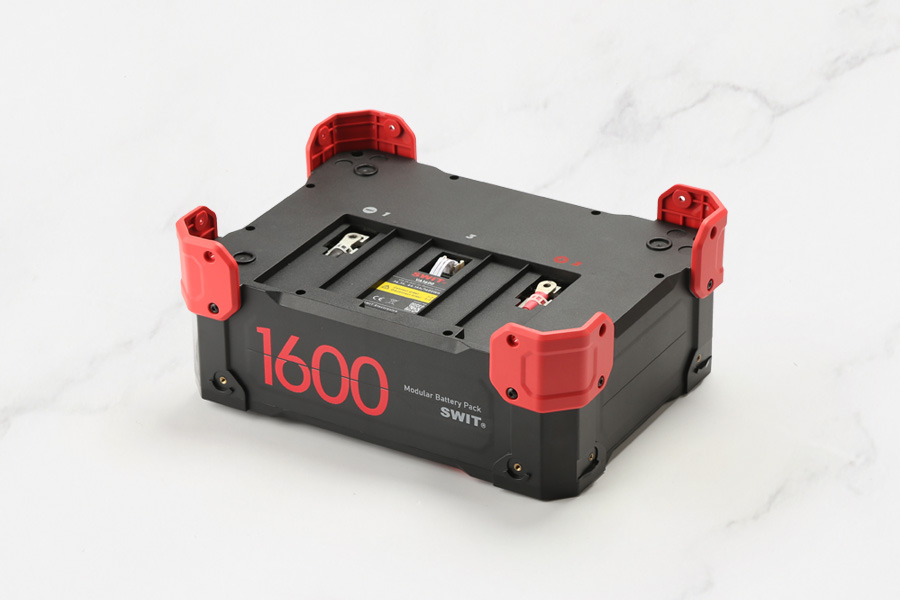

The Add-On Battery Unit
Optional purchased 1600Wh add-on battery unit,
VA1600, could be install between the top control
box and bottom battery unit, simply by connecting
2× power wires and 1× data wire.
* The VA1600 is compatible with both VOLTA-V2
and VOLTA-DC1600.

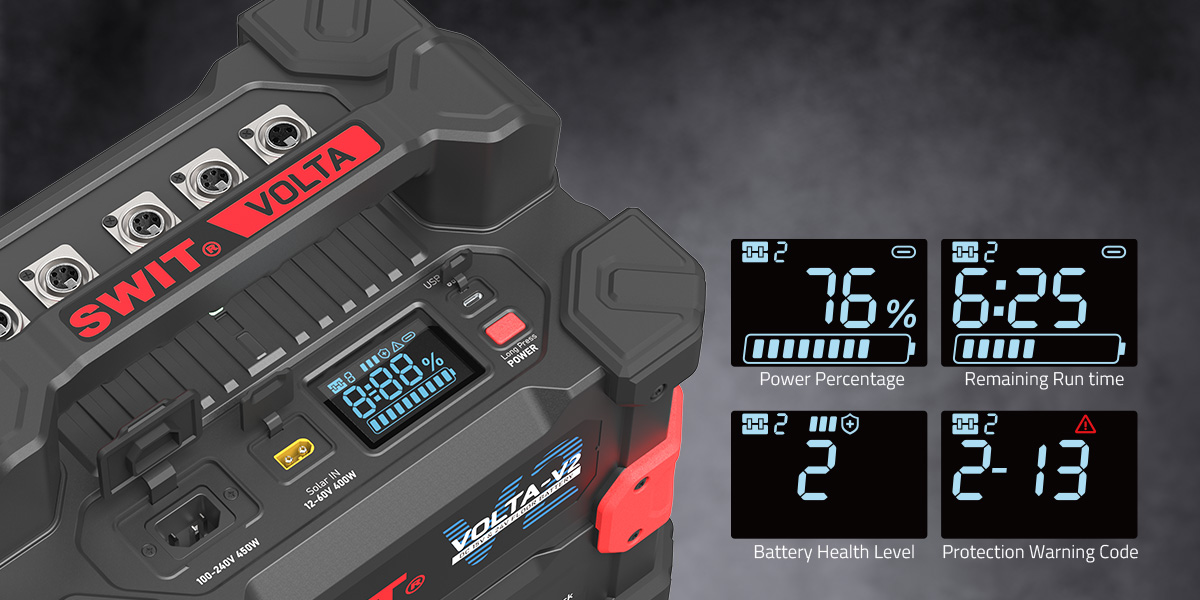

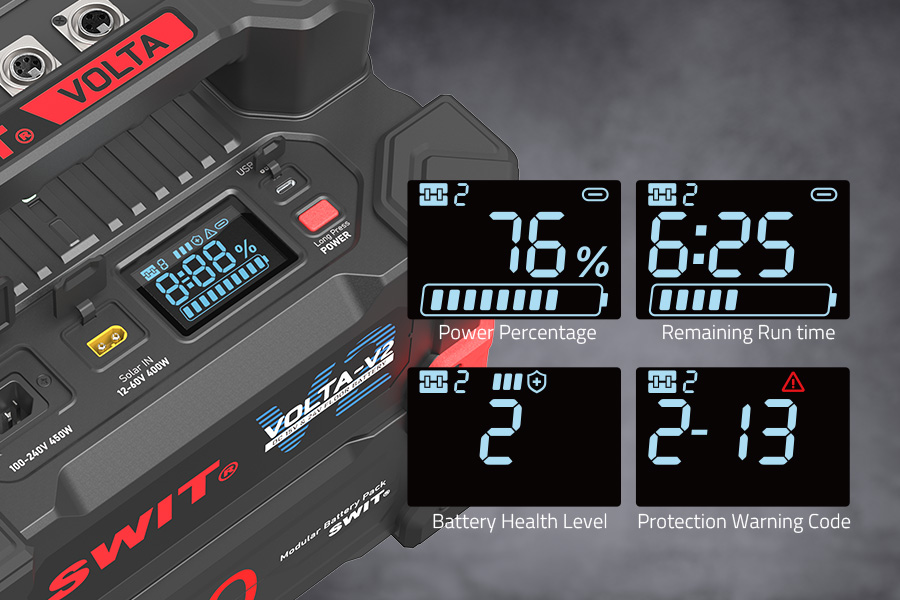

LED Power Info Display
Remaining time & Battery Health
The LED screen displays power percentage, remaining
run time, and the health level of each battery unit.

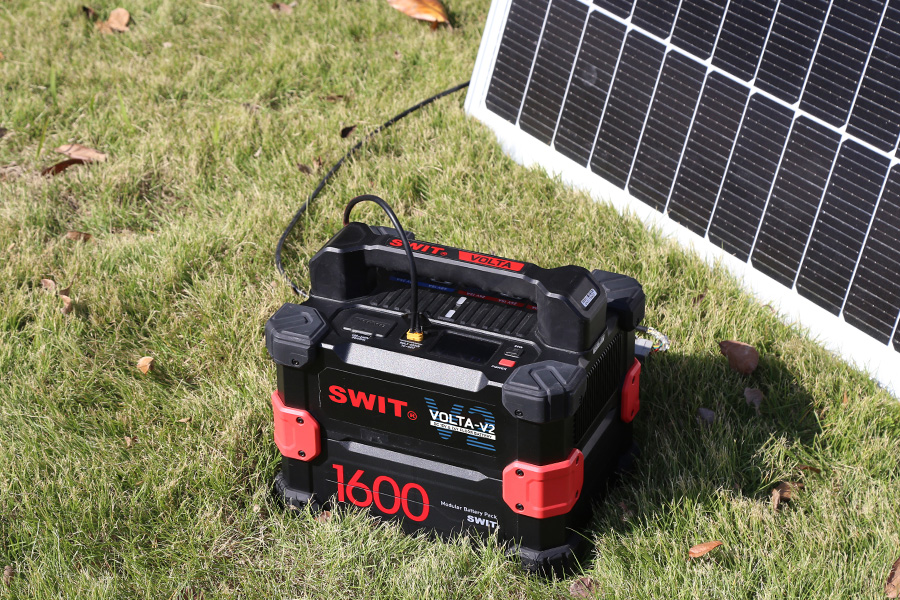

Solar Panel Charging
XT60 port 11.5-60V, 400W Max
The VOLTA-V2 floor battery is a green
energy solution that supports solar charging,
with XT60 interface for compatibility,
11.5-60V, 400W Max, and can be fully
charged in as fast as 4.5 hours, making it an
ideal backup for outdoor video productions
and emergencies.

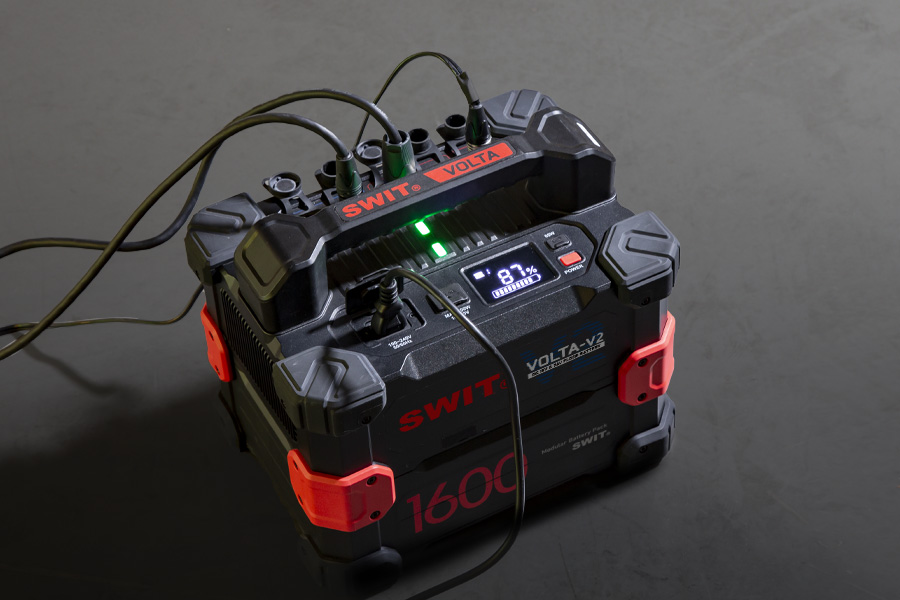

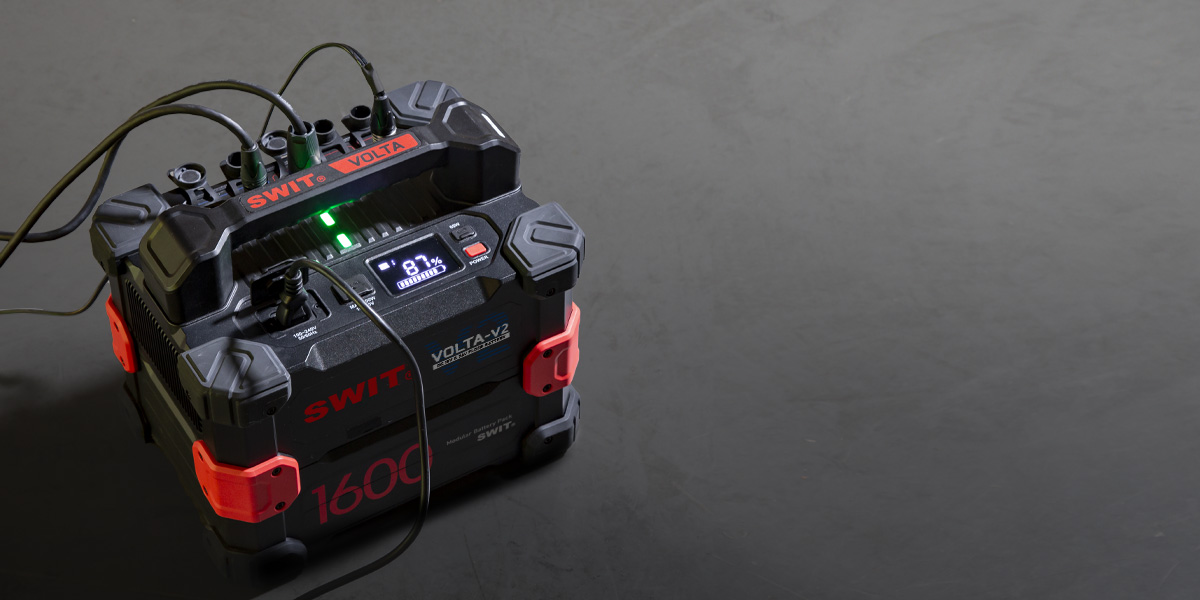

Discharging while Charging
Uninterrupted Power Supply
VOLTA-V2 floor battery has charger built-in, and
each 1600Wh battery pack can be fully charged
within 6.5 hours.
The system supports discharging while charging
as well, provides uninterrupted power to your
equipments.

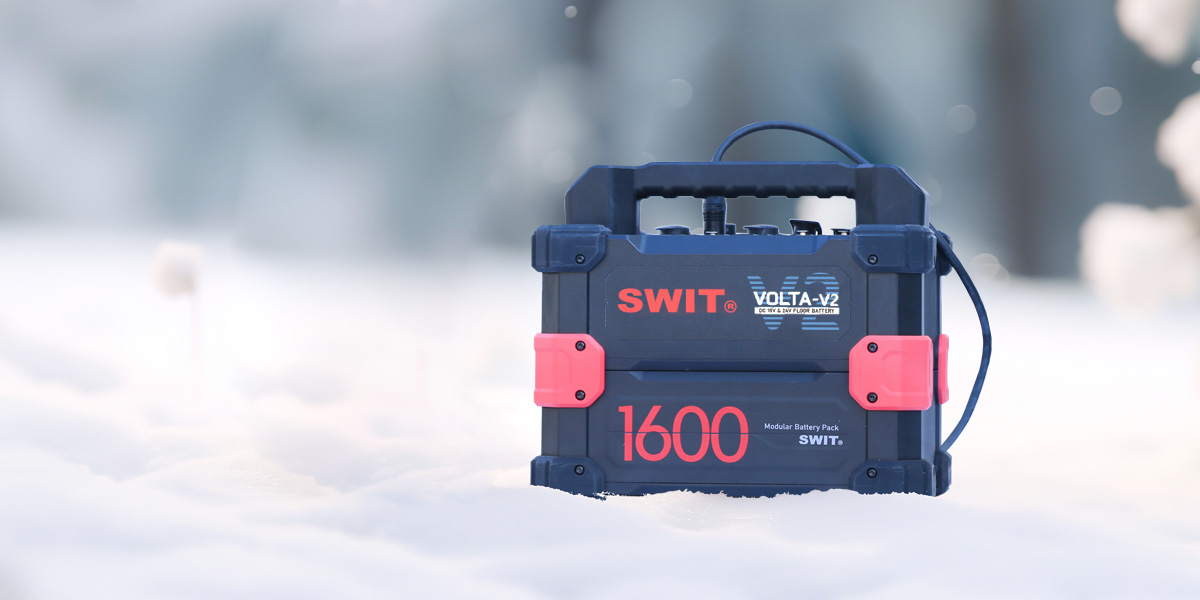

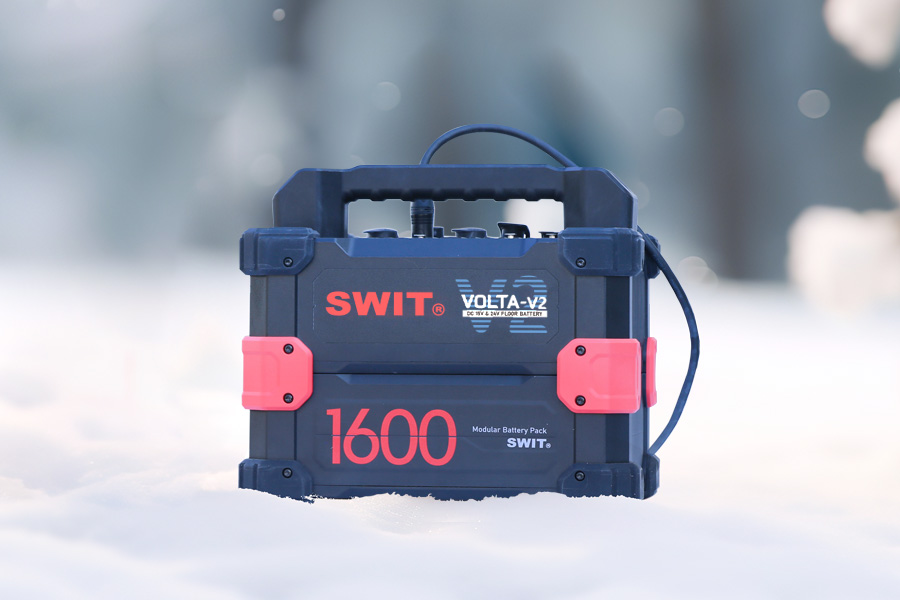

-20°C Power Up
The VOLTA-V2 floor battery adopts cold-resistant
ternary lithium cells and with SWIT's unique
low-temperature cold startup process, allows for
normal discharge even in extreme cold
environments as low as -20°C, perfect for filming
in freezing regions, guaranteeing a dependable
power source even in the most severe conditions.

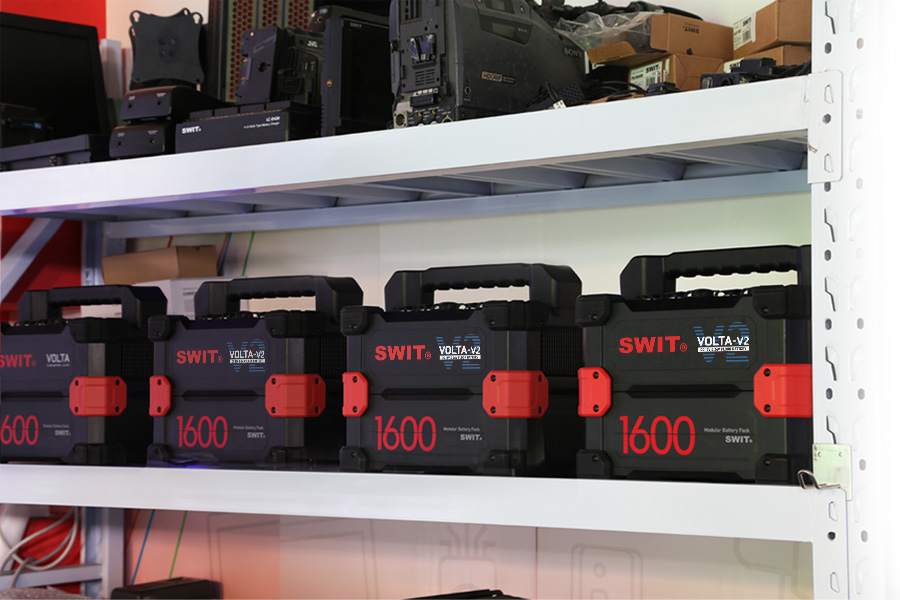

Ultra Low Standby Power
Keep Power for 10 Years Storage
The normal batteries need charging every few
months, otherwise the battery life will be
seriously affected.
While the VOLTA-V2 floor batteries will enter
sleep mode automatically if there’ s no output
for 12 hours, and will keep power more than 10
years of storage, and you don’ t need to
periodically charge the storage batteries.
Battery Cells | Ternary Lithium battery |
Capacity | 1600Wh, 44.1Ah |
AC Charging | AC 100-240V, 450W Max |
Solar DC Charging | XT60 11.5-30V 10A Max; 30-60V 400W Max |
Power Output | 2× DC15V (reg.) 4-Pin XLR, 10A each, 15A 225W in total |
2× DC15V (reg.) 4-Pin XLR, 10A each, 15A 225W in total | |
1× DC24V (reg.) 3-Pin XLR, 15A 360W | |
1× USB-C PD 5V/9V/12V/15V/20V 3.25A 65W | |
Power Load | Constant 1700W in total |
| Working Temperature | -20°C - 50°C |
| Dimension | 328×247×281mm |
Net weight | Net 13kg; With package 16kg |
MSRP
MSRP
MSRP
-

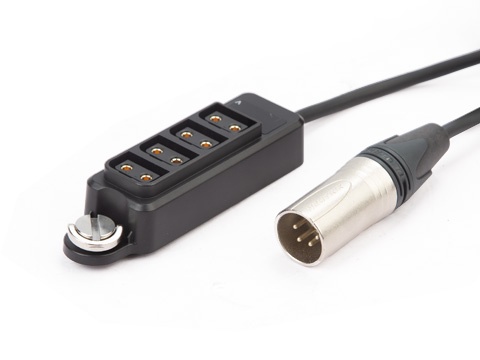

PA-X4D4 4-pin XLR to 4×D-tap cable
-

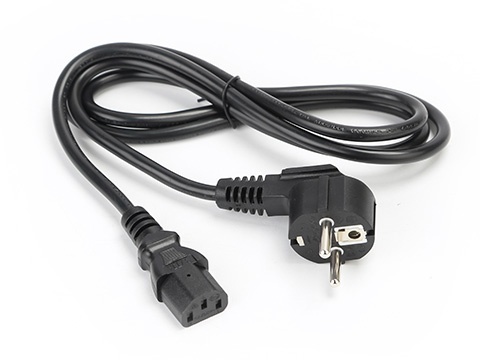

AC power cable
-
VA1600
1600Wh Add-On Battery Unit for VOLTA-V2 and VOLTA-DC1600, with connecting brackets, plug and screw. -

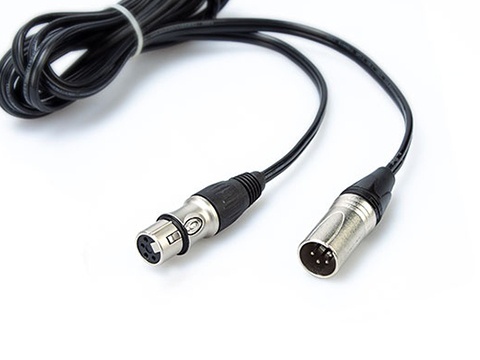

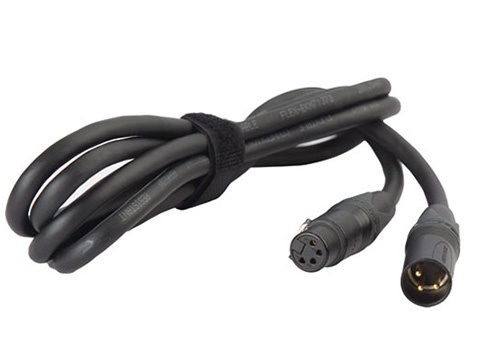

S-7102
4-pin XLR to 4-pin XLR DC Cable, 2 meters, 10A load. Connect DC15V output from VOLTA-V2 and output 4-pin XLR 15V. -

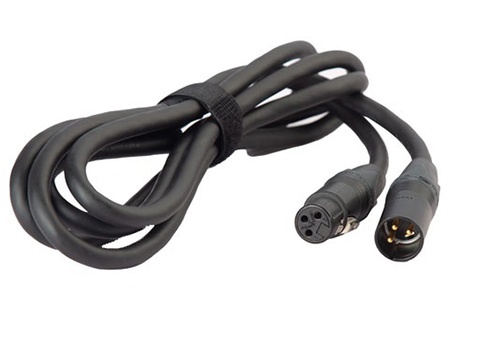

PA-701
3-pin XLR to 3-pin XLR DC Cable, 2 meters, 15A load. Connect DC24V output from VOLTA-V2 and output 3-pin XLR 24V -
PA-702
3-pin XLR to 4-pin XLR DC Cable, 2 meters, 10A load. Connect DC24V output from VOLTA-V2 and output 4-pin XLR 24V
-
VOLTA-DC1600
Modular Add-on Floor Battery
1600Wh large capactiy, 15V/24V/48V/USB-C output, 1700W load, solar panel charging, AC charging, Add-on 1600Wh battery packs.
We provide 2 year conditional warranty, and the following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Battery performance declines, cannot be charged or any charging errors caused by using third-party chargers.
(3) Battery capacity naturally decreased after a certain cycle times of charging and discharging.
(4) The capacity loss caused by over 6-month’s storage, and not charging the battery to re-active it during the period.
(5) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(6) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
