› Tiny Gold Mount battery, Pocket fit
› 14.4V 140Wh/9.7Ah high capacity
› 150W/12A constant high load
› 1x D-tap 120W out, charging in support
› 1x USB-A 5V/2A 10W out
› 1x USB-C 48W in & 65W out

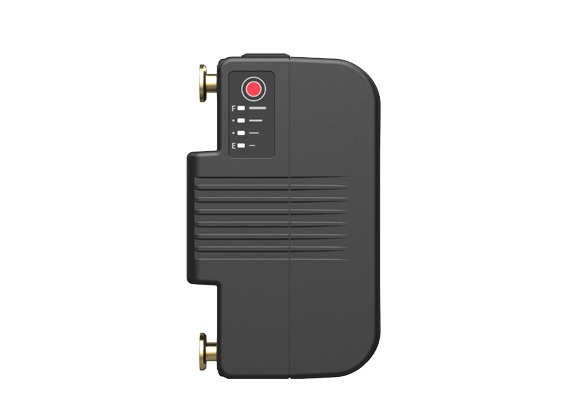

› 4-step LED power indicator
› -20°C low temp power up
› Antonbauer charger compatible
› Wire-Free internal technic
› Strong 1.2 meters drop-off proof
› Multiple circuit protections

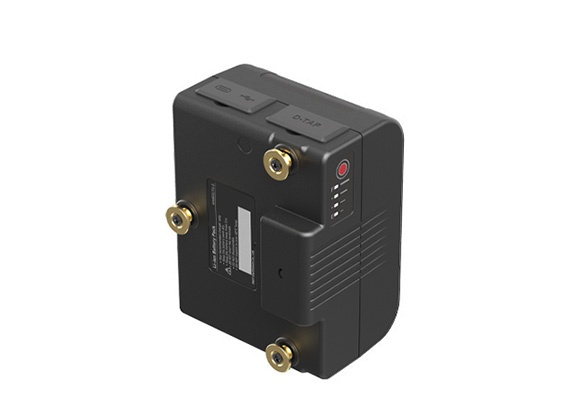

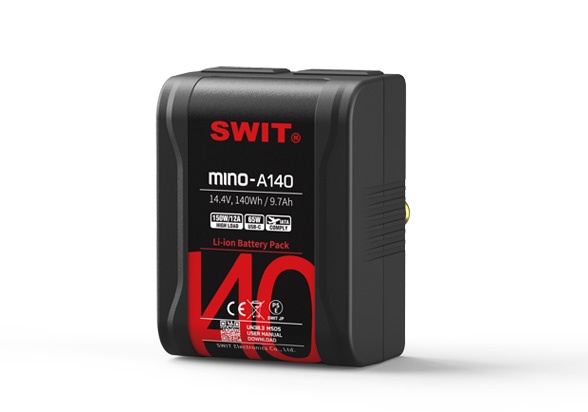

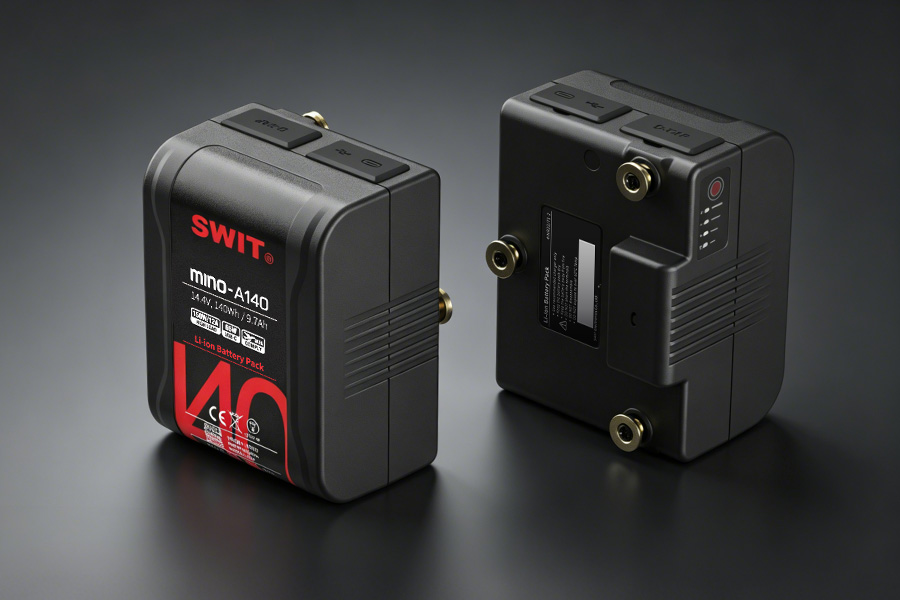

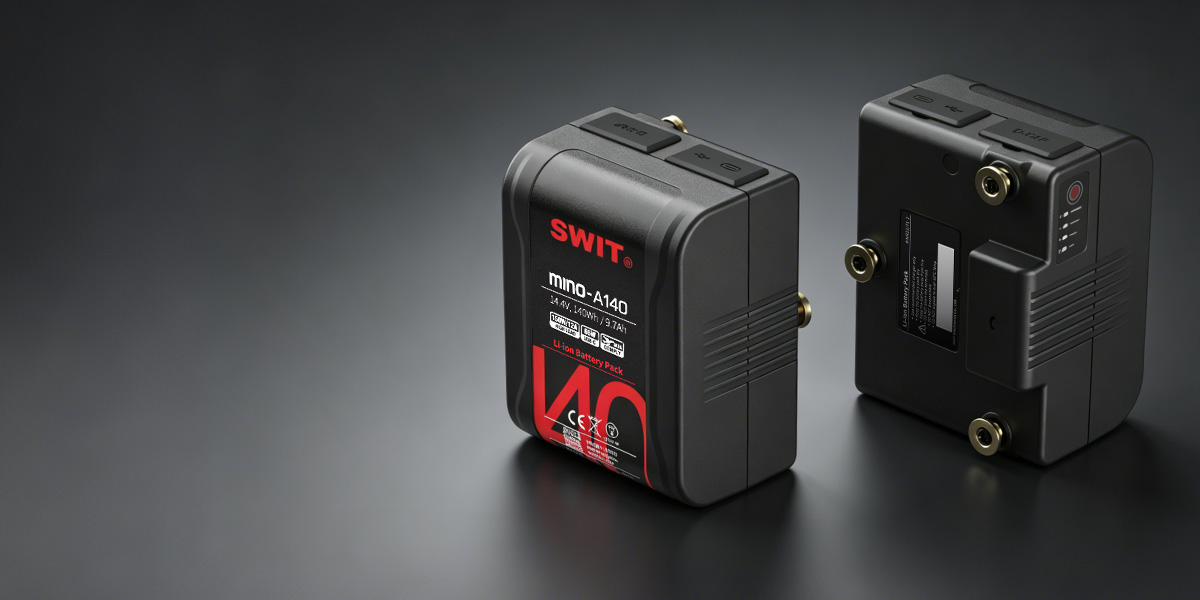

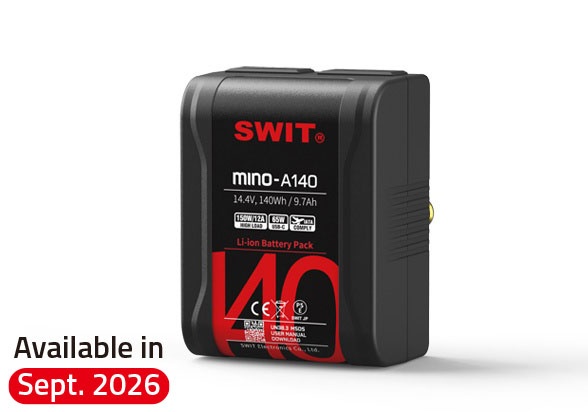

140Wh Gold Mount Battery
MINO-A140 is a compact 140Wh Gold mount Li-ion battery designed for the ENG and film set, delivers a constant high load of 150W/12A and features a 65W USB-C port, making it compatible with cameras, monitors, laptops, tablets, and other essential production accessories.

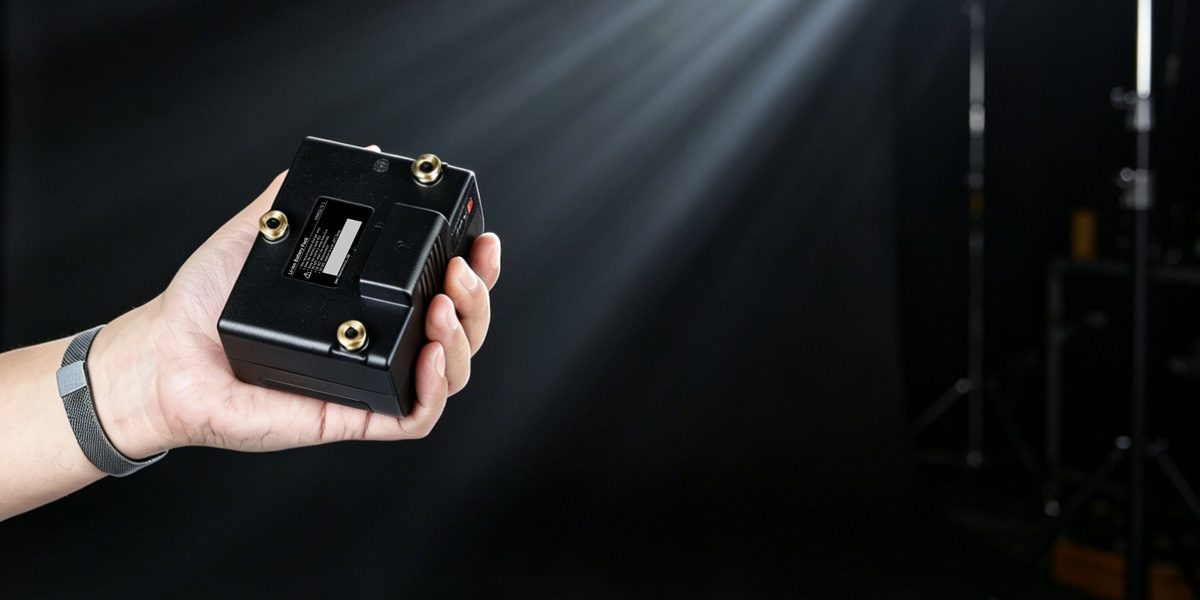

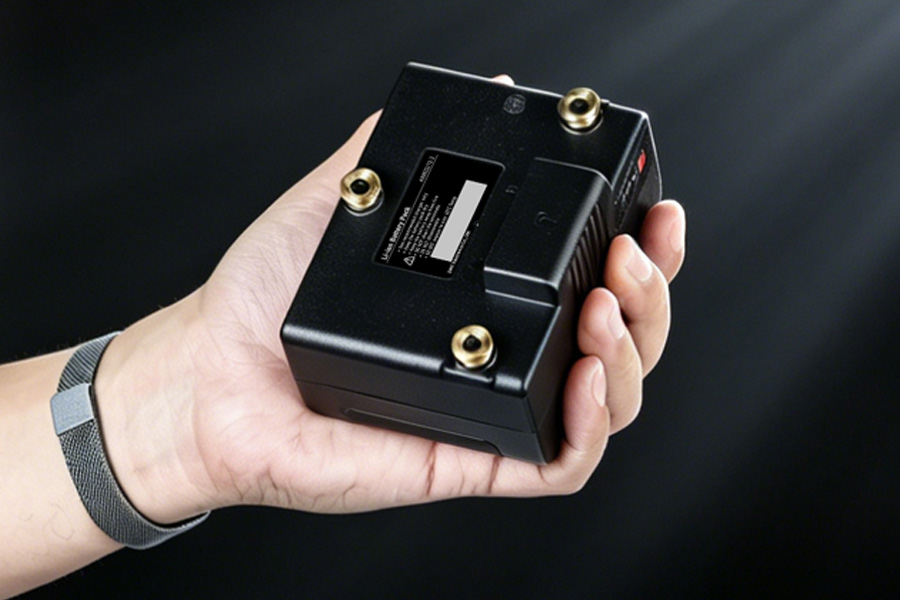

Large Capacity Right in your Hand
The MINO-A140 redefines portability in Gold Mount batteries. Despite its palm-sized form, it holds a substantial 140Wh capacity, enough to power an ENG camera through a full day of shooting. Compact, lightweight, and easy to handle, it gives you the freedom to move seamlessly across the film set, reducing gear fatigue and keeping your workflow agile.br/>

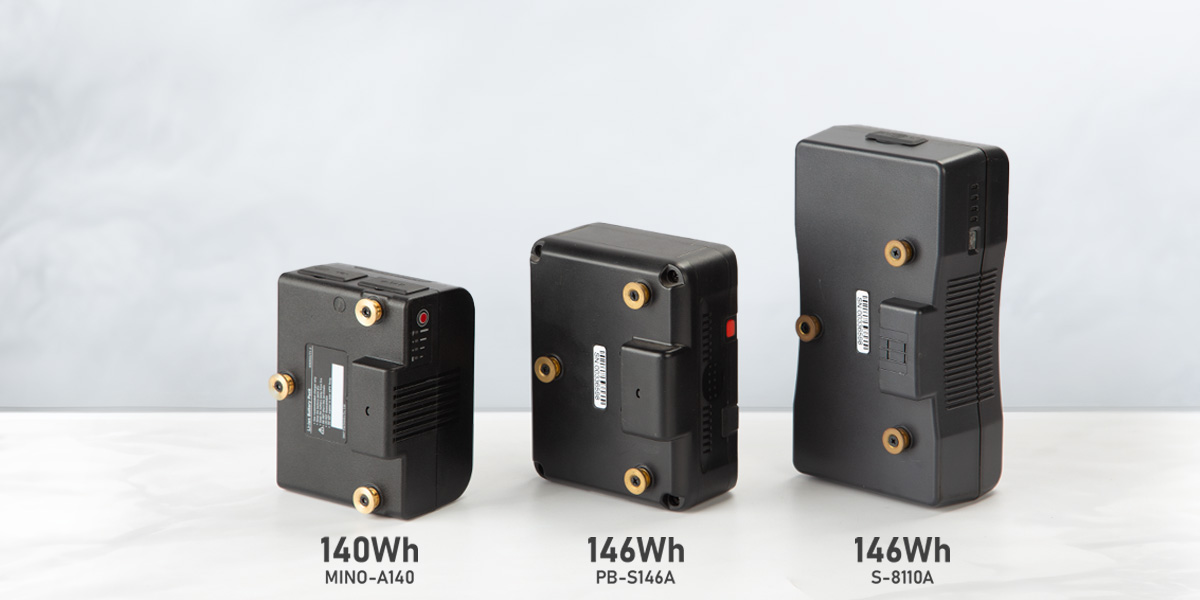

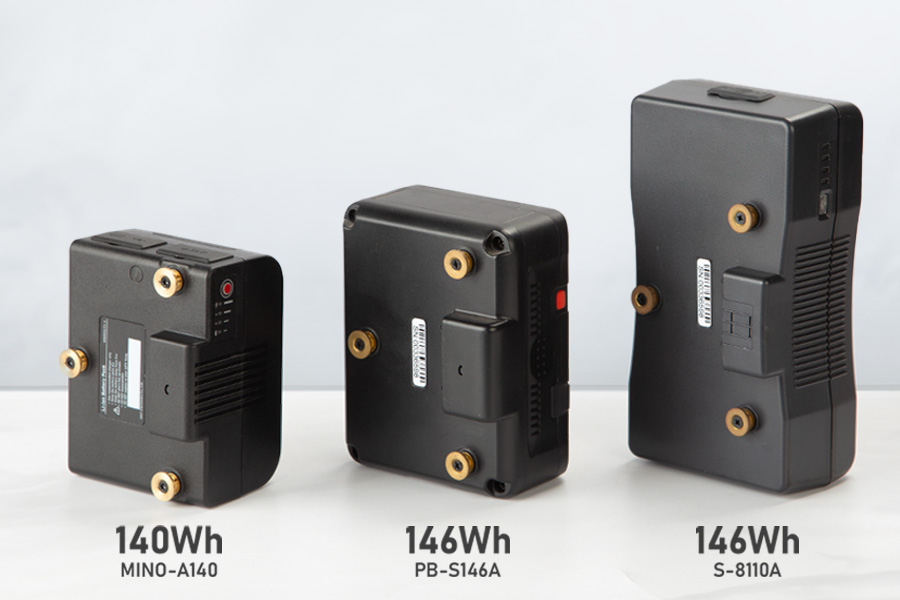

Size Matters. We Made It the Smallest.
Among Gold Mount batteries with around 140Wh capacity, the MINO-A140 is the smallest available, which means less weight in your bag, easier handling on set, and more room for other essential gear.

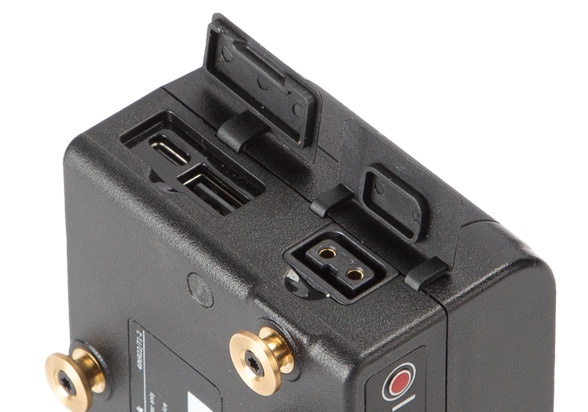

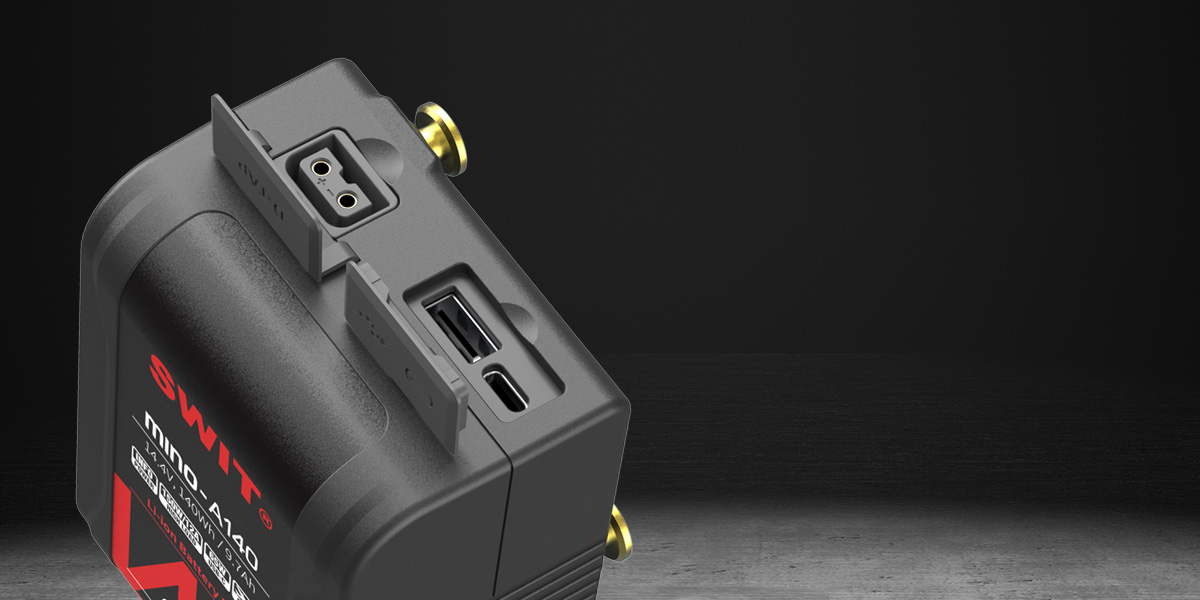

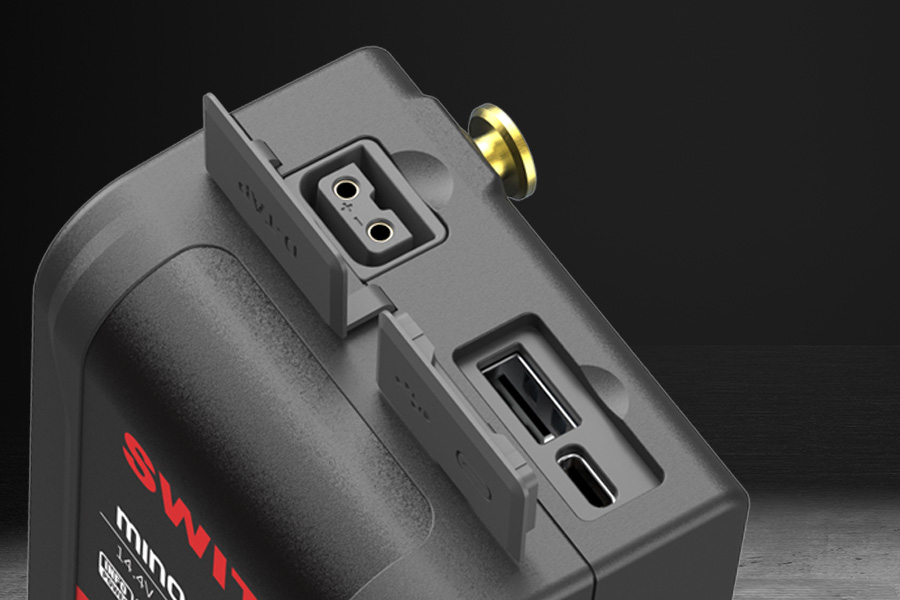

D-tap, USB-A and USB-C
The tiny size MINO-A140 didn't compromize on DC sockets.
D-tap x1 - 14.4V 120W/10A output (Support charging input)
USB-A x1 - 5V/2A output
USB-C x1 - 65W output and 48W charging input

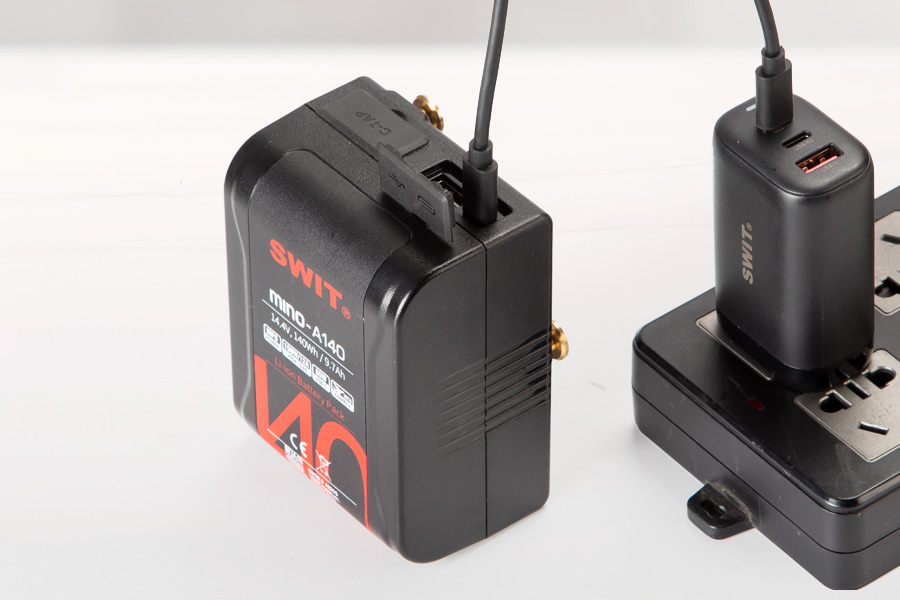

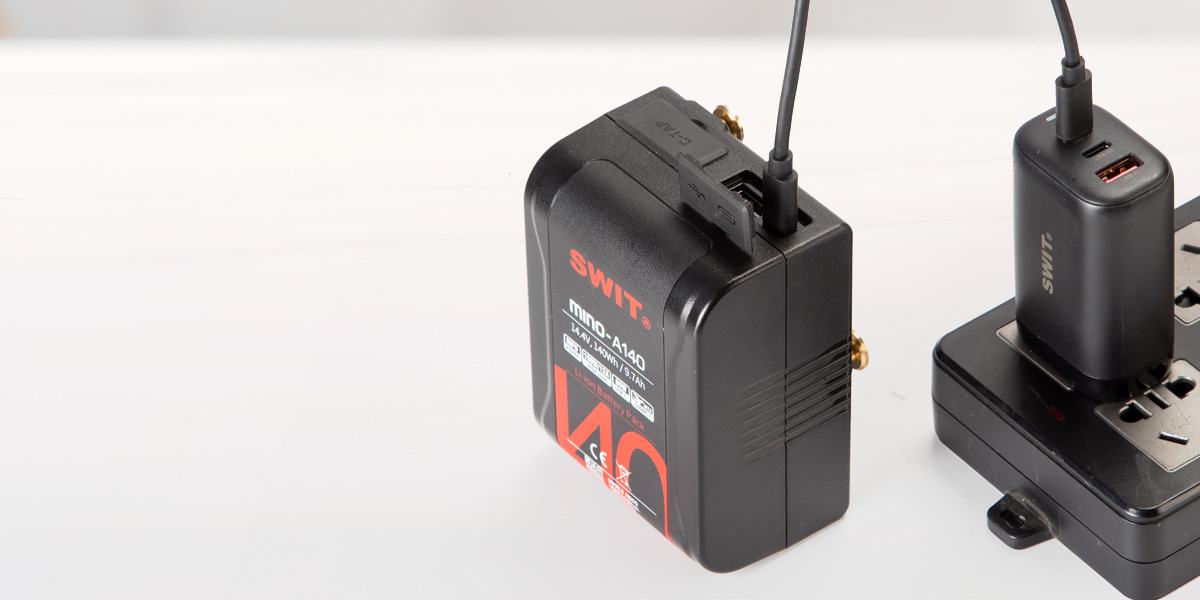

USB-C 48W Charging Input
MINO-A140 battery can be charged by USB-C charger, supports PD 5V 2.4A, 9V 2.4A, 12V 2.4A,
15V 2.4A and Max 20V 2.4A, which means you can fully charge the 140Wh battery within 3.5 hours.

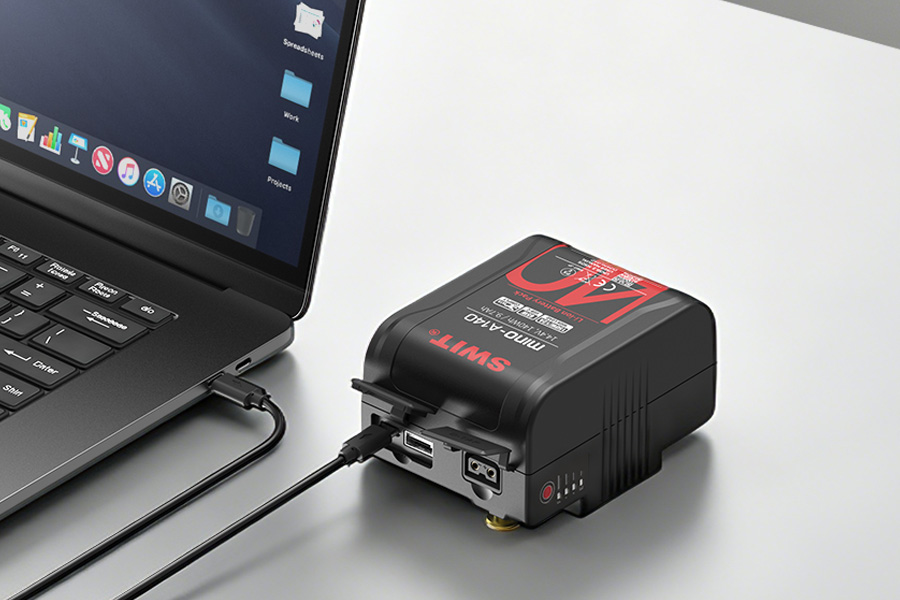

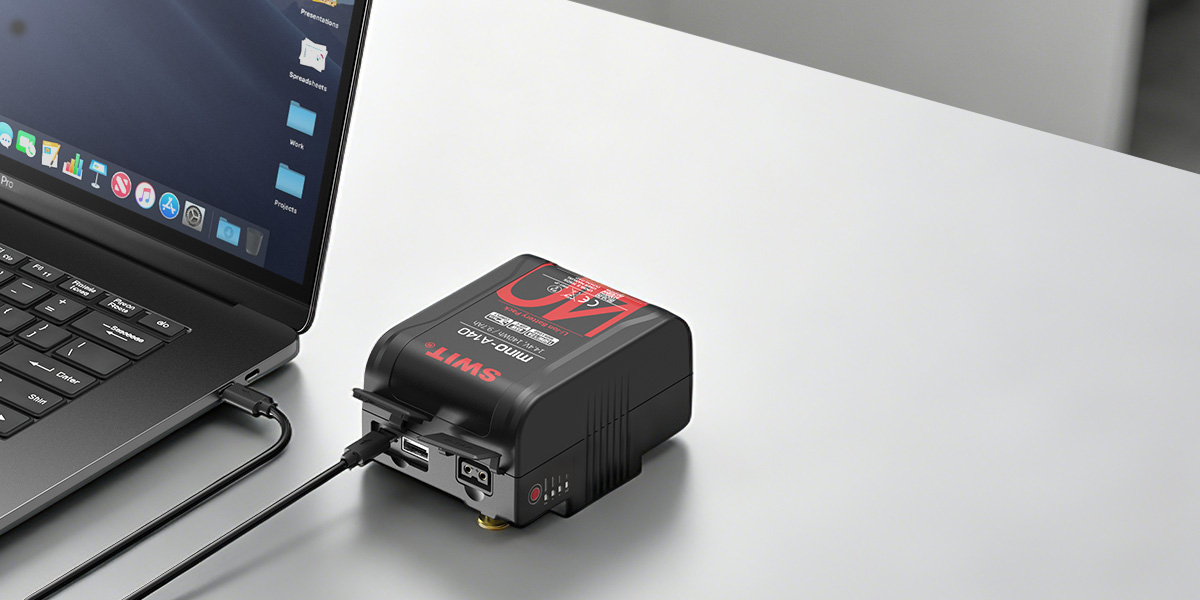

USB-C 65W Power Output
You can power laptop via USB-C by MINO-A140 battery on the filmset. Supports 5V 3.25A, 9V 3.25A,
12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)

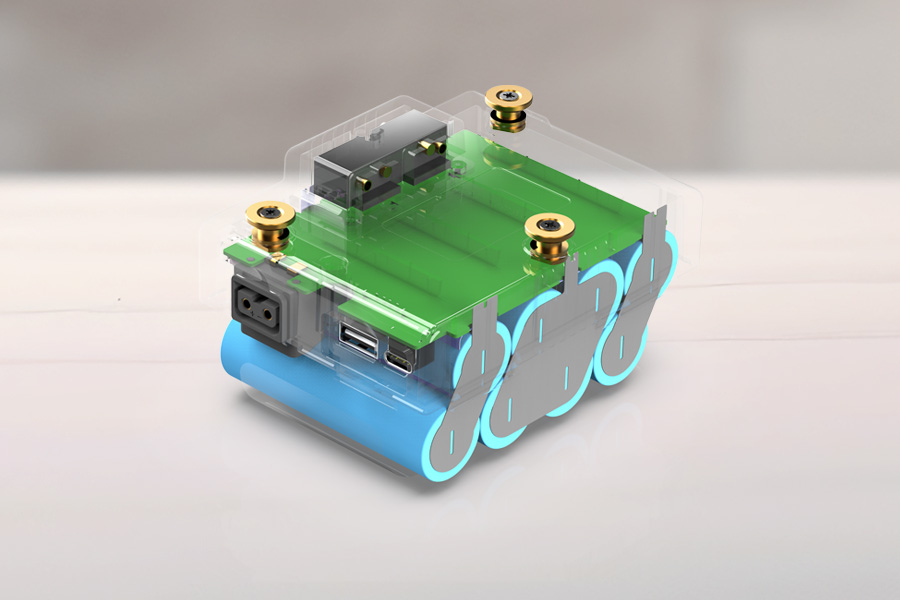

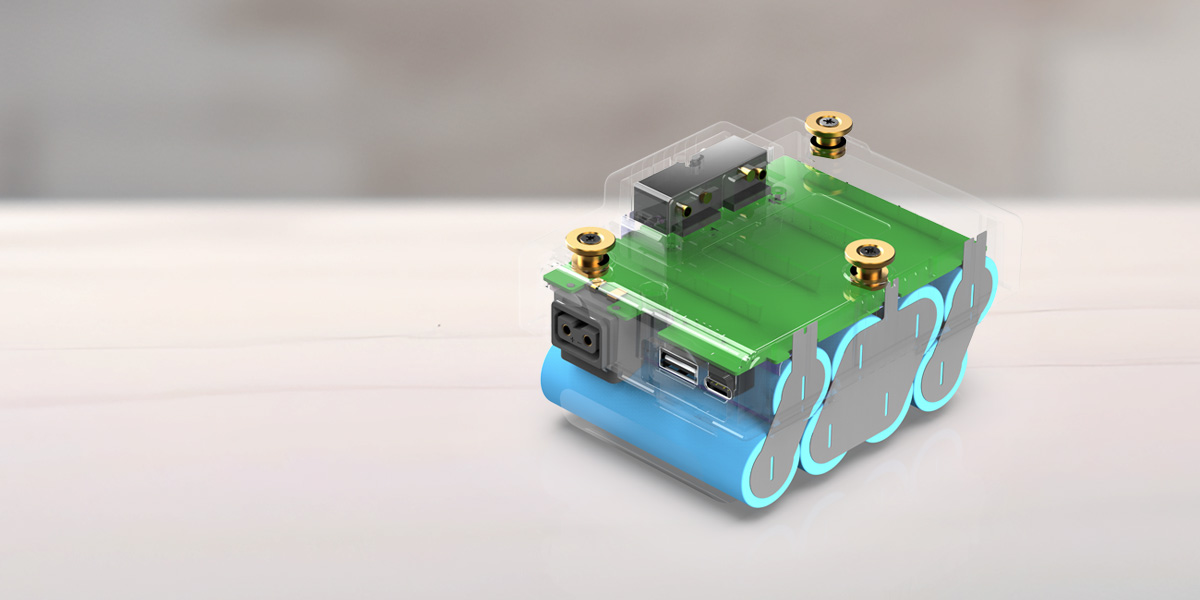

Wire-Free Internal Tech
MINO-A140 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

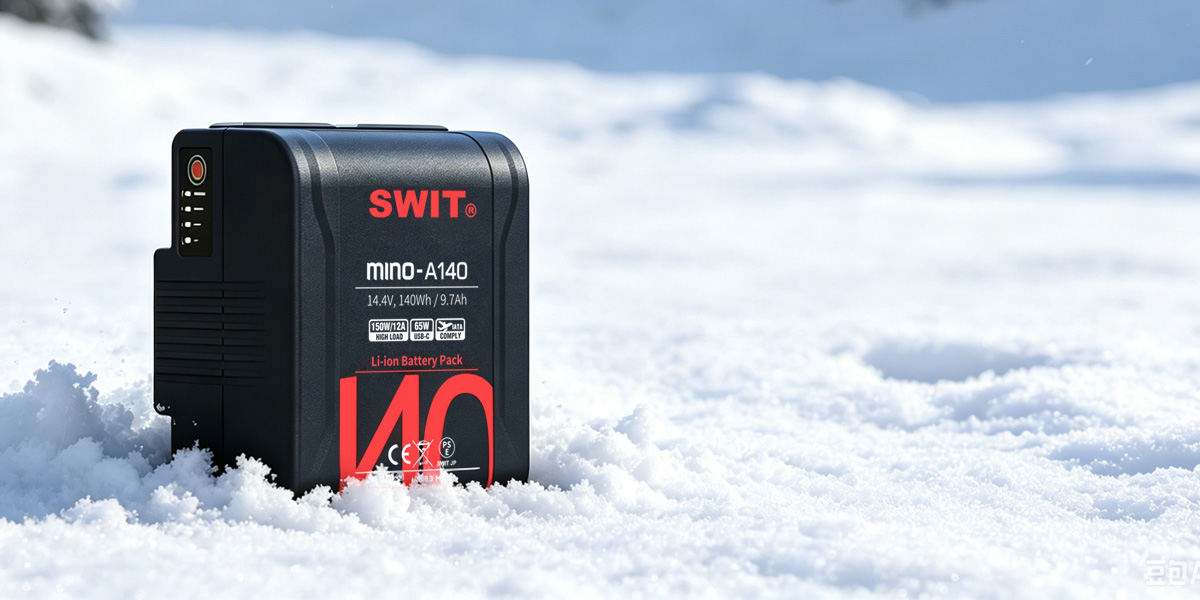

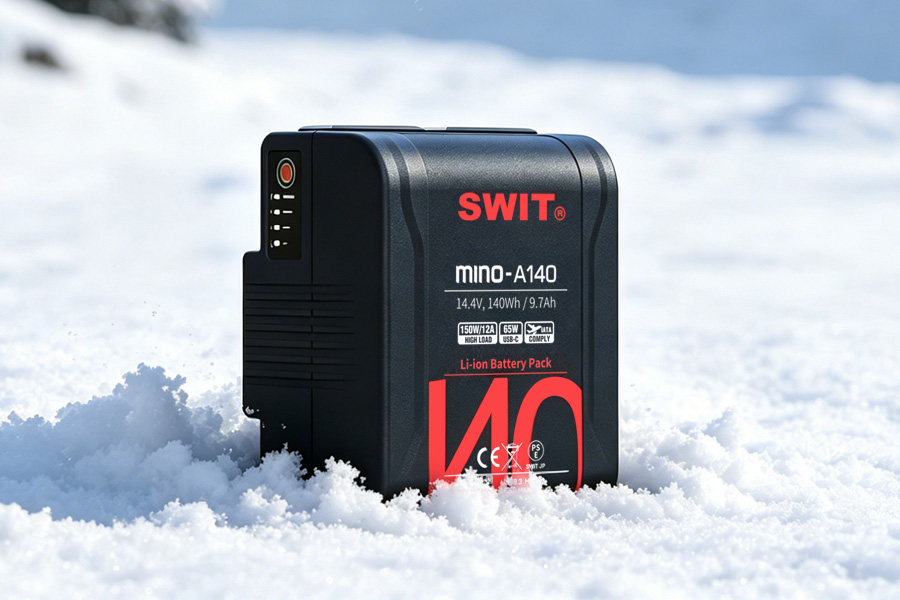

Power Up under -20°C Enviroment
The MINO-A140 cells featured cold-resistant and with SWIT's unique low-temperature cold startup process, allows for normal discharge even in extreme cold environments as low as -20°C, perfect for filming in freezing regions, guaranteeing a dependable power source even in the most severe conditions.

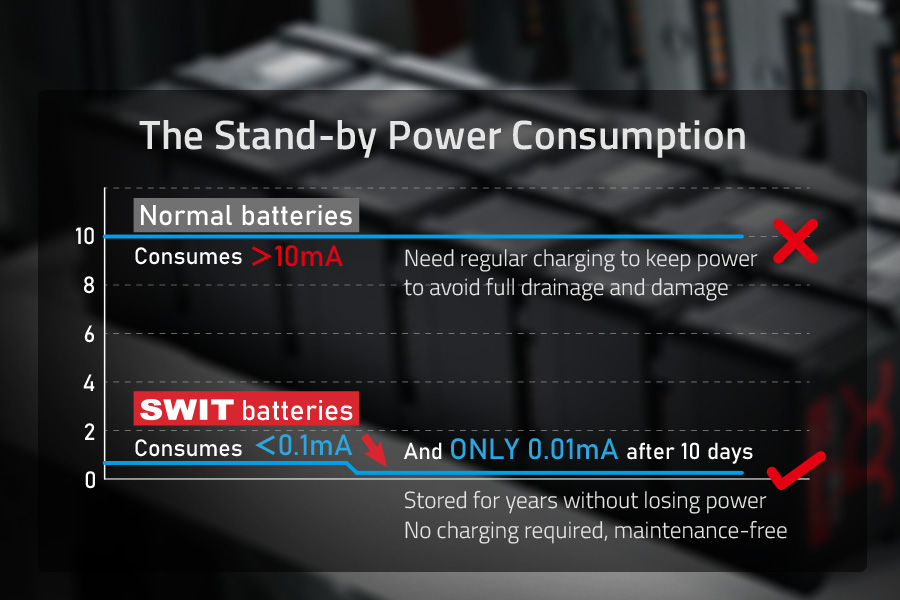

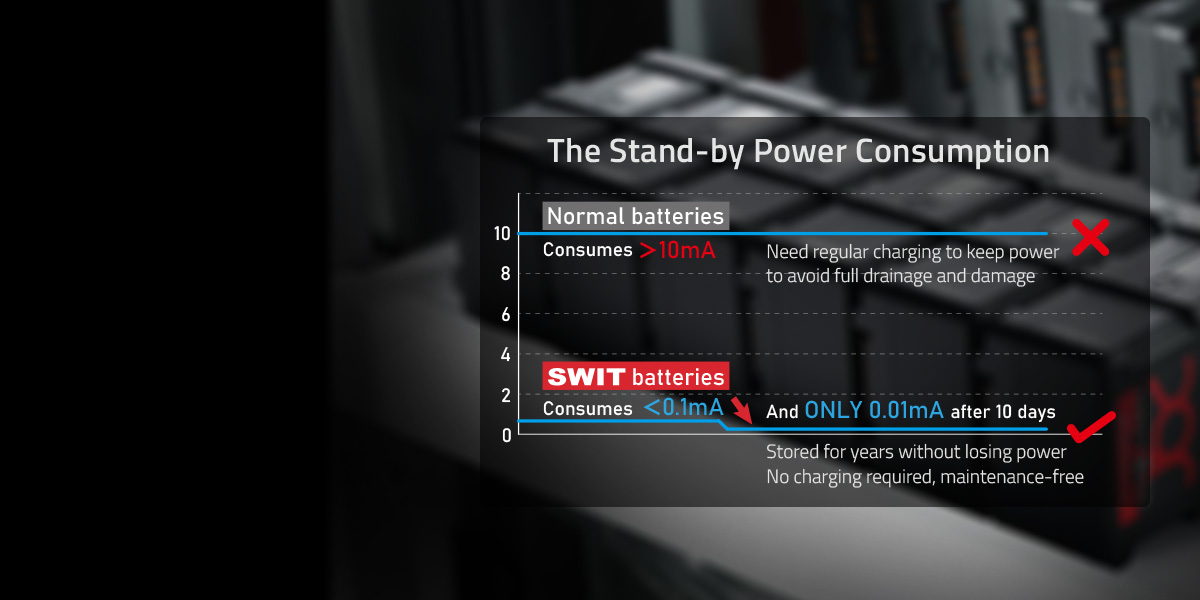

Ultra Low Standby Power
Holds Power for Years Without Losing Charge
Ordinary batteries can be damaged after long-term storage due to complete power drainage.
SWIT batteries adopt a unique low-power design that could hold the charge for several years without losing power. There is no need for regular charge-discharge maintenance, just effortless, reliable storage when you need it.
Battery plate | V-mount |
Nominal voltage | 14.4V |
Capacity | 140Wh, 9.7Ah |
Power IN&OUT | Electrodes: 150W 12A out, 16.8V 3A in |
D-tap: 120W 10A out, 16.8V 3A in | |
| USB-A: 10W, 5V/2A out | |
USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP Max 48W in, 5V/9V/12V/15V/20V(Max) 2.4A | |
Dimension | 105×79.6×63.5mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 0.747kg; With package 0.787kg |
MSRP
MSRP
MSRP
1. Warranty Period
We provide 2 years conditional warranty for batteries.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly, modification, or repair.
(2) Non-Compliant Charging Equipment and Practices
Use of non-original SWIT chargers or uncertified third-party charging accessories;
Use of third-party USB-C chargers without compliant PD protocols;
Use of third-party D-tap charger of reversed polarity connections and cause any damage.
This battery doesn't support charging via D-tap, use any D-tap charger to charge the battery and cause any damage.
(3) Misuse and Physical Damage
Compression, puncture, dropping, impact, collision, water immersion, exposure to high temperatures or direct sunlight, or any other non-normal use not in accordance with the product's intended design.
(4) Use of Damaged or Defective Battery
Continued use of a battery that is damaged, leaking, or exhibiting abnormal overheating without prompt discontinuation.
(5) Natural Capacity Degradation
Reduction in battery capacity resulting from the natural aging process after a certain number of charge/discharge cycles.
(6) Improper Storage and Maintenance
Damage caused by improper storage practices that lead to extended deep discharge or prolonged zero-charge state of the battery.
(7) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(8) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(9) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
