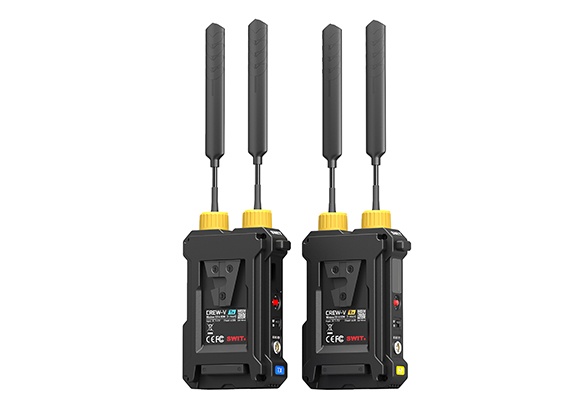

1.2km Long Range Wireless Video

Professional RF, NOT WIFI

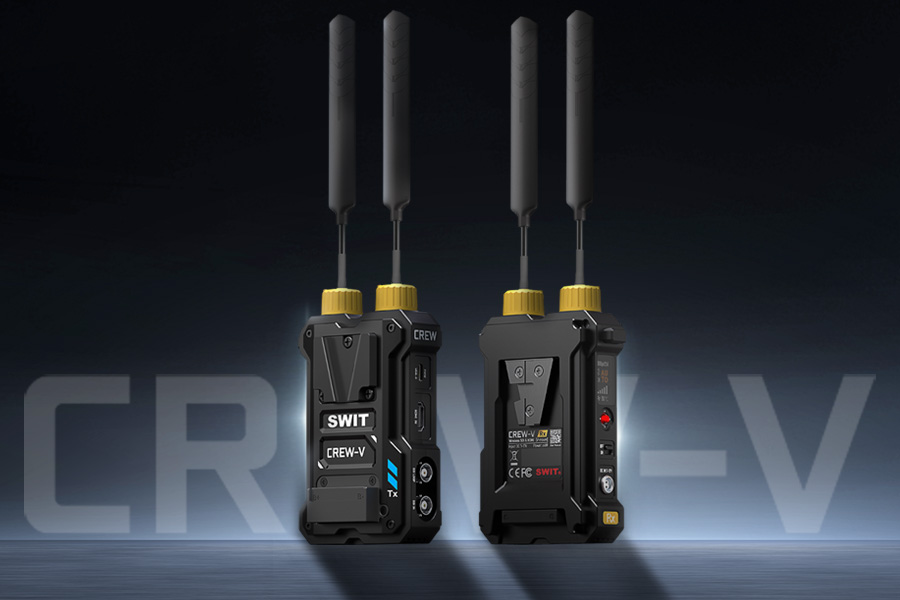

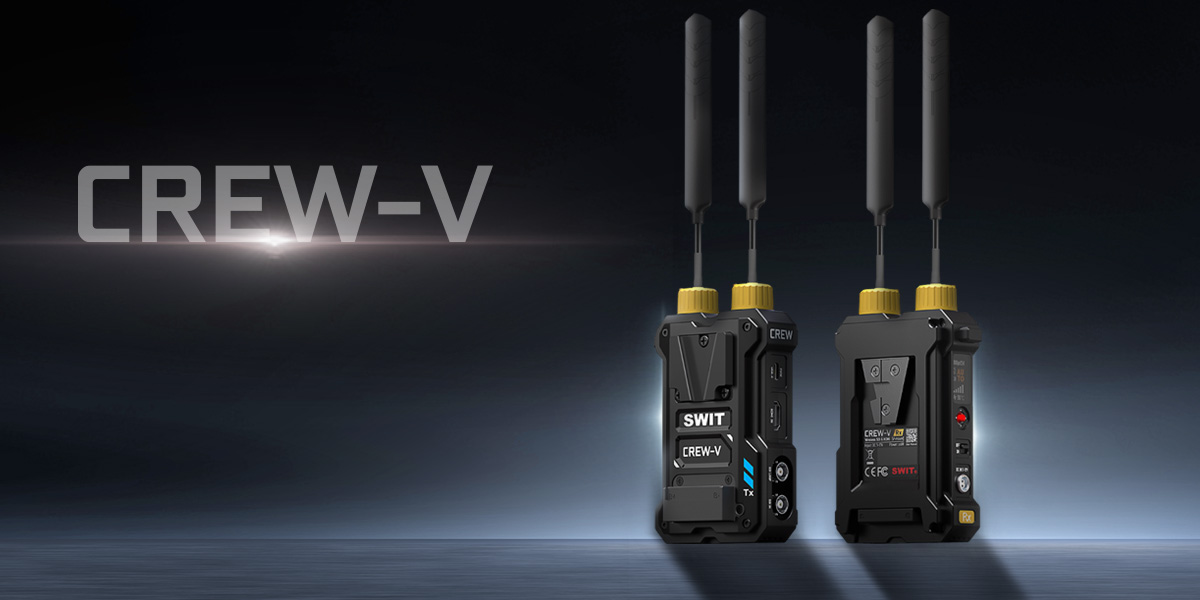

The V-mount version of the new generation CREW family wireless system, upgraded with twice longer transmission distance, enhanced reliable image quality, and uncompromised multicast capabilities. The CREW system continues to deliver the same rock-solid transmission stability as FLOW series, for professional broadcast and film productions.

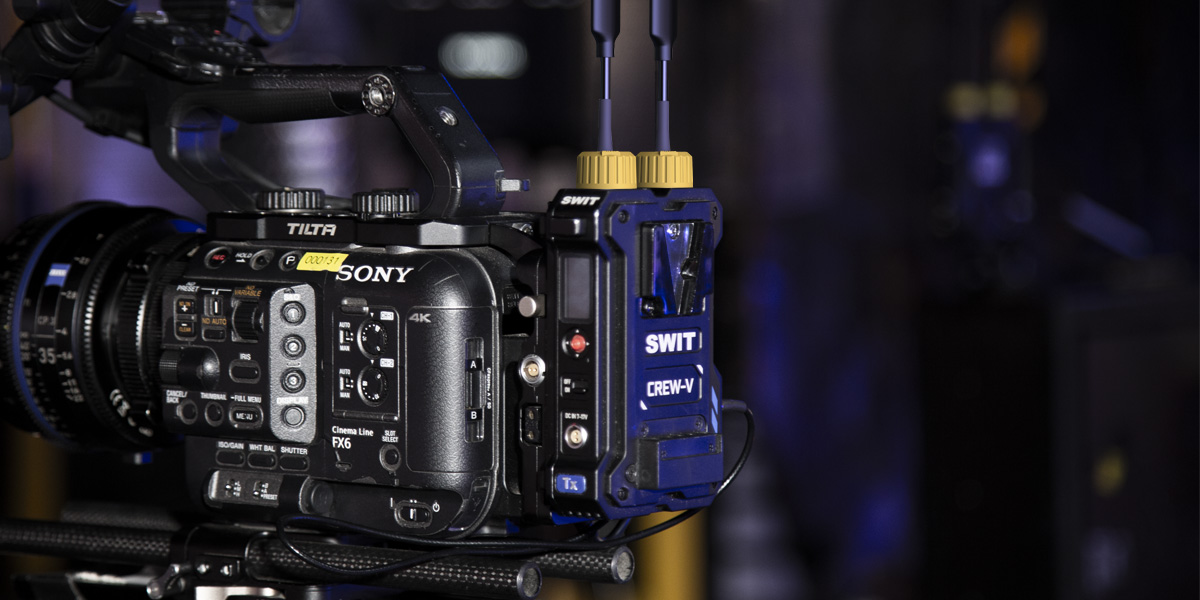

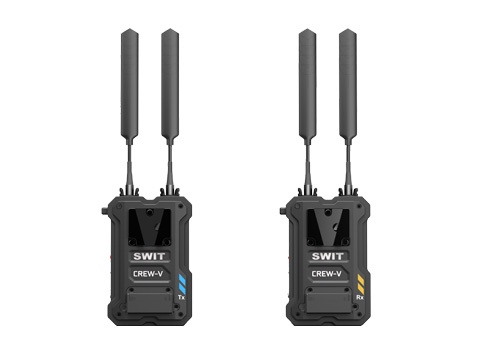

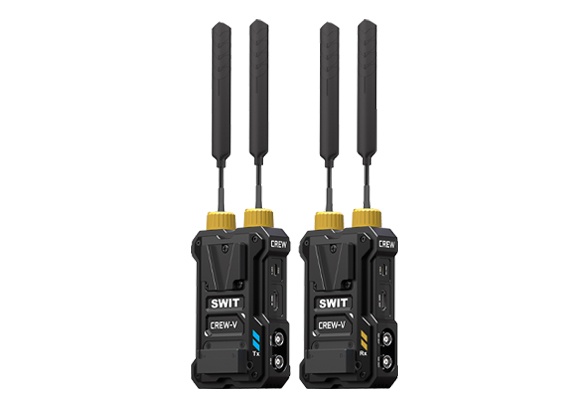

Dual Sided V-mount Install

SMBus Data Pins Pass-through

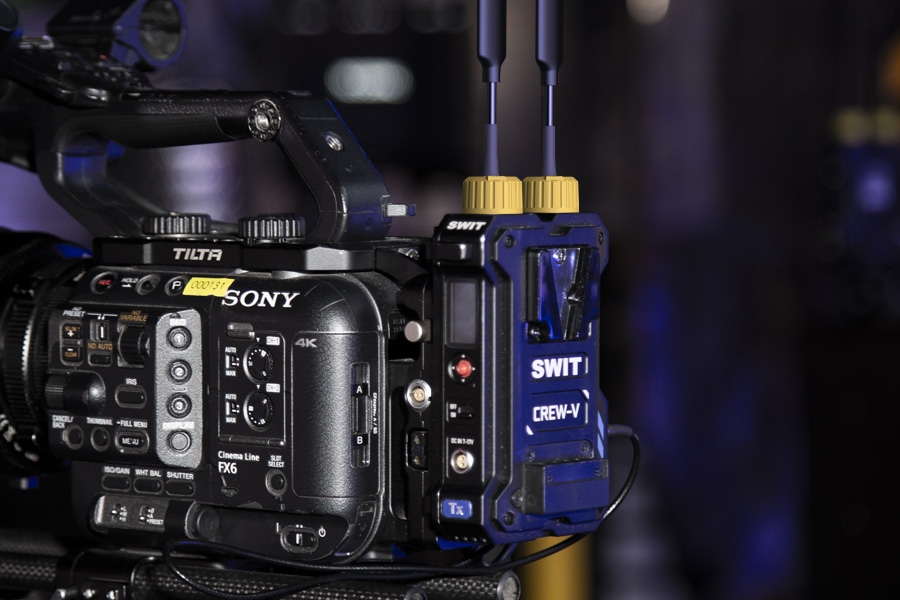

The CREW-V is the dual sided V-mount version of CREW family, can be mounted on the camera V-mount plate, using a V-mount battery to power both the CREW-V and the camera, compact and convenient. The battery SMBus data pins are pass through, so that the camera can still read battery digital power information.

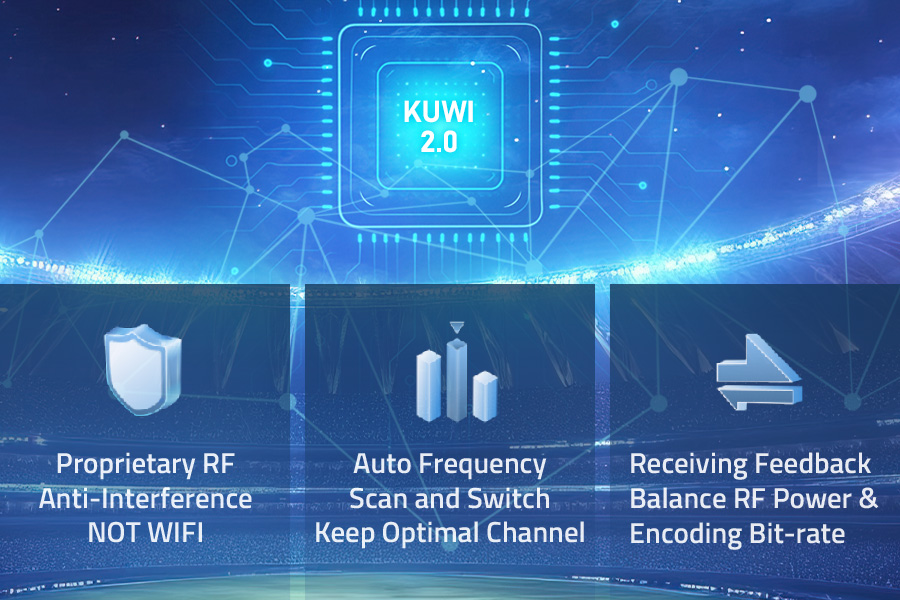

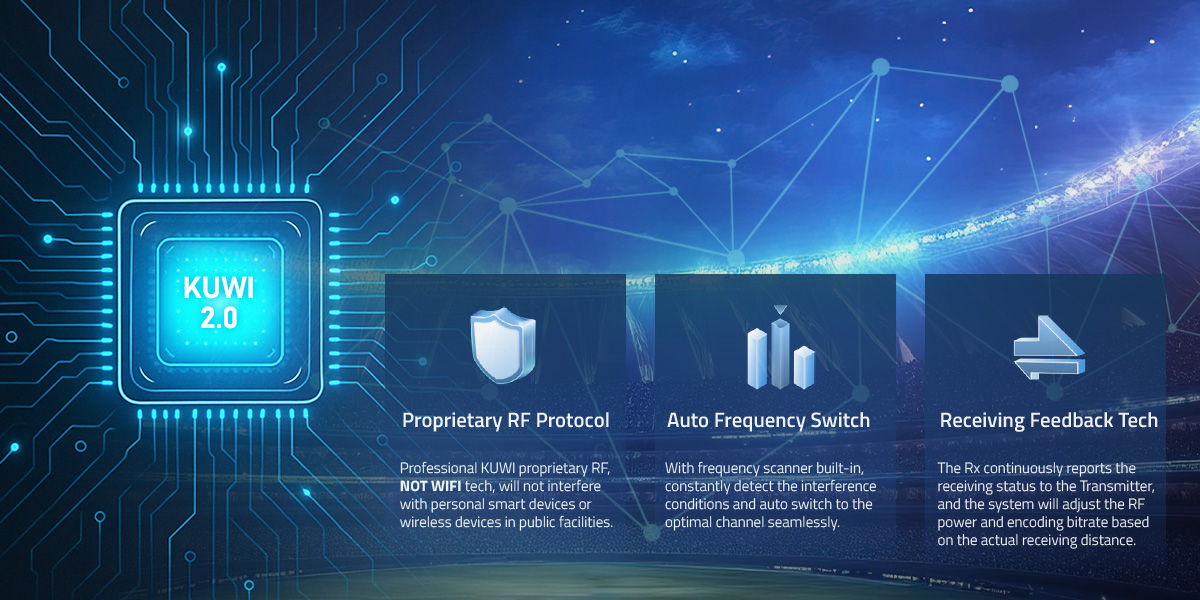

KUWI 2.0 Professional Chip, Stable As Always

The New Generation KUWI2.0 professional chip for wireless video, 5.1-5.9GHz License-Free, inherits the stability advantages of SWIT wireless products, ensures the stable transmission in the most complex environment.

Professional Video Production Applications

The CREW series Wireless System is engineered for exceptional stability and reliability, the solution for professional video productions like sports broadcast productions, cinematic filmset shooting and high end event productions. CREW ensures seamless, real-time transmission with minimal latency and zero signal dropouts, providing production teams with the confidence and flexibility needed for flawless on-set and on-location workflows.

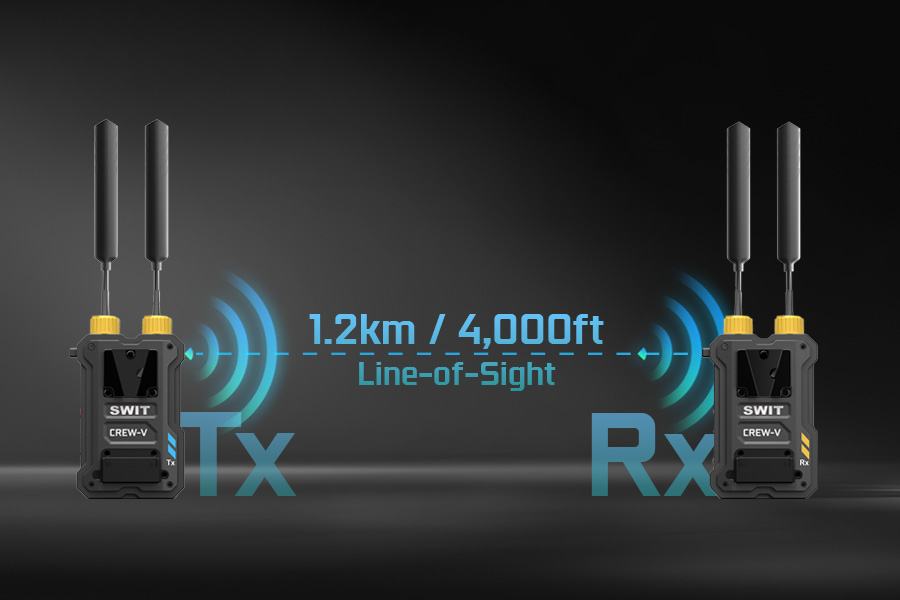

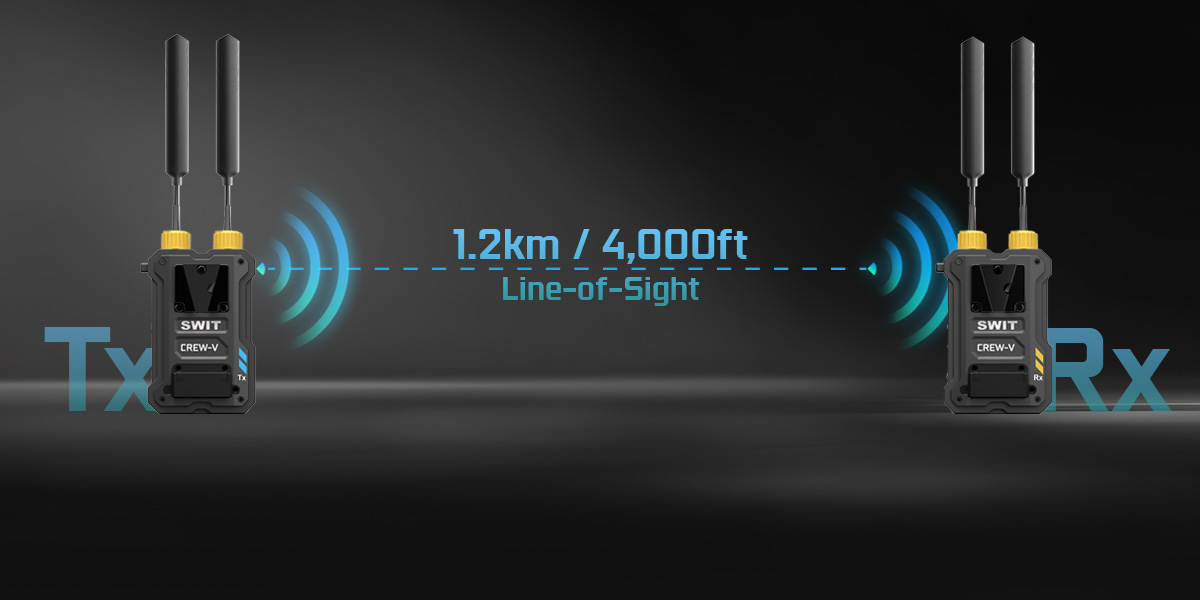

Reliable 1.2km Long Distance Transmission

CREW features advanced video codec and optimized intelligent RF power, enabling transmission range of up to 1.2 km (4000 ft) in line of sight, to significantly expand the monitoring coverage, provide greater flexibility and freedom for live video production.

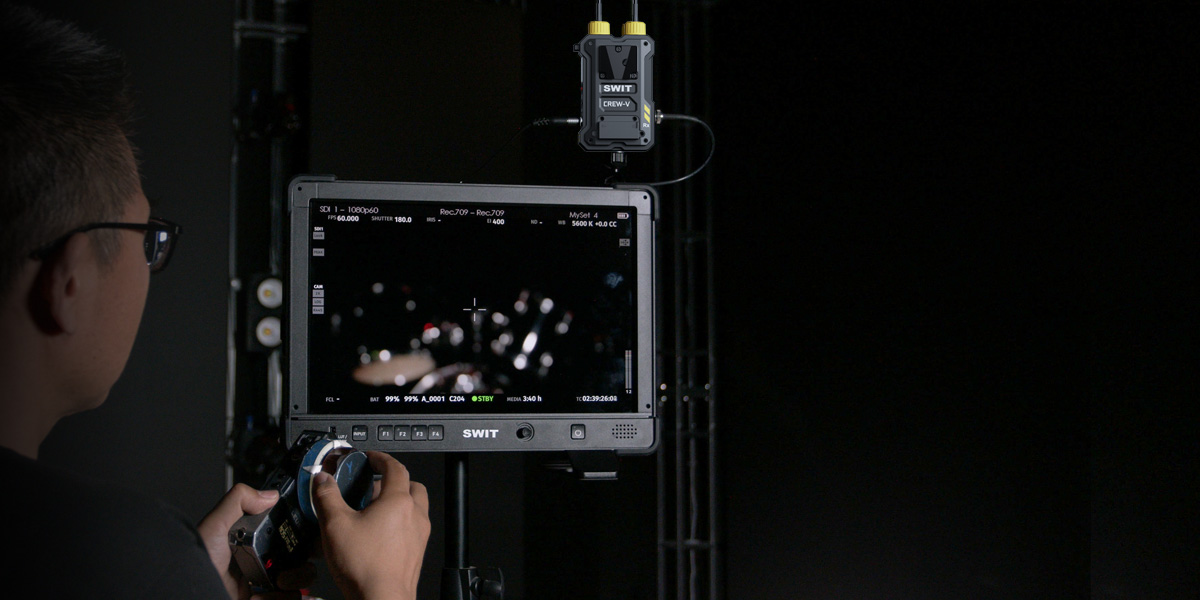

32ms Consistent Low Latency

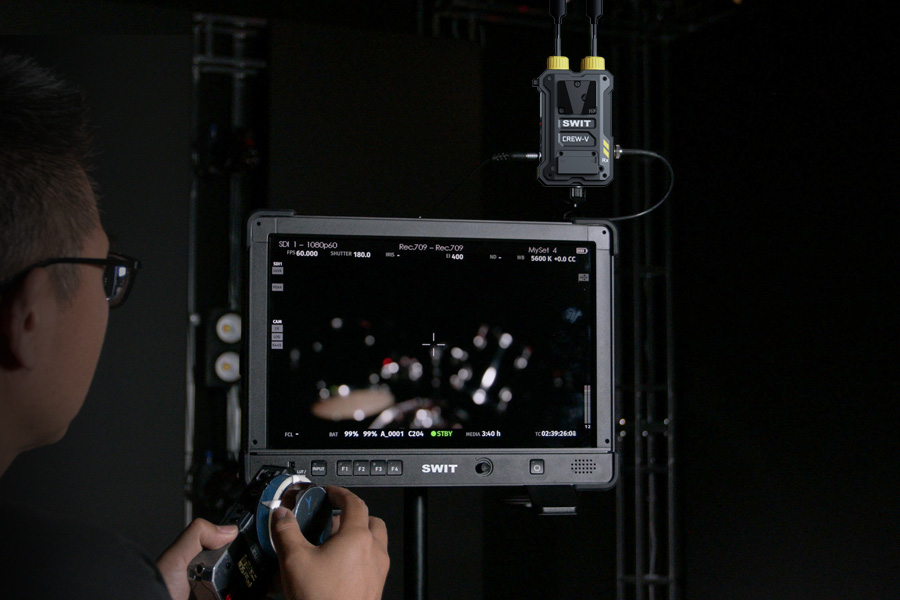

The ultra-low latency has exceeded the limits of human visual perception, achieving visually lossless performance, suitable for the professional wireless follow focus, the most demanding application in terms of latency.
The latency is consistent, never changed regardless of the environment interference. In multi-camera productions, using CREW would ensure the strict synchronization among the multiple wireless channels.

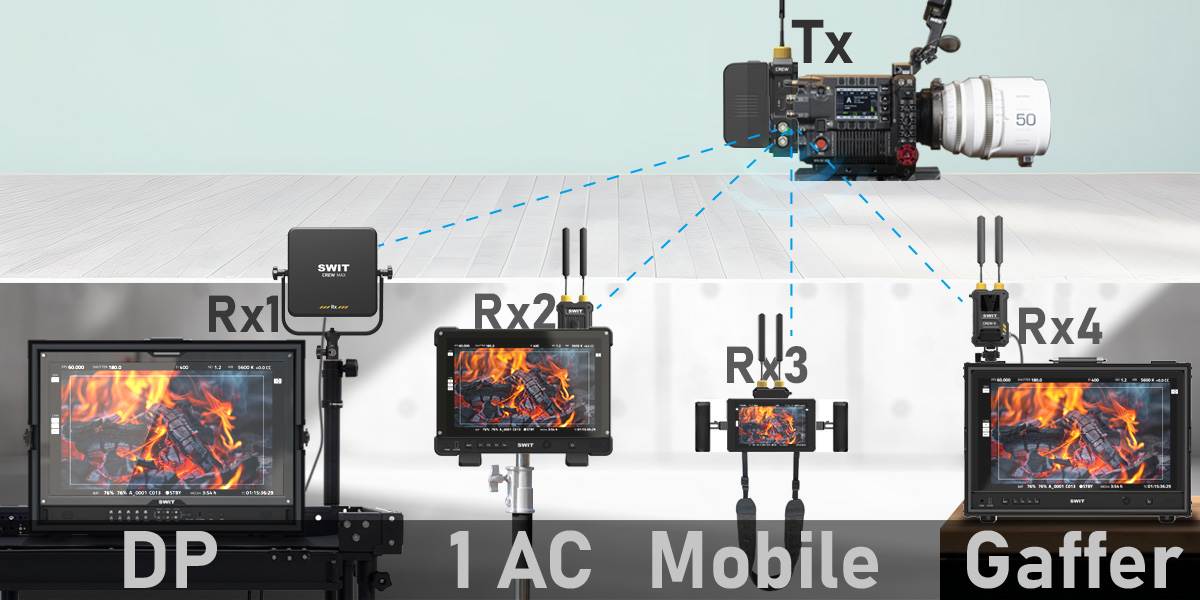

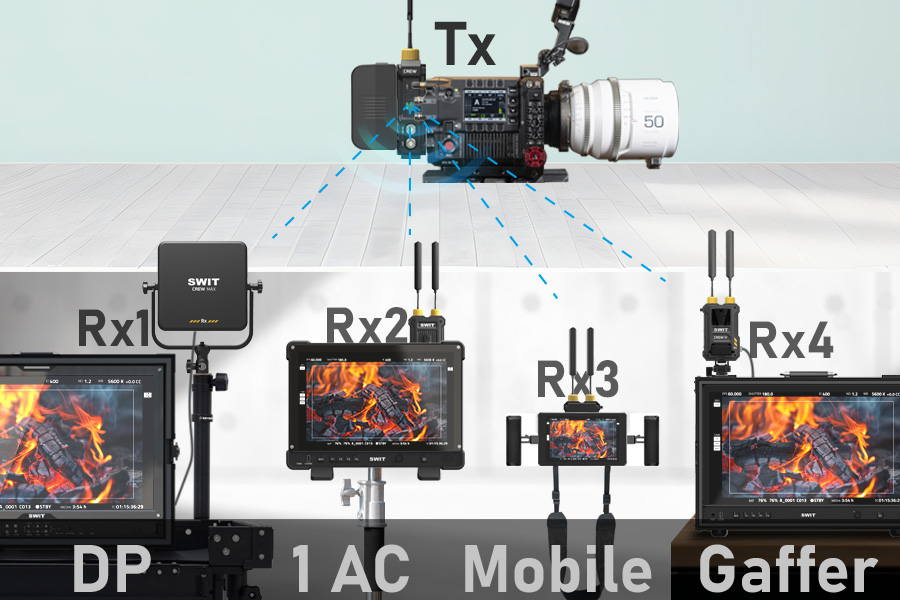

Uncompromised 1T to 4R Multi-Cast

The CREW supports 1 Transmitter to up to 4 Receivers Stable Multi-Cast Transmission, with no compromise on Distance, Latency or Video quality for film crew application. All the CREW family Tx and Rx are fully cross-compatible for multicast.

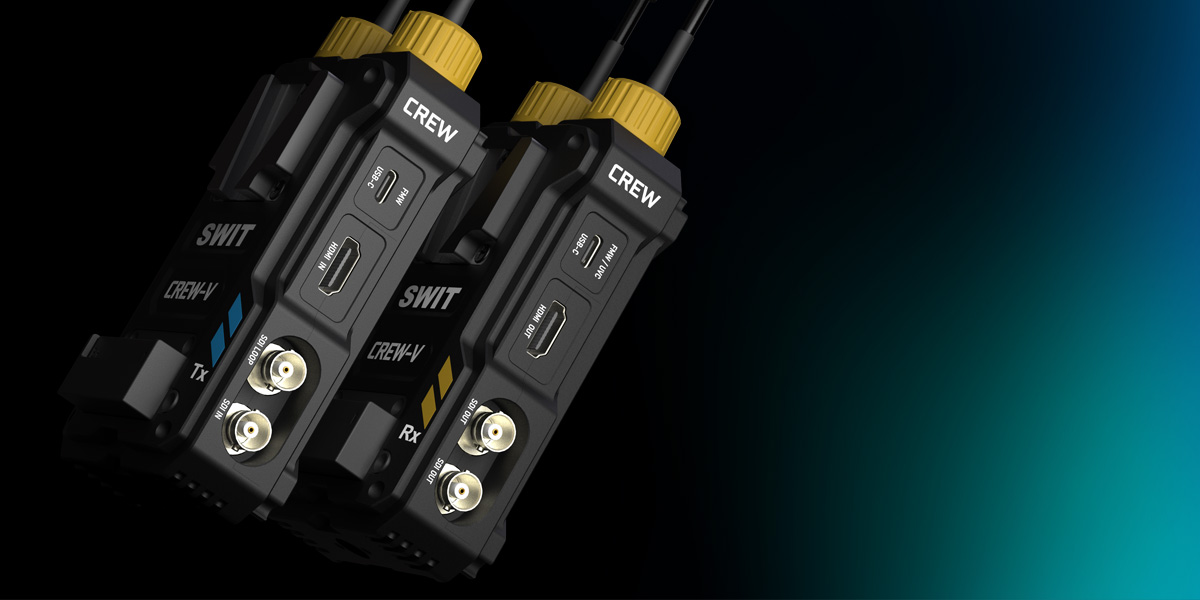

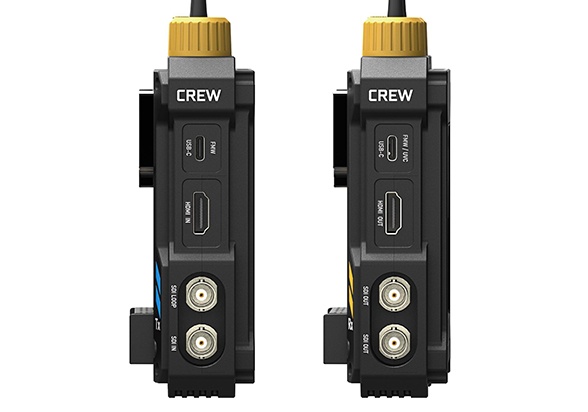

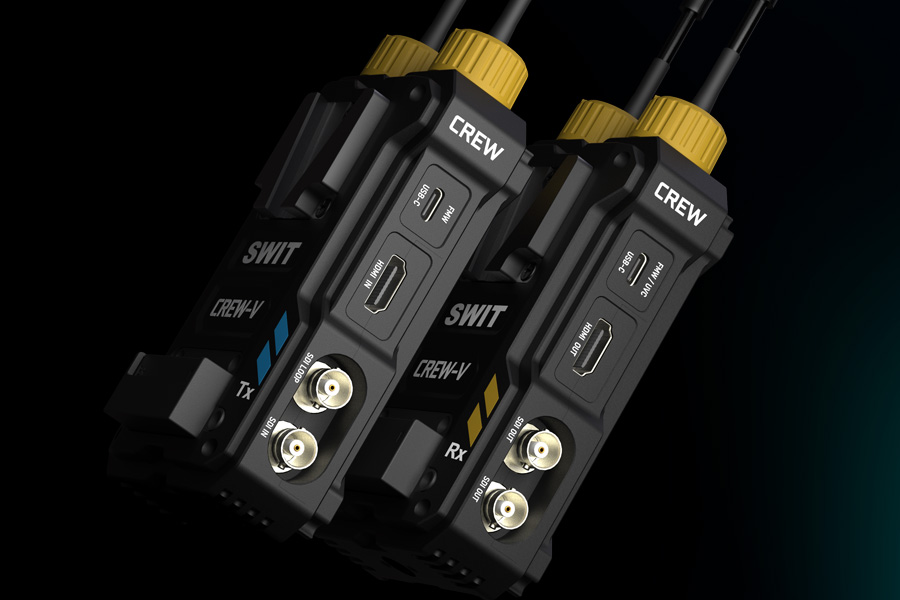

3G-SDI / HDMI / UVC

The Transmitter:
3G-SDI in×1, loop out×1, HDMI in×1
The Receiver:
3G-SDI out×2, HDMI out×1
USB-C Video Capture out×1
* Whether Tx input SDI or HDMI, all Rx interfaces can output simultaneously.

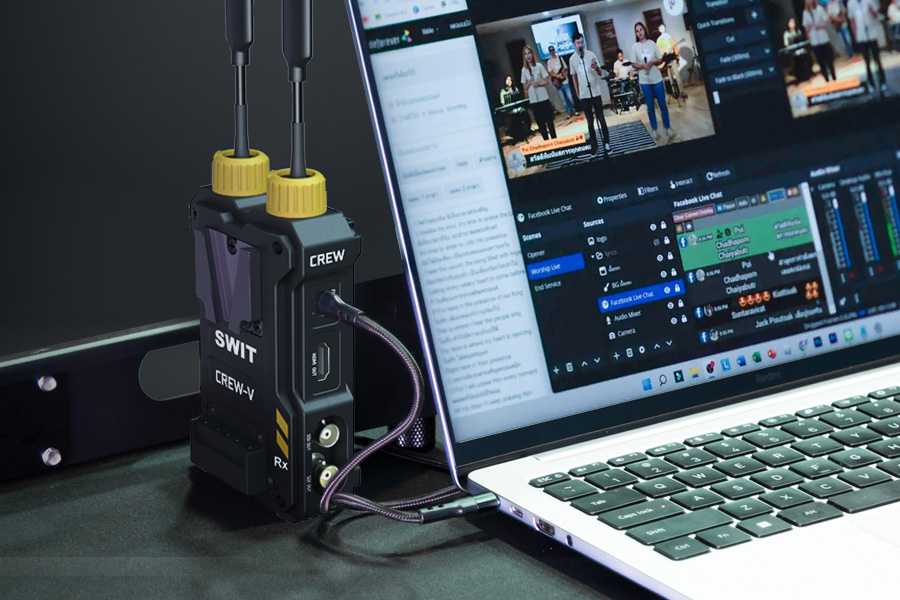

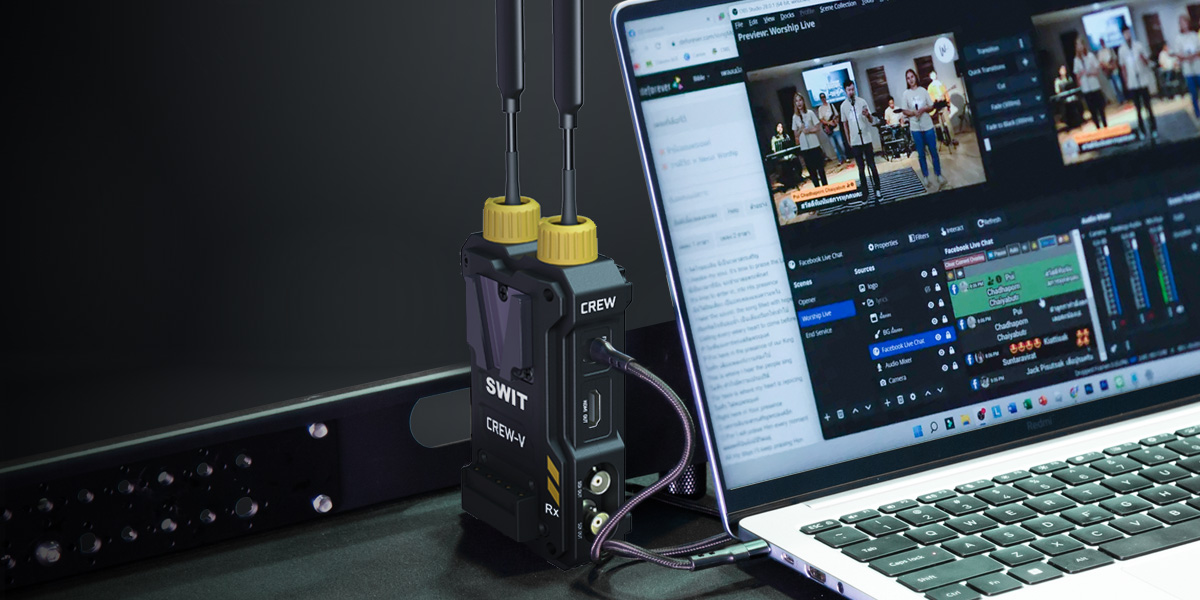

USB-C Video Capture

For PC/Mac Livestreaming

The CREW wireless receiver provides USB-C port video capture output, and can be connect to a computer for ivestreaming productions, 1080P50/60 High Quality Video Capture, Driver-free for both PC and Mac.

USB-C Video Capture

Monitor by Smart Devices

Connect CREW Receiver to a smart phone or tablet via USB-C port, to watch the camera video wirelessly instead of a pro video monitor.
* Compatible with all 3rd party “USB camera” APP.

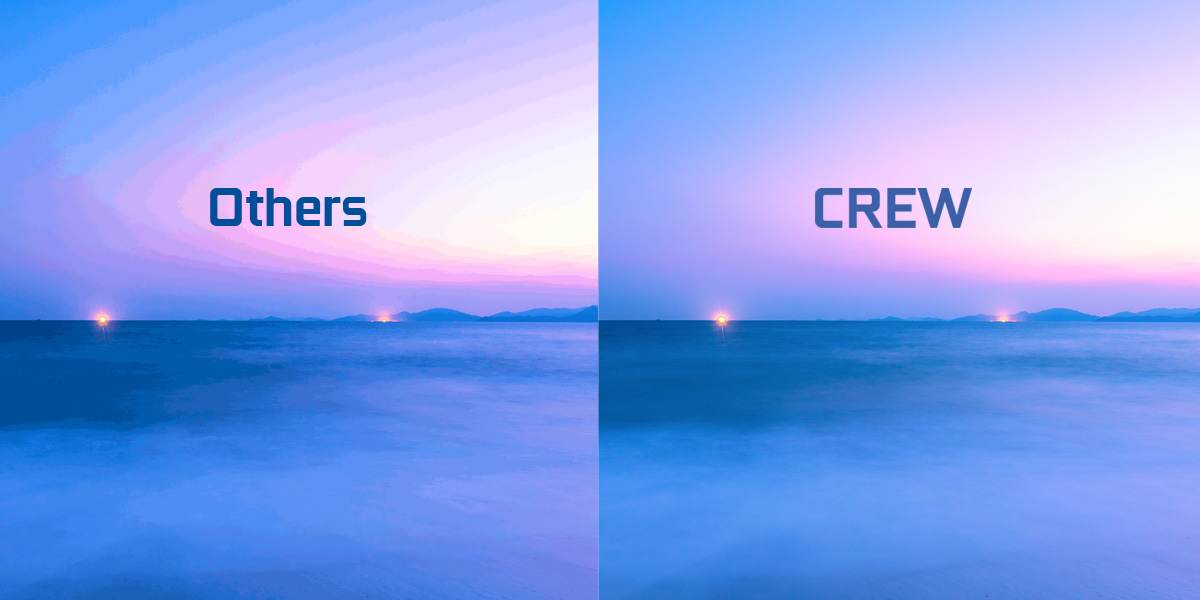

Visually Lossless High Video Quality

The CREW series wireless transmission adopts H.265 High Quality Encoding, bit rate up to 26.8 Mbps, visually lossless compared to cable video.

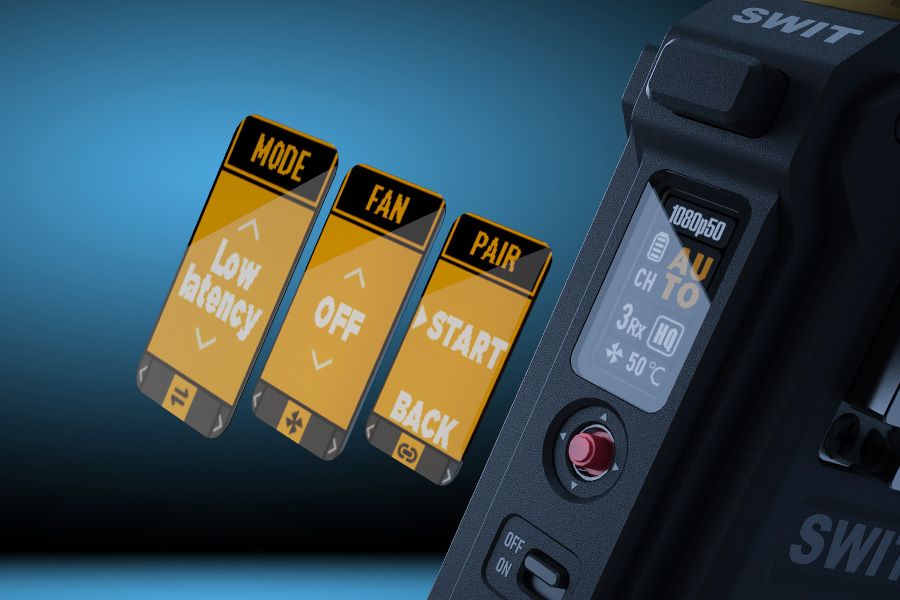

Display and Configuration

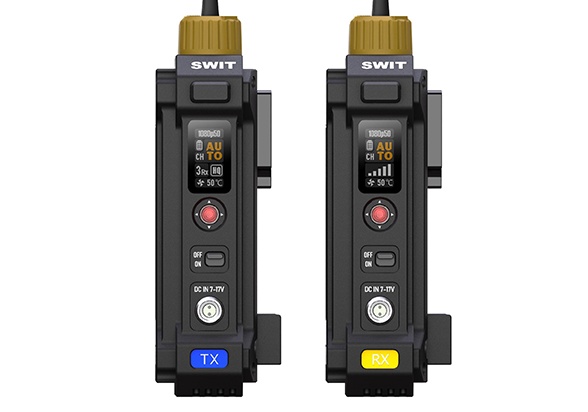

High Bright Color OLED Screen

Both the Tx and Panel Rx Wireless is equipped with a high bright 450nits OLED screen that remains clearly visible even in direct sunlight. It displays essential transmission status information such as video format, frequency channel, signal strength, etc. A user-friendly joystick allows for easy configuration of all functions, including Tx/Rx pairing, channel switching, fan on/off control, firmware upgrades, and more.

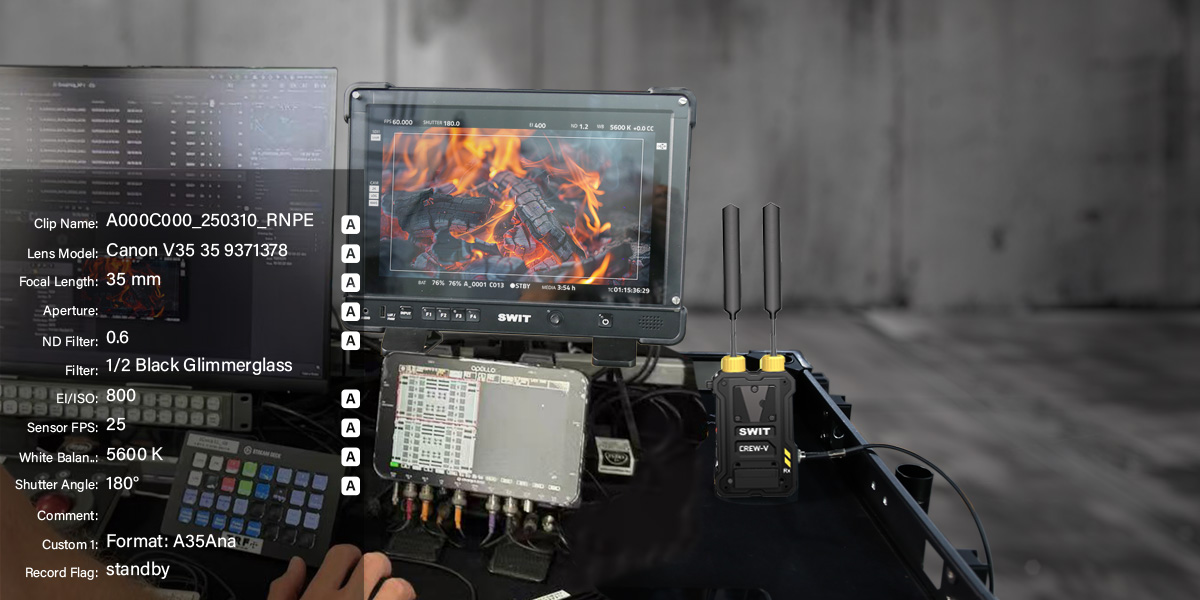

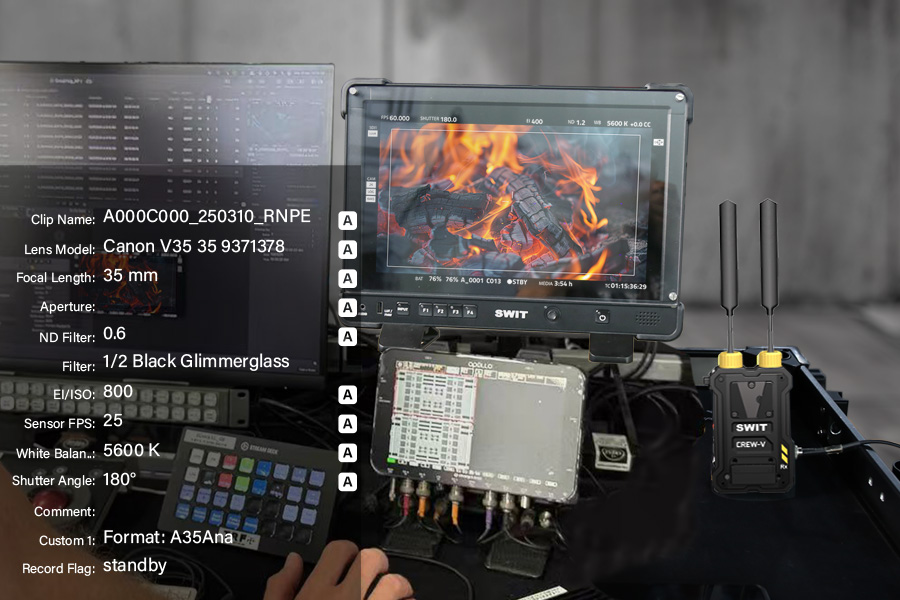

MetaData Transmit

CREW supports to wirelessly Transmit SDI embedded MetaData from cine cameras, for DIT livegrading, record and manage the camera information.

TimeCode Trigger Transmit

The CREW wireless system also supports the transmission of SDI embedded timecode and Start/Stop trigger from the camera.

Dual Encryption protection

The CREW wireless system has Dual Encryption protection:
1. Use exclusive KUWI chip of proprietary RF;
2. Adopt AES-256 high level encryption
to ensure that the video signals captured on movie sets are not leaked to third parties.

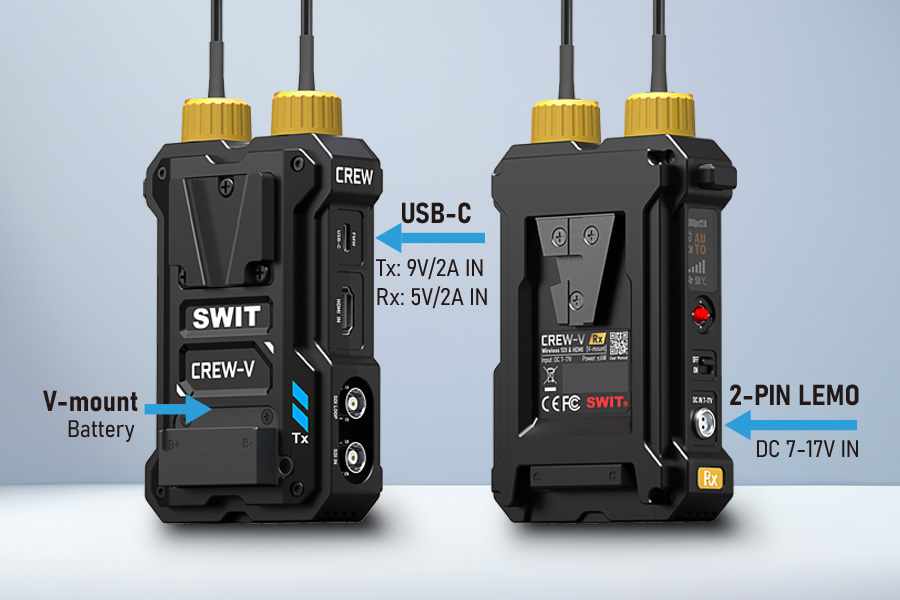

Multiple Power Supply

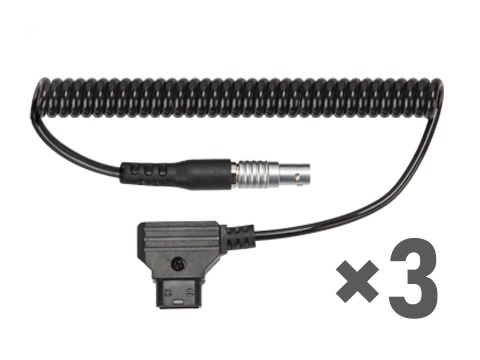

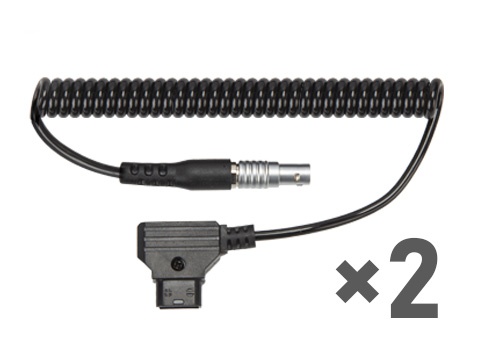

The CREW-V wireless can be powered up by V-mount battery or D-tap to 2-pin LEMO cable that provided in package.

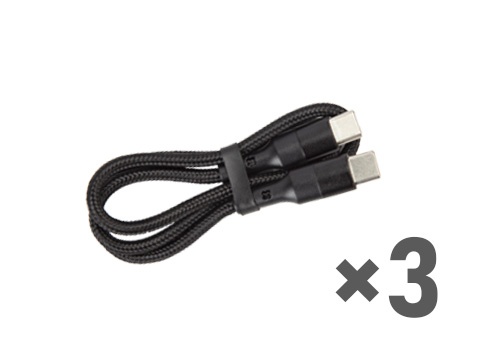

You can also power the CREW conveniently via its USB-C port.

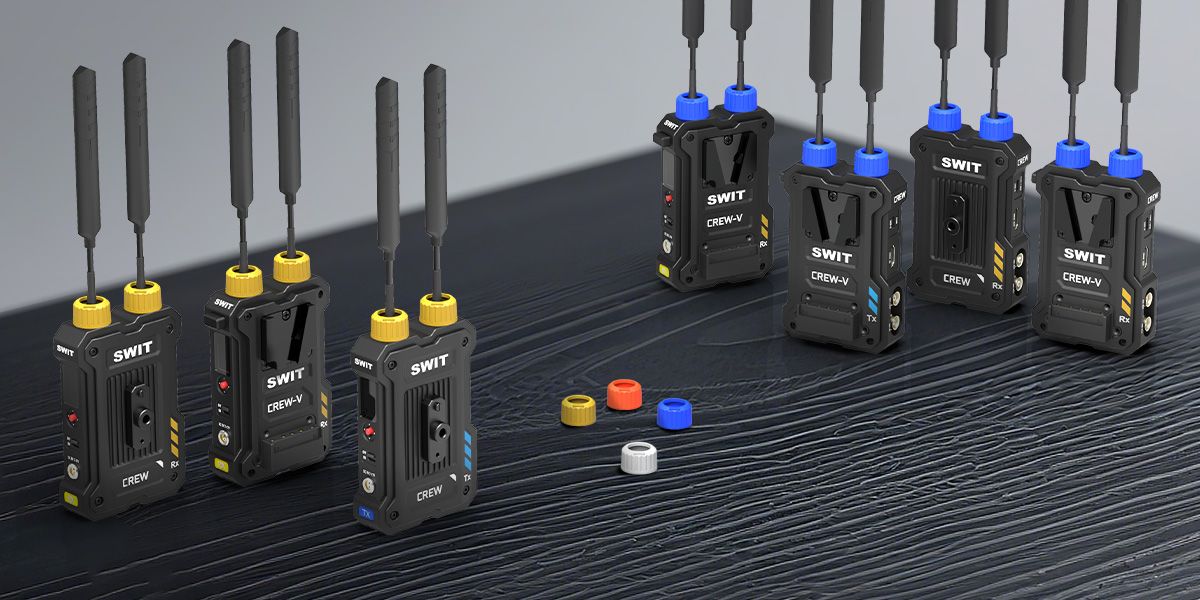

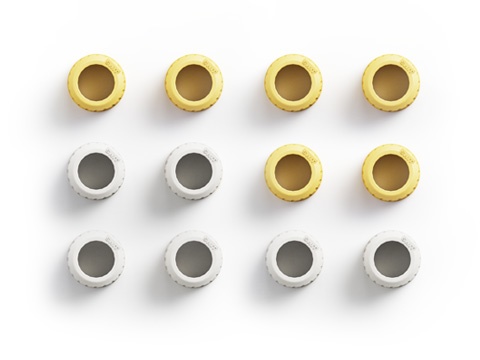

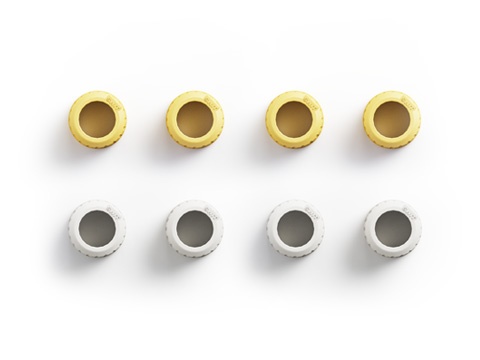

Group Tagging

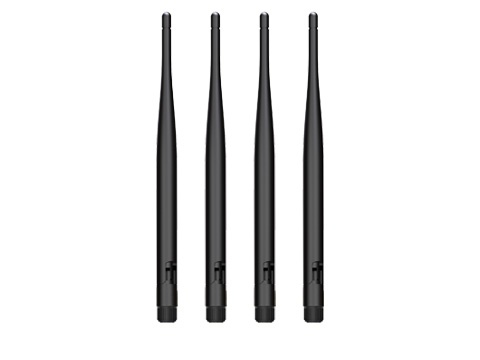

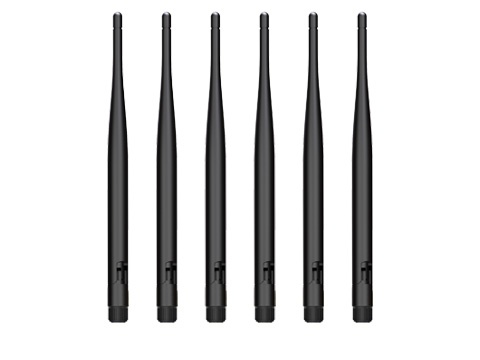

4 colors Tags are provided to be placed on the antennas. Different pairing groups of Tx and Rx are distinguished by different colored Tags.

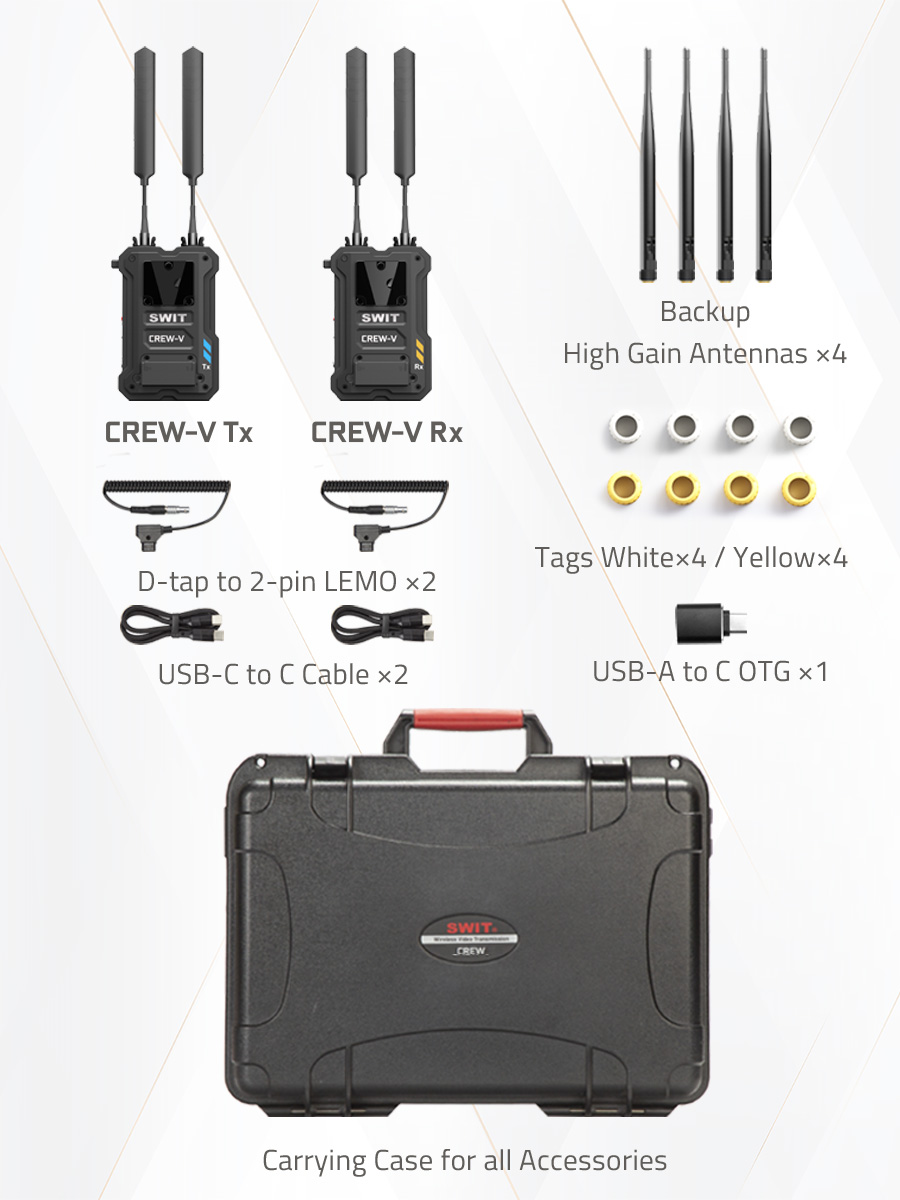

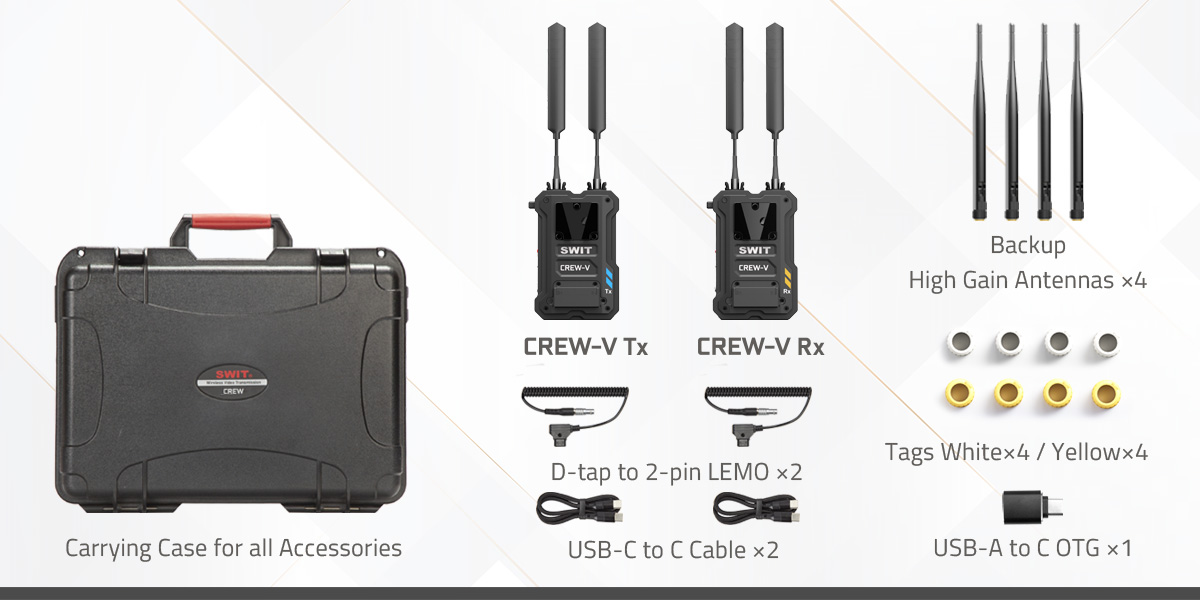

Standard 1T 1R Package

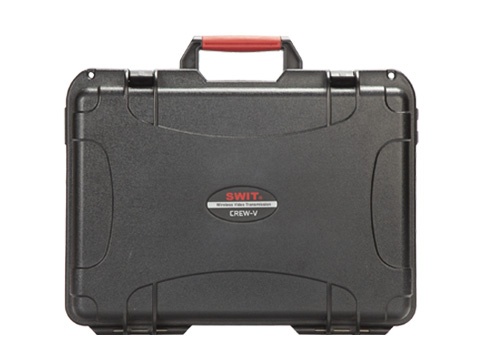

The CREW wireless provides 1 Tx + 1 Rx package including all essential accessories and comes in a carrying case for easy storage and transport.

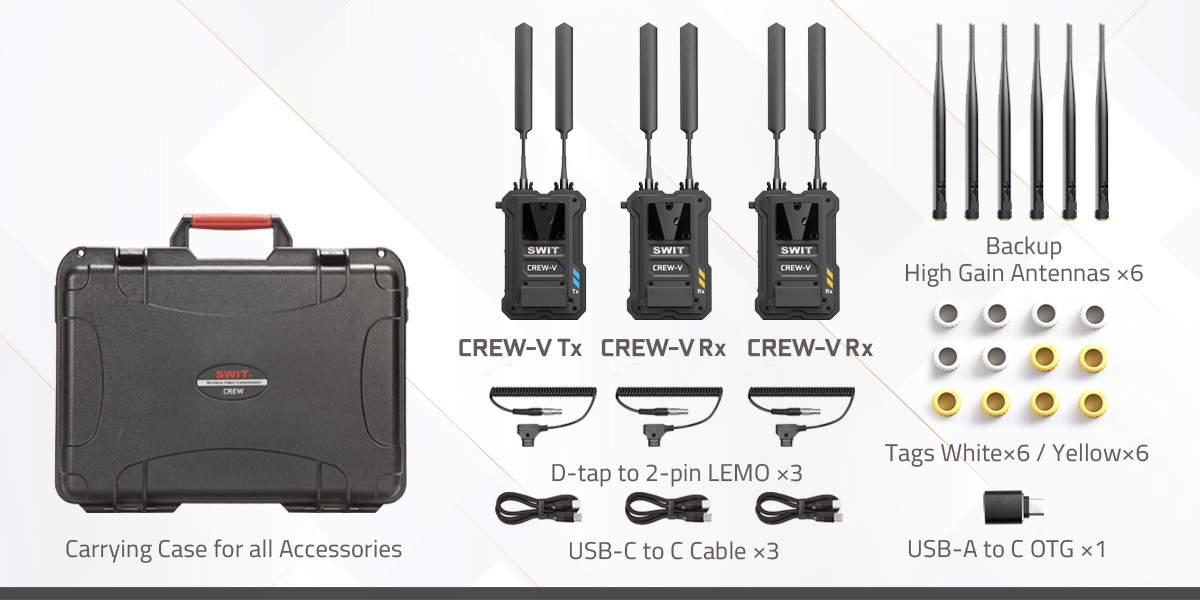

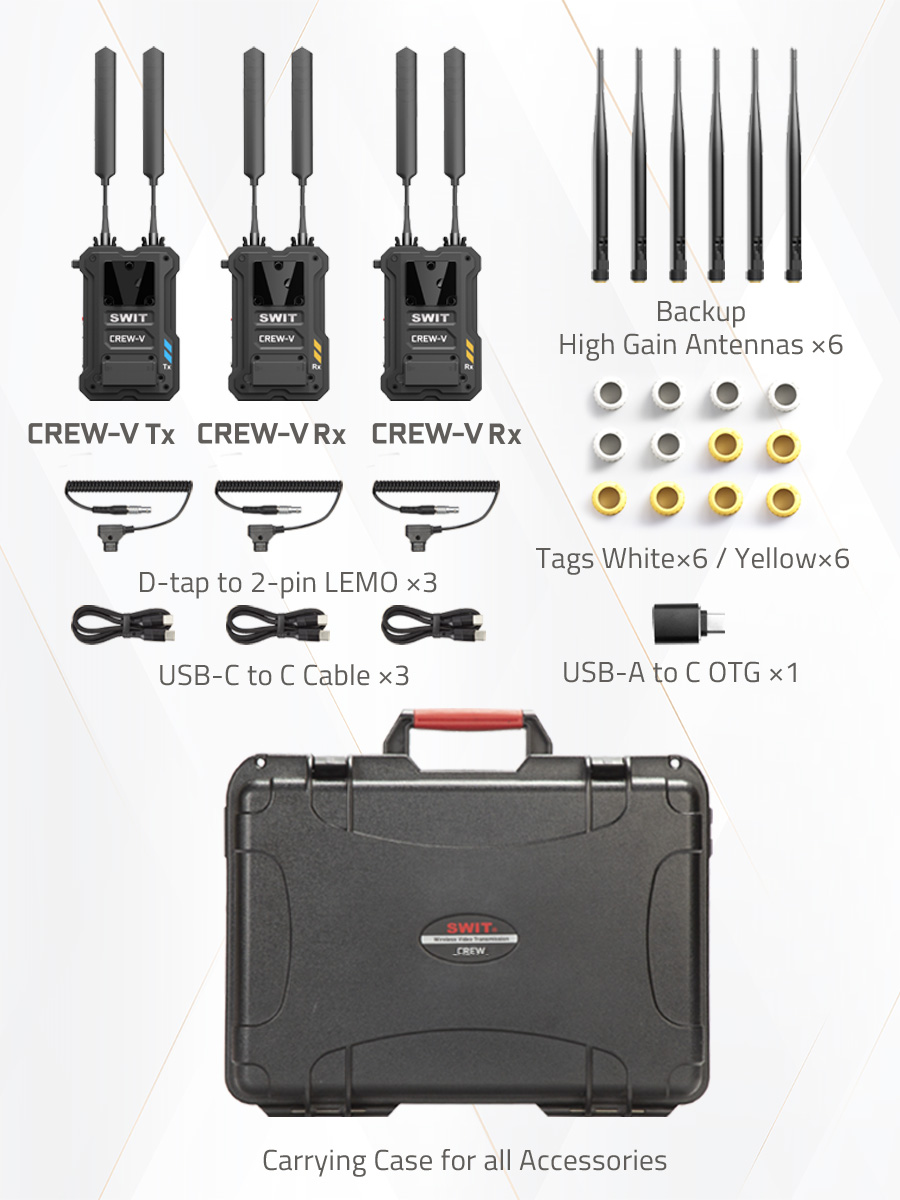

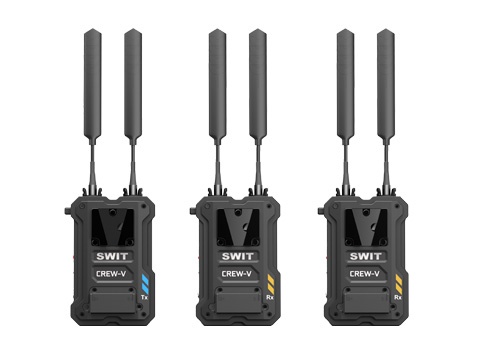

1T 2R Package Option

CREW is also available in a 1 Tx + 2 Rx kit, including all necessary accessories and a carrying case, the ideal 1T2R setup commonly used for DP and 1st AC monitoring on filmset.
