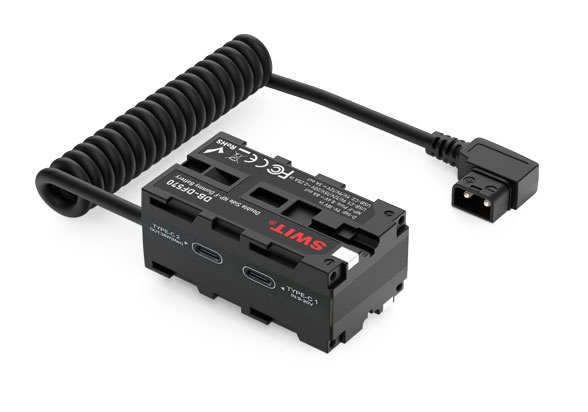

DB-DF570 Dual Side NP-F Dummy Battery with USB-C
› Dual side NP-F type dummy battery
› D-tap or USB-C PD Power Input
› 2× Dummy Battery Pins 8.4V/8A output
› USB-C PD 36W output ×1
› LED input voltage display
› For video devices with NP-F battery plate
Dual Side NP-F Dummy

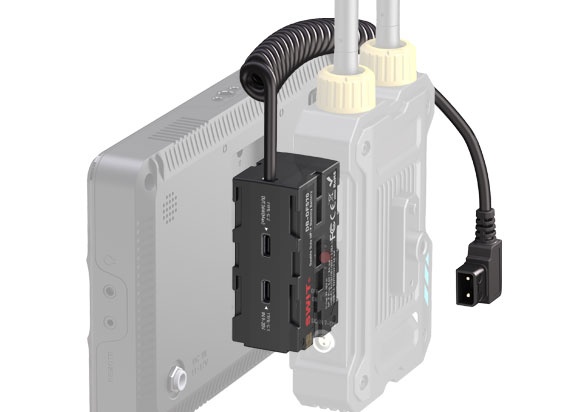

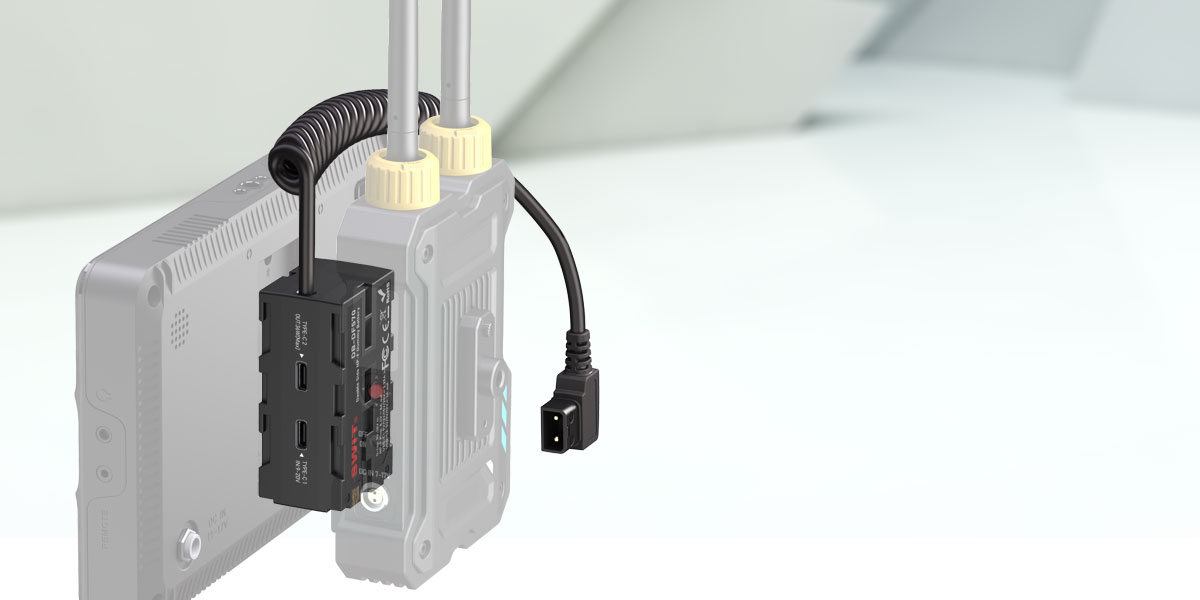

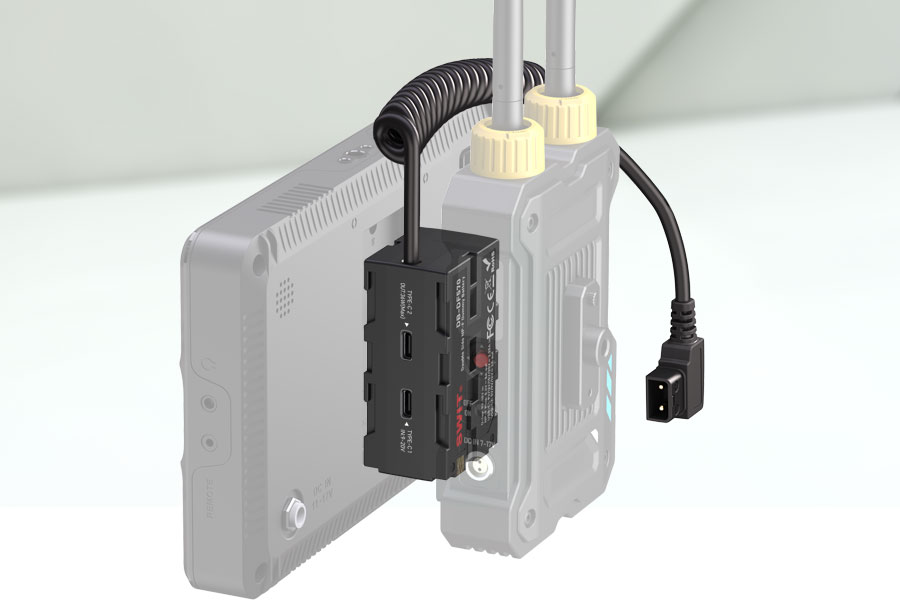

The DB-DF570 is an innovative dual-sided NP-F type dummy battery adaptor, widely used for powering a variety of video devices. It is especially designed to mount a monitor and a wireless transmitter together and power them simultaneously via a D-tap interface or a USB-C interface.

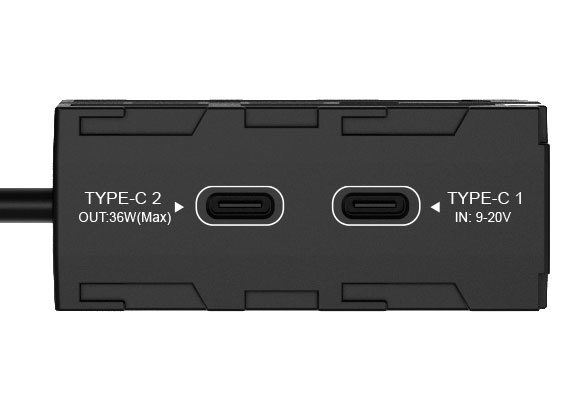

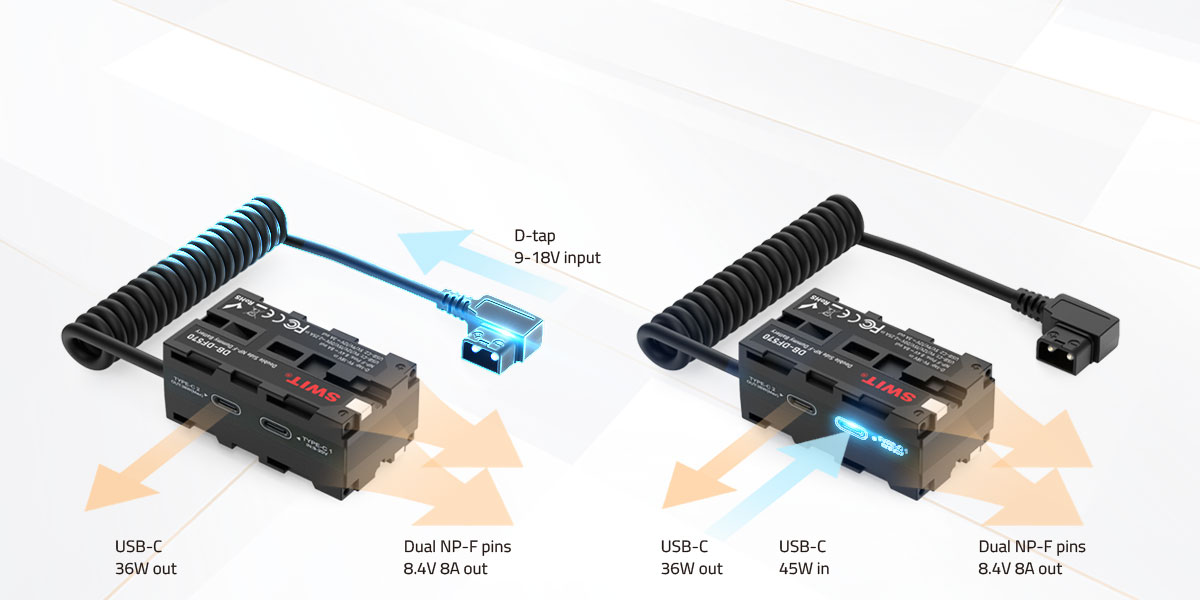

D-tap or USB-C Power Input Source

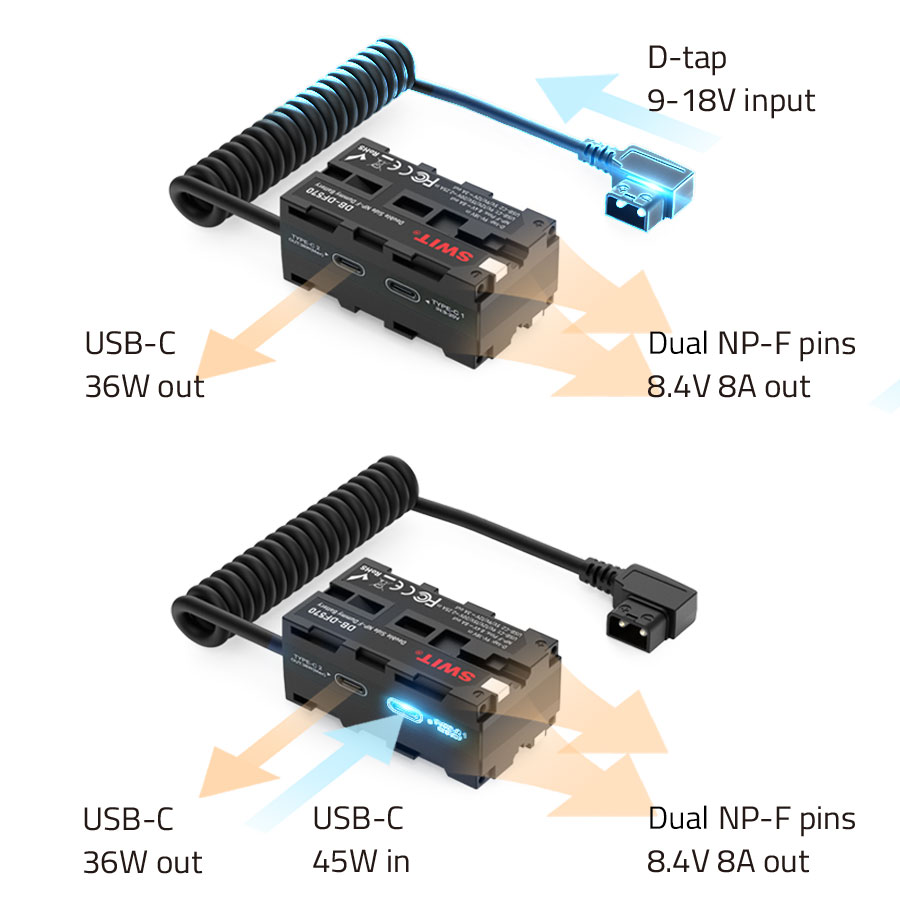

DB-DF570 dummy battery supports D-tap 9-18V power input or USB-C PD 45W input, and converts to dual NP-F pins regulated 8.4V 8A output and USB-C PD 36W output.

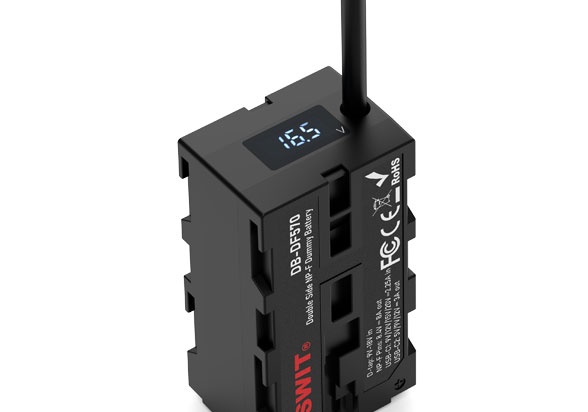

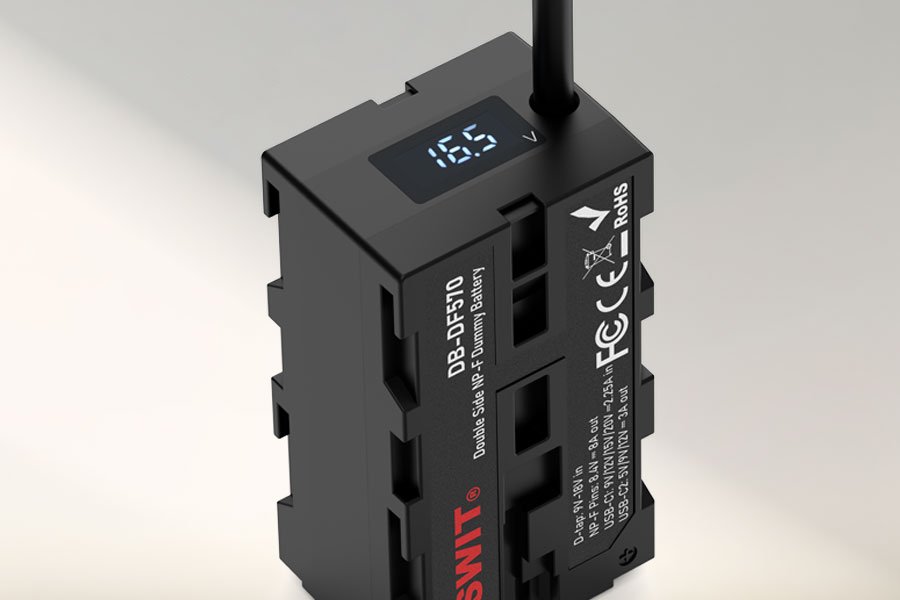

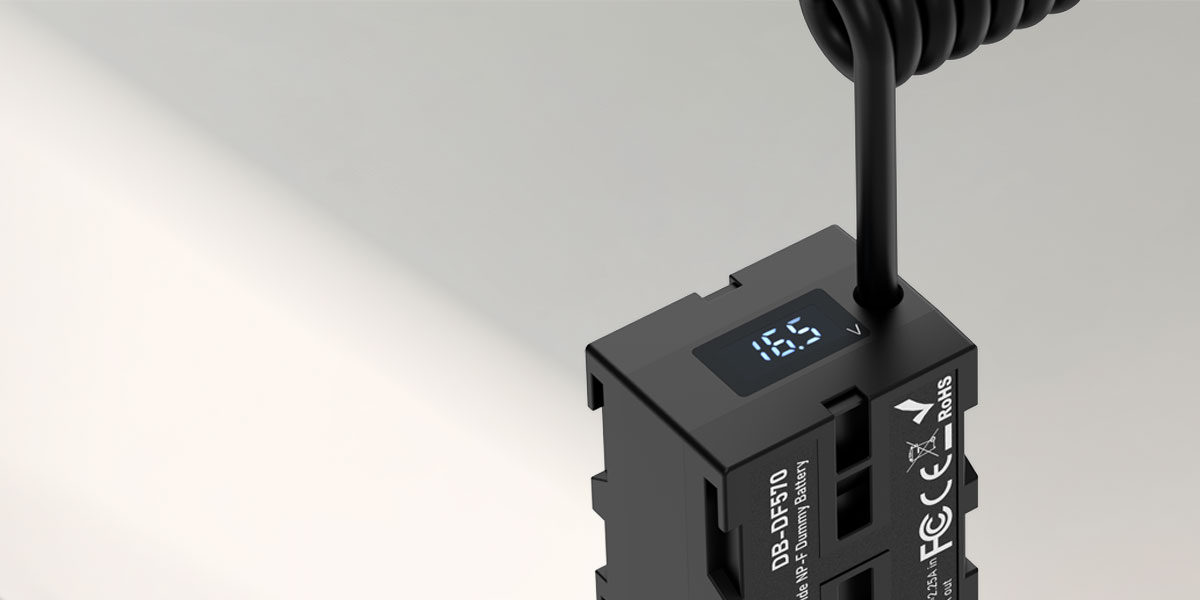

Input Voltage Display
The LED display can show the real-time voltage of the input interface, whether it is D-tap or USB-C.
D-tap input | 9 - 18V |
USB-C input | 9V/12V/15V/20V, 2.25A |
USB-C output | 5V/9V/12V, 3A |
Battery pins output | 8.4V, 8A |
