S-2820 200W RGBW LED Panel Light

›  280pcs RGBW SMD LEDs

›  200W light output

›  5000Lux @ 1 meter

›  2800-10000K color temperature

›  CCT mode with G/M adjustment

›  HIS / CIE / RGB color mode

›  20x Rosco and 20x Lee Gels

›  CRI 95, TLCI 93

›  8-ch DMX control

›  IOS/Android APP control


Features

200W RGBW 1:1 Panel

280pcs SMD LEDs

S-2820 is an RGBW 1:1 panel LED light, adopts 280pcs SMD LEDs, 200W power output, 5000Lux @ 1 meter.



Smart Phone APP control

IOS and Android

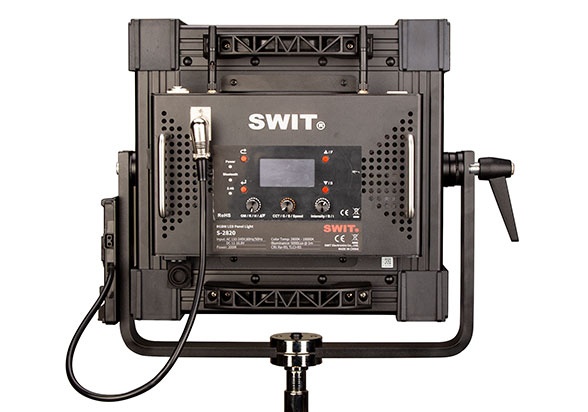

S-2820 has a control panel on the rear side, and can also be operated by Smart Phone APP.
IOS APP: App Store, search “RGB Panel”
Android APP: Download HERE.



CCT Mode

2800K-10000K, G/M adjustment

The color temperature mode achieves 2800K-10000K continuous adjustment and Green / Magenta ±1.00 adjustment.

RGB Mode

HSI, CIE and RGB pick

Support HSI mode, CIE mode, RGB mode to pick colors, by rear control panel value setting or smart phone APP.

GEL Mode

Built-in Rosco and Lee Gels

S-2840 has built-in 20x Rosco Gels and 20x Lee Gels to easily switch by rear control panel or smart phone APP.

Power Input

AC, V-mount DC

S-2820 supports SpeakOn AC power input and 4-pin XLR DC 14.8-26V input. Provides with standard V-mount plate.



Model

S-2820

Color Temperature

2800K-10000K

G/M adjustment

±1.00

Luminance

5000Lux @ 1meter

Beam Angle

65°

Color rendering

CRI 95; TLCI 93

Input voltage

AC 100-240V, 50/60Hz; DC 14.8-26V

Power output

AC-IN 200W; DC-IN 200W

Dimension

351mm × 331mm × 195mm

weight

9.26kg
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

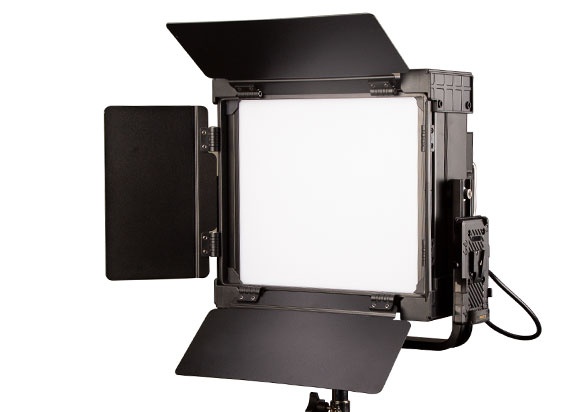

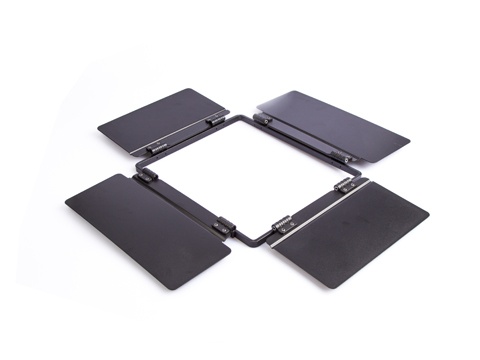

  • Barn Door kit

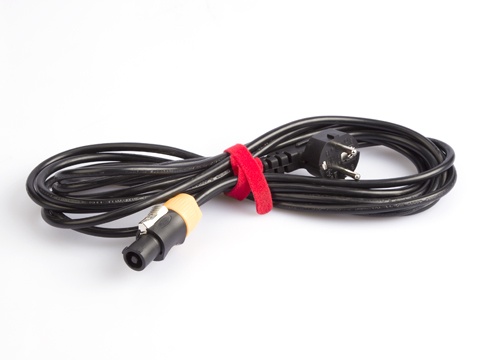

  • AC to SpeakON power cable

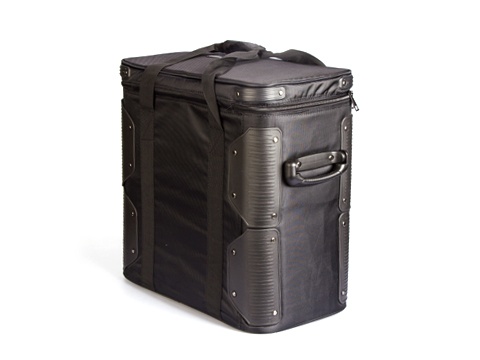

  • Carrying case

  • S-2840

    400W RGBW LED Panel Light

    560pcs RGBW LED, CCT/HSL/RGB modes, Rosco/Lee GELs, IOS/Android APP control

    $8222
