› 756pcs ultra bright surface mounted LEDs
› Flexible 10°-360° lighting
› 150W power, 3900Lux @ 1 meter center
› 3000K-5600K continuously adjustable
› 0-100% flick-free dimming
› Super high CRI Ra 97, TLCI 97
› Separate controller with LCD touch screen
› 2.4G wireless interactive control
› Support DC / V-mount battery 11-17V input
› Water proof fabric for outdoor using
› Portable X bracket for lighting tripod mounting

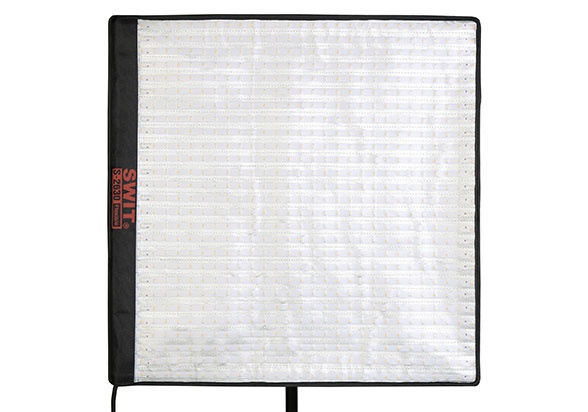

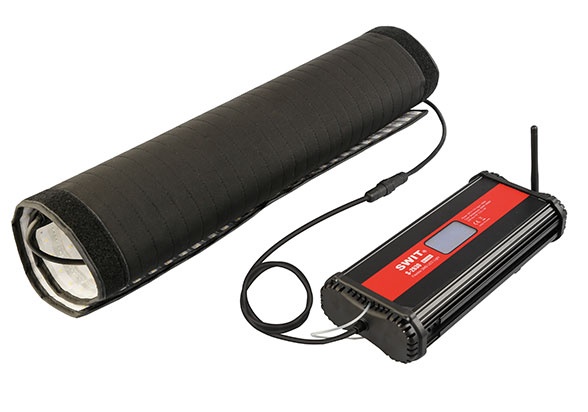

Flexible SMD-LED Light
S-2630 is a flexible LED light with 756pcs SMD surface
mounted LEDs, and can be curved to any shapes to
output 10°-360°various lighting angles, which can be
widely used on field video production especially the
lighting in narrow space.
Rain-proof Fabric
For outdoor using
The flexible fabric has rain-proof cover to protect
the LED from water during outdoor using. And the
fabric is easy to clean by water.
150W Light Output
3900Lux @ 1 meter
S-2630 outputs 150W power, feeds 3900Lux luminance at 1
meter distance (center), supports 0% to 100% PWM digital dim-
ming, smoothly and non-flickering.
Bi-color temperature
3000K-5600K continuously adjustable
S-2630 alternated with 5600K and 3000K LEDs, and the output color temperature can be continuously adjustable
between 3000K and 5600K.
High Color Reveal Ability
CRI Ra 97; TLCI 97
CRI (Color Rendering Index) is a measure of the ability of a
light source to reveal the colors of various objects faithfully in
comparison with a natural light source. And TLCI (Television
Lighting Consistency Index) is special for the color reveal
ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while S-2630
offers the super high CRI at 97 and TLCI at 97, and will not
lost the object original colors.
LCD screen display
Dimmer / color temperature value
S-2630 control box is equipped with an LCD panel, to
display dimmer value, color temperature value, battery
status and wireless channel. Touch up/down buttons to
control.
DC 11-17V Power Supply
By V-mount battery / AC-DC adaptor
S-2630 supports 11-17V 4-pin XLR DC input, and
equipped with a battery plate to power by V-mount
battery.
*Use high load battery (Over 150W) only.
Wireless Interactive Control
2.4G wireless networking
S-2630 supports 2.4G wireless networking. The
control box provides A, B, C, D 4 wireless channels,
and you can set several S-2630 lights at the same
channel, so that you can control all the lights by
any of the control box.

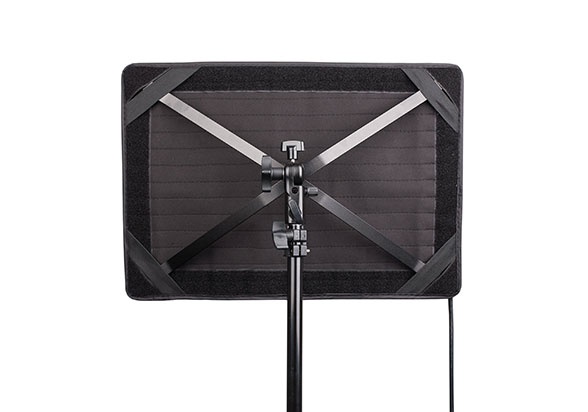

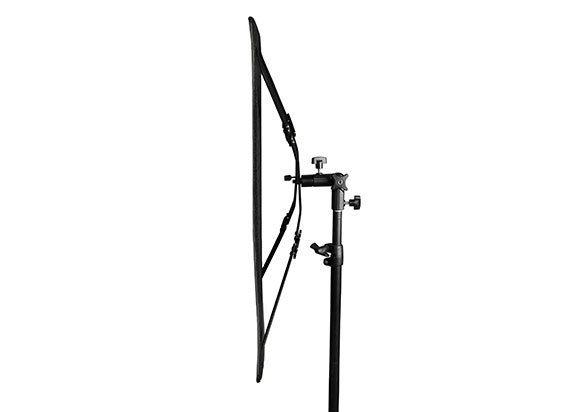

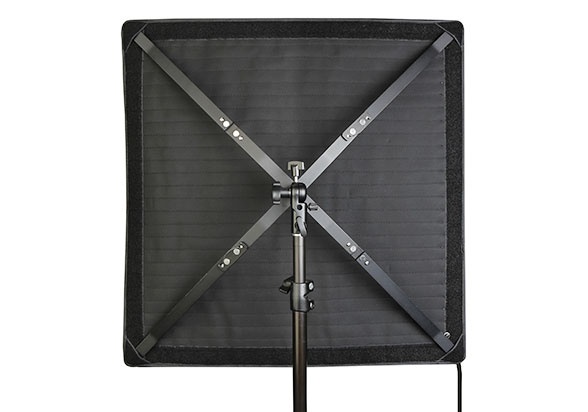

X bracket
For lighting tripod
S-2630 standard package provides a foldable X bracket,
to set the light on tripod. Support 0°-180° tilt angle.
Model | S-2630 |
LED | 756pcs |
Color Temperature | 3000K-5600K |
Brightness | 0%-100% |
Luminance | 3900 Lux/1m |
Beam Angle | 10º-360º |
CRI | ≥97 |
TLCI | ≥97 |
Input | 150W |
Voltage | DC 11-17V |
Dimensions | 600mm x 600mm |
weight | Light: 0.7Kg, Control box: 1.1Kg, AC-DC adaptor: 0.84Kg; With package 5.15kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

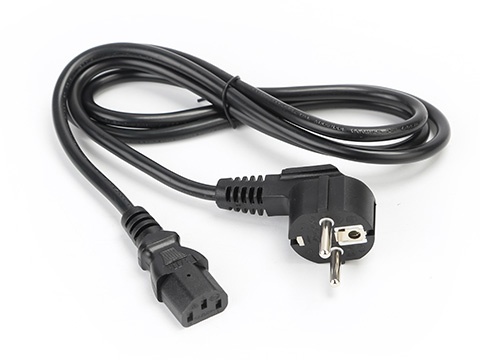

AC power cable
-
Carrying case
-
Antenna x1
-
Diffusing cover
-
Rotatable light stand connector
-
X bracket
-
AC-DC adaptor
-
Light Controller
-
Light head
-
LA-D630
Ball diffuser, spread the light to a wider angle, installed on the light fabric by Velcro tape. -
LA-B630
Box diffuser with Egg crate, install onto the light fabric by provided Velcro tape. -
PA-UC04/06/08/10
Extension cable between light fabric and control box, 4 meters / 6 meters / 8 meters / 10 meters for option.
