S-3602V 2-ch JVC BN-VF Charger and Adaptor
› Charger for SWIT S-8823 battery
› 2-ch simultaneous charging
› Compatible with JVC BN-VF823 DV battery
› 2 DC adapting output sockets
› 4-level LED charging indicators
JVC BN-VF823 DV Charger

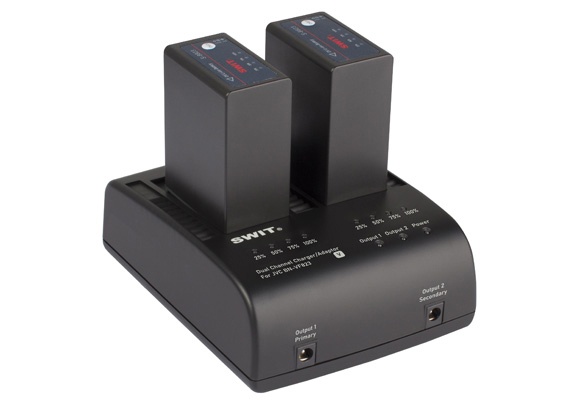

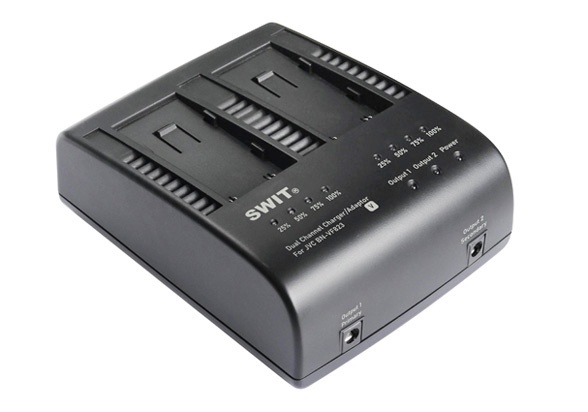

S-3602V is a dual channel charger for SWIT
S-8823, and compatible with JVC BN-VF823 DV
battery.
Dual Channel Simultaneous Charging
S-3602V has 2 charging channels, with DC 8.4V, 1.8A charging output
for each channel, and can charge 2 batteries simultaneously.
The 4-level LED charging indicators are provided for each channel,
which indicate the real time capacity by percentage when charging.

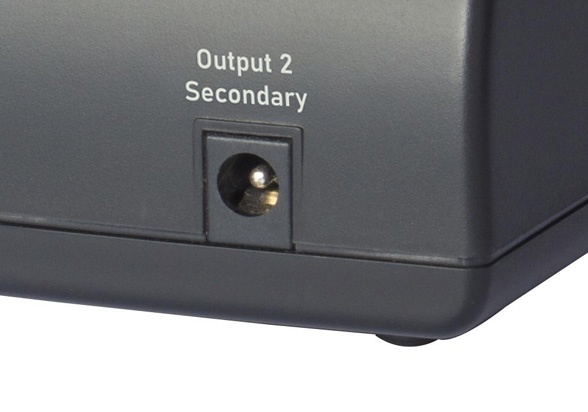

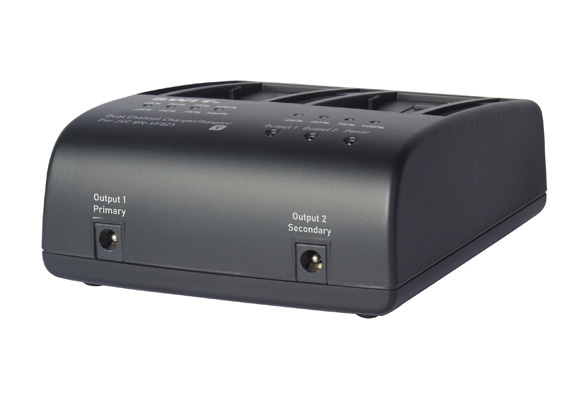

AC-DC Adapting Output
S-3602V has 2x 5.5mm/2.1mm pole sockets for DC
adapting output. The DC outputs work simultaneously and
provides DC 8.4V, 3.5A in total.
Power input | AC 100V-240V 50/60Hz |
Charging output | DC 7-8.4V, 1.8A×2 |
Adapting output | DC 8.4V, 3.5A |
Applicable battery | S-8823 |
JVC BN-VF823 | |
Dimensions | 136×110×47mm |
Net weight | Net 0.36kg; With package 0.65kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-
S-7500F
SONY NP-F Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SONY NP-F970/770 fit -
S-7500E
Canon LP-E6 Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon LP-E6 fit -
S-7500P
Panasonic Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Panasonic CGA-D54, VW-VBD58, AG-VBR59 fit -
S-7500C
Canon BP Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon BP-945 BP-970G fit -
S-7500i
JVC SSL Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SSL-JVC50 type fit
We provide 2 years conditional warranty for battery chargers and power adaptors
The following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Damage caused by input voltage beyond the limited range of AC 100V-240V.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(4) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
