S-3602F 2-ch SONY NP-F Charger and Adaptor
› Charger for SWIT S-8975/8972/8970/8770 battery
› 2-ch simultaneous charging
› Compatible with SONY L series DV batteries
› 2 DC adapting output sockets
› 4-level LED charging indicators
SONY L series (NP-F) DV battery Charger

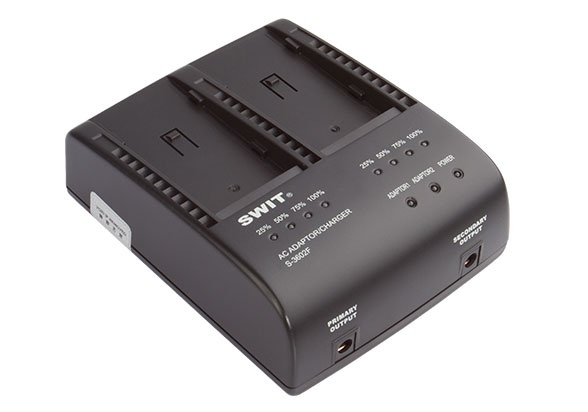

S-3602F is a dual channel charger for SWIT
S-8972, S-8970, S-8770, and compatible with
SONY L series NP-F970/770 DV batteries.

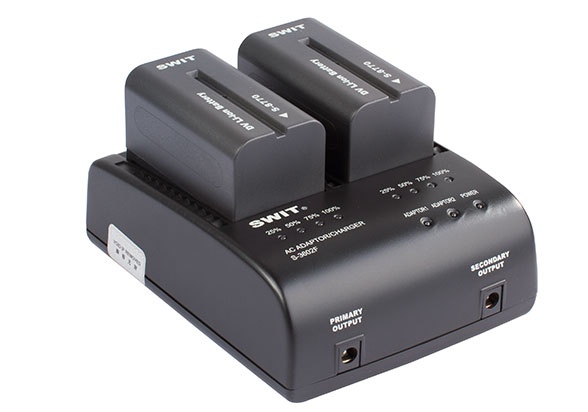

Dual Channel Simultaneous Charging
S-3602F has 2 charging channels, with DC 8.4V, 1.8A
charging output for each channel, and can charge 2
batteries simultaneously.
The 4-level LED charging indicators are provided for
each channel, which indicate the real time capacity by
percentage when charging.

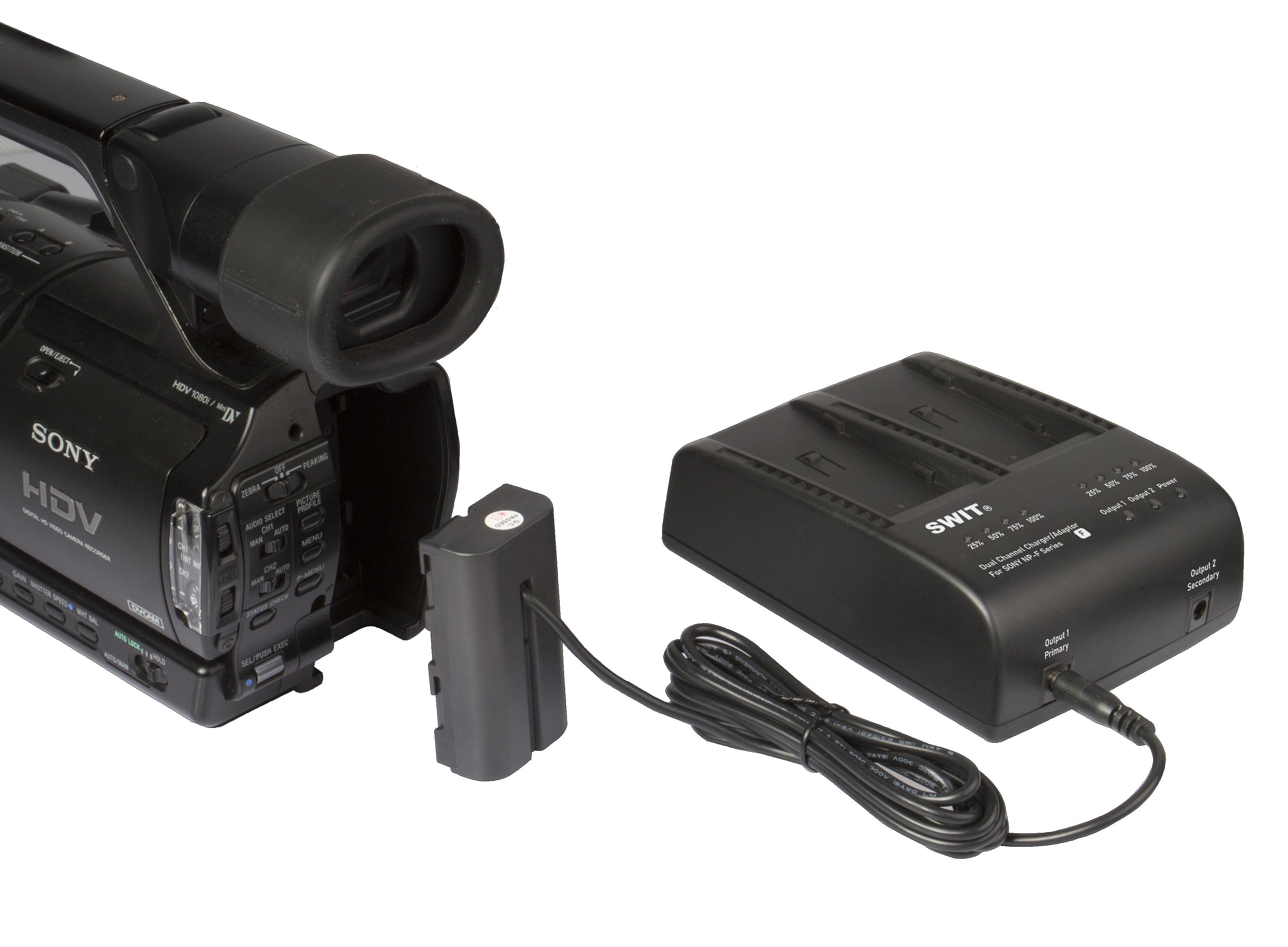

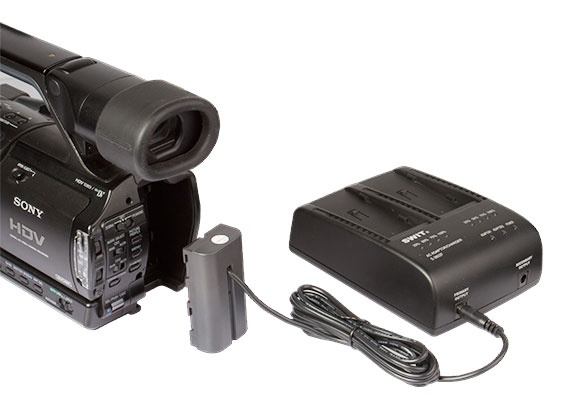

AC-DC Adapting Output

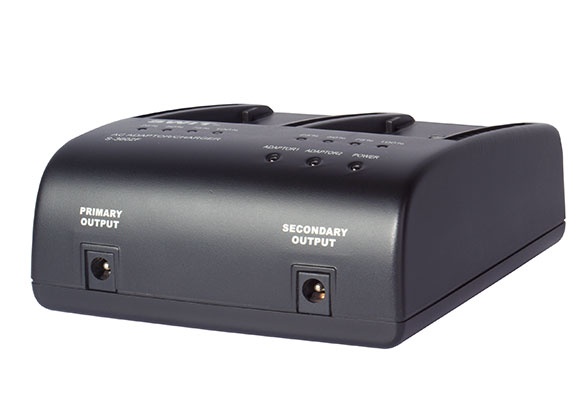

S-3602F has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work
simultaneously and provides DC 8.4V, 3.5A in total. Optional accessory: S-7500F dummy
SONY L series battery adaptor for adapting SONY DV cameras that use L series
batteries, or the equipments with SONY L series battery mounts.
Power input | AC 100V-240V 50/60Hz |
Charging output | DC 7-8.4V, 1.8A×2 |
Adapting output | DC 8.4V, 3.5A |
Applicable battery | S-8972, S-8970, S-8770 |
SONY L series NP-F770/970/960/950 | |
Applicable camera | SONY HVR-V1E, HVR-Z1E/Z7E, etc |
Dimensions | 136×110×47mm |
Net weight | Net 0.36kg; With package 0.65kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

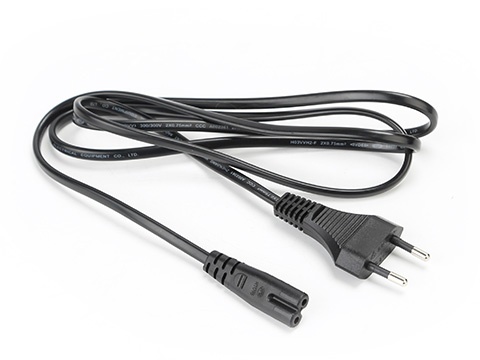

AC power cable
-
S-7500F
SONY NP-F Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SONY NP-F970/770 fit -
S-7500E
Canon LP-E6 Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon LP-E6 fit -
S-7500P
Panasonic Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Panasonic CGA-D54, VW-VBD58, AG-VBR59 fit -
S-7500i
JVC SSL Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, SSL-JVC50 type fit -
S-7500C
Canon BP Dummy Battery Adaptor, 5.5/2.1mm pole-tap DC cable connector, Canon BP-945 BP-970G fit
1. Warranty Period
We provide 2 years conditional warranty for battery chargers.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliant Charging Objects
Use of the charger to charge non-original SWIT batteries or uncertified third-party batteries.
(2) Non-Compliant Power Supply and Operation
Use of mismatched power supply, input voltage exceeding the rated range of AC 100V–240V, power input exceeding the rated capacity, prolonged overcharging, or operation under no-load conditions.
(3) Non-Compliance with User Manual
Operation, maintenance, or storage not in accordance with the instructions set forth in the User Manual; unauthorized disassembly or repair; failure to operate the charger in accordance with the prescribed procedures, resulting in damage or safety hazards.
(4) Misuse and Physical Damage
Unauthorized modification, dropping, impact, collision, water immersion, exposure to high temperatures or humid environments, or any other non-normal use not in accordance with the product's intended design.
(5) Use of Damaged or Defective Charger
Continued use of a charger that is damaged, malfunctioning, or exhibiting abnormal overheating without prompt discontinuation.
(6) Force Majeure and Human Factors
Damage caused by irresistible factors (including but not limited to earthquake, fire, or lightning) or human factors.
(7) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
(8) Liability Disclaimer
All risks and losses arising from non-compliant use shall be borne entirely by the user.
