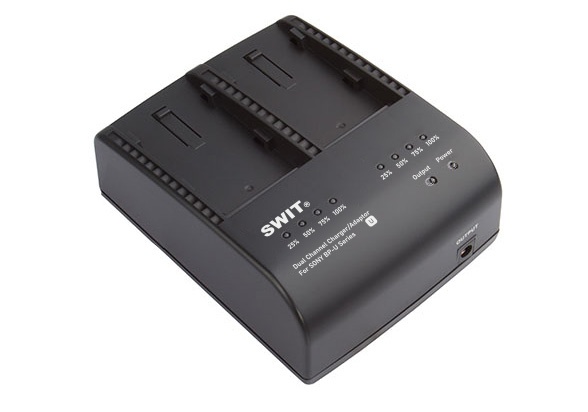

S-3602U 2-ch SONY BP-U Charger and Adaptor
› Charger for SWIT LB-SU98/SU75 battery
› 2-ch intelligent charging
› Compatible with SONY BP-U series batteries
› 1 DC adapting output for SONY cameras
› 4-level LED charging indicators
SONY BP-U series DV battery Charger
S-3602U is a dual channel charger for SWIT LB-SU98 battery and compatible with SONY BP-U series batteries.

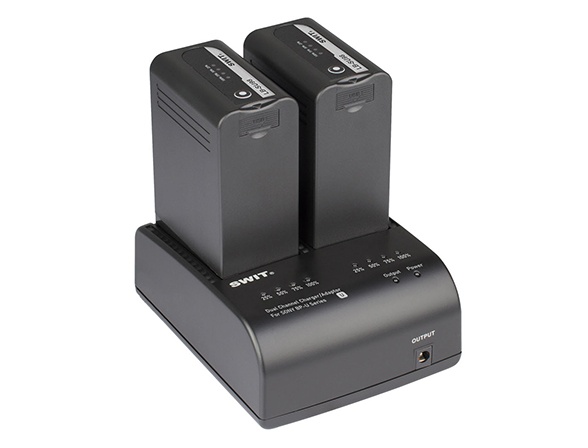

Intelligent Dual Channel Charging
S-3602U has 2 charging channels, DC 16.7V, 1.9A output,and can charge 2 batteries sequentially to 75% capacity,and then charge both batteries simultaneously to full.
The 4-level LED charging indicators are provided for eachchannel, which indicate the real time capacity by percentage when charging.

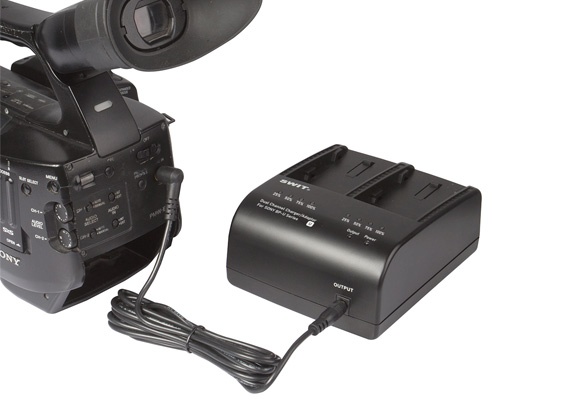

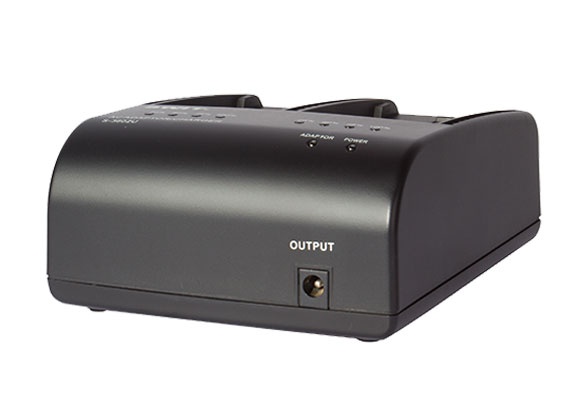

AC-DC Adapting Output
S-3602U has a 5.5mm/2.1mm pole socket of DC12V,
1.9A adapting output. The package also provides a DC
cable for adapting SONY cameras.
AC 100V-240V 50/60Hz
DC 16.8V, 1.9A×2
DC 12V, 1.9A
SONY BP-U series
SONY X180, Z280, etc
