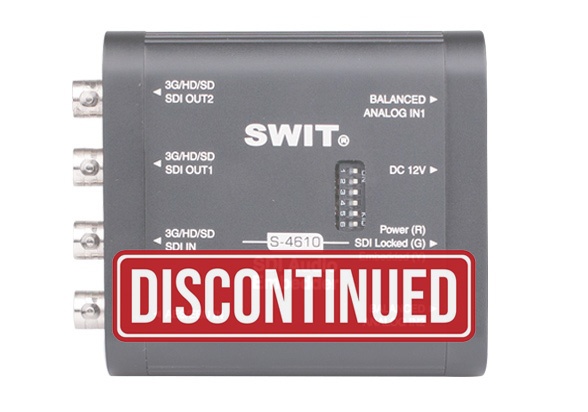

S-4610 SDI Audio Embedder

› Portable Audio to SDI Embedder

› 3G/HD/SD-SDI supported

› Embed audio to any 2 channels of SDI first 8-ch positions

› AES/EBU audio input and embed

› 6.35mm balanced audio input and embed

› 2x SDI output with new embedded audio

› Power/input/output status indicator

› Pole-tap 6-18V DC power input

› Heavy duty aluminium housing

› Bottom screw threads for installing


Features

Portable Mini Converter

SDI audio Embedder

S-4610 is a portable mini converter of SDI audio embedder, supports digital audio or analog audio to embed, and SDI up to 3Gb/s. It’s widely used in broadcast field production and professional audio/video conversion and transmission.

Input and Output

S-4610 provides:
1x 3G/HD/SD-SDI input
1x AES/EBU digital audio input (2-ch)
2x 6.35mm analog audio input (balanced)
2x New embedded 3G/HD/SD-SDI output

*If both AES/EBU audio and analog audio is connected, only AES/EBU audio can be embed-ded

De-embed Channel Selection

By 6 switchers

S-4610 can embed 2-ch audio to any 2 positions of SDI first 8 audio channels. User can select the channel number to be embedded by the 6 switchers on the front panel of the product. And on the rear side, S-4610 provides the description of the 6 switchers for reference.

Status Indicators

Power / SDI / Embedder

S-4610 provides 3 LED indictors, to check if the power is connected, if the SDI input is recognized, and if new embedded SDI outputs.

Power Supply

Pole-tap DC input

The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.

Heavy Duty Housing

The S-4610 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the audio/video connectors effectively.

Installation

S-4610 provides the bottom 1/4-inch screw threads for fixing on cameras, and an installing plate is supplied in the package, for fixing on wall and binding the BNC/audio cables.

Input

BNC ×1

3G/HD/SD-SDI input ×1

BNC ×1

AES/EBU digital audio input ×1

6.35mm ×2

Analog audio (balanced) input ×2

Output

BNC ×2

3G/HD/SD-SDI embedded output ×2

Video Format

SDI

1080p (60 / 59.94 / 50)

1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

Audio Formats

Digital audio

Type: AES/EBU

Output level: 5Vp-p
Sample frequency: 48KHz

Analog audio

Max output level: +24dbu
Bandwidth: 20Hz-20KHz

General

Power consumption

≤3W

Working Voltage

DC 6-18V

Working Environment

Temperature: 0°C-+70°C, Humidity:10%-90%

Dimensions

98×84×29 mm

Net weight

235g
Basic Package

MSRP

$8222

MSRP

$8222

MSRP

$8222

  • Installation plate

  • AC-DC Adaptor

  • S-4600

    SDI to HDMI Converter

    3G/HD/SD-SDI converted to HDMI, with embedded audio.

    $8222
  • S-4601

    HDMI to SDI Converter

    HDMI converted to 3G/HD/SD-SDI, and embed HDMI audio or Analog audio to SDI.

    $8222
  • S-4604

    SDI 1 to 4 Distributor and Amplifier

    3G/HD/SD-SDI 1 input, 4 outputs, with re-clocking and amplifier.

    $8222

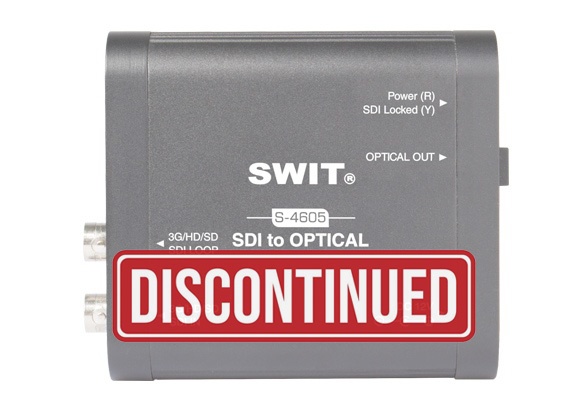

  • S-4605

    SDI to Optical Converter

    3G/HD/SD-SDI encoded to Single Mode Optical Fiber (LC).

    $8222

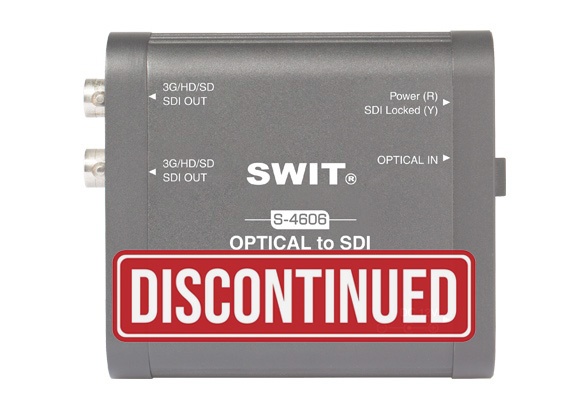

  • S-4606

    Optical to SDI Converter

    Single Mode Optical Fiber (LC) decoded to 3G/HD/SD-SDI.

    $8222

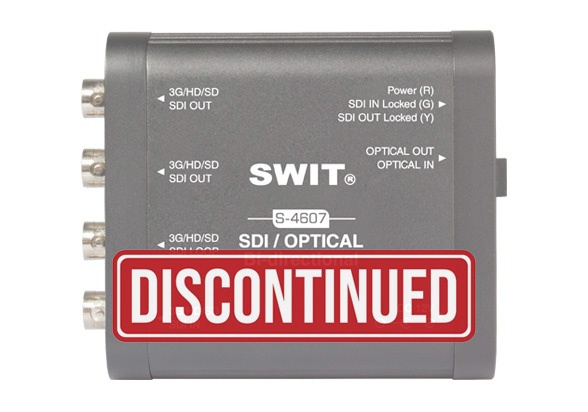

  • S-4607

    Bi-directional SDI/Optical Converter

    3G/HD/SD-SDI and Single Mode Optical Fiber (LC) Bi-direction conversion.

    $8222
  • S-4609

    SDI Audio De-Embedder

    De-embed any 2-ch audio from of 3G/HD/SD-SDI, output AES/EBU or analog audio

    $8222
  • S-4611

    SDI to DVI Converter

    3G/HD/SD-SDI converted to DVI and analog audio, with one SDI loop through output.

    $8222
  • S-4612

    DVI to SDI Converter

    DVI converted to 3G/HD/SD-SDI, supports to embed Analog audio into SDI

    $8222
  • S-7108

    Pole-tap to Pole-tap DC Cable

    DC cable with both ends of 5.5mm Pole-tap connector

    $8222
  • S-7104

    D-tap to Pole-tap DC Cable

    Pluged into D-tap socket and output DC via 5.5mm pole-tap
