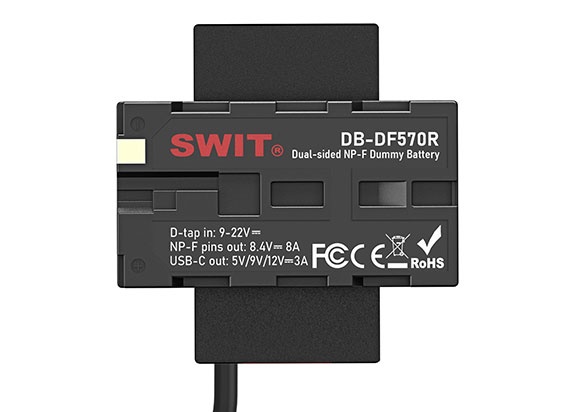

DB-DF570R 270° Rotate Dual Sided NP-F Dummy Battery with USB-C
› Dual sided NP-F type dummy battery
› 270° rotatable to fit H/V orientations
› D-tap 9-22V power input
› 2× NP-F Pins 8.4V (Reg.) output, 8A in total
› 1× USB-C PD 5V/9V/12V 36W output
› LED input voltage display
› Cabel Length 50cm
270° Rotatable
Dual Side NP-F Dummy

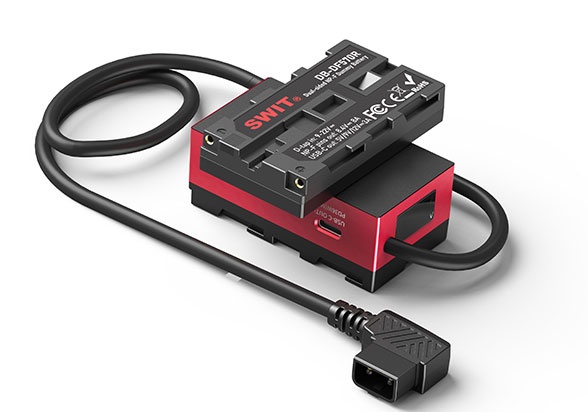

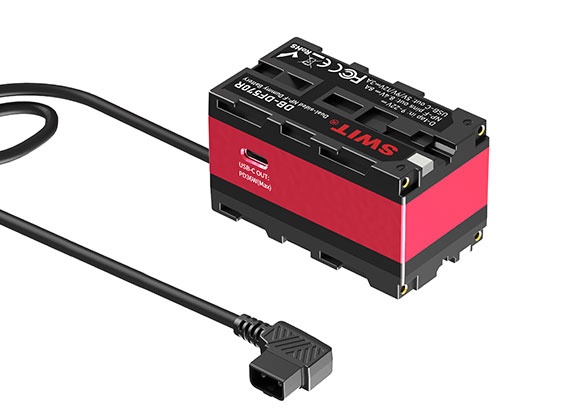

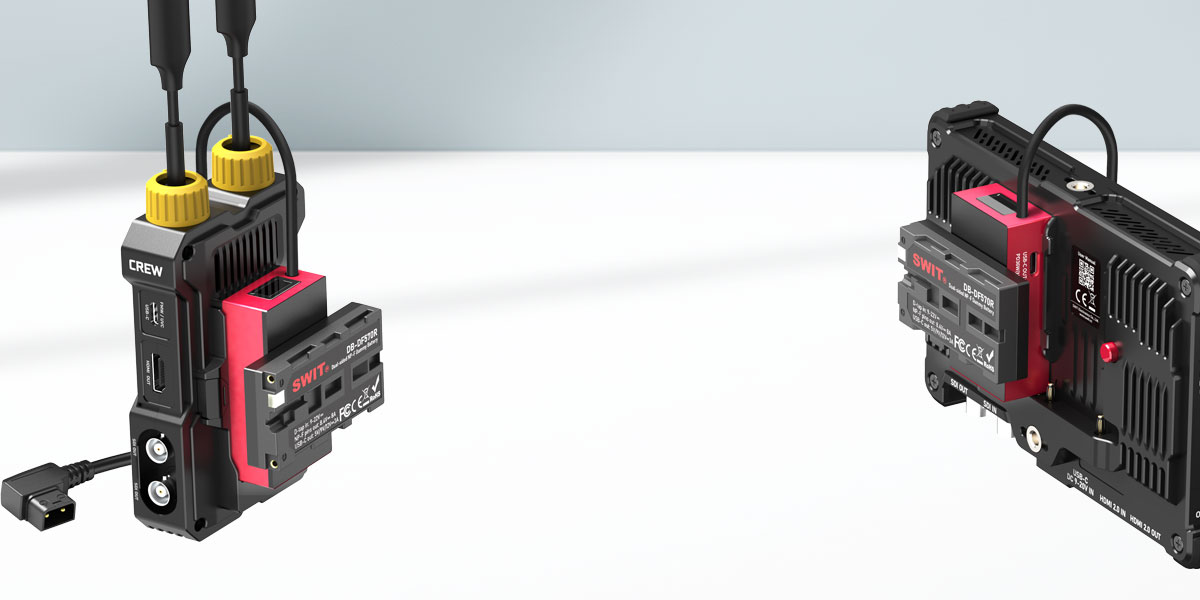

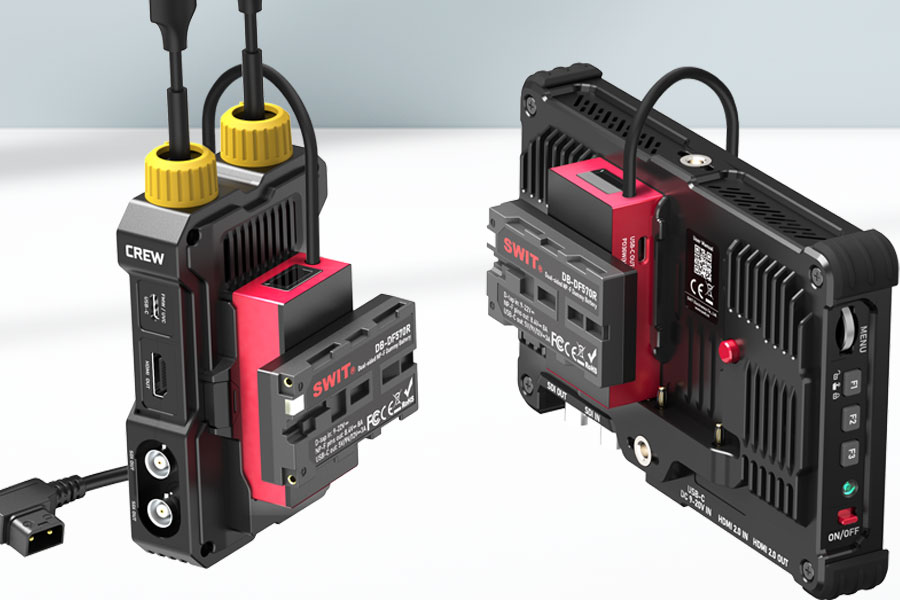

The DB-DF570R is a dual-sided NP-F dummy battery
adapter featuring an innovative 270° rotatable
design. This versatile solution is specifically
engineered for video devices with varying NP-F plate
orientations, allowing two units to be connected at
any angle and powered simultaneously via D-tap.

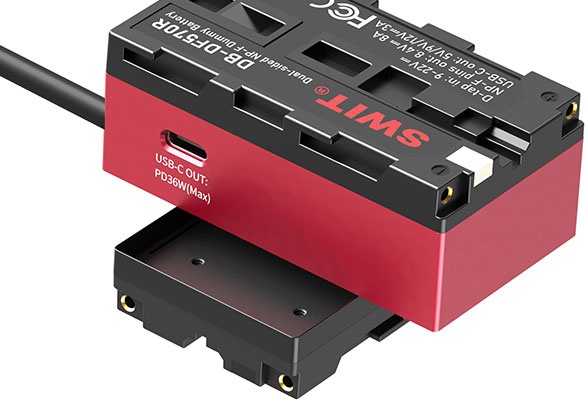

D-tap In, 2× NP-F & 1× USB-C Out
DB-DF570R dummy battery supports D-tap 9-18V power input,
and converts to dual NP-F pins of regulated 8.4V dummy battery
output and provides 1× USB-C PD 5V/9V/12V 3A output.

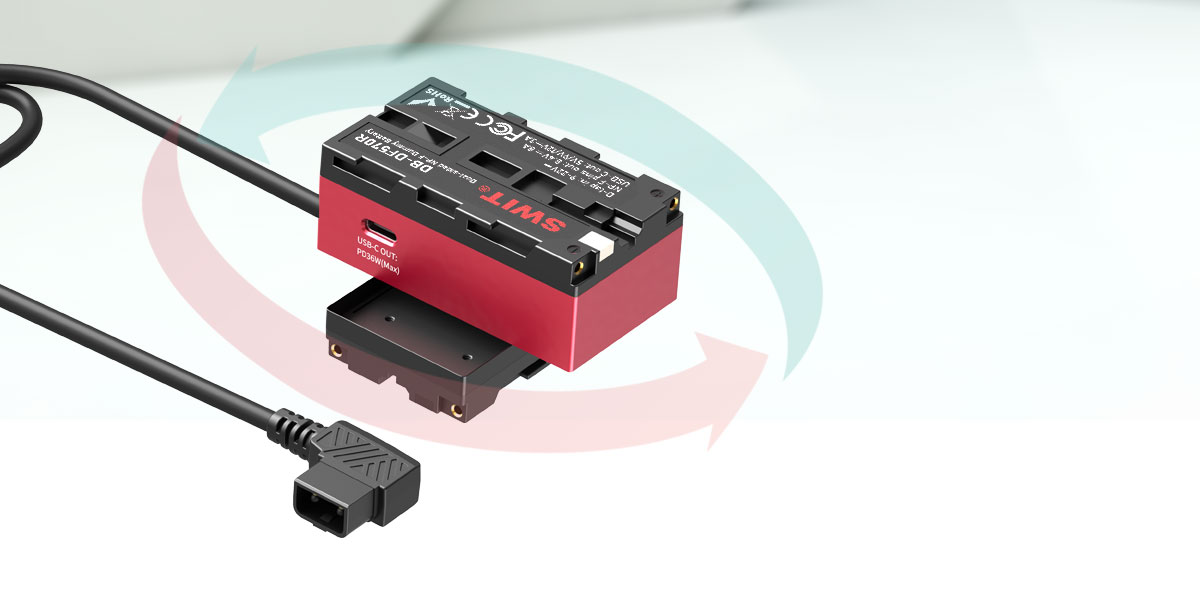

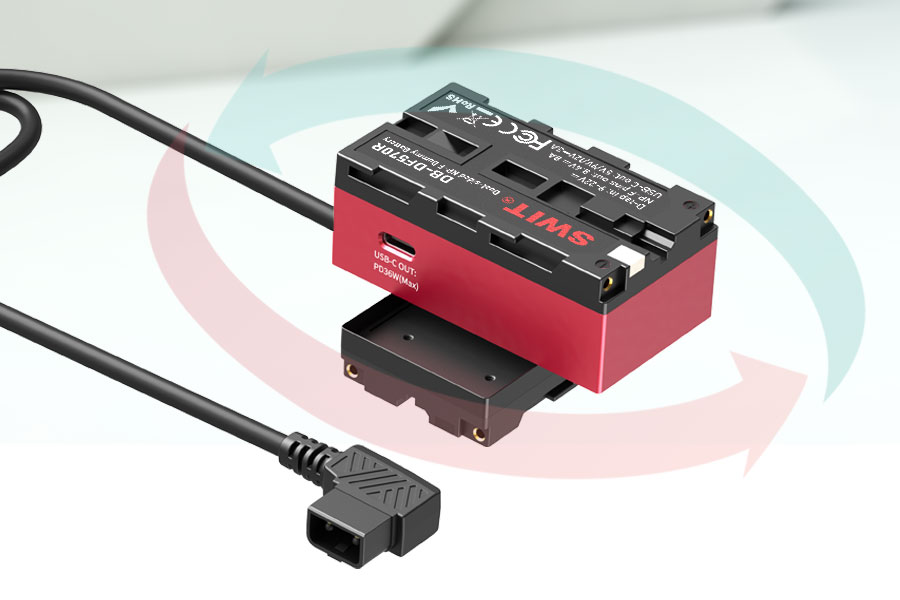

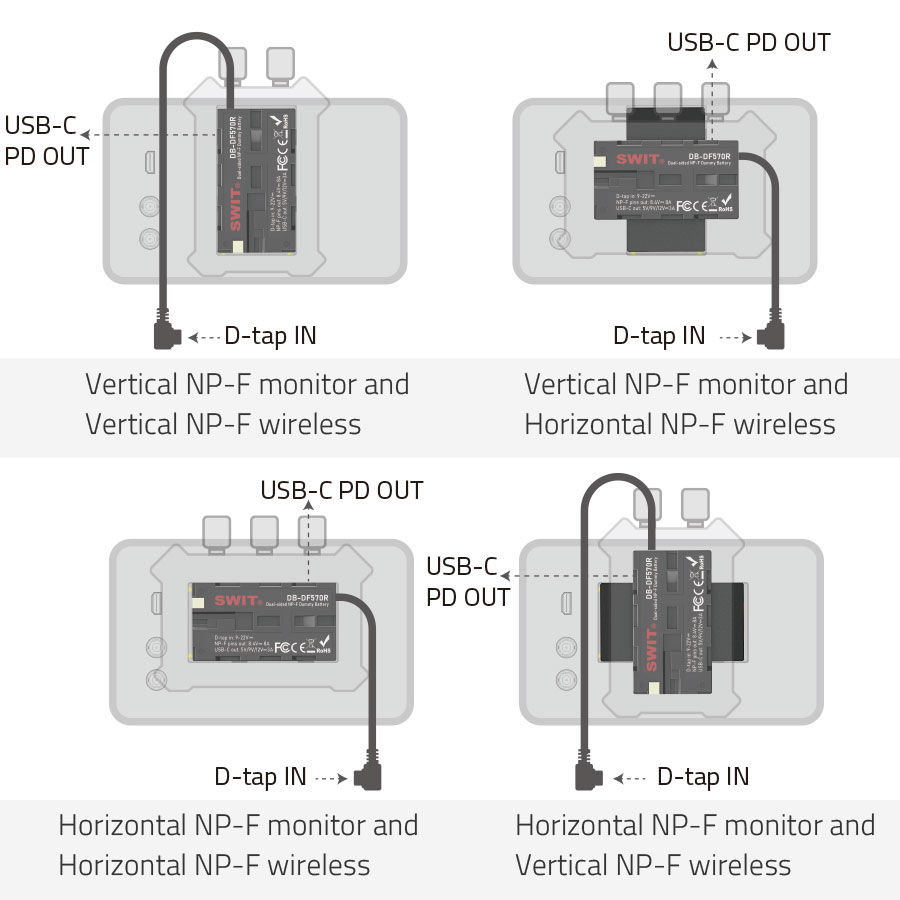

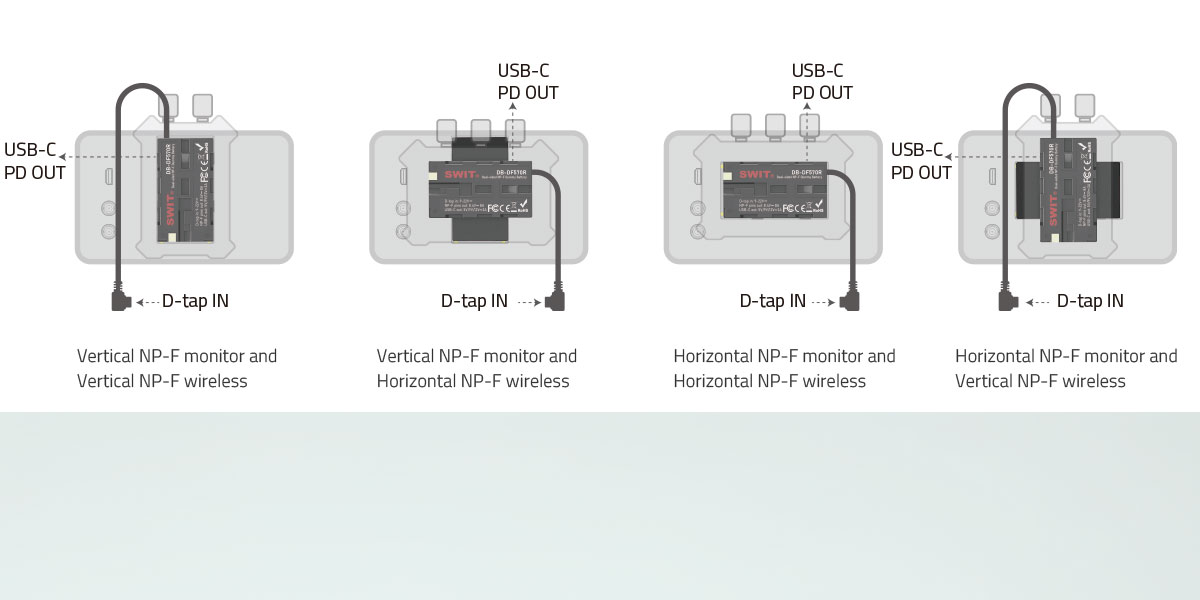

Universal Angle Adaptability
The DB-DF570R features a 270° rotatable design, enabling seamless compatibility with both horizontal and vertical NP-F plate orientations. Adjust freely to achieve your desired configuration angle for any setup.

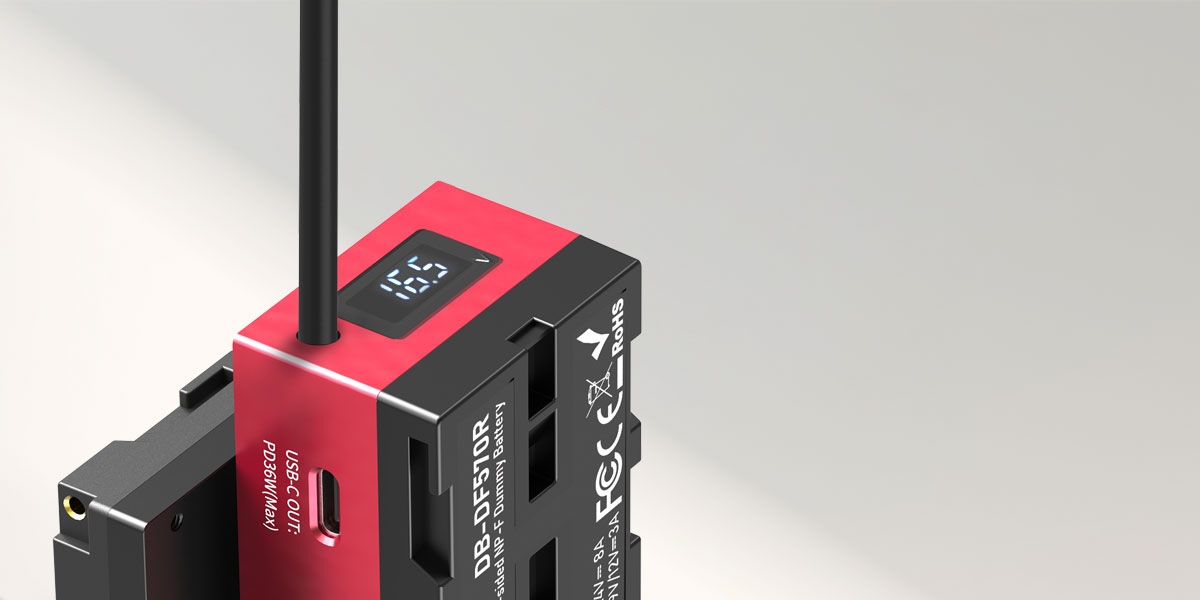

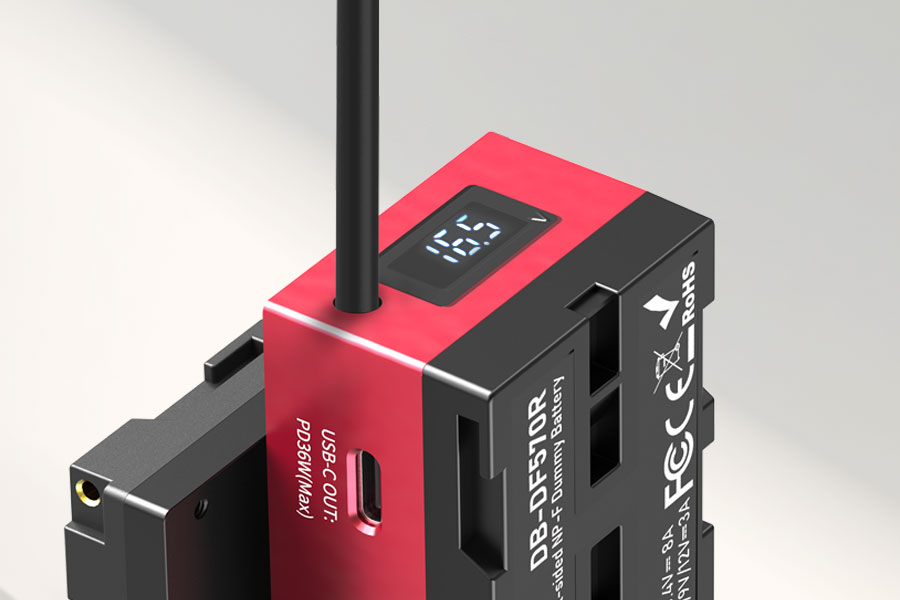

Input Voltage Display
The LED display can show the real-time
voltage of the D-tap input power source.
D-tap input | 9 - 22V |
Battery Pins output | 8.4V (Reg.), 8A in total |
USB-C output | PD 5V/9V/12V, 3A |
Cable Length | 50cm |
MSRP
MSRP
MSRP
We provide a 1-year conditional warranty, and the following damages/issues are not covered under warranty:
(1) Any damage or malfunction caused by use, maintenance, or installation not in accordance with the User Manual's instructions, including improper insertion into camera or power device, incorrect polarity connection, cable bending beyond recommended radius, or disassembly/repair without authorization of SWIT.
(2) Any damage caused by using third-party power supplies, batteries, chargers, or accessories that do not comply with the recommended electrical specifications, or by operating the product beyond its rated current, voltage, or load limits as stated in the technical specifications — including but not limited to melted insulation, burnt contacts, internal short circuits, or blown fuses resulting from over-current, over-voltage, or excessive load.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning, flood, etc.) or human factors including crushing, pulling with excessive force, pinching, dropping, or improper storage in contact with sharp or heavy objects.
(4) Any damage or malfunction not caused by the product's design, workmanship, or manufacturing quality — including normal wear and tear of cable jackets, connector plating, strain relief boots, or contact spring tension.
(5) Physical damage to plugs, sockets, connector housings, locking tabs, or terminal pins resulting from violent use, improper insertion/removal, forced connection with incompatible ports, or pulling on the cable body instead of the connector is specifically excluded from warranty coverage. This includes bent, snapped, or cracked plug shells, broken latch mechanisms, separated solder joints from excessive strain, and deformed pin contacts.
(6) Electrical damage (including melted connectors, scorched dummy battery casings, deformed DC jacks, or cable insulation shrinkage) that is determined to be caused by connection to a power source or device exceeding the product's specified voltage, current rating, or duty cycle shall not be covered under this warranty.
