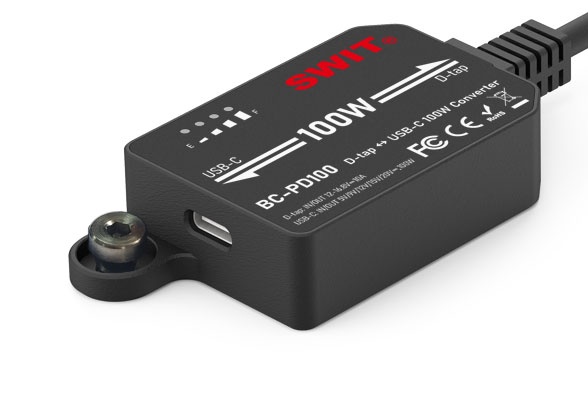

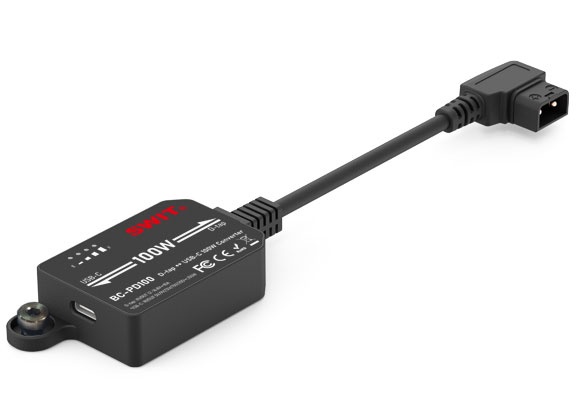

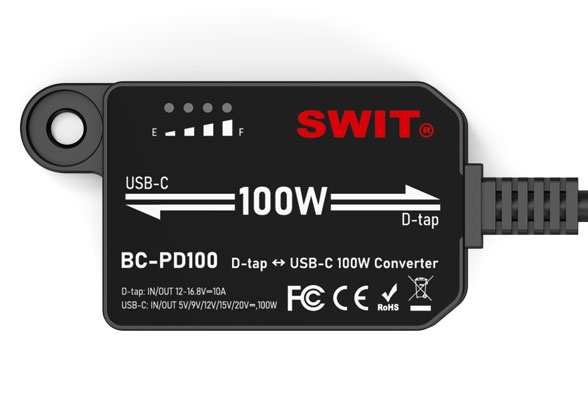

BC-PD100 D-tap to USB-C 100W Bi-directional
› D-tap to USB-C bi-directional
› Upgrade camera batteries to adapt USB-C
› USB-C PD 100W constant high load
› Charge camera batteries by USB-C chargers
› Power USB-C devices by camera batteries
› Provide 1/4" screw bolt for camera rig install

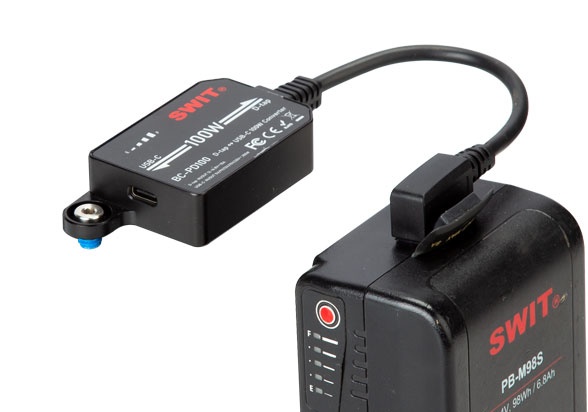

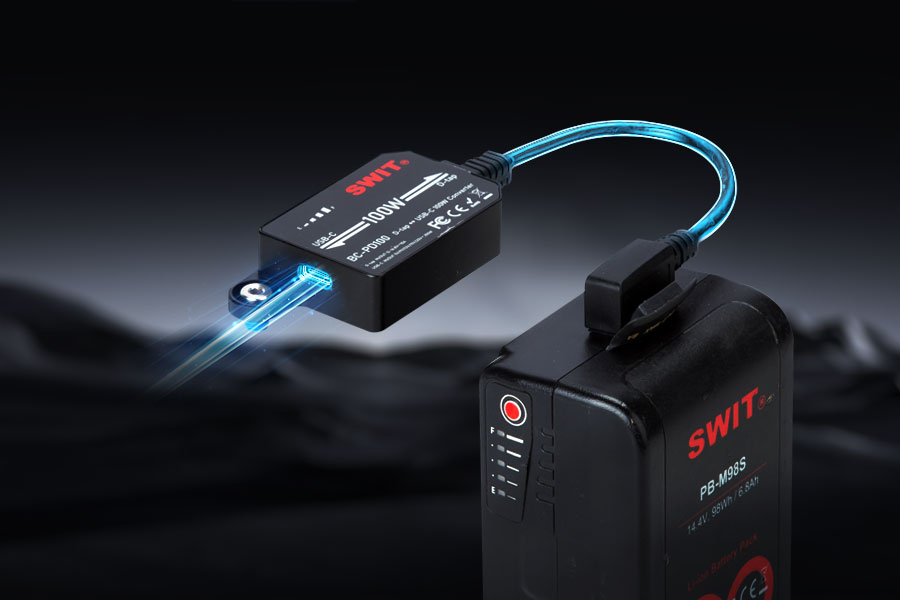

Upgrade Camera Batteries with Bi-directional USB-C
The BC-PD100 is a D-tap to USB-C bi-directional converter that can upgrade any camera batteries with D-tap to a bi-directional USB-C interface of PD 100W constant high load.

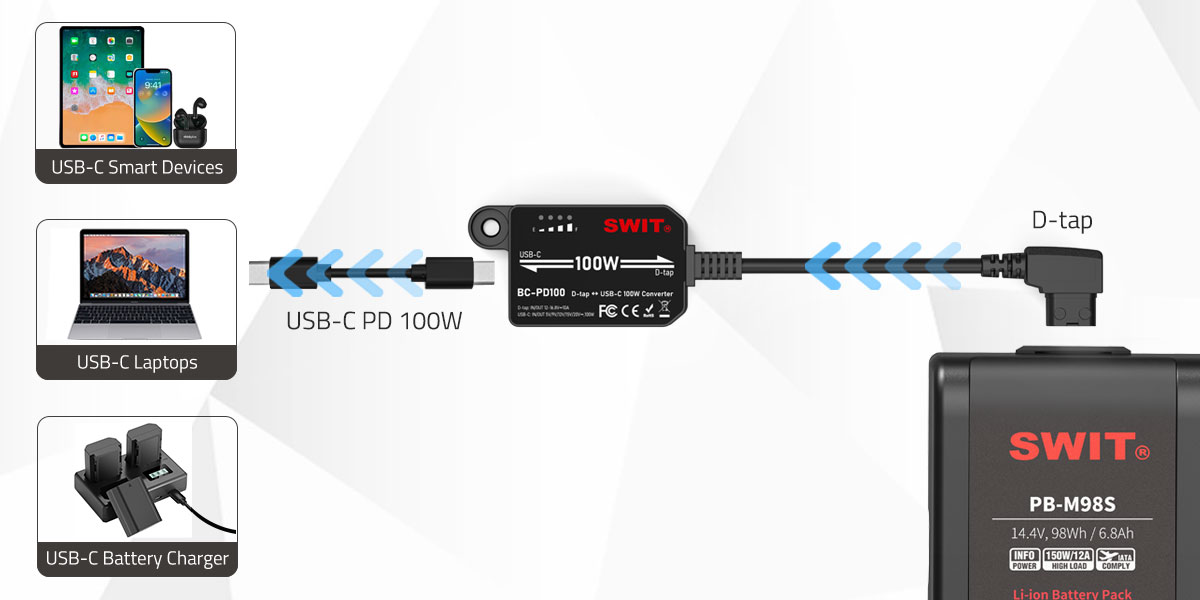

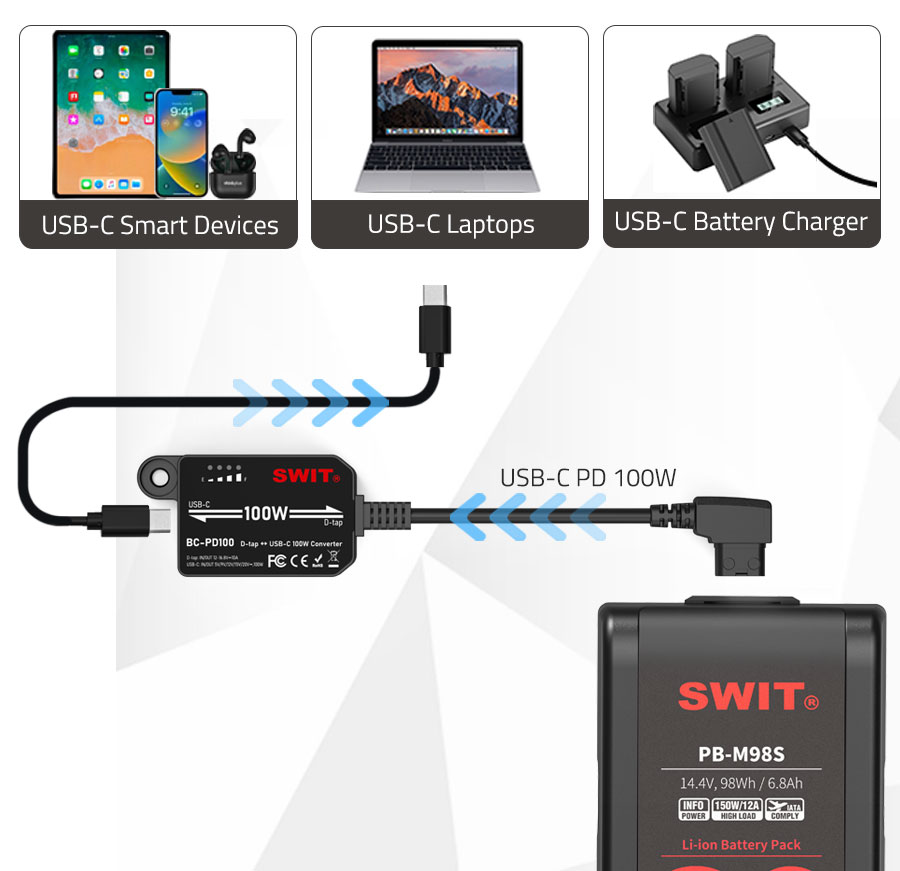

PD 100W to Power USB-C Devices
With BC-PD100, you can charge laptops, tablets, smart phones, and charge mirrorless camera batteries by any V-mount batteries with D-tap socket.

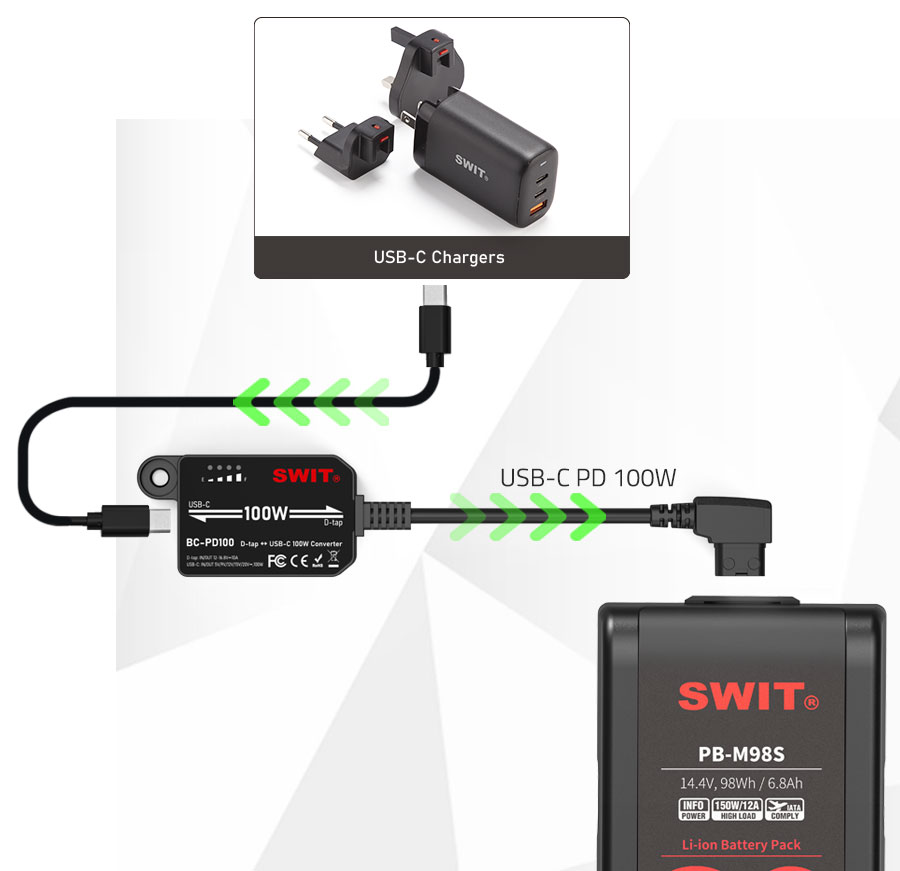

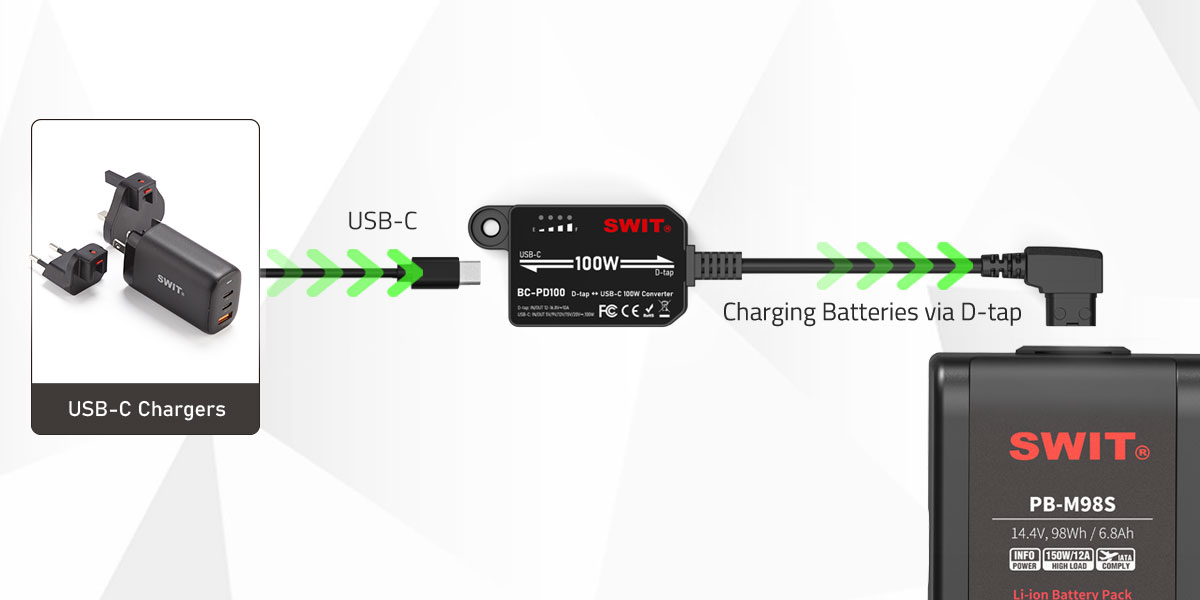

Charging Batteries by USB-C Adaptors
With BC-PD100, you can also charge camera batteries via D-tap socket by USB-C adaptor. (Please note the batteries HB-A290B, LB-SF65C and LB-PD65C with regulated D-tap voltage can’t support D-tap charging.)

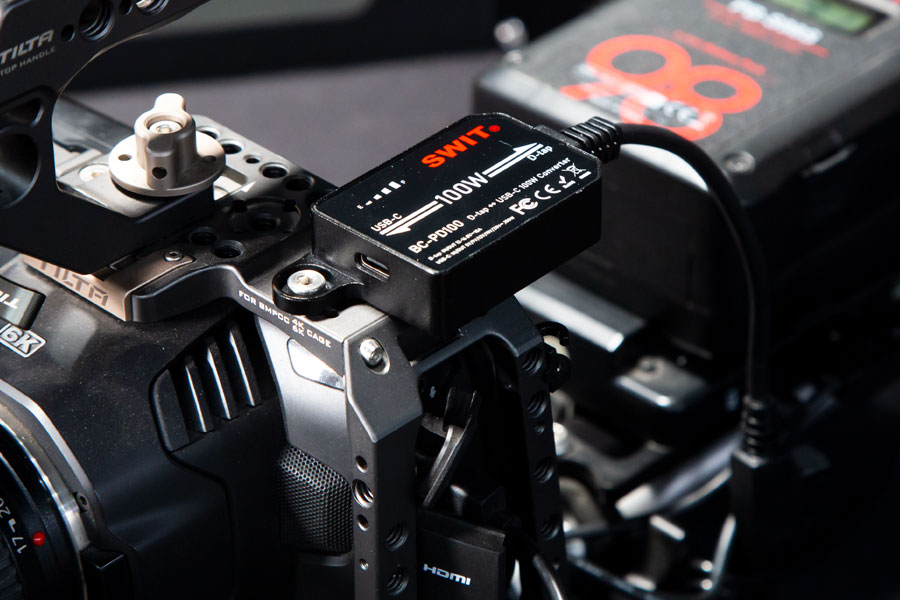

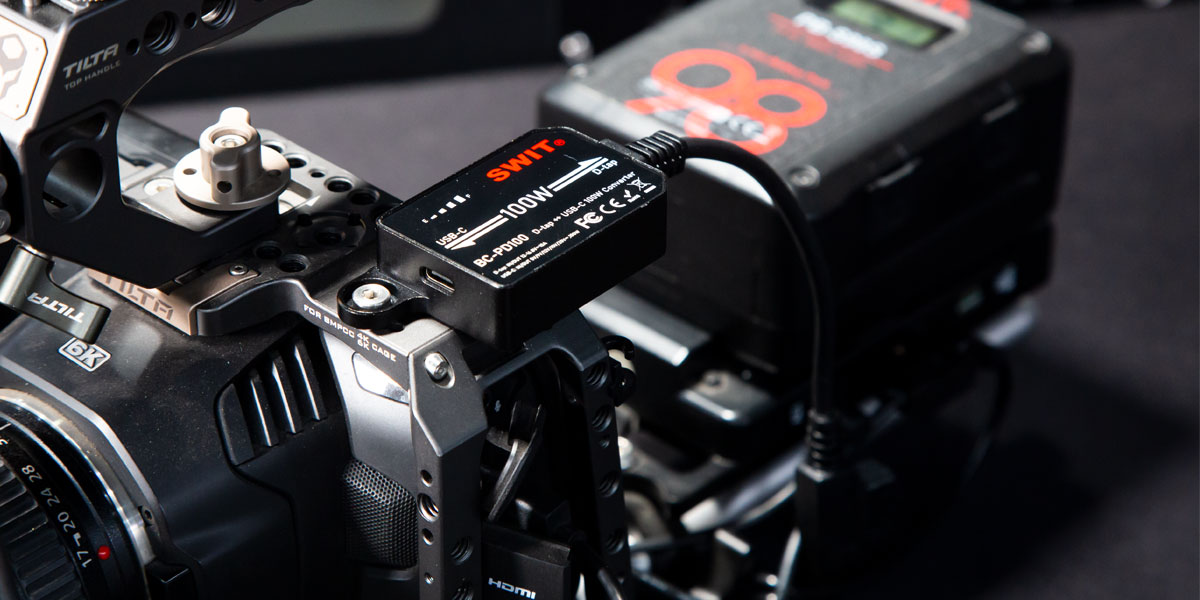

1/4” Screw Rig Mounting
The BC-PD100 converter provides with a 1/4” screw bolt that allows you to install it on camera rig system easily.

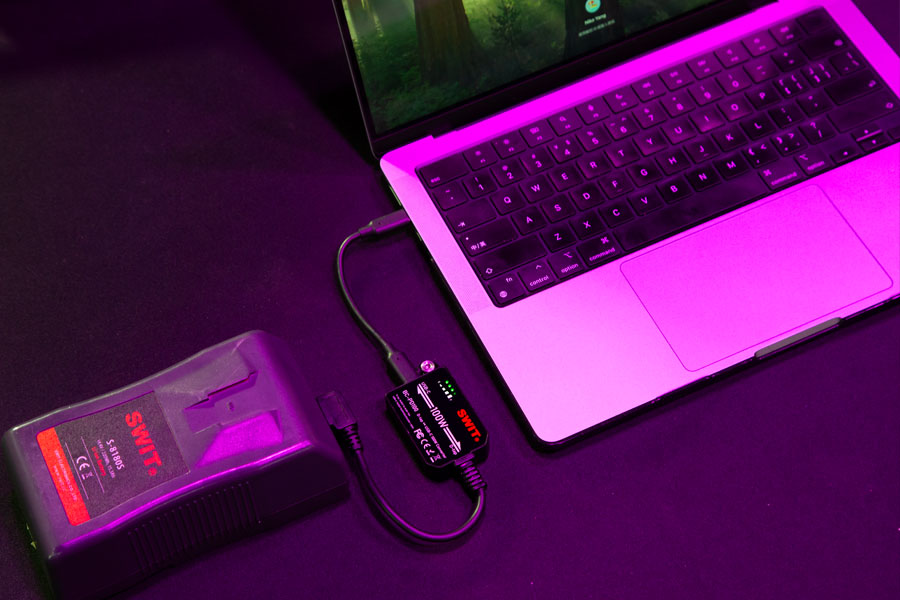

Charge Laptop by Old Batteries
On a video production set, you can conveniently power laptops with USB-C port, through D-tap port of any old camera batteries.
D-tap Input/Output | 12-16.8V 10A |
USB-C Input/Output | PD 5V/9V/12V/15V/20V 100W |
Cable Length | 10cm |
MSRP
MSRP
MSRP
We provide a 1-year conditional warranty, and the following damages/issues are not covered under warranty:
(1) Any damage or malfunction caused by use, maintenance, or installation not in accordance with the User Manual's instructions, including improper insertion into camera or power device, incorrect polarity connection, cable bending beyond recommended radius, or disassembly/repair without authorization of SWIT.
(2) Any damage caused by using third-party power supplies, batteries, chargers, or accessories that do not comply with the recommended electrical specifications, or by operating the product beyond its rated current, voltage, or load limits as stated in the technical specifications — including but not limited to melted insulation, burnt contacts, internal short circuits, or blown fuses resulting from over-current, over-voltage, or excessive load.
(3) Any damage caused by irresistible factors (such as earthquake, fire, lightning, flood, etc.) or human factors including crushing, pulling with excessive force, pinching, dropping, or improper storage in contact with sharp or heavy objects.
(4) Any damage or malfunction not caused by the product's design, workmanship, or manufacturing quality — including normal wear and tear of cable jackets, connector plating, strain relief boots, or contact spring tension.
(5) Physical damage to plugs, sockets, connector housings, locking tabs, or terminal pins resulting from violent use, improper insertion/removal, forced connection with incompatible ports, or pulling on the cable body instead of the connector is specifically excluded from warranty coverage. This includes bent, snapped, or cracked plug shells, broken latch mechanisms, separated solder joints from excessive strain, and deformed pin contacts.
(6) Electrical damage (including melted connectors, scorched dummy battery casings, deformed DC jacks, or cable insulation shrinkage) that is determined to be caused by connection to a power source or device exceeding the product's specified voltage, current rating, or duty cycle shall not be covered under this warranty.
