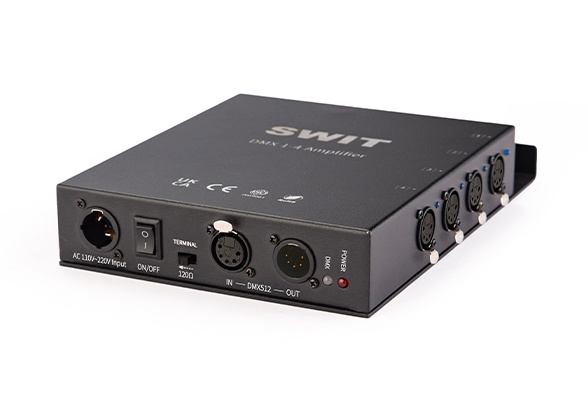

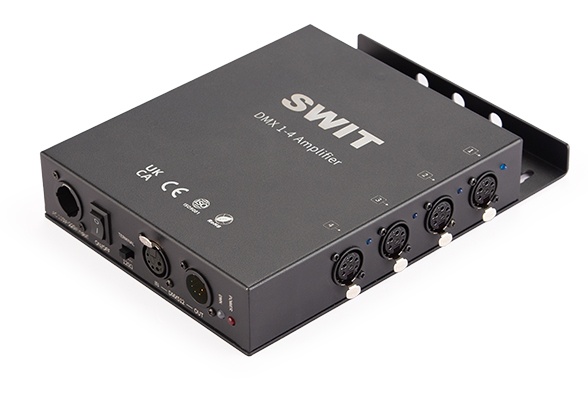

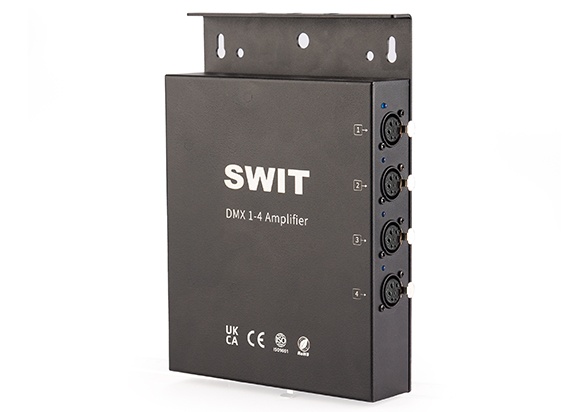

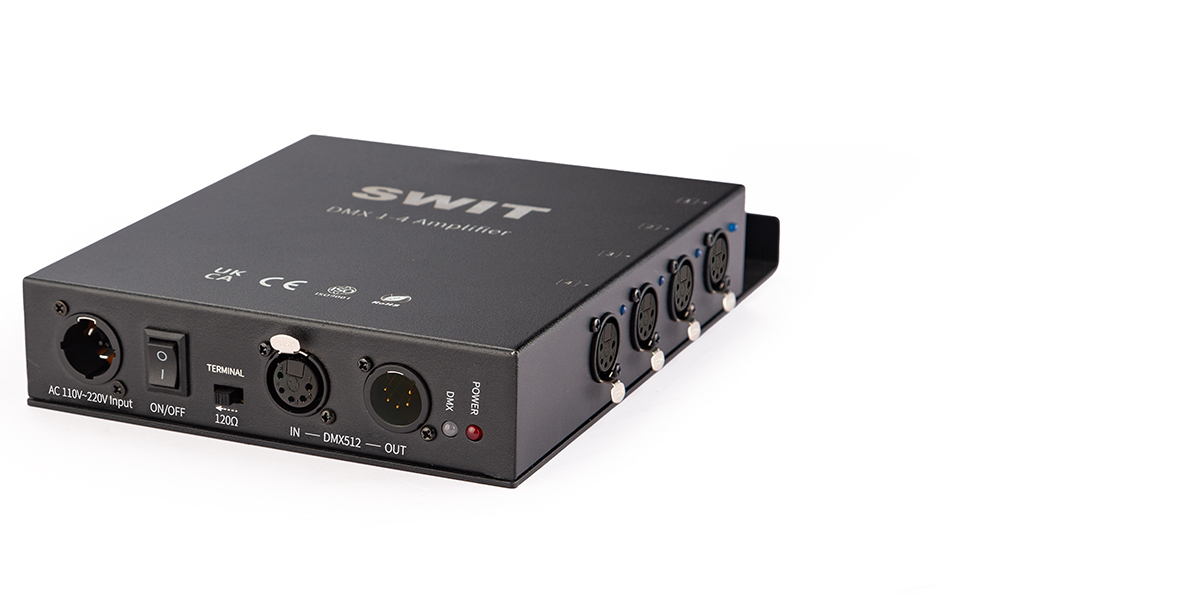

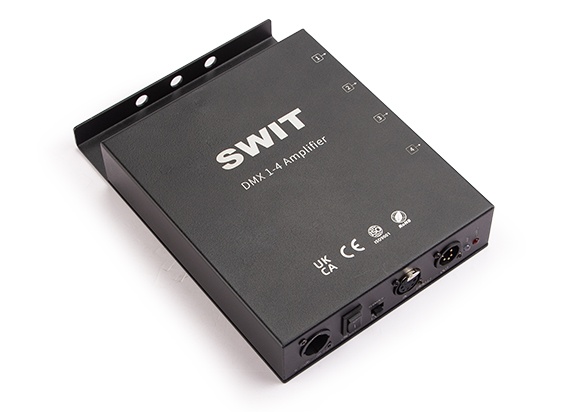

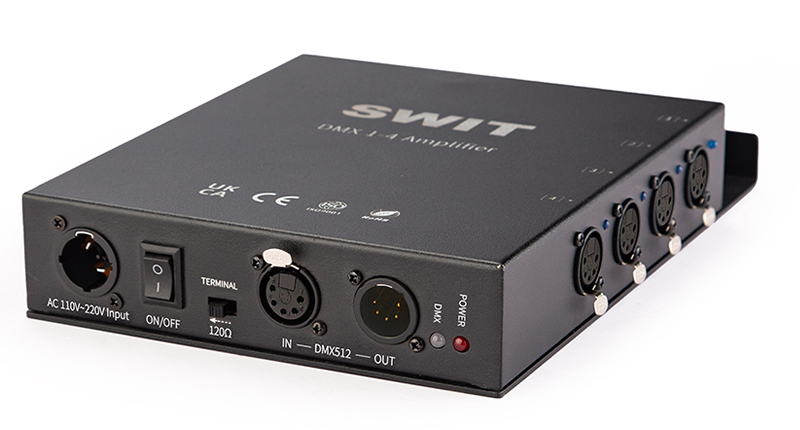

4-channel DMX512 signal converter

SA-D34 The signal amplifier is a converter for DMX512 signals. Its function is to amplify signals. It has stable performance and is easy to use. It is a newly developed product designed to address issues such as AC high - voltage reverse - connection, lamp short - circuit, lightning - induced high - voltage intrusion, and line short - circuit, which can cause high - voltage to intrude into the signal line and burn out the computer console. It is widely used in lighting suspension installation projects in variety show studios, live - streaming room lighting, virtual studios, etc.

Optical isolation protection technology

Low voltage to low voltage, each circuit with independent isolation

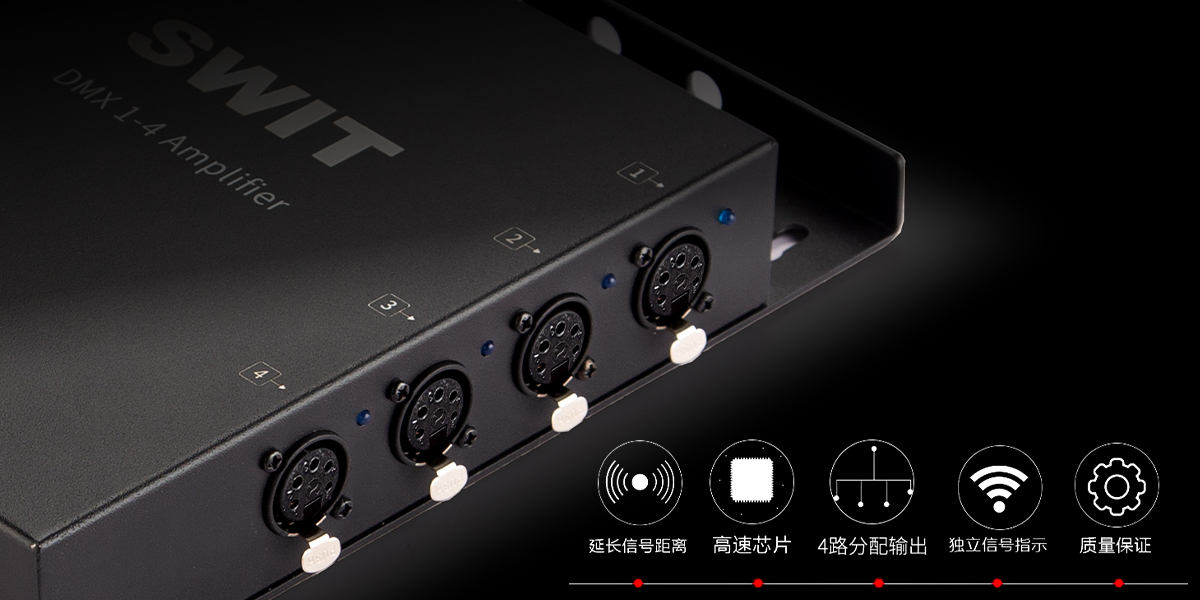

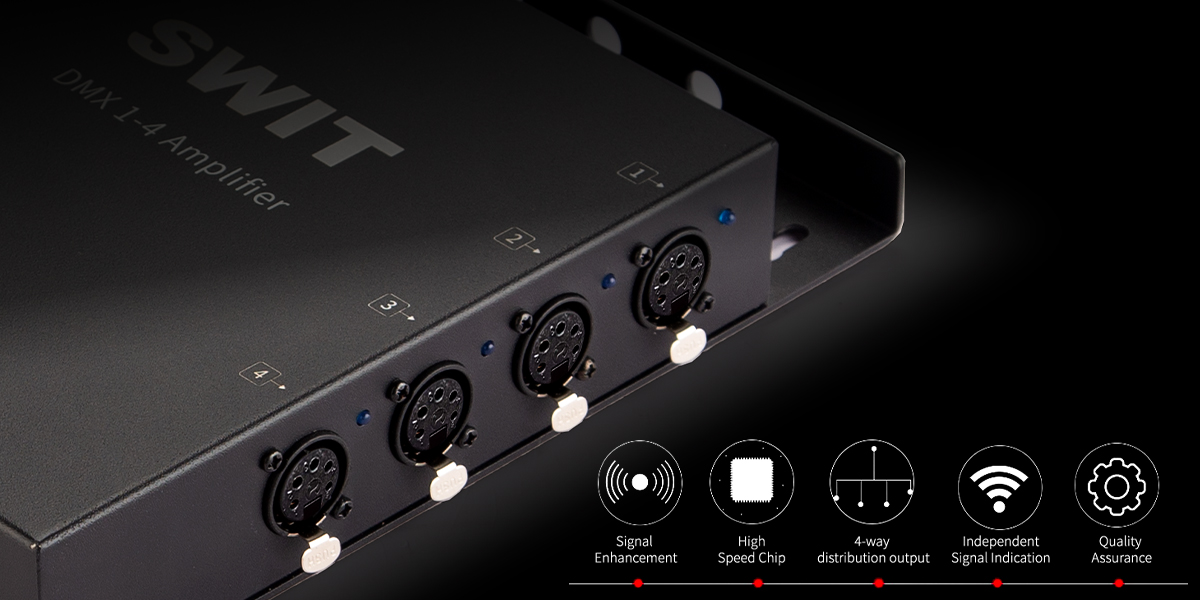

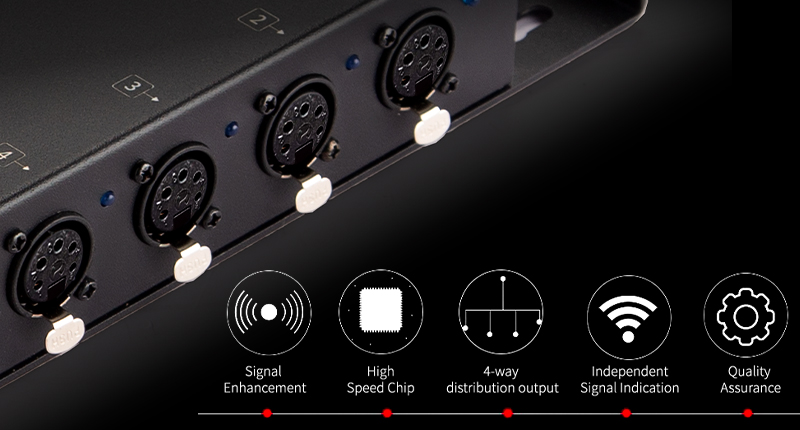

SA-D34 Adopt CPU to control amplification, input and output signals, with optoelectronic isolation protection. The 2 - input and 4 - output design effectively improves the DMX signal transmission ability and the anti - interference ability of DMX signals.The interface adopts high - voltage isolation technology, which is suitable for the shaping and amplification processing of DMX512 signals after long - distance transmission attenuation, as well as the application scenarios where complete electrical isolation is required between each distribution output interface, and between the input interface and each distribution output interface.

Independently powered, each circuit is isolated separately

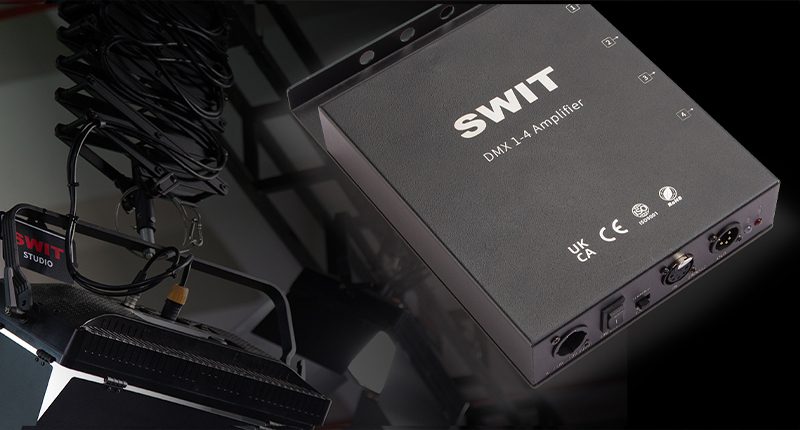

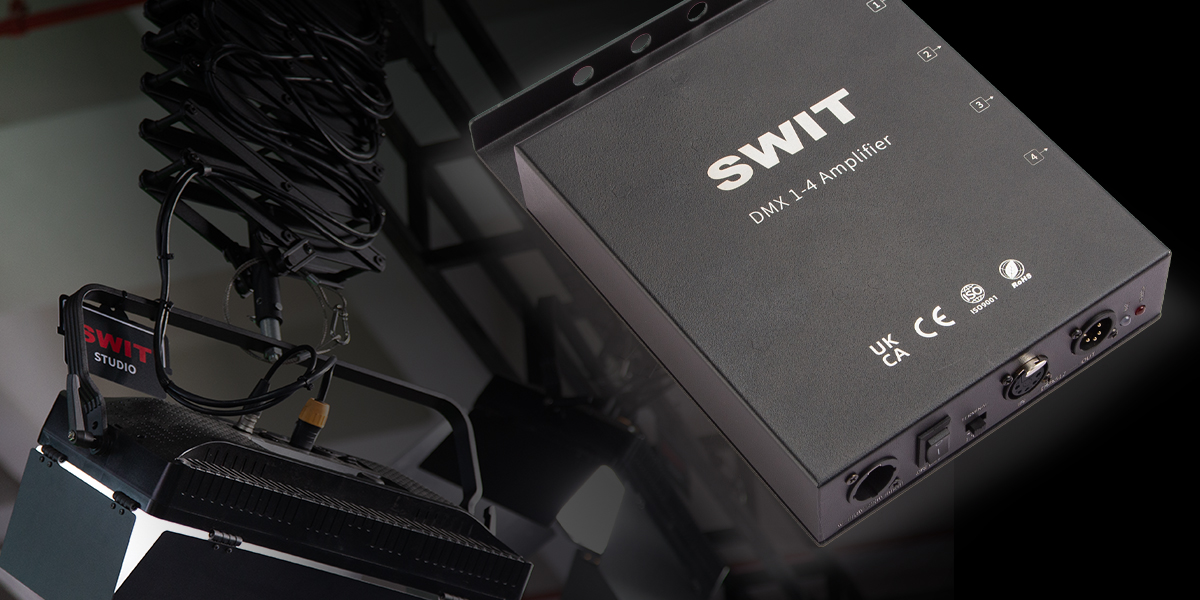

SA-D34Adopting seamless welding technology, it looks like an integrated whole. It can isolate the electromagnetic radiation and heat generated during operation to ensure the stability and high efficiency of the equipment. The newly customized circuit board can prevent problems such as AC high - voltage back - feed, lamp short - circuit, lightning - induced high - voltage intrusion, and line short - circuit, which could otherwise cause high - voltage to intrude into the signal line and burn out the computer console.

Stable and reliable, with a wide range of application fields

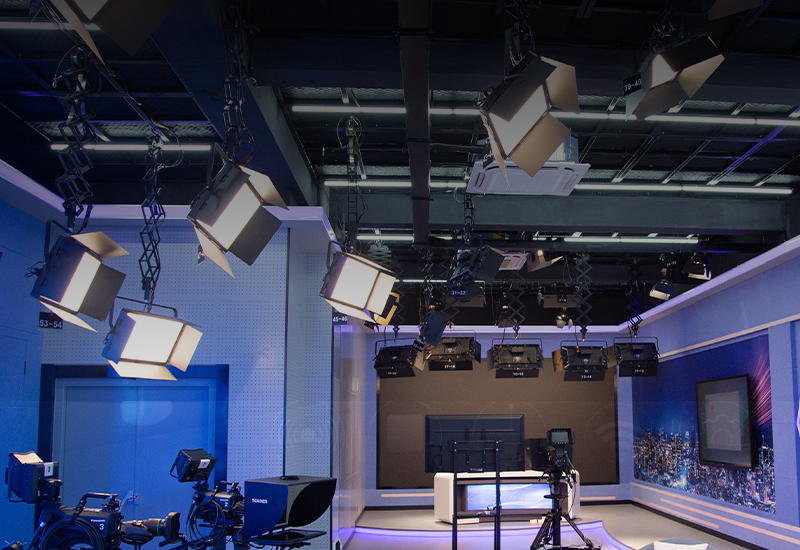

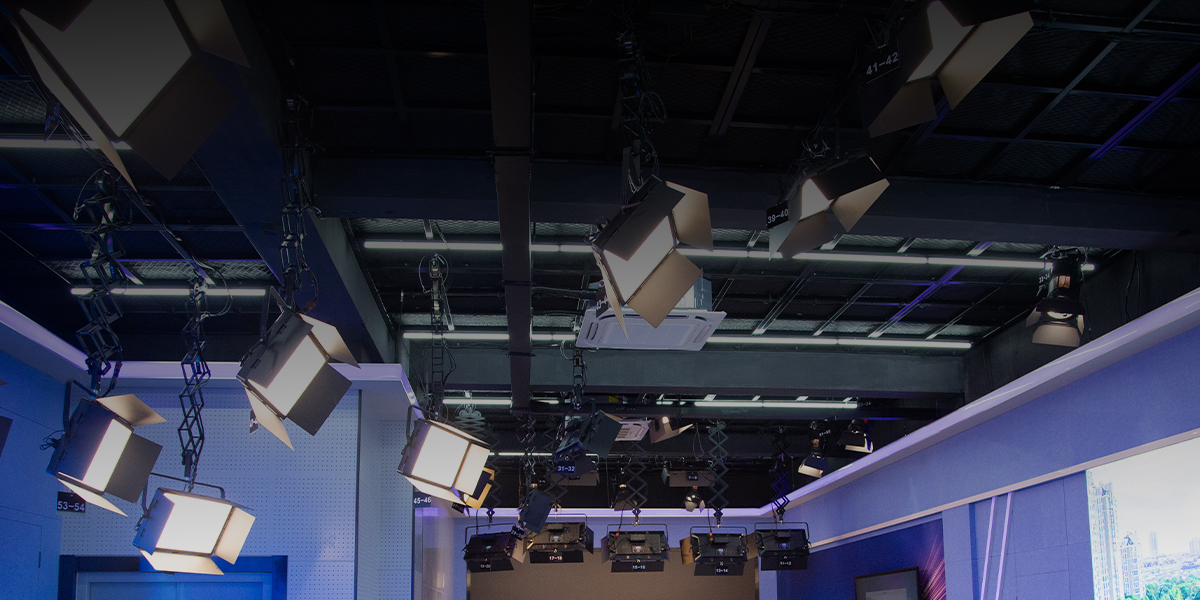

Integrated integrated circuits, stable and reliable operation, applied to various studios, conference rooms, recording and broadcasting classrooms, TV stations, schools, government and enterprises, media convergence centers, small and medium-sized studios, studio halls, interview studios, virtual studios, panoramic studios, photography studios, and dedicated DMX512 signal distributors for lighting.
