UC-2120 120W USB-C/A GaN Charger

›  Mini size GaN charger

›  2x USB-C and 2x USB-A simultaneous

›  Max 120W power output

›  Charge camera batteries with USB-C ports

›  Charge Laptops, Tablets and Smart devices

›  Provide 2x USB-C to C cables

›  EU and UK standard for option

Features

Mini Size 120W GaN Charger

UC-2120 is a GaN (Gallium Nitride) charger which is physically smaller and lighter weight than regular silicon chargers, and able to conduct far higher power and keeps heat to a minimum.
The USB-C power delivery could charge majority of Laptops, Tablets, Smart phones devices, and camera batteries with USB-C ports.


2x USB-C + 2x USB-A Simultaneous

UC-2120 GaN charger provides 2x USB-C and 2x USB-A ports simultaneous out. The power output of each port would be limited if multiple ports are used together, Max 120W output.

Single USB-C out: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A; (100W) Dual USB-C out: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A; (60W×2)

Charge Camera Batteries

The camera batteries with USB-C port can be charged at fast speed:

SWIT V-mount battery MINO-S70 (70Wh): 2 hours fully charge
SWIT V-mount battery MINO-S140 (140Wh): 3 hours fully charge
SWIT V-mount battery MINO-S210 (210Wh): 4.5 hours fully charge
SWIT B-mount battery HB-A290B (290Wh): 4.8 hours fully charge


Charge Camera Batteries

The camera batteries with USB-C port can be charged at fast speed:

SWIT BP-U battery LB-SU90C (90Wh): 2 hours fully charge
SWIT BP-A battery LB-CA90C (90Wh): 2 hours fully charge
SWIT NP-F battery LB-SF65C (65Wh): 2.5 hours fully charge
SWIT VBR59 battery LB-PD65C (65Wh): 2.5 hours fully charge

Charge Laptops and Smart Devices

You can charge high power laptops or tablets via USB-C port, and lower power smartphones, earphones by USB-A port together, for travel carrying convenience.

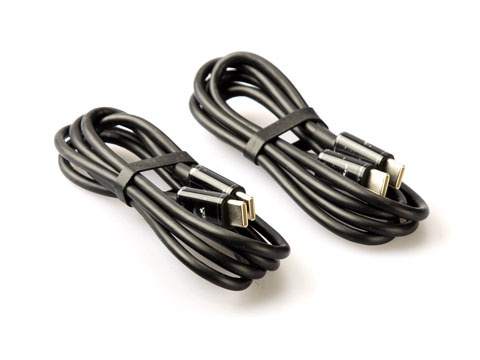

Provide 2x USB-C to C Cables

The UC-2120 package provides 2x USB-C to USB-C cables for charging 2x batteries together.

EU and UK Standard for Option

You can select EU power plug Type C (SKU: UC-2120E) or UK power plug Type G (SKU: UC-2120U) for option, CE and UKCA certificated.



Input Voltage (Nominal)

AC100V-240V, 50/60Hz

Voltage Range

AC 90V-264V

Output power

120W Max

 USB-C only

USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, Max 100W

 USB-A only

USB-A: 4.5V/5A, 5V/3A, 9V/3A, 12V/3A, 20V/1.5A, Max 36W

 USB-C + C

USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 60W+60W

 USB-A + A

USB-A: 5V/3A, Max 15W in total

 USB-C + A

USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A

USB-A: 5V/3A, 9V/2A, 12V/1.5A

Max 100W+18W

 USB-C + C + A

USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A

USB-A: 5V/3A, 9V/2A, 12V/1.5A

Max 45W+45W+18W

 USB-C + A + A

USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A

USB-A: 5V/3A

Max 100W+15W

 USB-C + C + A + A

USB-C: PD 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A

USB-A: 5V/3A

Max 45W+45W+15W

Working Environment

Temp -10°C to 40°C; Humidity 10%RH to 90% RH

Storage Environment

Temp -10°C to 85°C; Humidity 10%RH to 90% RH

Dimension

77.3mm × 60.5mm × 31.5mm

Weight

Net 255g; With package 0.4kg

Basic Package

MSRP

MSRP

MSRP

  • USB-C to C Cable x2

  • MINO-S140

    140Wh Pocket V-mount Battery Pack

    USB-C 48W in, 65W out, 150W/12A high load, D-tap, wire-free internal tech

  • HB-A290B

    290Wh 28.8V B-mount Battery Pack

    ALEXA 35 battery, 250W/10A high load, D-tap 16V x2, USB-C 60W in&out, OLED power info

  • LB-CA90C

    Canon BP-A Series Battery Pack

    90Wh, with D-tap and USB-C 45W in and out, Canon EOS-C70, C80, C200, C300MK2, C400, C500MK2, XF605/705

  • LB-SU90C

    SONY BP-U Series Battery Pack

    90Wh, with D-tap and USB-C 45W in and out, SONY FS5/FS7, PXW-Z200, HXR-NX800, FX6/FX9, Z280/X280 etc

  • LB-PD65C

    Panasonic VBR59 Series Battery Pack

    65Wh, Reg. 12V D-tap out, USB-C 25W in and out

  • LB-SF65C

    SONY L Series NP-F Battery Pack

    65Wh, Reg. 12V D-tap output, 25W USB-C in & out
