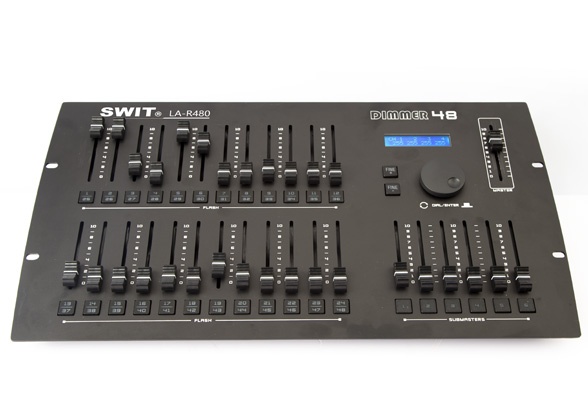

LA-R480 48-ch DMX512 Light Console

›  Standard DMX512 console with isolater

›  24x channel sliders with A/B switch to 48-ch

›  6x submaster slider and 1x master slider

›  Up to 4 units serial connection to 192 channels

›  LCD display DMX values of each channel

›  Flash control buttons for each slider

›  19-inch rack mountable


Features

48-ch DMX Console

LA-R480 is a Zero-basis operatable standard DMX512 light console of 24 channel sliders and Page A/B switch to control 48 channels in total.



Interface

LA-R480 supports AC 88-256V 50/60Hz input and loop output, RS232 remote control, RJ45 serial link ports and DMX sockets of both 3-pin male and female.

Submaster and Master Control

LA-R480 provides 6x Submaster sliders to group any of the 48 channels, and a Master slider to control all connected lights. The LCD displays exact values of every DMX channel.

Serial Connection to Max 192-ch

You can connect up tp 4x LA-R480 by RJ45 cables, to expand DMX channels to Max 192. The Master unit is in charge of DMX 1-48, and the Slave units are DMX 49-96, 97-144 and 145-192.

Channel

48

Submaster

6

Master

1

DMX

3-pin XLR Female x1; Male x1

Serial connection

4 units, Max 192-ch

Power

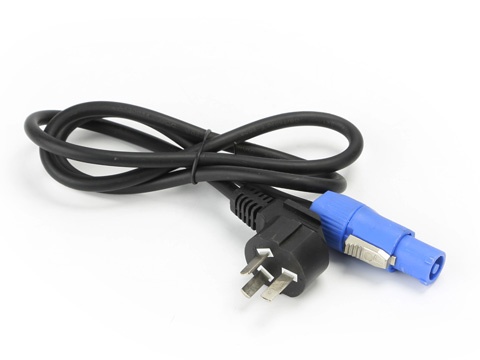

PowerCON AC 88-256V 50/60Hz IN x1; LOOPx1

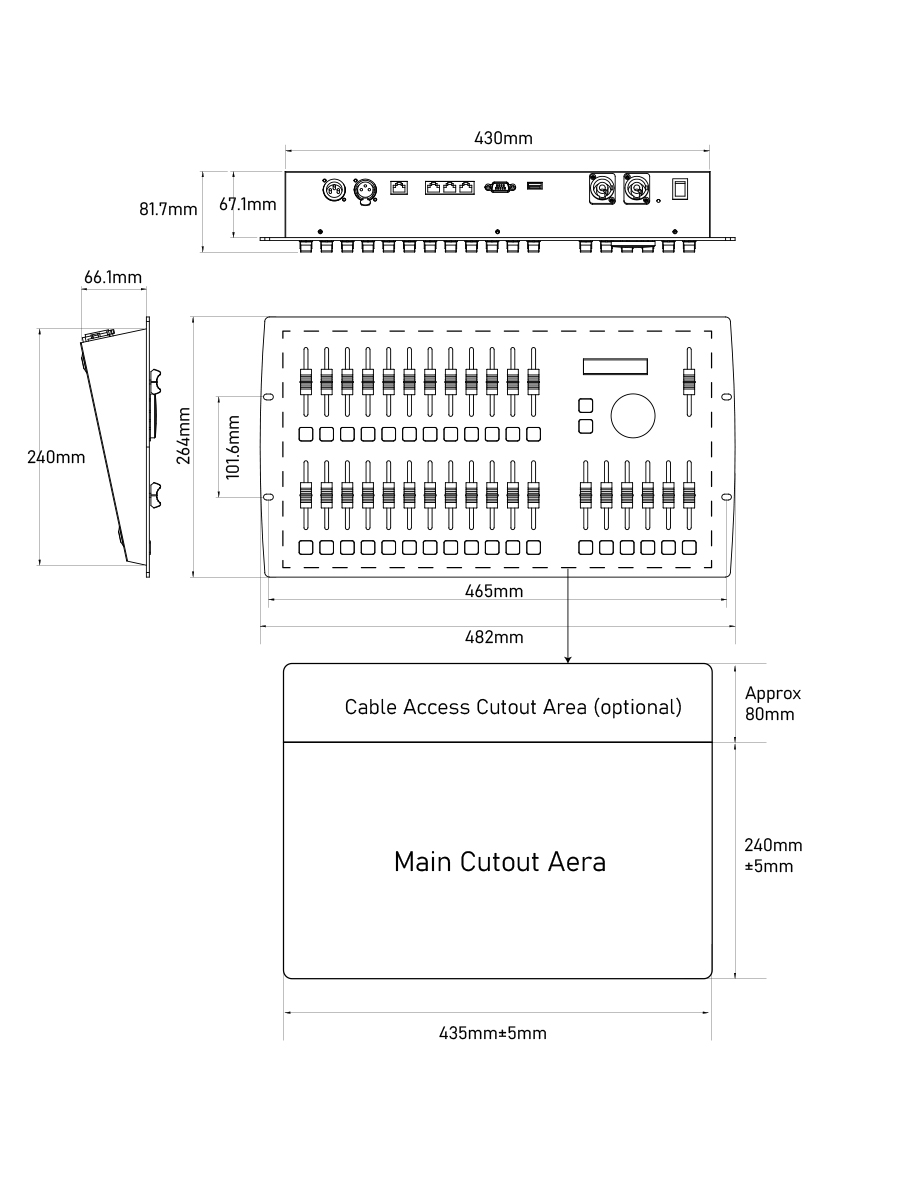

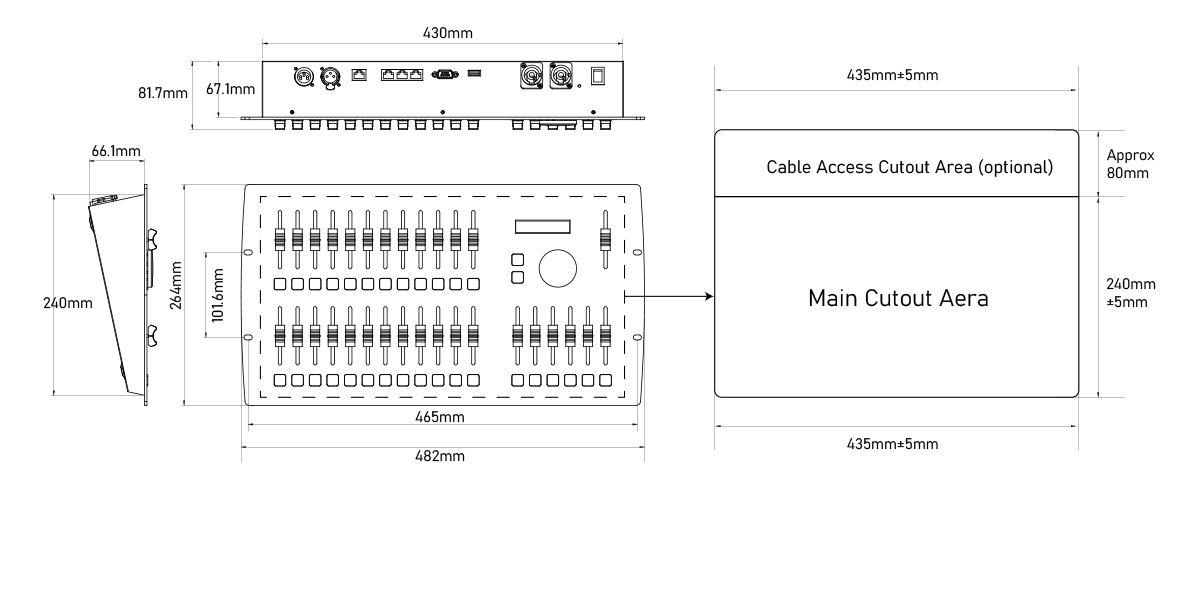

Dimension

482×265×75mm

Weight

2.65kg
Basic Package

MSRP

MSRP

MSRP

  • LA-WR8

    Pocket Wireless DMX Console

    8-ch×7 groups, 2.4G wireless DMX control, pocket fit size, for all standard DMX lights

    $8222
  • LA-R240

    24-ch DMX512 Light Console

    24x channel slider, 6x Submaster, 1x Master, 4 units serial connection to 96-ch
