◆ 14.4V nominal voltage Li-ion battery
◆ Canon BP-A30/A60 battery comparable
◆ For Canon EOS-C70, C80, C200, C300MK2, C400, C500MK2
◆ For Canon XF605, XF705
◆ 90Wh / 6.2Ah capacity
◆ Built-in 14.4V D-tap output / Charging input
◆ Built-in 45W USB-C input and output
◆ 4-level LED power indicator
◆ Multiple circuit protections

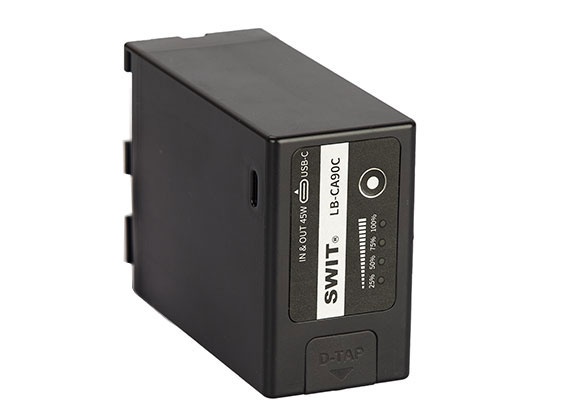

90Wh Canon BP-A Battery
with D-tap and USB-C
LB-CA90C is a 90Wh large capacity Canon BP-A
compatible battery with D-tap output and 45W
USB-C in/out, for Canon EOS C70, C200, C300MK2,
C500MK2, C80, C400*, XF605, XF705 cameras.
*Same functions as BP-A30/60
90Wh Large Capacity
LB-CA90C consists of 8pcs battery cells,
14.4V nominal voltage, 90Wh/6200mAh
large capacity to keep cameras powered
for longer time. The constant power load
is 50W/4A.
14.4V D-tap Power Socket
The LB-CA90C BP-A battery provides a D-tap power
socket of 11-16.8V voltage, 50W/4A load for various
kinds of video devices. You can also charge the battery
via the D-tap socket.
USB-C 45W for Laptop
LB-CA90C provides a USB-C socket of
5V/9V/12V/15V/20V(Max) 2.25A, 45W power
output for various kinds of laptop, tablets or
smart phones, supports BC1.2, PD2.0/3.0,
QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook 13, Macbook Pro 13/15, ThinkPad
New S2/T470/X270, Dell XPS 13/Latitude, HP
Spectre x360-13/EliteBook Folio G1, Samsung
Chromebook Plus, Google Pixelbook, Huawei
Matebook, etc)
USB-C 45W Charging Input
You can also charge LB-CA90C by USB-C charger.
Supports 5V/9V/12V/15V/20V(Max) 2.25A, 45W
power input, which means you can fully charge the
90Wh battery within 3 hours.
4-level Power Indicator
Press the power check bottom, the 4-level
LEDs indicates remaining power percentage.
D-tap Charging
Besides USB-C charging, you can charge LB-CA90C via D-tap socket, by SWIT ultra portable 2-way D-tap charger PC-U130B2, fully charge within 2h 40m.
Canon Charger Compatible
You can also use Canon origial charger CG-A10 or CG-A20 to charge LB-CA90C within 5 hours.
Nominal Voltage | 14.4V |
Capacity | 90Wh, 6.2Ah |
Max power load | 50W, 4A |
D-tap | 14.4V, 50W, 4A |
USB-C | 45W input: 5V/9V/12V/15V/20V, 2.25A 45W output: 5V/9V/12V/15V/20V, 2.25A BC1.2, QC2.0/3.0, PD2.0/3.0, FCP, SCP |
Original batteries | Canon BP-A30, BP-A60 |
Compatible cameras | Canon EOS-C70, EOS-C80, EOS-C200, Canon EOS-C300 Mark ii, EOS-C500 Mark ii Canon EOS-C400* Canon XF605, Canon XF705 *Same functions as BP-A30/60 |
Dimension | 70×42×96mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C (Capacity and Max Load may decrease when operating below 0°) |
Net weight | Net 460g; With package0.45kg |
MSRP
MSRP
MSRP
We provide 1 year conditional warranty, and the following damages/issues are not covered under warranty:
(1) Any damage or breakdown caused by use, maintenance, or storage not according to the User Manual’s instructions, or disassemble, repair without authorization of SWIT.
(2) Battery performance declines, cannot be charged or any charging errors caused by using third-party chargers.
(3) Battery capacity naturally decreased after a certain cycle times of charging and discharging.
(4) The capacity loss caused by over 6-month’s storage, and not charging the battery to re-active it during the period.
(5) Any damage caused by irresistible factors (such as earthquake, fire, lightning etc.) or human factors.
(6) Any damage or breakdown not caused by the product’s design, workmanship, or manufacturing quality, etc.
