› Chip on board COB LED technology
› 23W, 1800Lux @ 1 meter, dimmerable
› 100W equivalent output
› Single shadow, glareless
› 60° wide beam angle, equally spread
› Cool touch
› 5000K color temperature
› 5600K and 3200K filter
› 6-17V wide input voltage
› Interchangeable DV mount and battery
› Screw and cold shoe mount
Chip-on-board LED
Brighter and Non-glaring

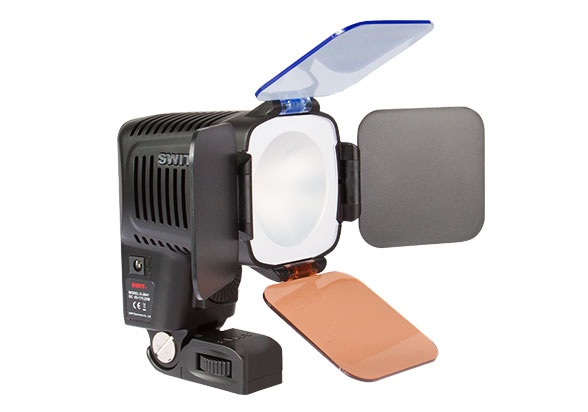

The S-2041 on-camera LED light adopts the new
generation Chip-on-board LED,
which integrates the LEDs into a chip with high
brightness output but in smaller size, and the most
remarkable, it offers a equally spread, soft, glareless
light, similar to the traditional Halogen bulb light.
23W Light Output, 100W Equivalent
1800 Lux @ 1 meter distance and 1 meter scale
S-2041 feeds 23W light output, and equivalent to an 100W
halogen bulb. The illuminance is 1800 Lux at 1 meter distance
and 1 meter scale.
Wider Beam Angle
Equally spread lights, no visible beam edge
The traditional LED lights use lens to converge and get a higher brightness, but dropped down quickly around, which will generate a
visible lighting border in the image.
In comparison, the COB LED generates a wider beam angle, equally spread from the center to edge, and suitable for HD shooting.
Glareless light, Single Shadow
The traditional LED array always generates several highlight pots on retina and people will feel glaring, even can’t recover sight until a
few seconds. In comparison, the SWIT Chip-on-board LED has only one bulb in appearance, and output a glareless, single shadow light,
suitable for close interview shooting.
3200K/5000K/5600K Color Temperature
The S-2041 LED has 5000K color temperature and also equipped with a 5600K (Daylight) and a 3200K (Tungsten) color temperature
filter. You can switch the color temperature easily.
6-17V Wide Voltage Power Supply
The S-2041 accepts 6-17V wide voltage input, so you can get power from 14.4V V-mount/Gold Mount batteries or 7.2V DV batteries.
The light package goes with a D-tap to pole-tap cable (S-7104), to plug into the DC-IN port of S-2041 and get power from D-tap power
output sockets, such as batteries, battery plates, or camera handle.
You can also directly mount a 7.2V DV battery onto the rear of S-2041, by the particular battery plate.
Interchangeable DV plates
You can power the S-2041 by most popular DV batteries,
via the easy interchangeable DV battery plates. We supply
the following DV plates for optional:
S-7004F | SONY NP-F970/770 |
S-7004U | SONY BP-U60/U30 |
S-7004D | Panasonic CGA-D54/D28 VW-VBD58 AG-VBR59 |
S-7004B | Panasonic VW-VBG6 |
S-7004J | JVC BN-V428U |
S-7004V | JVC BN-VF823 |
S-7004I | SSL-JVC50 |
S-7004C | Canon BP-945/970G |
S-7004E | Canon LP-E6 |
Input voltage | DC 6V-17V |
Power consumption | 23W |
Halogen equivalent | 100W |
Beam Angle | H60°/ V60° |
Color temperature | 5000K and 5600K/3200K switchable |
Color rendering index | 85 |
Illuminance | 1800Lx @ 1m distance and 1m diameter scale |
Power connector | D-tap cable, DV mount connection |
Dimensions | 103×157×84mm |
weight | Net 400g; With package 0.95kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-
Bag
-
Cold shoe Base
-
S-7104 D-tap to Pole tap cable
-
Optional purchase S-7004 battery plate (U/F/D/B/C/V/I/E selection)
-
S-7108
DC cable with both ends of 5.5mm Pole-tap connector -
S-7004F
SONY NP-F DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004U
SONY BP-U DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004D
Panasonic CGA/VBD DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004B
Panasonic VBG DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004C
Canon BP DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004E
Canon DSLR Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004i
JVC SSL DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable. -
S-7004V
JVC BN-VF DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
1. Warranty Period
We provide 1 year conditional warranty for lighting products.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents, including but not limited to damage to LED emitters, circuits, or housings, personal injury, or property loss, are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with Operating Procedures
Operation, installation, or removal of equipment and accessories not in accordance with the User Manual; forcible removal of connection cables or power cables; obstruction of heat dissipation vents; direct visual exposure to LED emitters; failure to follow the prescribed sequence for startup/shutdown or wiring.
(2) Non-Compliant Power Supply and Accessories
Use of non-original SWIT power supplies, power cables, chargers, optical accessories, or other uncertified third-party accessories; powering the product with third-party power adaptors; use of extension cables or power adaptors with mismatched rated parameters.
(3) Unauthorized Modification and Repair
Unauthorized disassembly, modification, or repair of the equipment; tampering with core components or circuits; failure to contact SWIT authorized after-sales service upon equipment malfunction, resulting in unauthorized repair or aggravated damage by non-authorized personnel.
(4) Misuse and Adverse Environmental Conditions
Damage resulting from dropping, impact, compression, puncture, water immersion, exposure to high temperatures or direct sunlight, extreme cold, humidity, excessive dust, or other non-normal use environments or human-inflicted damage.
(5) Failure to Address Abnormal Conditions
Continued operation despite abnormal conditions such as overheating, abnormal odor, or abnormal noise, resulting in damage or safety incidents; use of damaged or malfunctioning accessories or batteries in violation of regulations.
(6) Out-of-Specification and Incompatible Use
Operation beyond the equipment's rated parameters; use in incompatible systems or environments; failure to implement protective measures during outdoor use, resulting in damage from severe weather conditions.
(7) Force Majeure and External Factors
Damage caused by irresistible factors (including but not limited to earthquake, flood, or typhoon), sudden voltage fluctuations, or external circuit short circuits.
(8) Natural Wear and Tear
Normal aging of LED emitters, wear of accessories, and other natural degradation of the product.
(9) Improper Storage
Failure to store equipment and accessories in accordance with prescribed specifications, resulting in moisture ingress, dust accumulation, or component corrosion.
(10) Non-Authentic Products and Ineligibility
Products not purchased through official SWIT channels, or products with altered or missing serial numbers that preclude verification of authenticity and warranty eligibility.
(11) Liability Disclaimer
All risks and consequences arising from improper use, human factors, or external factors shall be borne entirely by the user.
(12) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
