› 560pcs RGBW SMD LEDs
› 400W light output
› 10000Lux @ 1 meter
› 2800-10000K color temperature
› CCT mode with G/M adjustment
› HIS / CIE / RGB color mode
› 20x Rosco and 20x Lee Gels
› CRI 95, TLCI 93
› 8-ch DMX control
› IOS/Android APP control

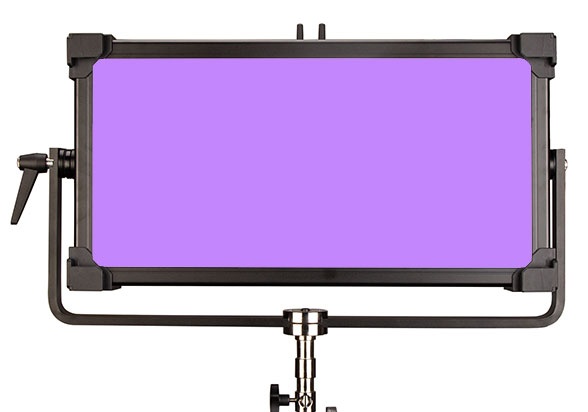

400W RGBW 2:1 Panel
560pcs SMD LEDs
S-2840 is an RGBW 2:1 panel LED light, adopts
560pcs SMD LEDs, 400W power output,
10000Lux @ 1 meter.
Smart Phone APP control
IOS and Android

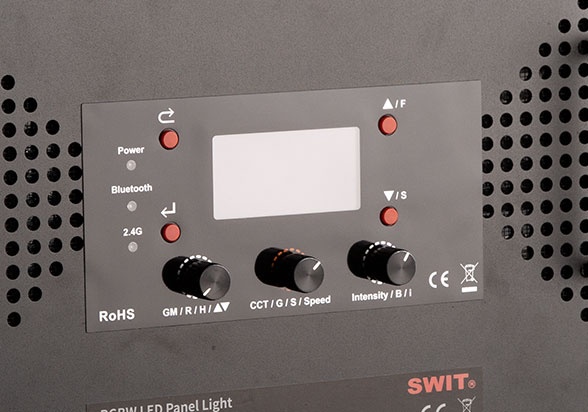

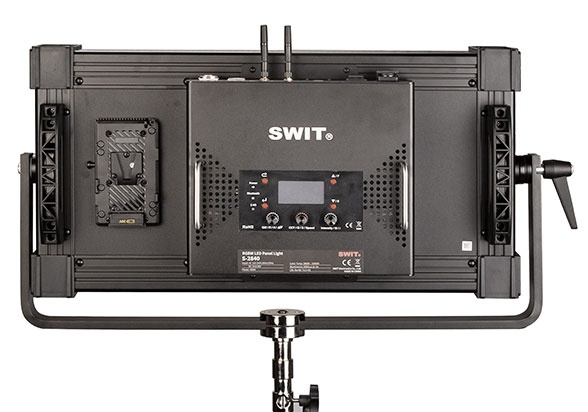

S-2840 has a control panel on the rear side, and can also
be operated by Smart Phone APP.
IOS APP: App Store, search “RGB Panel”
Android APP: Download HERE.
CCT Mode
2800K-10000K, G/M adjustment
The color temperature mode achieves
2800K-10000K continuous adjustment and
Green / Magenta ±1.00 adjustment.
RGB Mode
HSI, CIE and RGB pick
Support HSI mode, CIE mode, RGB mode to pick
colors, by rear control panel value setting or
smart phone APP.
GEL Mode
Built-in Rosco and Lee Gels
S-2840 has built-in 20x Rosco Gels and 20x Lee Gels to easily switch by rear control panel or smart phone APP.
Power Input
AC, V-mount DC
S-2840 supports SpeakOn AC power input and 4-pin XLR DC 14.8-26V input. Provides with standard V-mount
plate.
(The output power will be limited to 200W if using DC-IN or V-mount battery)
Model | S-2840 |
Color Temperature | 2800K-10000K |
G/M adjustment | ±1.00 |
Luminance | 10000Lux @ 1meter |
Beam Angle | 70° |
Color rendering | CRI 95; TLCI 93 |
Input voltage | AC 100-240V, 50/60Hz; DC 14.8-26V |
Power output | AC-IN 400W; DC-IN 200W |
Dimension | 629mm × 331mm × 195mm |
weight | Net 14.4kg; With package 27.18kg |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

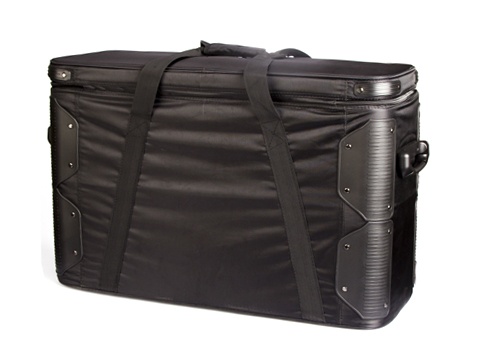

Carrying case
-

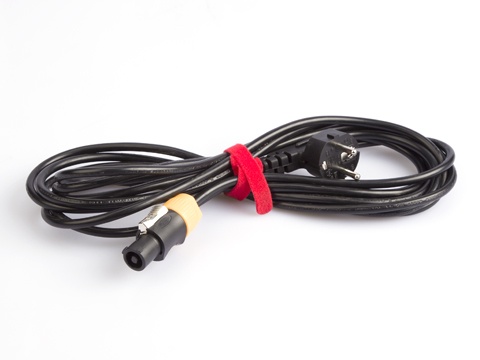

AC to SpeakON power cable
-

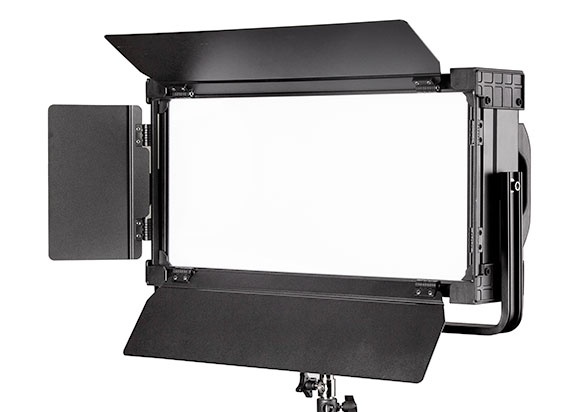

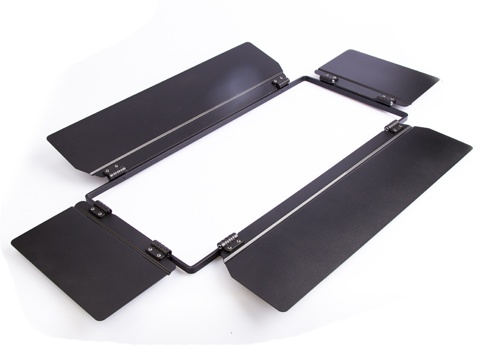

Barn door kit
-

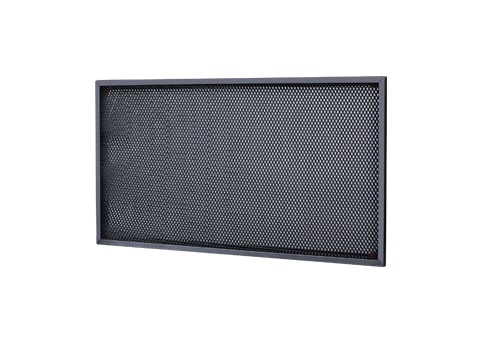

LA-G840
Honeycomb 40°, metal, Snap onto the front frame of the light -
LA-B840

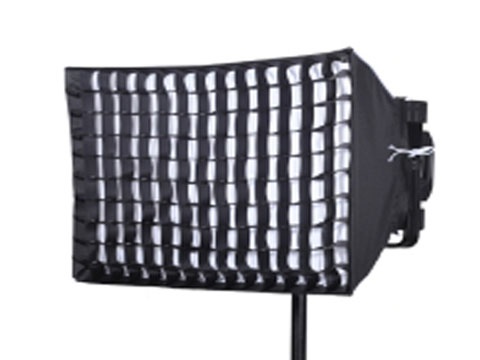

Diffuser Box with eggcrate
1. Warranty Period
We provide 1 year conditional warranty for lighting products.
2. Exclusions from Warranty Coverage
The following damages, malfunctions, failures, or safety incidents, including but not limited to damage to LED emitters, circuits, or housings, personal injury, or property loss, are not covered under warranty, and SWIT shall bear no liability therefor:
(1) Non-Compliance with Operating Procedures
Operation, installation, or removal of equipment and accessories not in accordance with the User Manual; forcible removal of connection cables or power cables; obstruction of heat dissipation vents; direct visual exposure to LED emitters; failure to follow the prescribed sequence for startup/shutdown or wiring.
(2) Non-Compliant Power Supply and Accessories
Use of non-original SWIT power supplies, power cables, chargers, optical accessories, or other uncertified third-party accessories; powering the product with third-party power adaptors; use of extension cables or power adaptors with mismatched rated parameters.
(3) Unauthorized Modification and Repair
Unauthorized disassembly, modification, or repair of the equipment; tampering with core components or circuits; failure to contact SWIT authorized after-sales service upon equipment malfunction, resulting in unauthorized repair or aggravated damage by non-authorized personnel.
(4) Misuse and Adverse Environmental Conditions
Damage resulting from dropping, impact, compression, puncture, water immersion, exposure to high temperatures or direct sunlight, extreme cold, humidity, excessive dust, or other non-normal use environments or human-inflicted damage.
(5) Failure to Address Abnormal Conditions
Continued operation despite abnormal conditions such as overheating, abnormal odor, or abnormal noise, resulting in damage or safety incidents; use of damaged or malfunctioning accessories or batteries in violation of regulations.
(6) Out-of-Specification and Incompatible Use
Operation beyond the equipment's rated parameters; use in incompatible systems or environments; failure to implement protective measures during outdoor use, resulting in damage from severe weather conditions.
(7) Force Majeure and External Factors
Damage caused by irresistible factors (including but not limited to earthquake, flood, or typhoon), sudden voltage fluctuations, or external circuit short circuits.
(8) Natural Wear and Tear
Normal aging of LED emitters, wear of accessories, and other natural degradation of the product.
(9) Improper Storage
Failure to store equipment and accessories in accordance with prescribed specifications, resulting in moisture ingress, dust accumulation, or component corrosion.
(10) Non-Authentic Products and Ineligibility
Products not purchased through official SWIT channels, or products with altered or missing serial numbers that preclude verification of authenticity and warranty eligibility.
(11) Liability Disclaimer
All risks and consequences arising from improper use, human factors, or external factors shall be borne entirely by the user.
(12) Non-Quality Defects
Any damage or breakdown not caused by the product's design, workmanship, or manufacturing quality.
