CL-60D 60W 1:1 Bi-color SMD LED panel light

›  900pcs ultra bright long-life LEDs

›  SMD Surface mounted LED technology

›  65° wide beam angle, equally spread

›  2700K-6500K continuously adjustable

›  60W power, 2000Lux @ 1meter

›  0-100% flick-free dimming

›  Super high CRI 98, TLCI 99

›  DMX512 controlled color and dimmer

›  LCD display color and dimmer value

›  Power by V/Gold mount battery or AC adaptor

›  4-leaf metal barn doors and Yoke bracket

›  Optional 40° honeycomb


Features

SMD LED Studio Light

Brighter, softer, wider beam angle

CL-60D is a 60W 1:1 Bi-color SMD LED panel light, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, mobile studio, live streaming studio or interview kit applications.



900pcs Surface Mounted LEDs

CL-60D adopts 900pcs SMD LEDs, featured:
(1) higher uniformity of illuminance;
(2) wider beam angle;
(3) higher color rendering index;
(4) Softer and Brighter;
(5) longer life time,
which is an ideal light source for Broadcast studios, green keyer, interview kit, live streaming etc.



2000 Lux @ 1 meter

CL-60D outputs 60W power, feeds 2000Lux luminance at 1 meter distance (center), supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

Wider Beam Angle

The SMD LEDs have wider beam angle comparing to the traditional DIP LED bulbs. It will generate an equally spread area light from center to edge, instead of a glaring light spot that suddenly declined from center to edge.
The wider angle equally spread light produces a nature light environment in studio.

Bi-color temperature

2700K-6500K continuously adjustable

CL-60D alternated with 2700K and 6500K LEDs, and can be continuously adjusted between 2700K and 6500K, 50K step.

Accurate Color Render

CRI 98; TLCI 99

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consis- tency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while CL-60D offers the super high CRI at 98 and TLCI at 99, and will not lose the object original colors.

DMX512 Control

5pin XLR in and out

DMX address: N= Dimmer; N+1= Color temp Provides a 5V USB power output socket. You can use SWIT LA-WR8 Pocket Wireless DMX controller and power the wireless DMX adaptor by the on board USB socket.
Press and hold dimmer knob for 2 seconds to enter DMX address setting from 001 to 512.

LCD screen display

Dimmer / color temp / DMX address

The rear LCD screen can display the current dimmer percentage, color temperature value, DMX channel and CH channel, and remaining battery indications.

DC 11-17V Power Supply

By V-mount battery or AC-DC adaptor

CL-60D supports 11-17V voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries. (The default bat- tery plate is V-mount.)

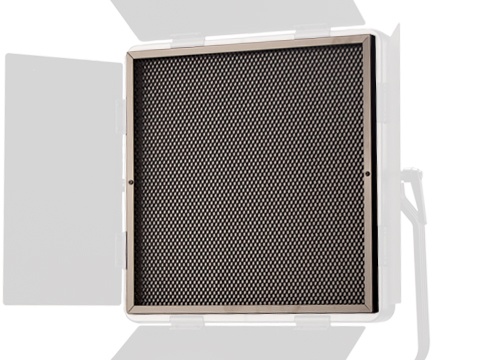

Optional Honeycomb

CL-60D provides a 40° metal honeycomb plate for optional purchase. The honeycomb can be used together with barndoors.
Honeycomb Part number: LA-G60



LED

900pcs SMD LEDs

illuminance

2000Lux @ 1m

Beam angle

65°(between 50% boundary)

Color Temperature

2700K ~ 6500K

CRI

98

TLCI

99

Power

60W

Working voltage

DC11V~17V

Dimension

354×354×73.5mm

Lighting area

310×310mm

weight

3.2kg with metal barndoor
Basic Package

Single Light Package

MSRP

3-Light Kit Package

MSRP

MSRP

  • CL-60D light

  • AC-DC Adaptor

  • Bag

  • CL-60D Light x3

  • AC-DC Adaptor x3

  • Light stand x3

  • Trolley Case

  • LA-G60

    Honeycomb 40°, metal, install to the front frame of the light, can work together with barndoors
